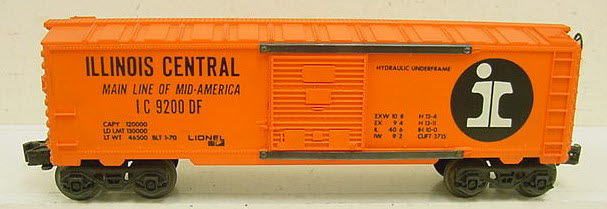

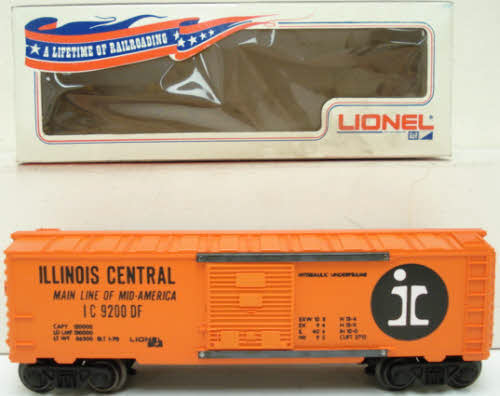

9200 Illinois Central--The only car in the series catalogued during the entire 3-year run of the 9200s. Thus, the 9200 is the only car in the series that can exhibit every possible production variation.  Later 9200s with molded-in bottom door guides are harder to find than the earlier variations. It was sold separately and included in several sets.

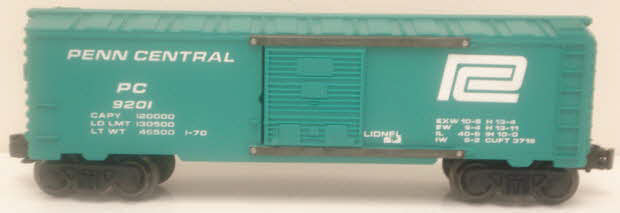

9201 Penn Central--Made only one year, the Penn Central is a bit harder to find than some of the other cars in the series.  9201s only exhibit the characteristics of early 9200s--blank end boards, AAR trucks, metal door guides, and were packaged in the early white boxes.

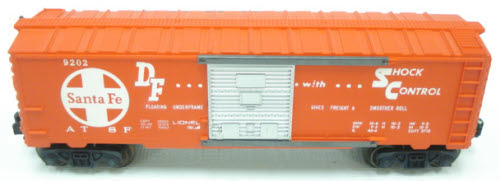

9202 Santa Fe--Like the 9201, the 9202 was available only one year and shows up a bit less often.  Like the 9201, all 9202s have metal door guides, blank end boards, and AAR trucks.  There is also a very rare preproduction variation of the 9202. It is orange with black lettering, similar to the 9200.  According to the Lionel Collectors Guide and History, Volume 4, by Touhy and McComas, just 69 of these orange and black cars were made.

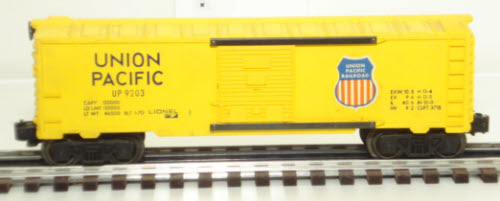

9203 Union Pacific--All 9203s have the same early features of the 9201 and 9202, but all 9203s also have the incomplete rivet row just to the right of the door, legacy from the old 6464 cars.  This feature makes it likely that the 9203 was the first of all 9200s produced (it's unlikely Lionel would have removed the rivet row from the mold and then put it back into the design for no apparent reason).  The UP herald is a decal, and it is oftentimes chipped.

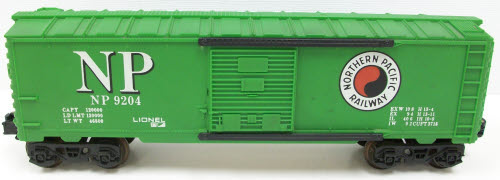

9204 Northern Pacific--The 9204 had two distinct production runs. Early cars, like the one shown below, had blank end boards, metal door guides, AAR trucks, and were a dark green. Later 9204s, like the one shown to the left, had 9200 end boards, plastic door guides, and the later truck design.  Later 9204s were also painted a lighter shade of green.

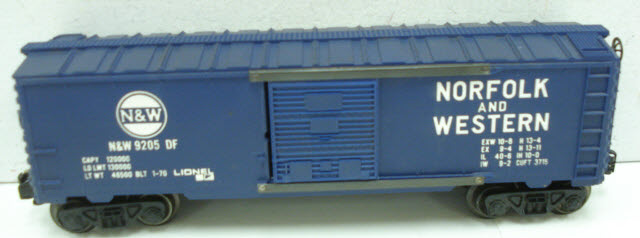

9205 Norfolk and Western--Another of the early 9200s, the N&W has metal door guides, AAR trucks, and blank end boards.

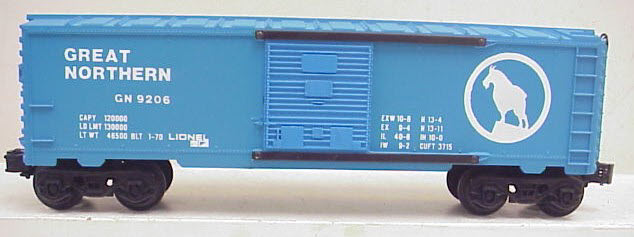

9206 Great Northern--The GN occasionally shows up in a later red and white box, indicating 1972 production.  This is one of the easiest cars in the series to locate.

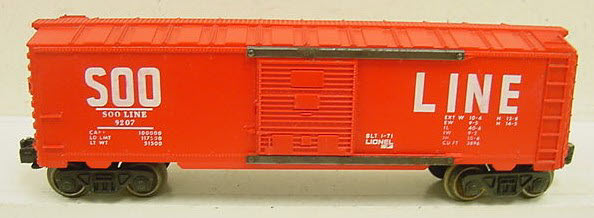

9207 Soo Line--Made in 1971, the 9207 has endboards marked 9200, AAR trucks, and metal door guides.

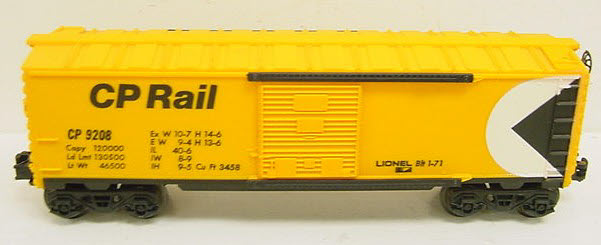

9208 CP Rail--Another of the 1971 class of 9200s, the 9208 used plastic door guides.  These guides were fragile [hence their short production life], and some 9208s have door guides with chipped corners.

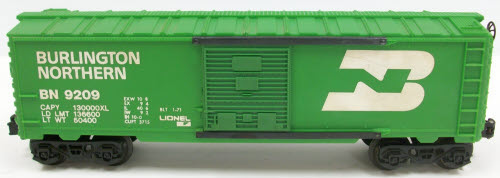

9209 Burlington Northern--In 1970 the Great Northern, Northern Pacific, and Burlington railroads merged to form Burlington Northern, so in 1971 Lionel followed suit and brought out a BN boxcar.  Like the 9208, the 9209 usually shows up with plastic door guides, though some with the later molded in bottom door guide show up occasionally.  These cars also turn up in the later red and white boxes, indicating that the 9209 was among the last of the 9200s produced.

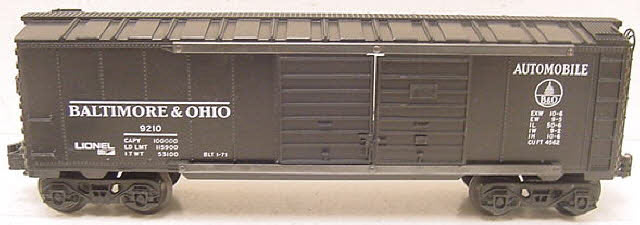

9210 Baltimore and Ohio--The 9210 was not based off of the 6464 design, but rather the 6468 double-door design from the Postwar era. Unlike the other 9200 cars, the 9210 retained the rivet detail on the car sides.  The 9210 came with both AAR and later design trucks.  Some 9210s like the one pictured below had different colored doors installed outside the Lionel factory.

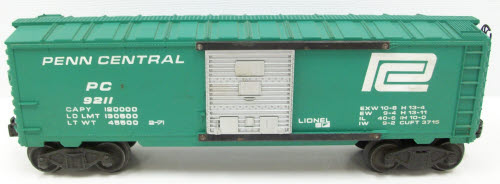

9211 Penn Central--In 1971 Lionel re-ran a couple of the original 9200s, changing their decoration slightly. The 9211 Penn Central was the first.  It was almost identical to the 9201 except that it had gray doors, a slightly duller color, 9200 printed on the end boards, and plastic door guides. The 9211 is easier to find than  the 9201.

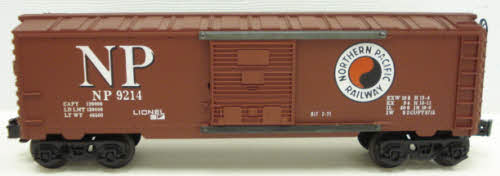

9214 Northern Pacific--Lionel also re-ran the Northern Pacific name in 1971, but this time the car was painted in a more realistic tuscan color.   Quite a few 9214s were made, and the car can be found with both types of trucks, all three types of door guides and with 9200 or 9700 endboards. It also was packaged in both the early white boxes and the later red and white boxes.

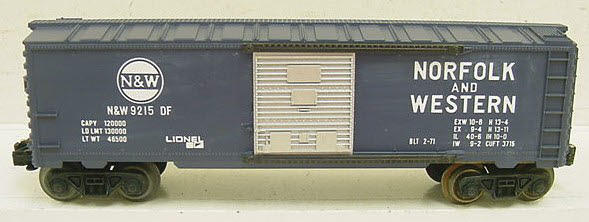

9215 Norfolk and Western--Like the 9211, the 9215 was a rerun of the 9205 except that it had gray doors, a flatter color, 9200 printed on the end boards, and plastic door guides.

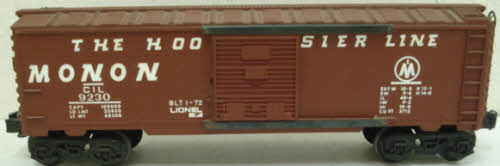

9230 Monon--The last car in the series, the 9230 was only catalogued in 1972, but was part of an uncatalogued set produced in 1971 as well.  It can be found with both 9200 and 9700 endboards, all three types of door guides, but it was not produced with AAR trucks.

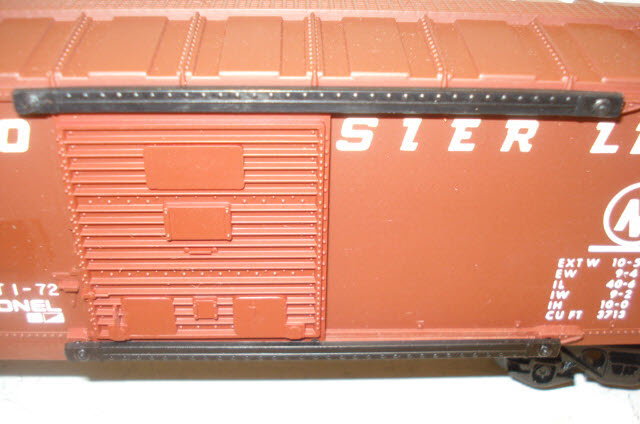

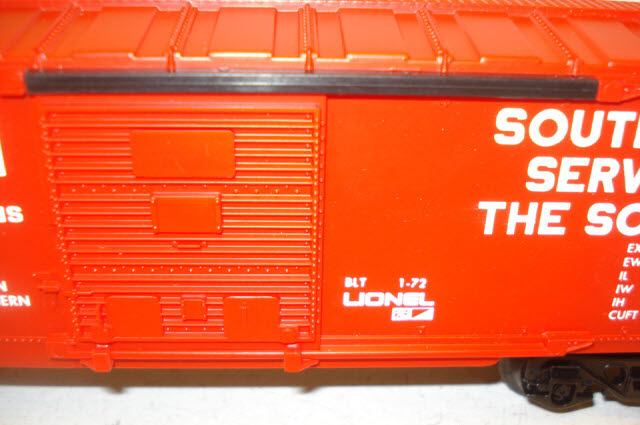

Metal Door Guides (1970-71)	Plastic Door Guides (1971-72)	Plastic Guide w/Molded Bottom Guide (1972-)

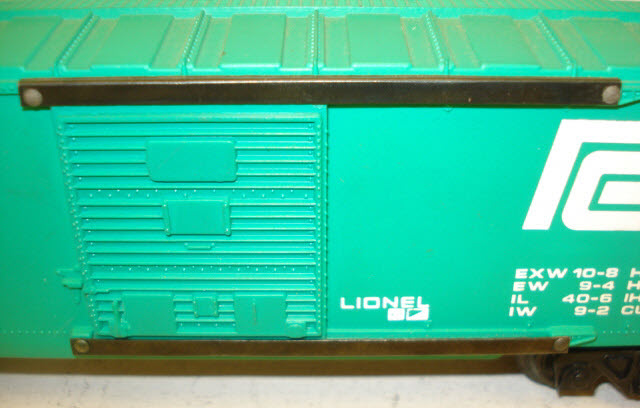

B.  Door Guides:  Early 9200s used the same method to attach doors that was used on the 6464 series--two metal guides on each side, with each guide held in place by a pair of rivets. In late 1970 or early 1971 this was changed to a pair of plastic door guides that snapped into the car sides.  These proved to be fragile, so some time in 1971 or 1972 the guides were changed again, to a snap-in plastic top guide, with a lower guide molded into the car body. This proved reliable and is still the door guide system used on many Lionel boxcars today.

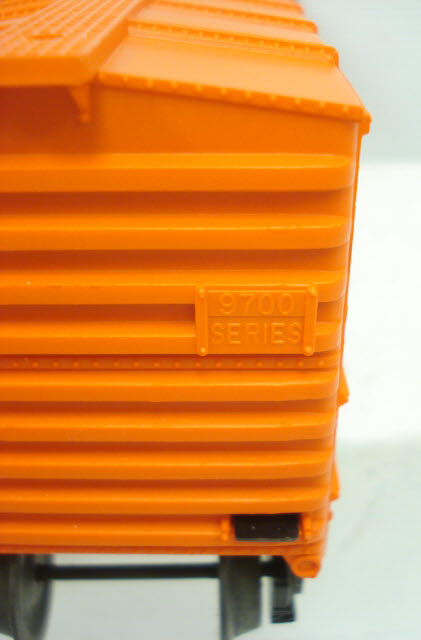

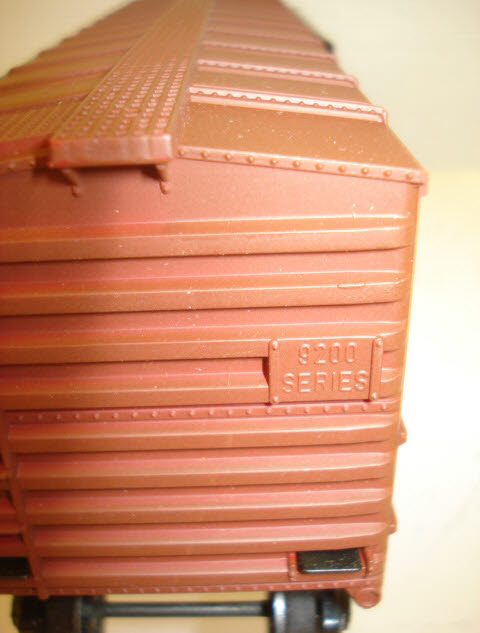

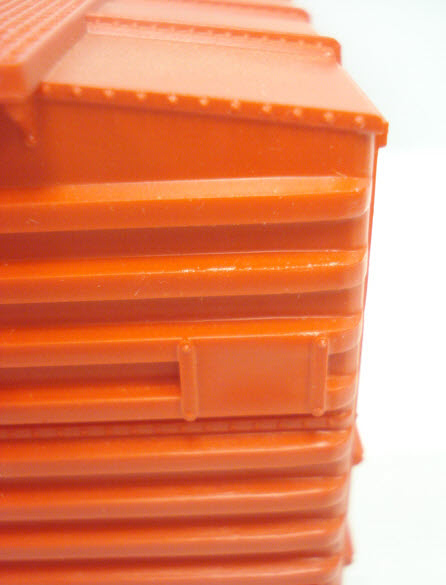

Blank Ends (1970)	Ends w/9200 (Late 1970-72)	Ends w/9700 (1972-)

C.  End Boards:  Early 9200s had blank end boards like their 6464 predecessors.  Starting in late 1970, Lionel began molding '9200 Series' in one end board and the MPC logo in the one on the opposite end.  In 1972, the 9200 end board was changed to 9700, and remained that way until the 1990s, even after the 9700s were discontinued.

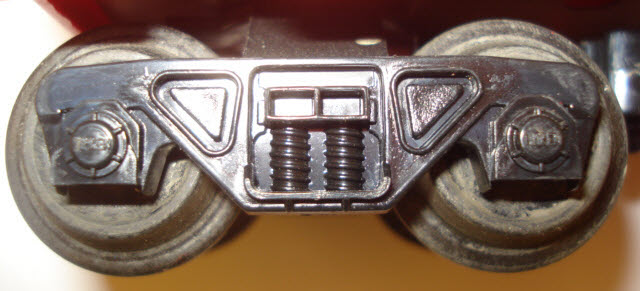

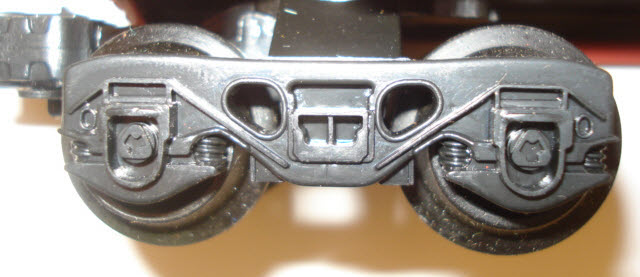

AAR-type Truck   (1970-71)	Symington-Wayne Truck (1971-87)

D.  Trucks--9200s from 1970 used the AAR-design truck that was developed by Lionel in the late 1950s.  To enhance the rolling quality of the cars, the wheels and axles were pressed together, and the axle ends were filed to a point, increasing the rolling quality of the cars exponentially.  Sometime in 1971, a new truck design replaced the AAR-type and remained standard until the mid-1980s.  Three is also a minor difference in the uncoupling mechanisms.  The AAR trucks have rectagular plate glued to the bottom of the coupler armature (the part you pull down to open the coupler), while the later trucks used a pressed-in thumbtack.

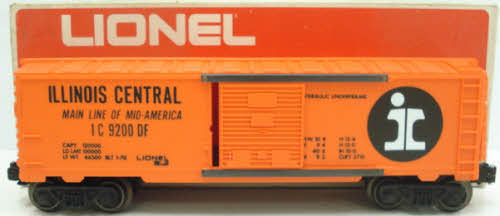

9200 w/Early Box	9200 w/Later Box

E.  Packaging:  Early 9200s came in a white box with red, white and blue lettering. In 1972 Lionel changed to a red box with white lettering, and a few of the last 9200s were in these boxes.
