Lionel LTI 18554 18807 18814 18815 18827 18833 Parts List and - Exploded View Parts Diagram

Below is a Lionel LTI 18554 18807 18814 18815 18827 18833 parts list and exploded view parts diagram for the Lionel LTI 18554 18807 18814 18815 18827 18833. Model Train enthusiasts can use this parts list for identifying and sourcing components to restore their Lionel LTI 18554 18807 18814 18815 18827 18833 RS-3 Diesel Locomotive w/Horn. The embedded Lionel LTI 18554 18807 18814 18815 18827 18833 parts list can be used to easily add parts directly into your shopping cart. You are welcome to use this exploded parts diagram to aid in the maintenance and assembly of your Lionel LTI 18554 18807 18814 18815 18827 18833 RS-3 Diesel Locomotive w/Horn.

Parts Lists and Exploded Parts Diagrams:

In addition to this Lionel LTI 18554 18807 18814 18815 18827 18833 Parts List and - Exploded View Parts Diagram, you can find numerous other Lionel parts lists on Trainz.com. We have parts lists for hundreds of Lionel postwar, prewar and MPC trains, including exploded view parts diagrams.

Lionel LTI 6-18554 6-18807 6-18814 6-18815 6-18827 6-18833 RS-3 Diesel w/Horn

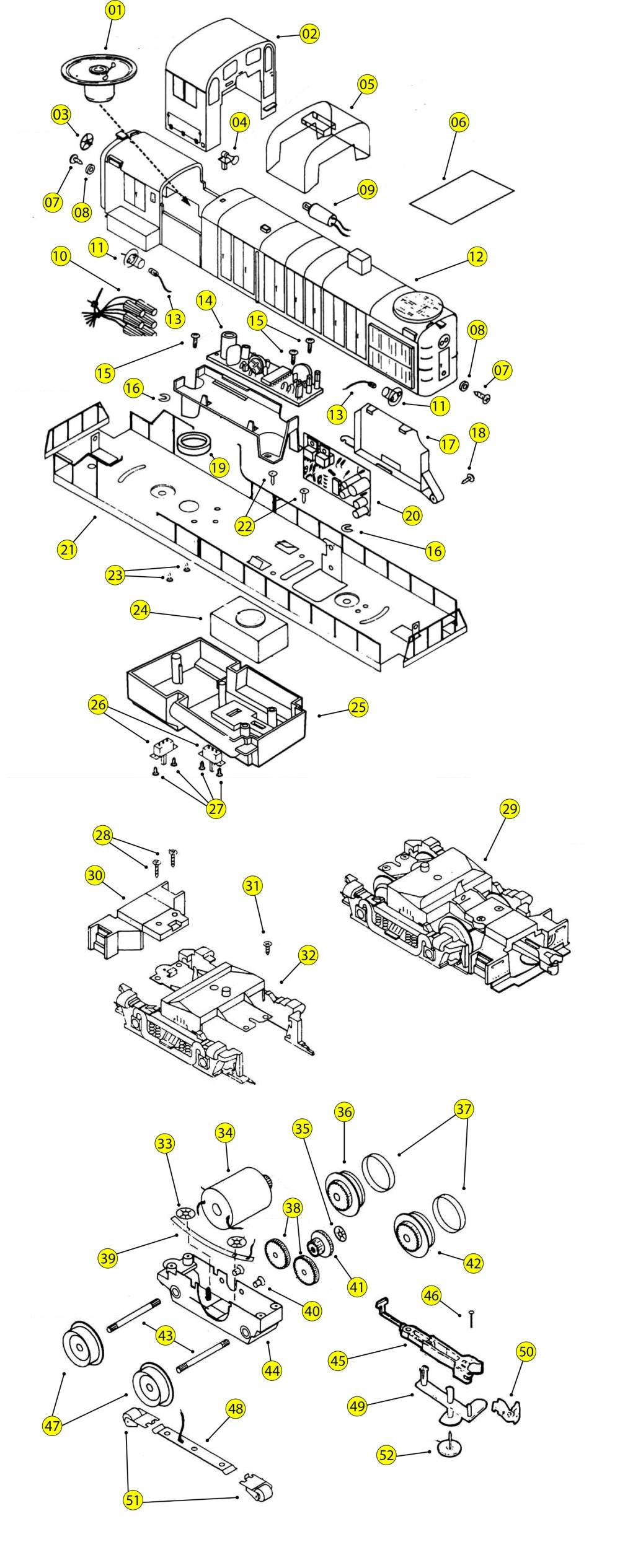

Lionel LTI 18554 18807 18814 18815 18827 18833 Parts List and Exploded Parts Diagram

Applicable Products

Hide Sold Out:

Product Title	Status	Starting From
Lionel 6-18554 O Gauge GM&O RS-3 Diesel Locomotive #721 with Display Case	—	—
Lionel 6-18554 O Gauge Gulf Mobile & Ohio RS-3 Diesel Locomotive #721	—	—
Lionel 6-18805 O Gauge Union Pacific RS-3 Diesel Locomotive #8805	—	—
Lionel 6-18807 O Gauge Lehigh Valley RS-3 Diesel Locomotive #8807	—	—
Lionel 6-18815 O Gauge Amtrak RS-3 Diesel Switcher #1815	—	—
Lionel 6-18827 O Gauge Happy Holidays 1993 RS-3 Diesel Locomotive #8827	—	—
Lionel 6-18835 O New York Central Alco RS-3 Diesel Locomotive #8223	—	—
Lionel 6-18837 O Gauge Christmas RS-3 Diesel Locomotive #8837	—	—
Display Case for Lionel 6-18809 Susquehanna RS-3 Diesel Locomotive	—	—
Lionel 6-18809 O Gauge Susquehanna RS-3 Diesel Locomotive #8809	—	—
Lionel 6-18809 O Susquehanna RS-3 Diesel Locomotive W/Display Case #8809	—	—
Lionel 6-18814 O Gauge Delaware & Hudson RS3 Diesel Switcher #8814 w/ Horn	—	—
Lionel 6-18833 Milwaukee Road RS-3 Diesel Locomotive #2487	—	—

Parts List

Hide Sold Out:

Part Title

Status

Starting From

Lionel 8152-536 16 Ohm .2 Watt 2" Horn Speaker w/ .86" Small Magnet (New)

—

Lionel 6108554017 Rs-3 Cab Tampa Gm&O (New)	—	—
Lionel 6108805017 Rs-3 Cab Tampa U.P. (New)	—	—

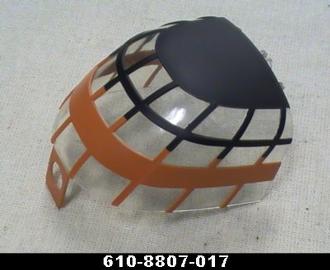

Lionel 6108807017 Rs-3 Cab / Lehigh Valley (New)	—	—
Lionel 6108814017 Rs-3 Cab Tampa Blu/Yel (New)	—	—
Lionel 6108827017 Cab Tampa Christmas (New)	—	—
Lionel 6108835017 Cab Tampa Nyc (New)	—	—
Lionel 6108837017 Cab Tampa Christmas '94 (New)	—	—

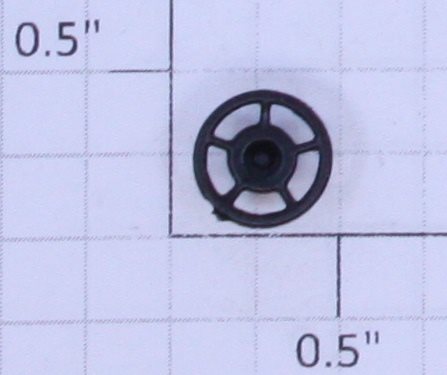

Lionel 1776-14 Plastic Brake Wheel (New)

—

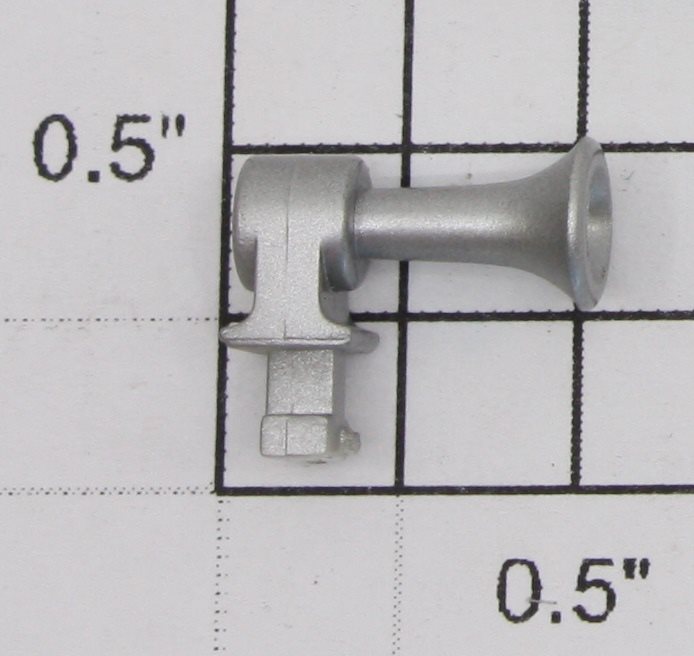

Lionel 18427-305 Silver Plastic Horn (Repro-Silver)	—	—

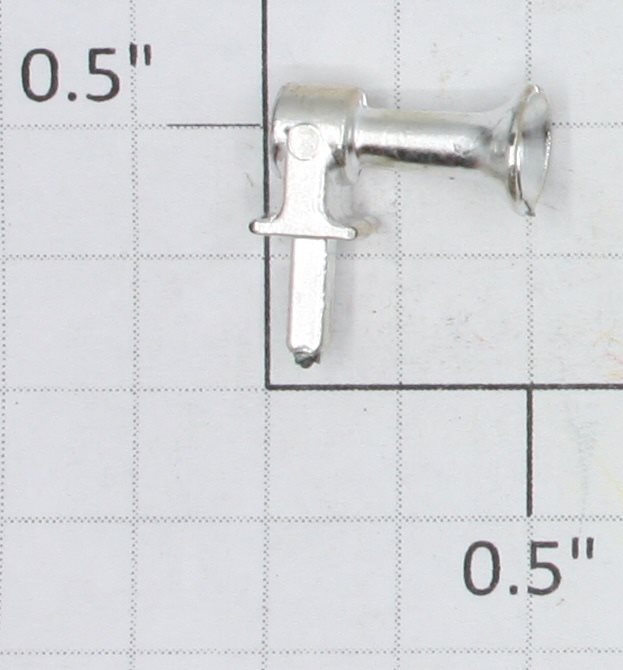

Lionel 50-100 Plastic Chrome Ornamental Horn (Repro-Plastic)	—	—

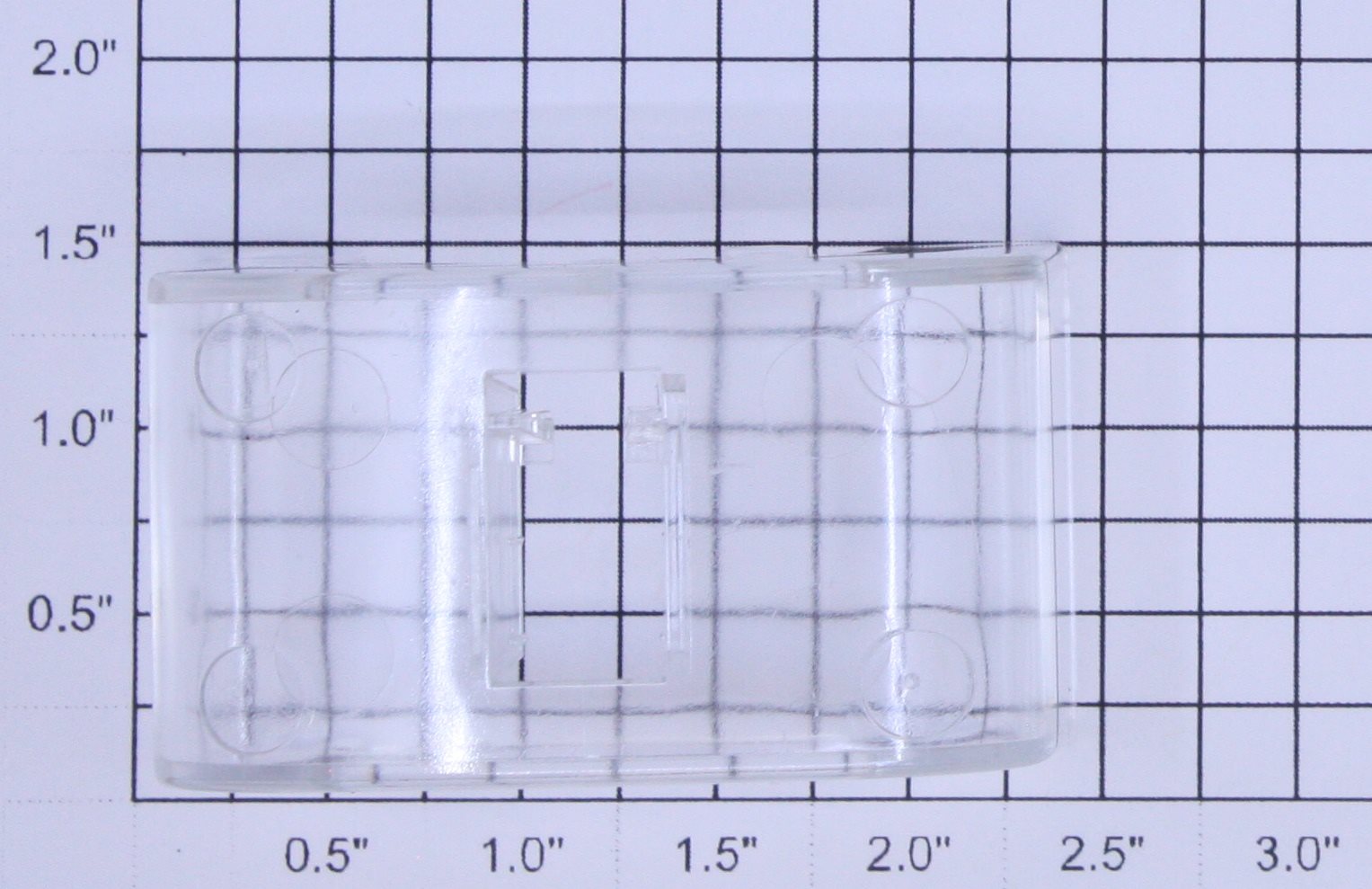

Lionel 18803-56 RS-3 Cab Window (New)

—

Lionel 2321-146 FM Bulb Heat Reflector Plate (Reproduction)	—	—
Lionel 2321-146 FM Bulb Heat Reflector Plate (Original)	—	—
Lionel 2321-146 FM Bulb Heat Reflector Adhesive Sticker (Reproduction)	—	—

Lionel 8851-41 #5-40 x 3/8" Black Phillips Round Head Self Tapping Screw

—

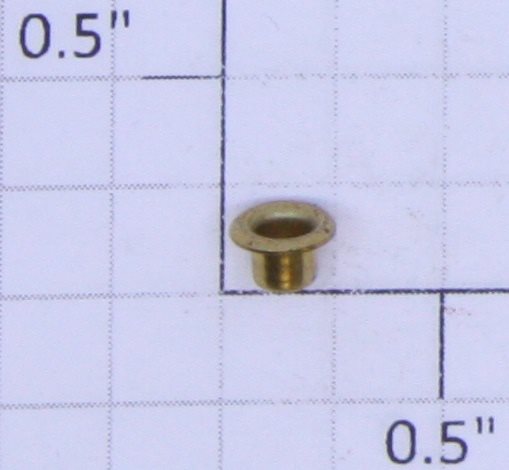

Lionel SE-53 0.15x0.12" Brass Eyelet (Reproduction)

—

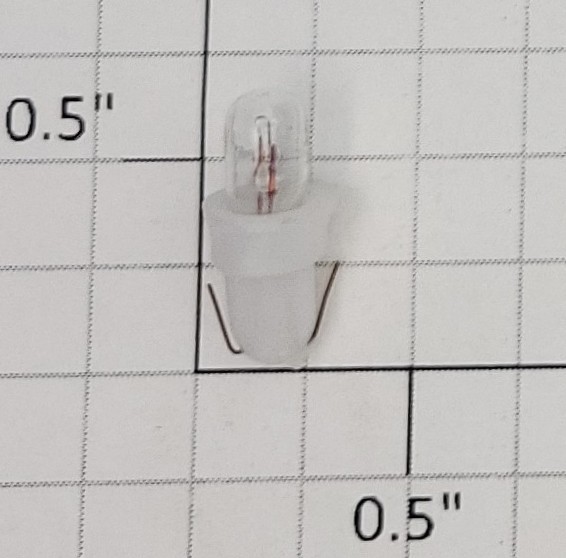

Lionel 8352-300 14-Volt Clear Light Bulb and Socket (New)	—	—
Lionel 8352-300 Socket with Lead Wire (New)	—	—

Lionel 7227-30 Small Gray Twist-on Wire Connector (New- Gray)	—	—
Lionel 9001-30 Small Yellow Twist-on Wire Connector (Reproduction)	—	—

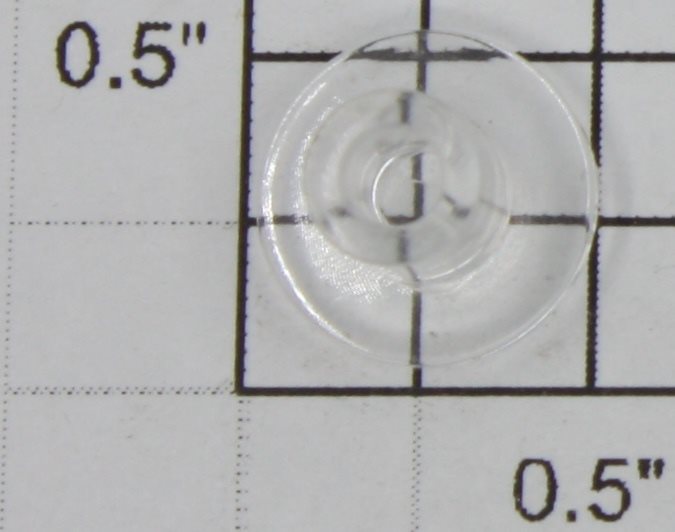

Lionel 8803-55 RS-3 Headlight Lens (Reproduction)

—

Lionel 6108805007 Rs-3 Bdy Tampa U.P. (New)	—	—
Lionel 6108814007 Rs-3 Bdy Tampa Blu/Yel (New)	—	—
Lionel 6108827007 Rs-3 Bdy Tampa Christmas (New)	—	—
Lionel 6108835007 Rs-3 Bdy Tampa Nyc (New)	—	—
Lionel 6108837007 Rs-3 Bdy Tampa Christmas '94 (New)	—	—
Lionel 6108854007 Shell / Union Pacific Gp-9 #2380 (New)	—	—

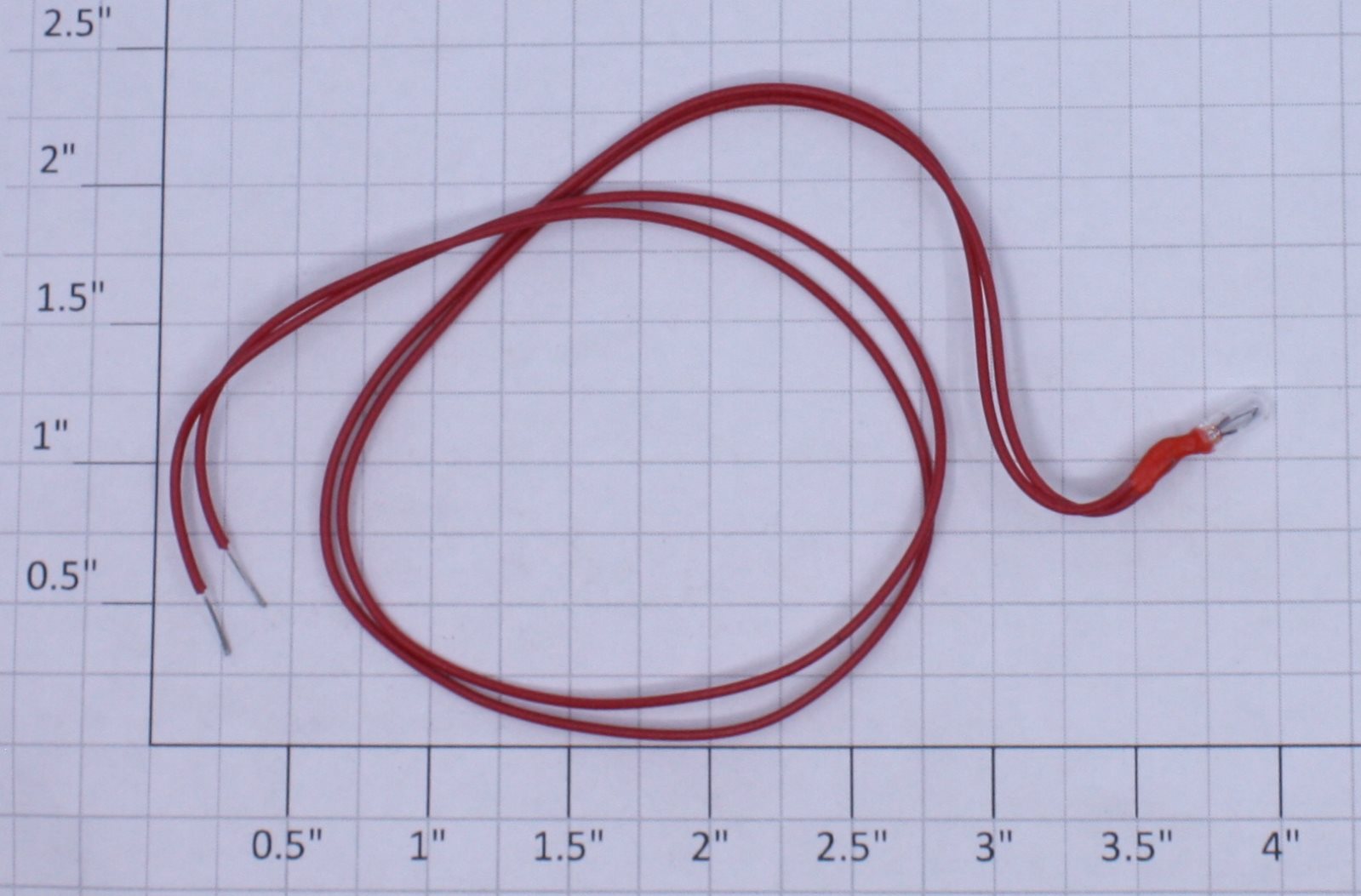

Lionel 18803-9 12 Volt Grain of Wheat Light Bulb with 12" Leads (Reproduction)

—

Lionel 8152-50 Horn PCB Circuit Board (New)

—

Lionel 8400-5 #2 x 5/16" Black Phillips Truss Head Self Tapping Screw (New)

—

Lionel 671M-22 Coated Retaining E-Clip (Repro-Coated)

—

Lionel 8010-35 #4-40 x 1/4" Black Phillips Round Head Machine Screw (Reproduction)

—

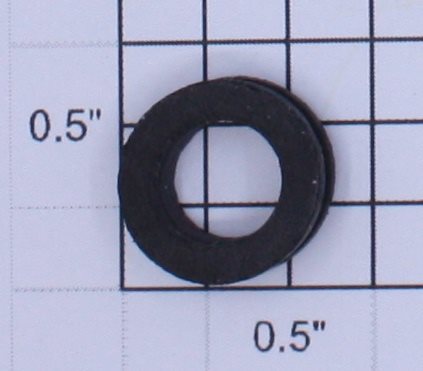

Lionel 18809-22 .375 I.D. Wire Grommet (Reproduction)

—

Lionel 103-1 MPC AC/DC Electronic E-Unit PCB Circuit Board (New)

—

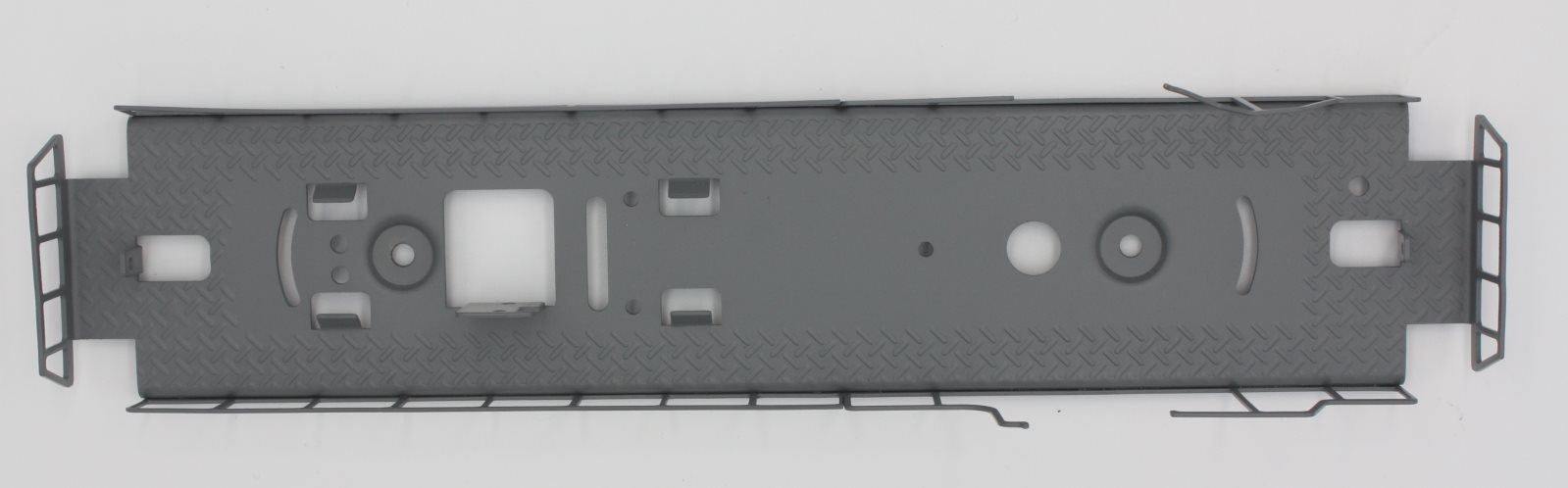

Lionel 18803-58 Santa Fe RS-3 Diesel Locomotive Gray Frame (New)	—	—
Lionel 6108805058 Rs-3 Frm Pctd Gry8803-011 (New)	—	—

Lionel 690-8040-T5#0 4 x 7/16" Black Phillips Pan Head Self Tapping Screw (New)

—

Lionel 17401-22 #4 x 3/8" Black Phillips Pan Head Self Tapping Screw (New)

—

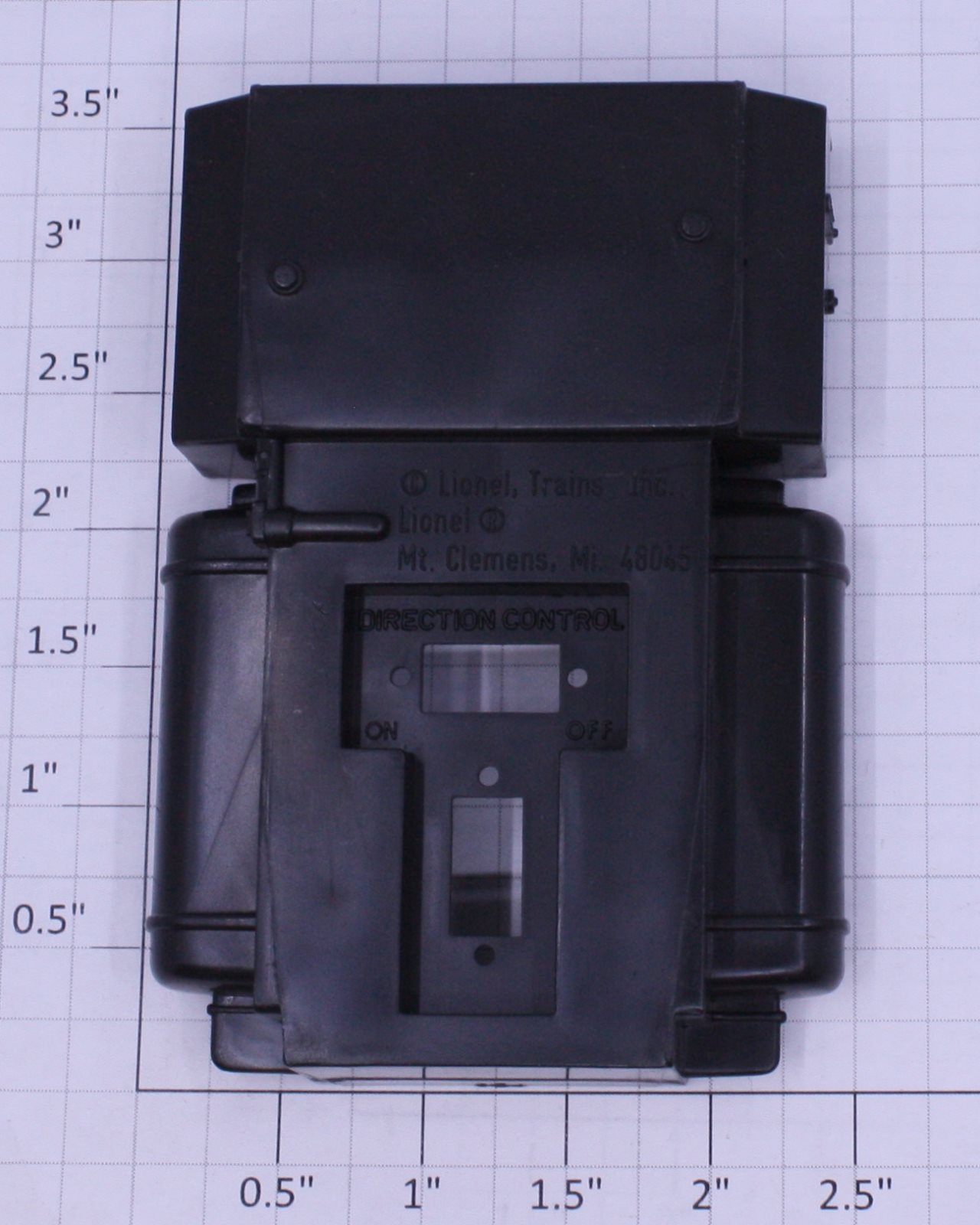

Lionel 18805-80 RS-3 Underframe Fuel Tank (New)	—	—

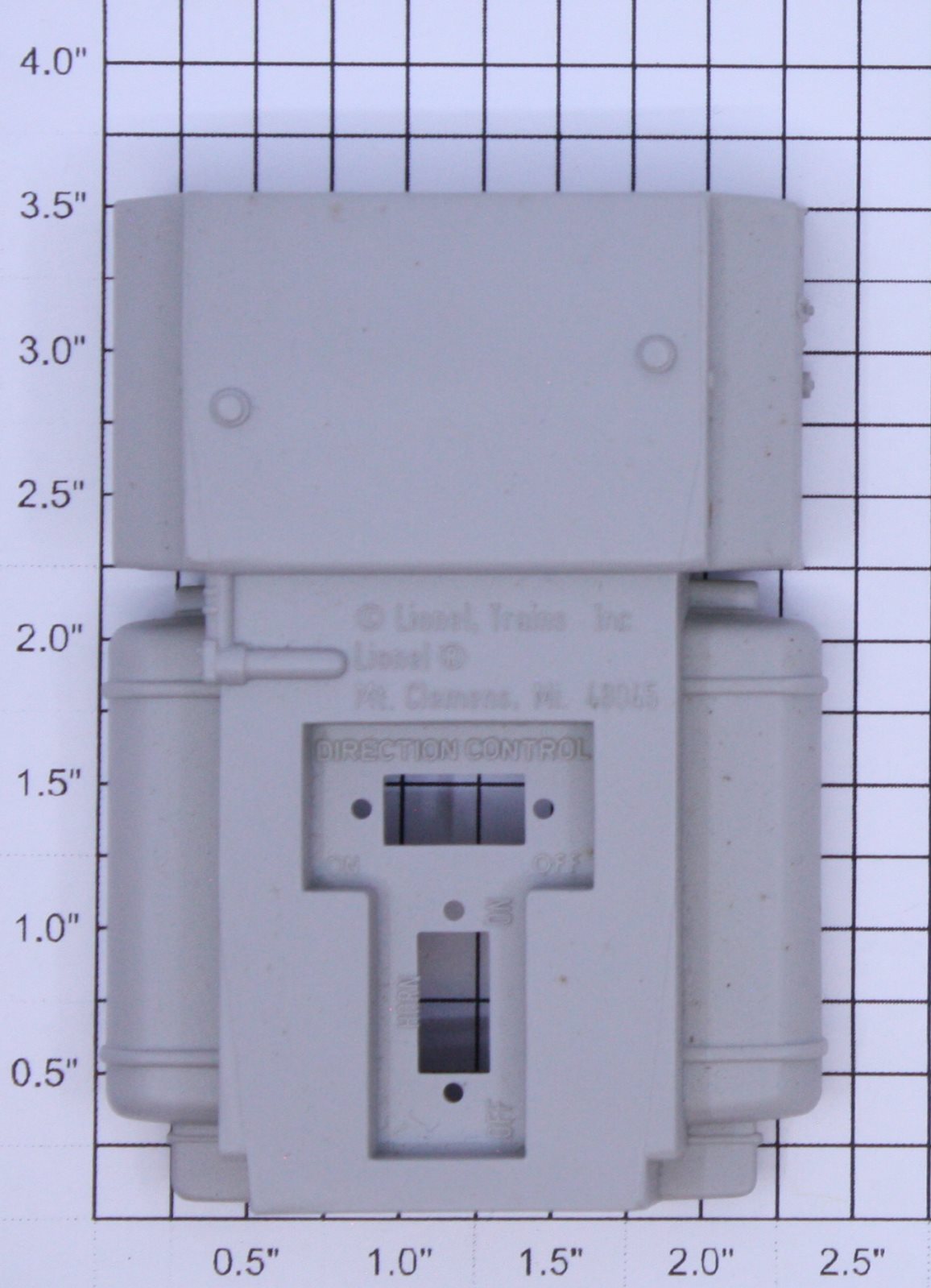

Lionel 18814-24 RS-3 Gray Underframe (New)	—	—

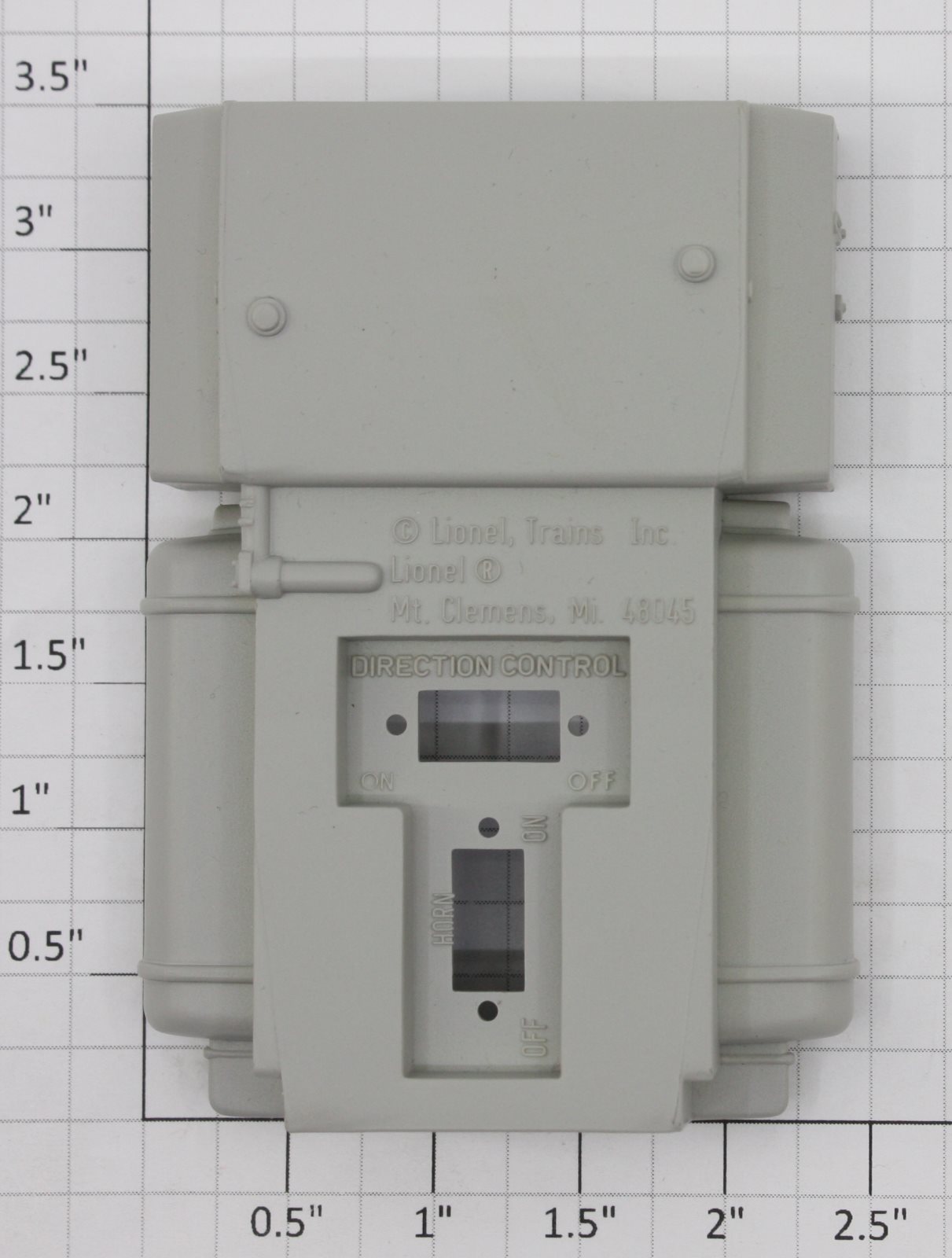

Lionel 8805-80 RS-3 Gray Underframe (New- Gray)	—	—

Lionel 3664-303 E-Unit Miniature Slide Switch (New)

—

Lionel 8400-5 #2 x 5/16" Black Phillips Truss Head Self Tapping Screw (New)

—

Lionel 85101-092 .4 x 1/2" Black Phillips Binding Head Self Tapping Screw (New)

—

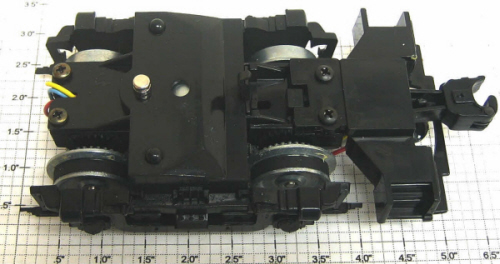

Lionel 6108803101 RS-3 Diesel Motor Powered Truck - Complete (New)	—	—
Lionel 6108814101 Motor Truck & Wheel Assy Complete RS-3 Gray (New)	—	—

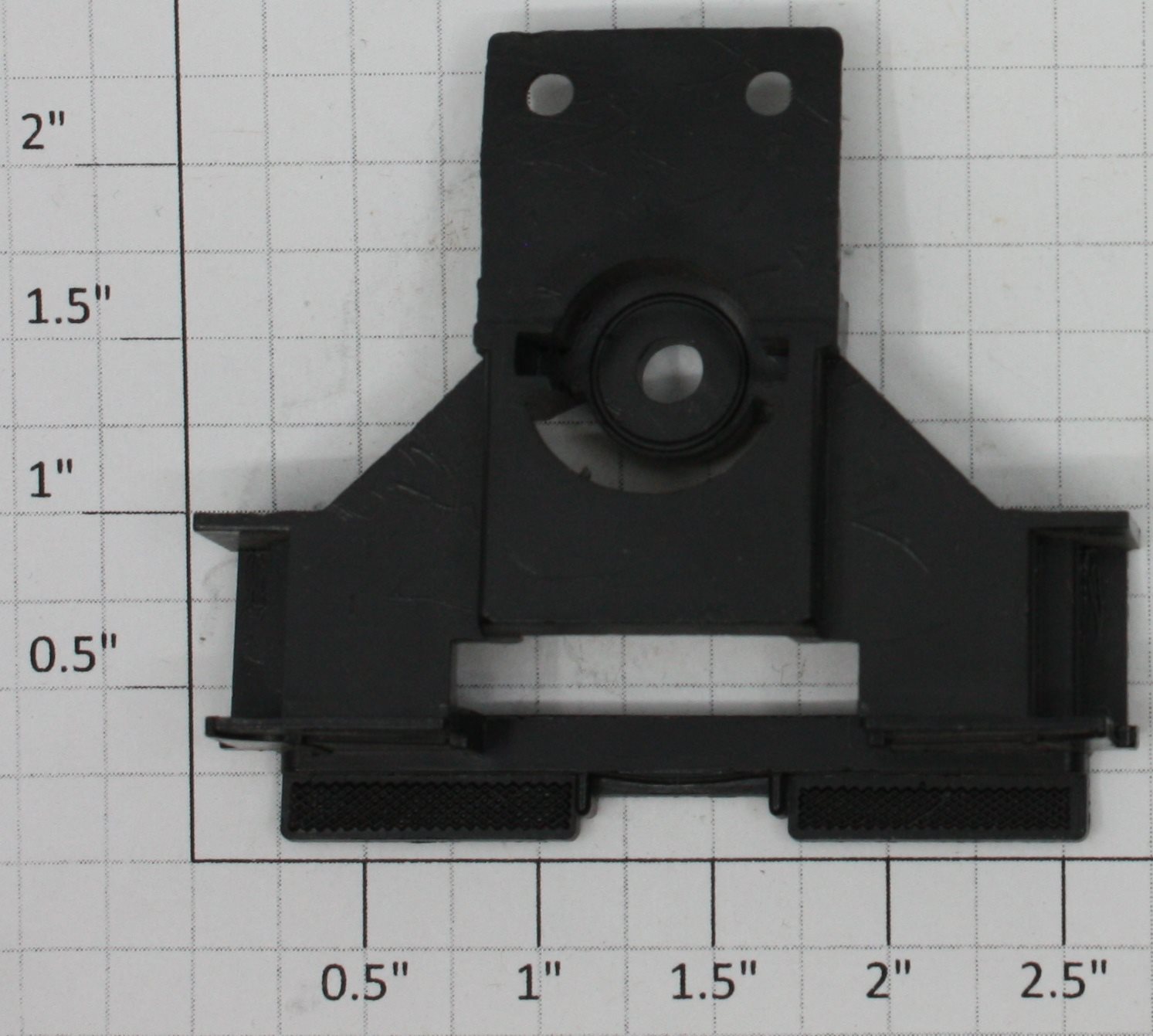

Lionel 18803-73 RS-3 2-Step Black Plastic Pilot (New)

—

Lionel 8400-550 #4 x 5/16" Black Pan Head Phillips Self Tapping Screw (New)

—

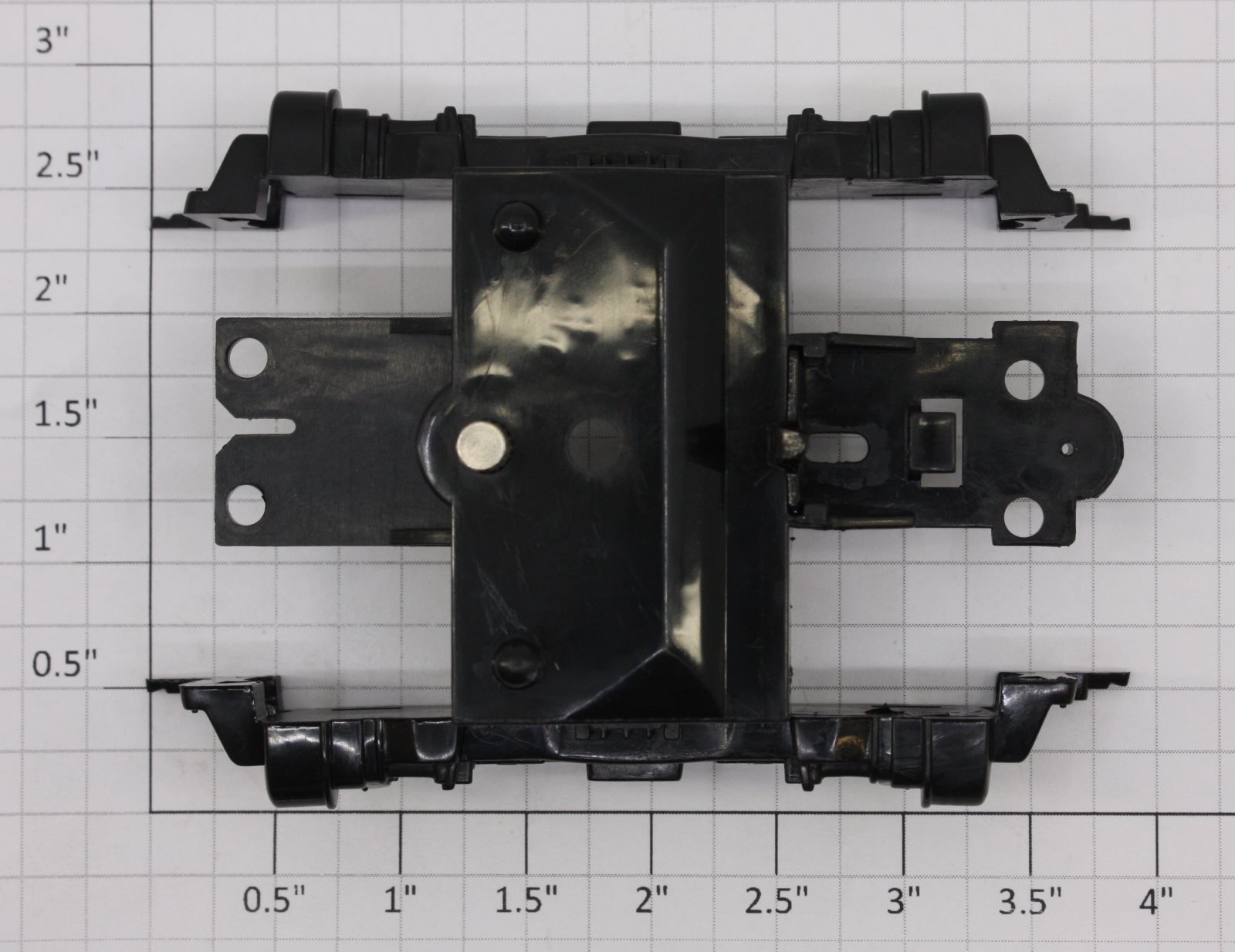

Lionel 18803-71 RS-3 Truck Side Frame and Stud Assembly (New)	—	—

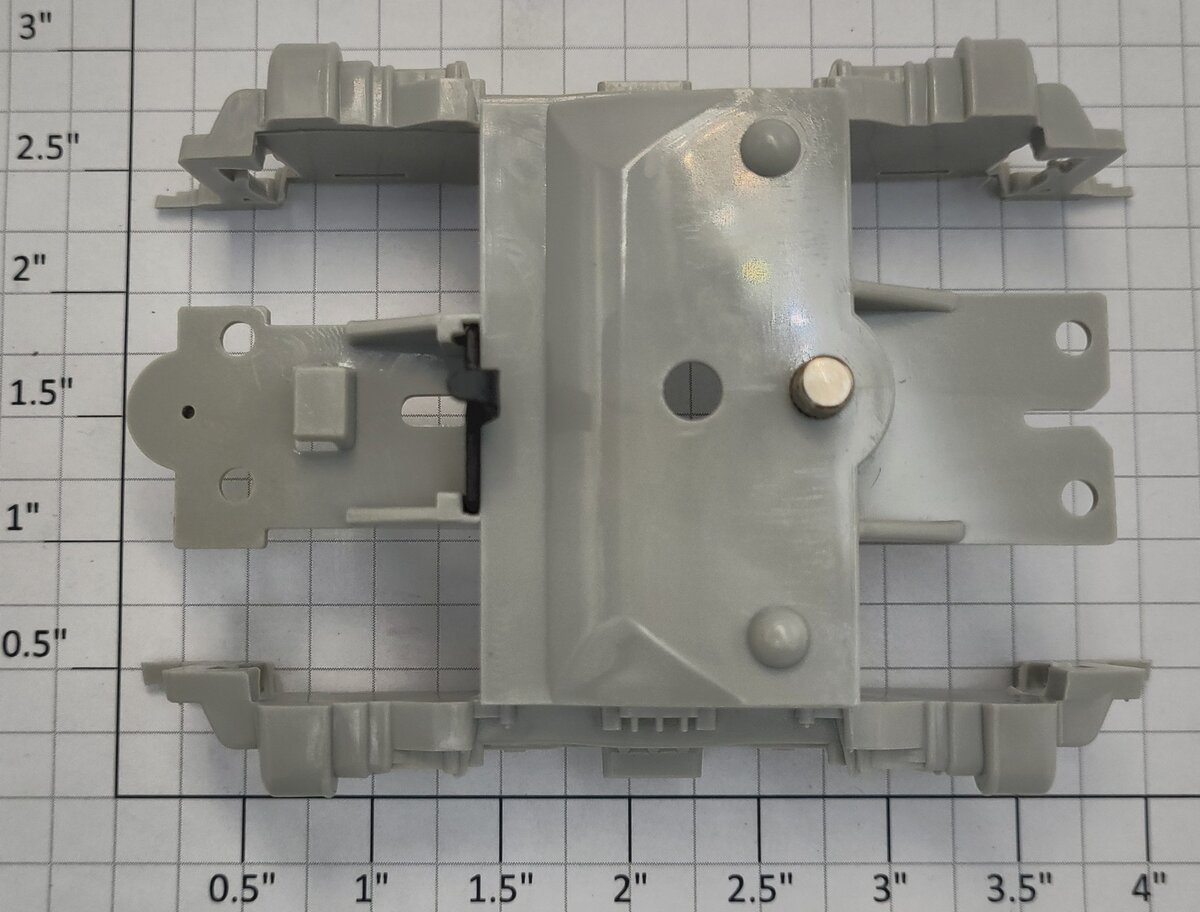

Lionel 18814-71 Gray D&H RS3 Plastic Truck Side and Stud Assembly (New)	—	—

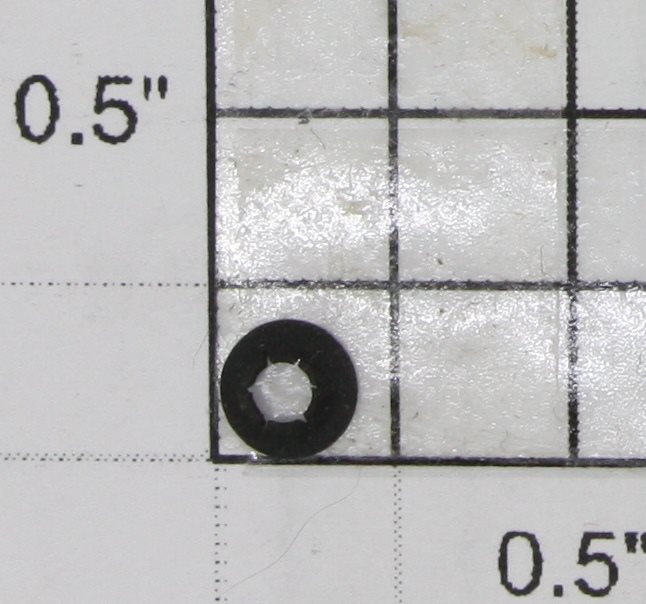

Lionel 8803-114 Black Spring Steel Palnut (Reproduction)

—

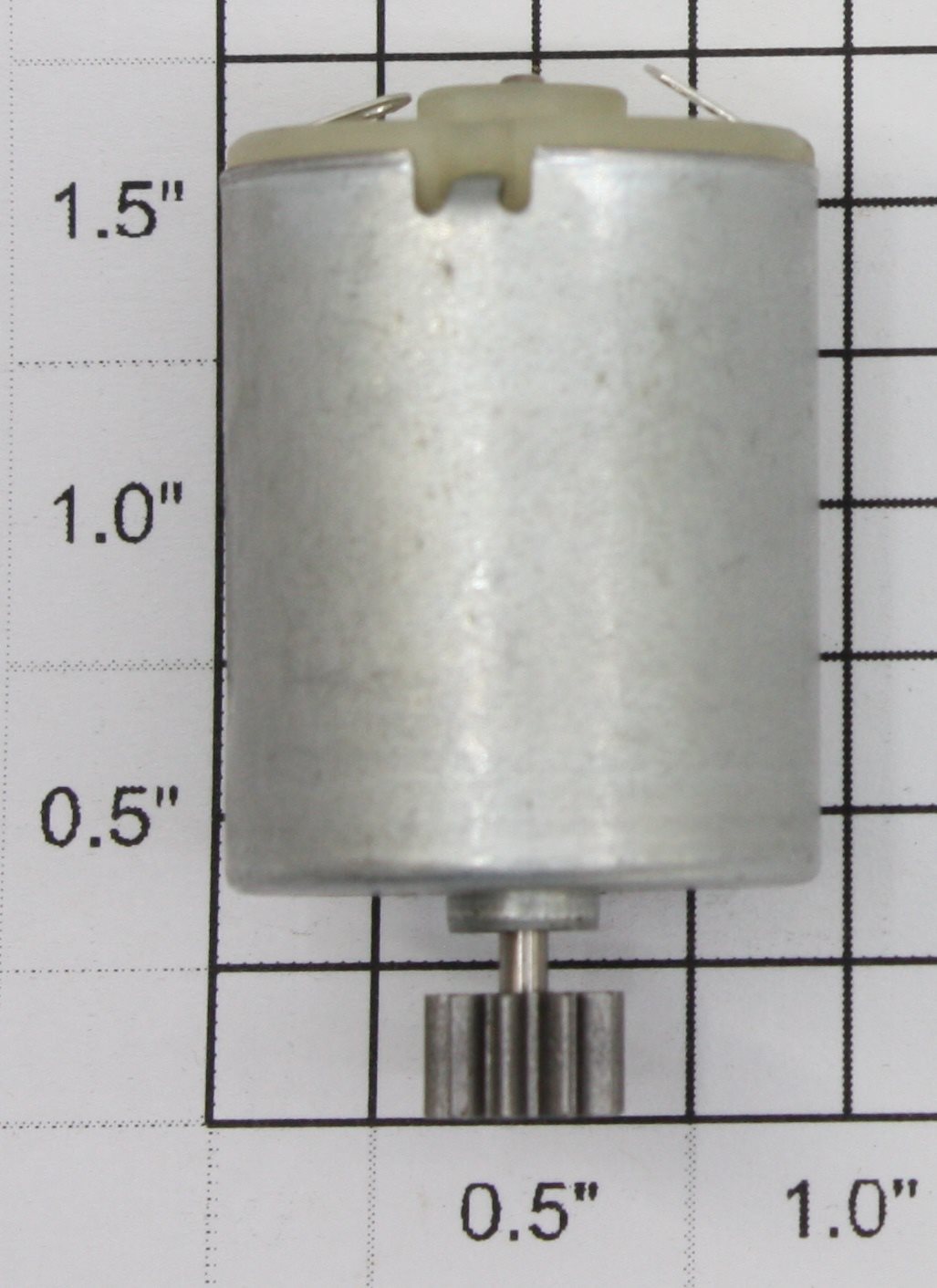

Lionel 8008-105 12 Volt DC Can Motor with 10 Tooth Gear (New)

—

Lionel 8960-52 Palnut (Reproduction)

—

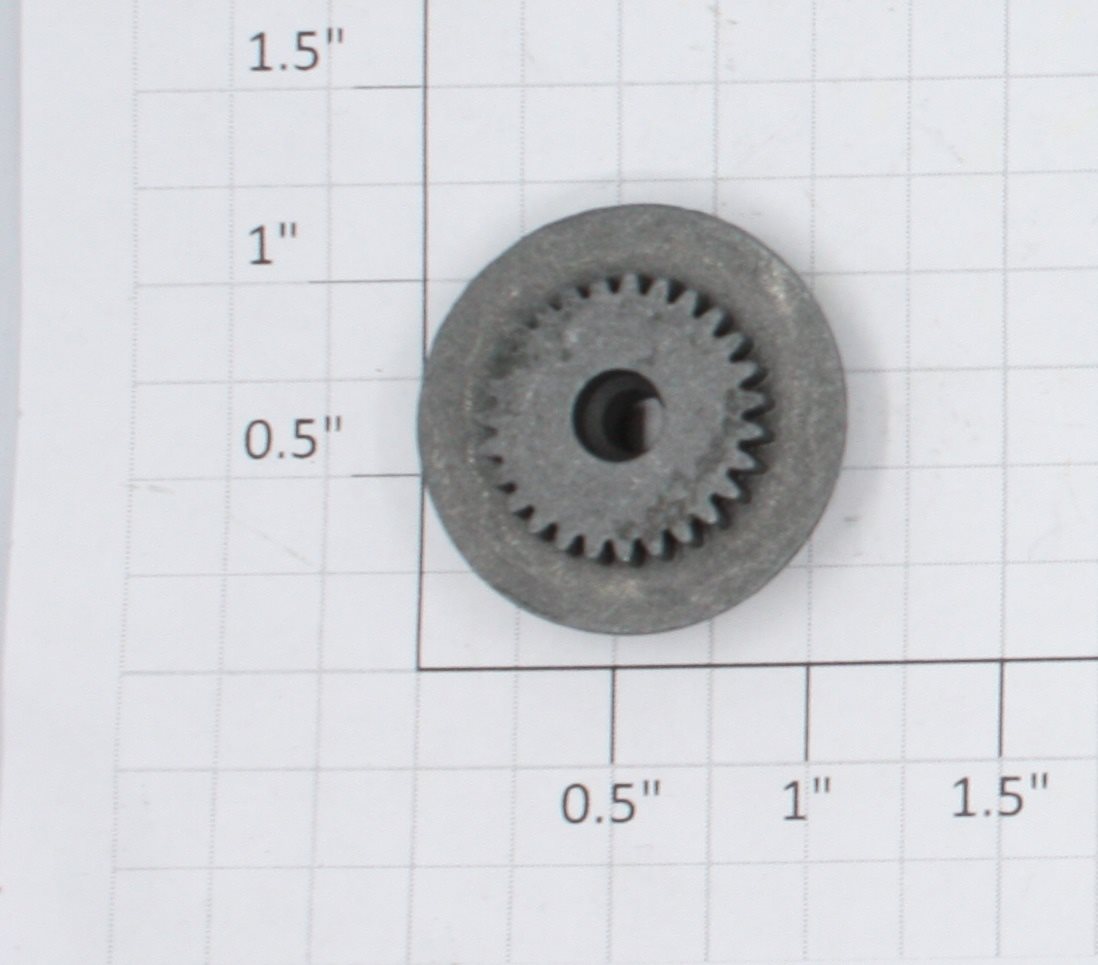

Lionel 8010-123 Grooved Drive Gear Wheel without Traction Tire (Original-No Tire)	—	—

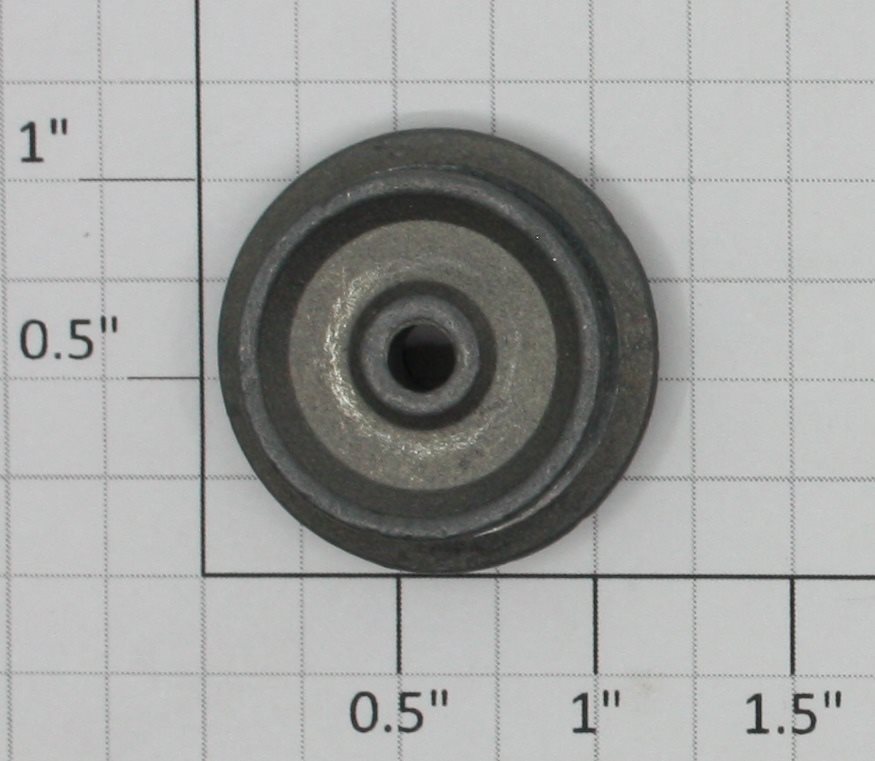

Lionel 8010-123 Grooved Drive Gear Wheel (Reproduction)	—	—

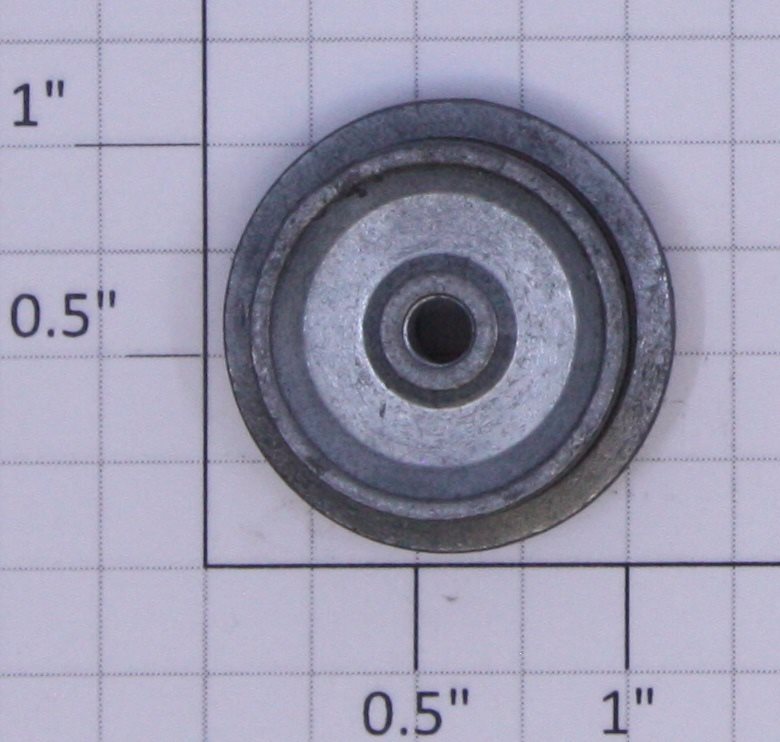

Lionel 8010-123 Grooved Drive Gear Wheel with Traction Tire (Original)	—	—

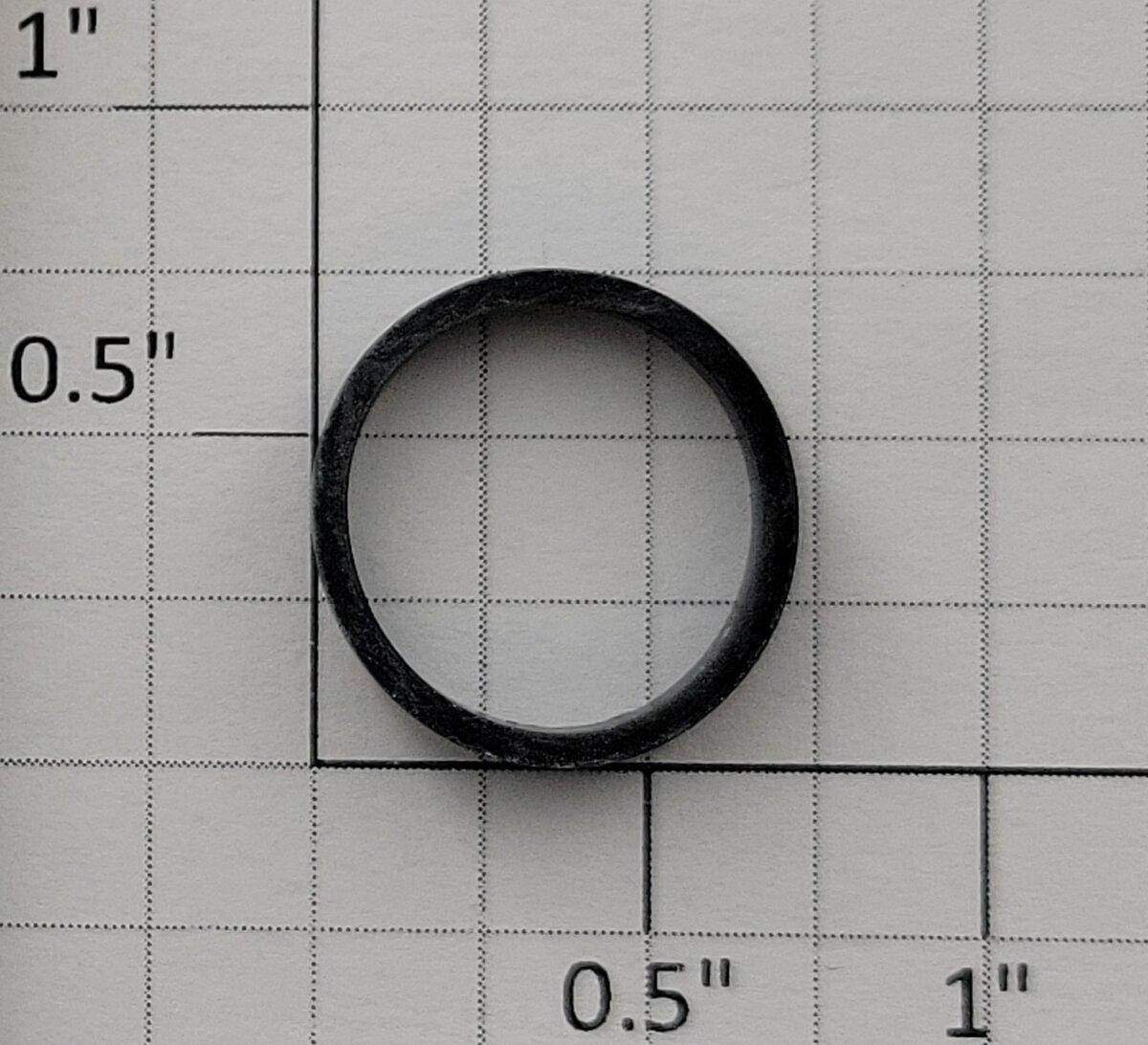

Lionel 222-108 3/4" Diesel Traction Tire (Reproduction)

—

Lionel 8010-116 Black Nylon Drive Gear (Reproduction)	—	—
Lionel 8010-116 Off White Nylon Drive Gear (Reproduction)	—	—

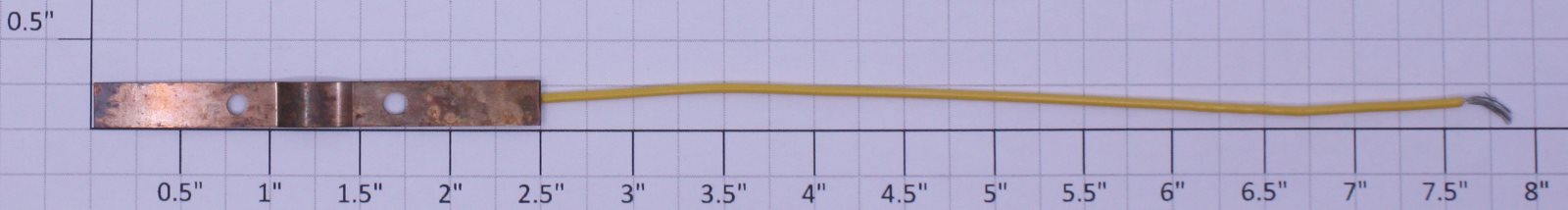

Lionel 8263-45 Ground Strap Assembly (New)

—

Lionel 9700-25 #4-36 x 1/4" Black Phillips Flat Head Machine Screw (Reproduction)

—

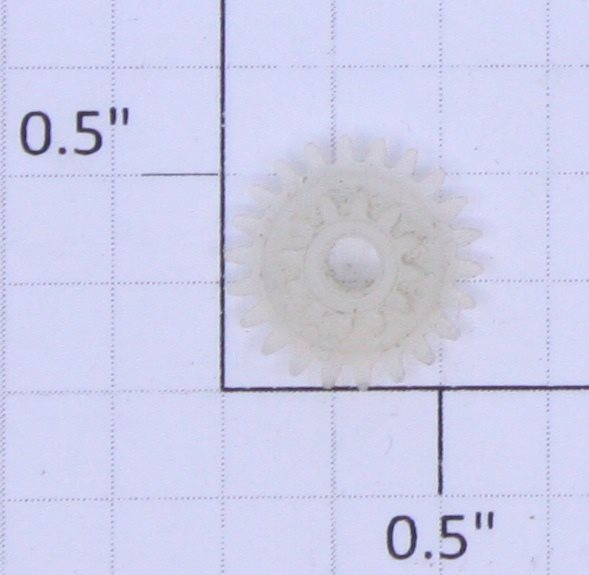

Lionel 8040-118 Plastic Cluster Gear (New)

—

Lionel 8010-123 Grooved Drive Gear Wheel without Traction Tire (Original-No Tire)	—	—
Lionel 8010-123 Grooved Drive Gear Wheel (Reproduction)	—	—
Lionel 8010-123 Grooved Drive Gear Wheel with Traction Tire (Original)	—	—

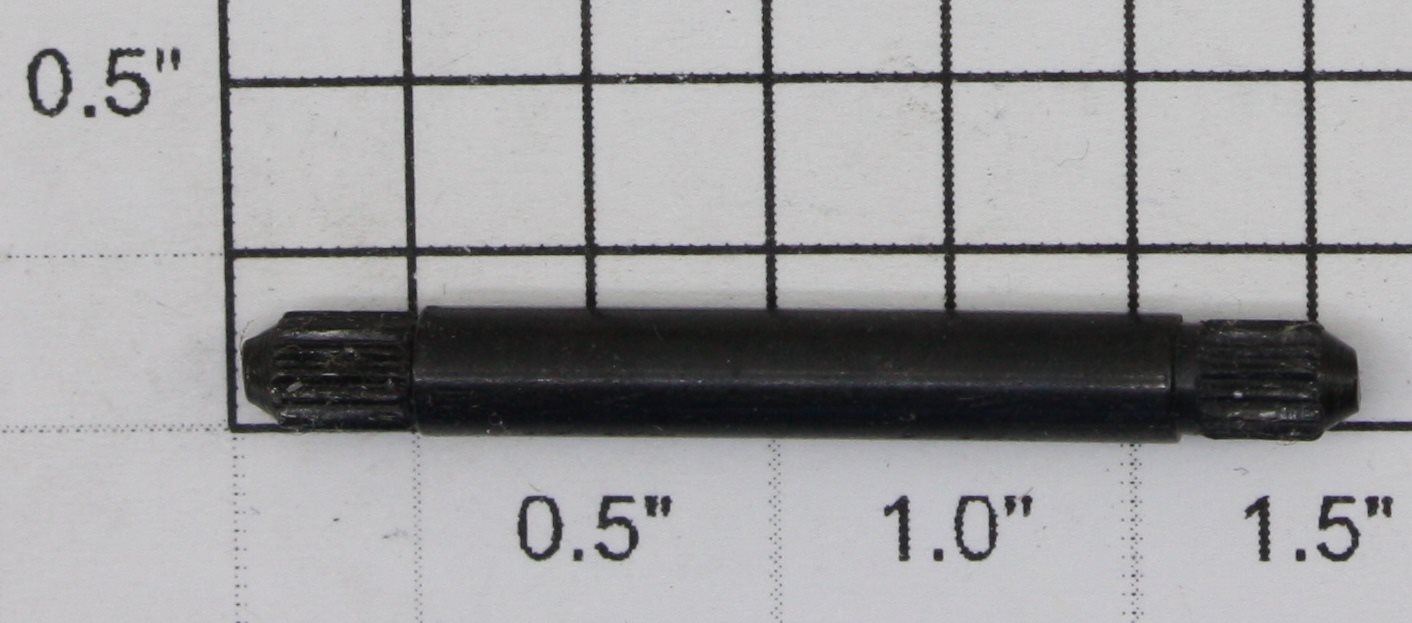

Lionel 8811-25 Plain Blackened Plated Axle (New)	—	—
Lionel 8811-25 Plain Nickel Plated Axle (New)	—	—

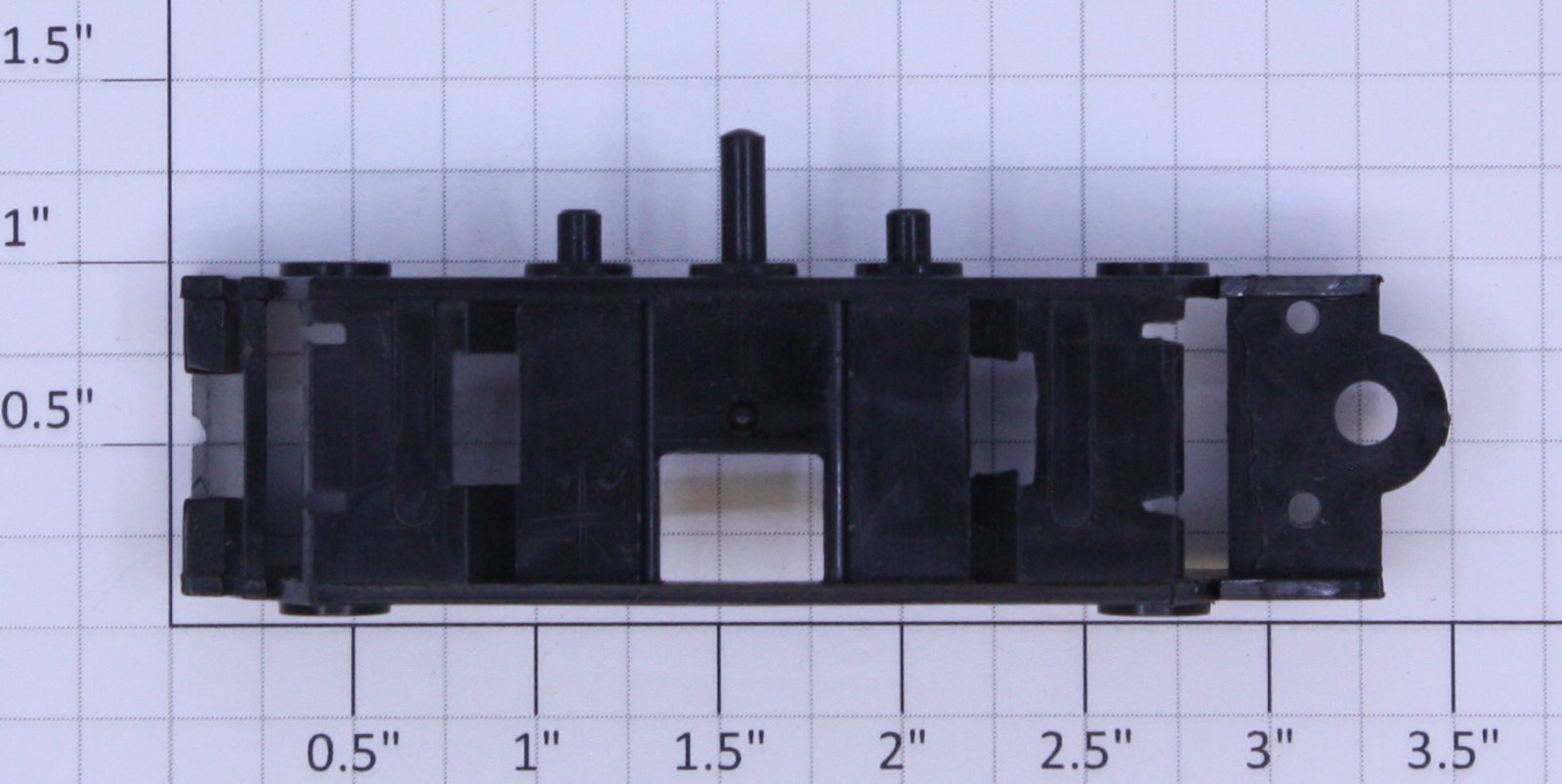

Lionel 8263-100 Black Plastic Motor Truck Frame (New)

—

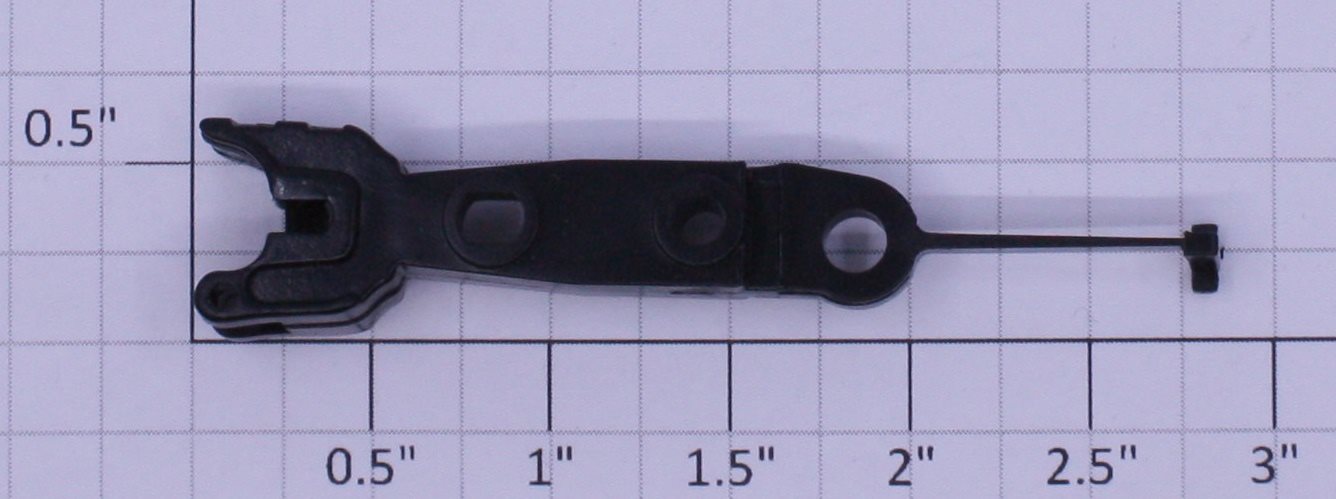

Lionel 8263-60 Coupler Arm (Reproduction)

—

Lionel TC-23 O Gauge .058" OD x .43" L Nickel Coupler Knuckle Rivet (Repro-Nickel)	—	—
Lionel TC-23 .059" x .045" Black Coupler Knuckle Rivet (Repro-Black)	—	—

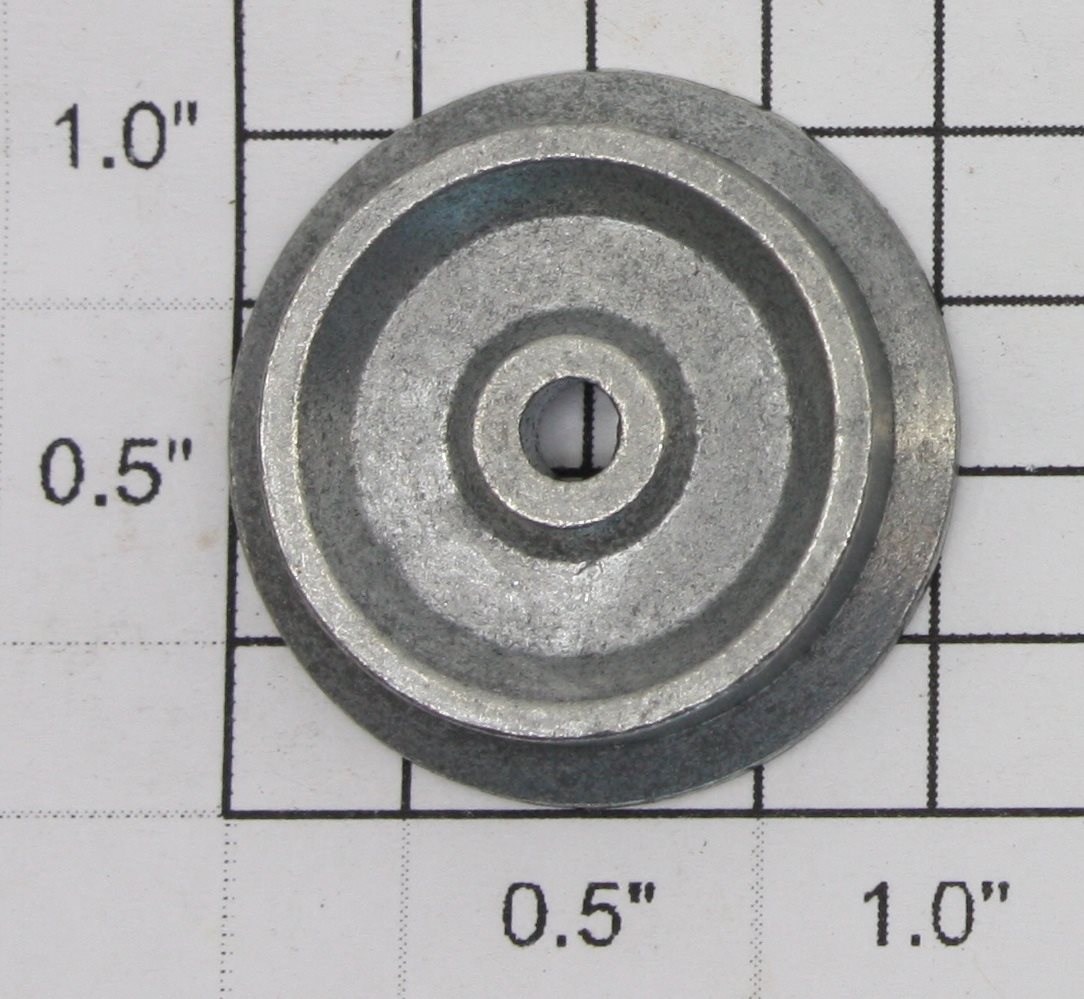

Lionel 8010-122 Geep & Alco Plain Diesel Wheel (New)

—

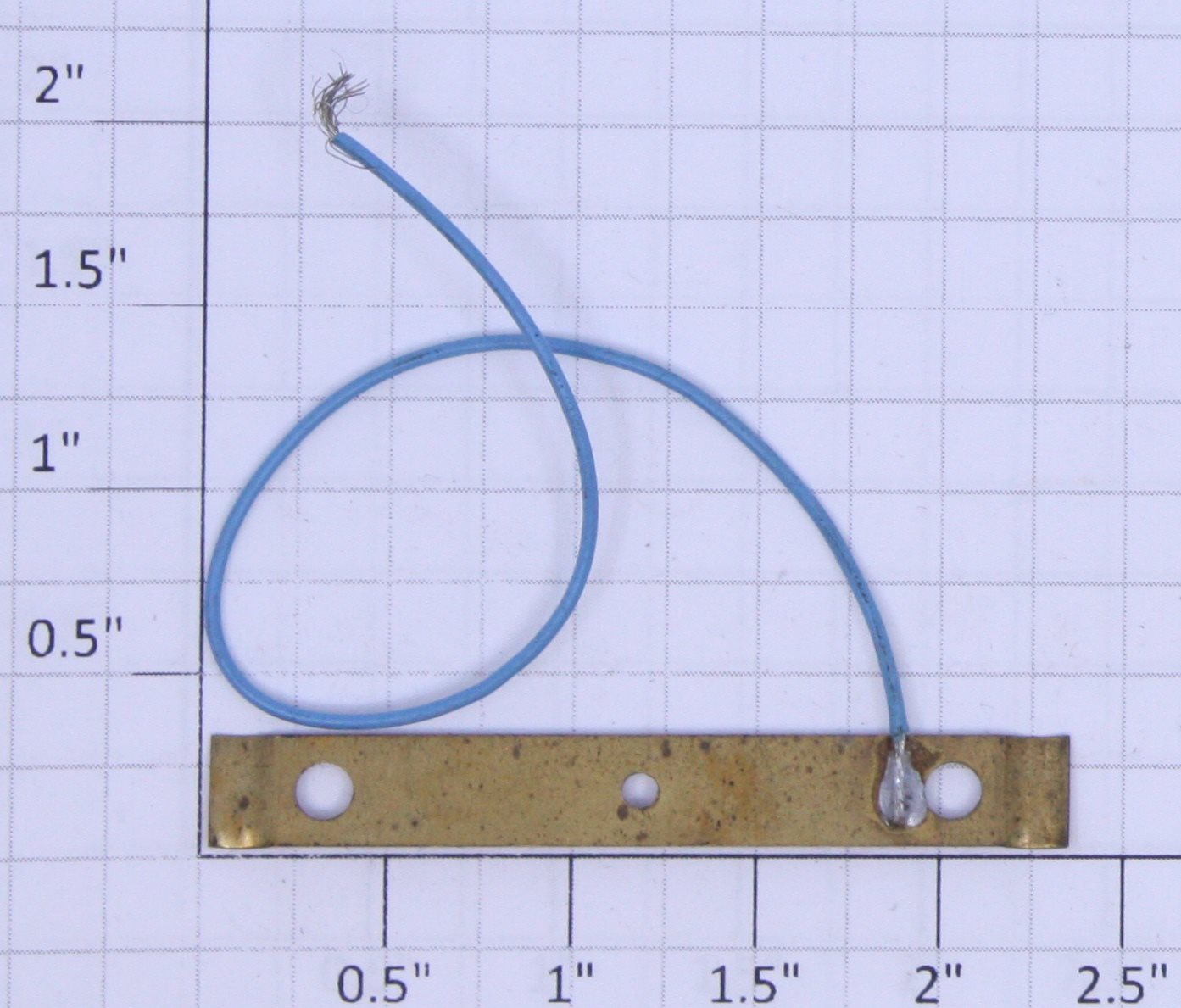

Lionel 8263-122 Center Roller Contact Strip (New)

—

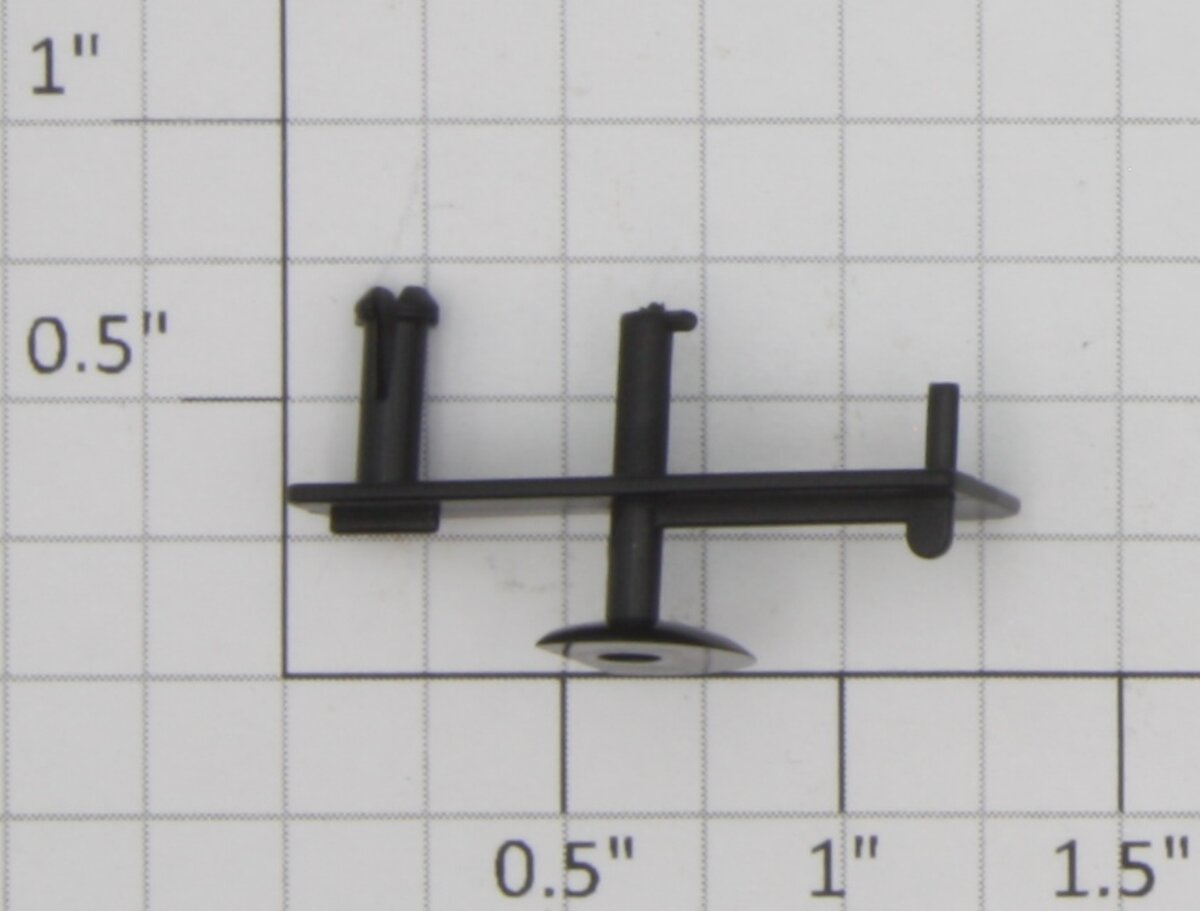

Lionel 9050-57 Coupler Plunger and Armature Assembly (New)	—	—

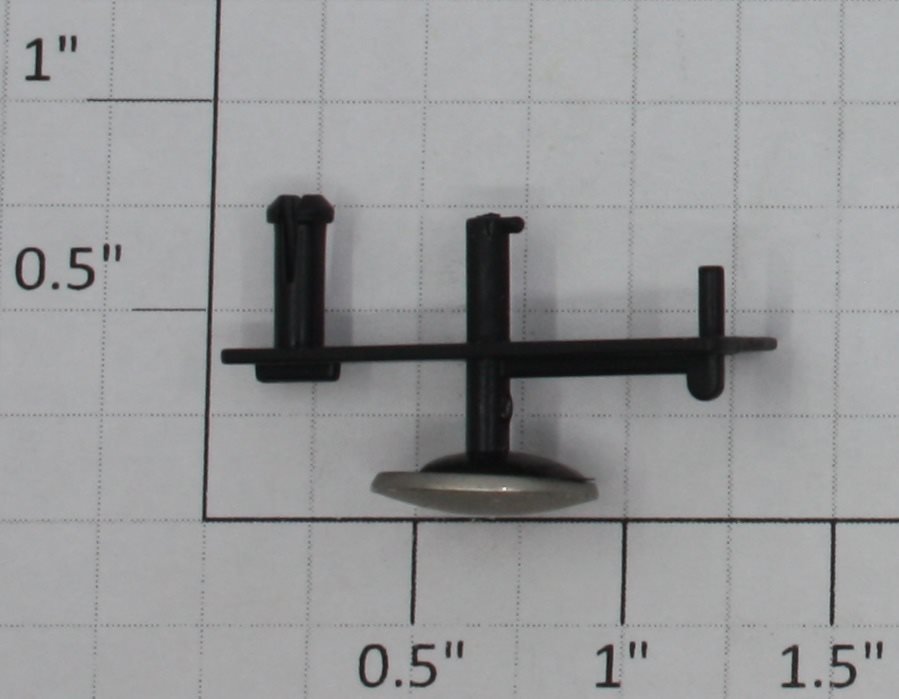

Lionel 9050-57 Coupler Plunger and Armature Assembly (Used)	—	—

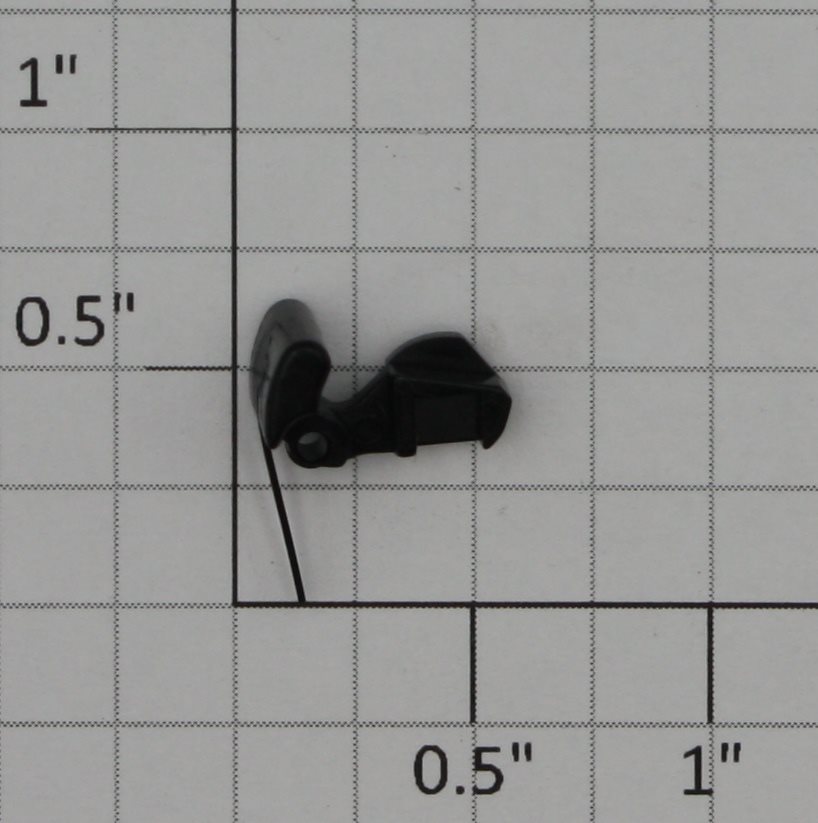

Lionel 19050-56 Plastic Coupler Knuckle (New)	—	—

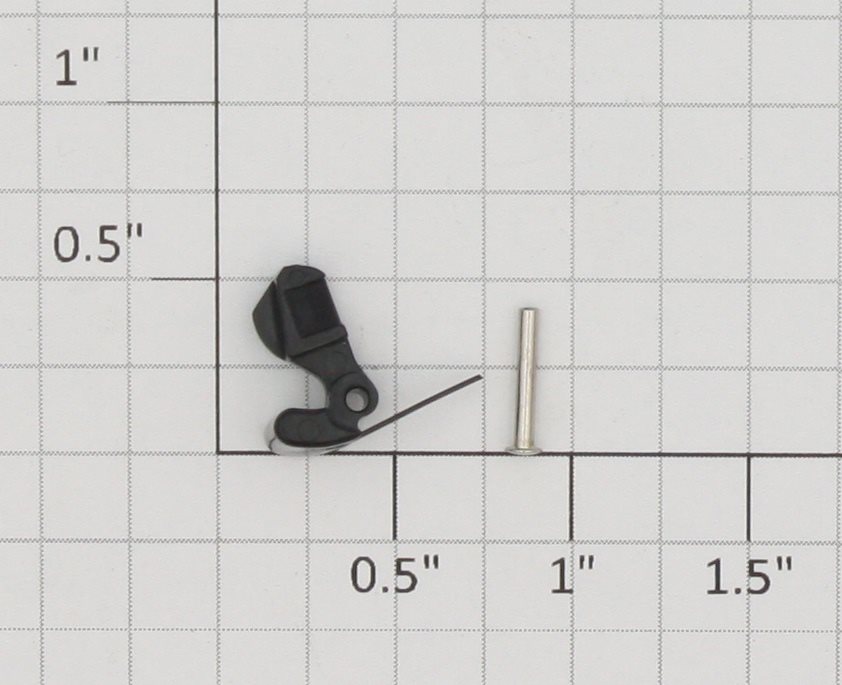

Lionel 9050-56 Coupler Knuckle and Rivet	—	—

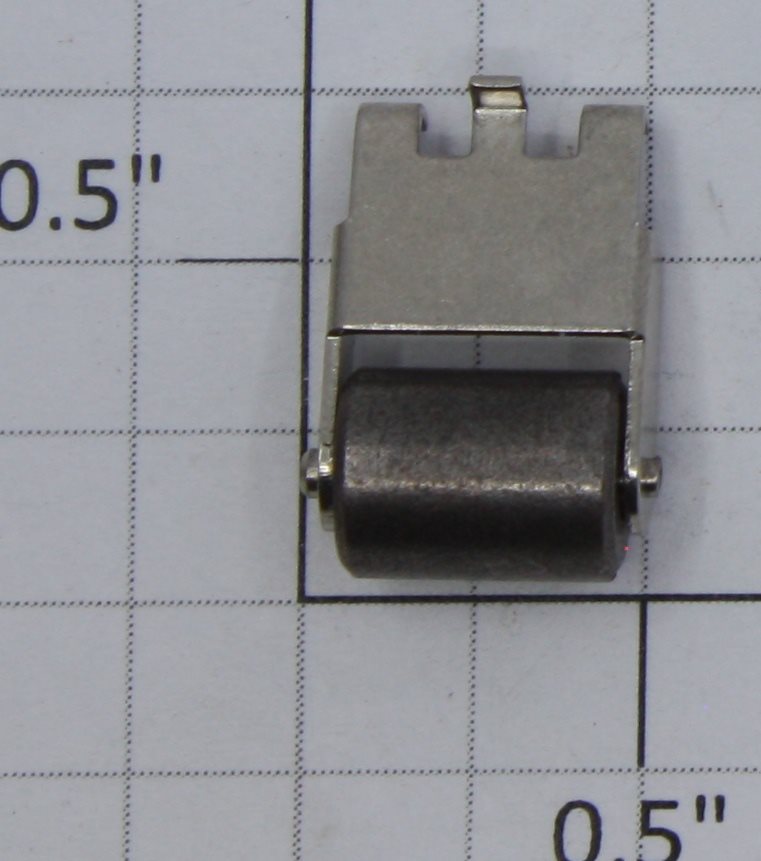

Lionel 8209-165 O Gauge Carbon Pickup Collector Roller & Bracket Assembly (New-Carbon)

—

Lionel 9050-57 Coupler Plunger and Armature Assembly (New)	—	—

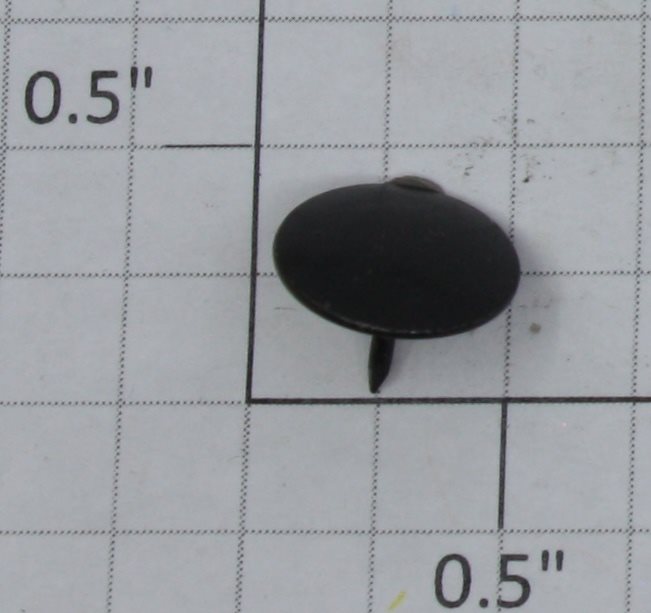

Lionel 9150-58 Black Uncoupler Armature Tack (New)	—	—

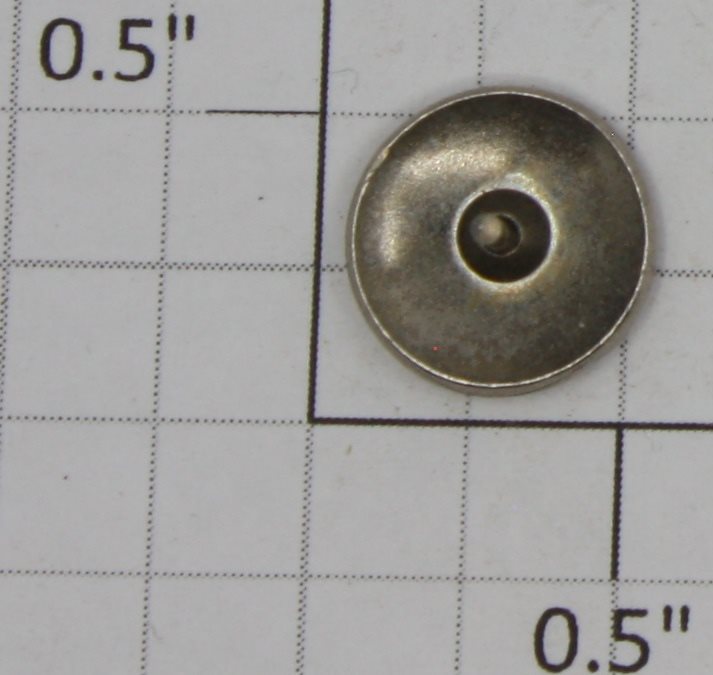

Lionel 9150-58 Nickel Uncoupler Armature Thumb Tack (Repro-Nickel)	—	—
