Lionel LTI 6-16791 Parts List and - Exploded View Parts Diagram

Below is a Lionel LTI 6-16791 parts list and exploded view parts diagram for the Lionel LTI 6-16791 NYC Lights Boxcar. Model Train enthusiasts can use this parts list for identifying and sourcing components to restore their Lionel LTI 6-16791 NYC Lights Boxcar. The embedded Lionel LTI 6-16791 parts list can be used to easily add parts directly into your shopping cart. You are welcome to use this exploded parts diagram to aid in the maintenance and assembly of your Lionel LTI 6-16791 NYC Lights Boxcar.

Parts Lists and Exploded Parts Diagrams:

In addition to this Lionel LTI 6-16791 Parts List and - Exploded View Parts Diagram, you can find numerous other Lionel parts lists on Trainz.com. We have parts lists for hundreds of Lionel postwar, prewar and MPC trains, including exploded view parts diagrams.

Lionel LTI 6-16791 NYC Lights Boxcar

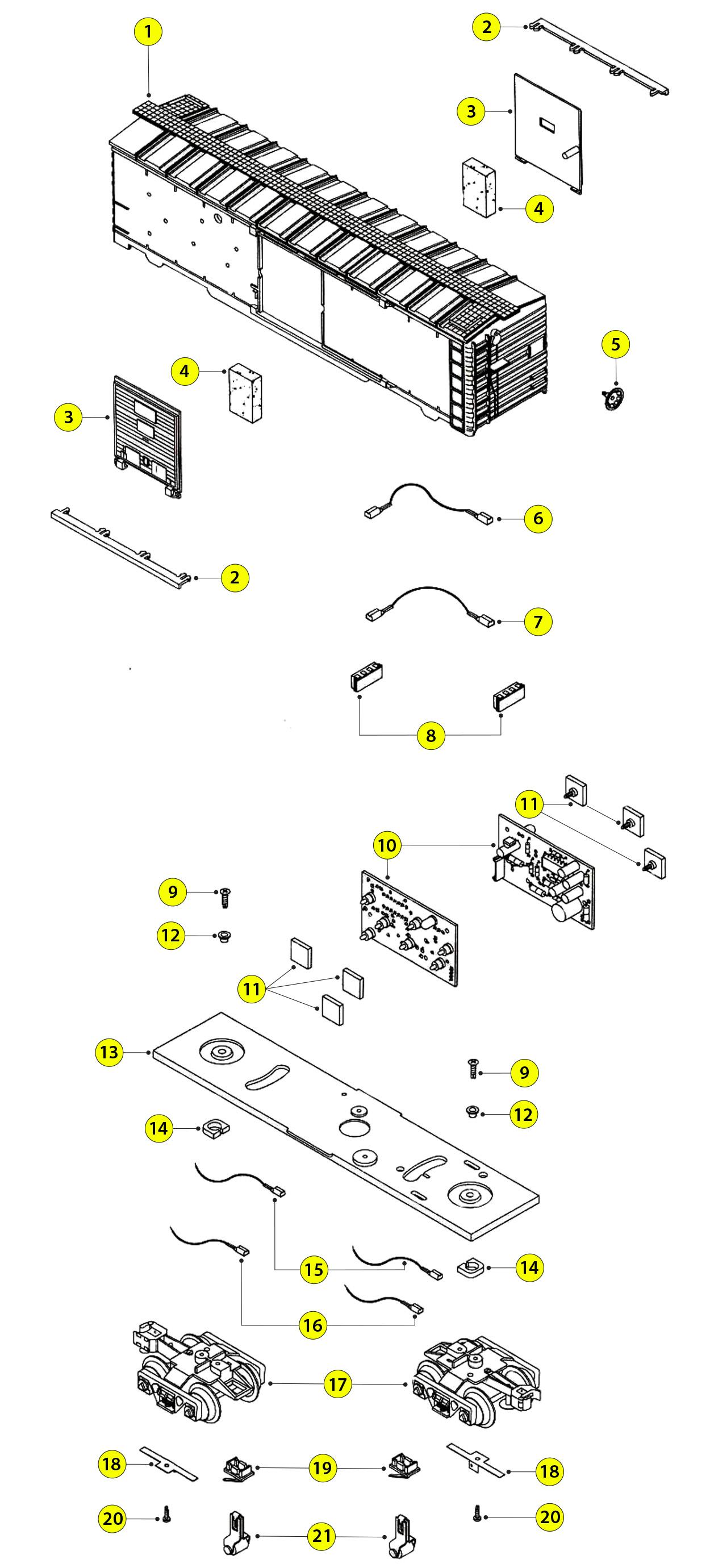

Lionel LTI 6-16791 Parts List and Exploded Parts Diagram
Applicable Products
Product Title Status Starting From
Lionel 6-16791 O Gauge New York City Lights Boxcar
 — —

Parts List

# Part Title Status Starting From
1
2

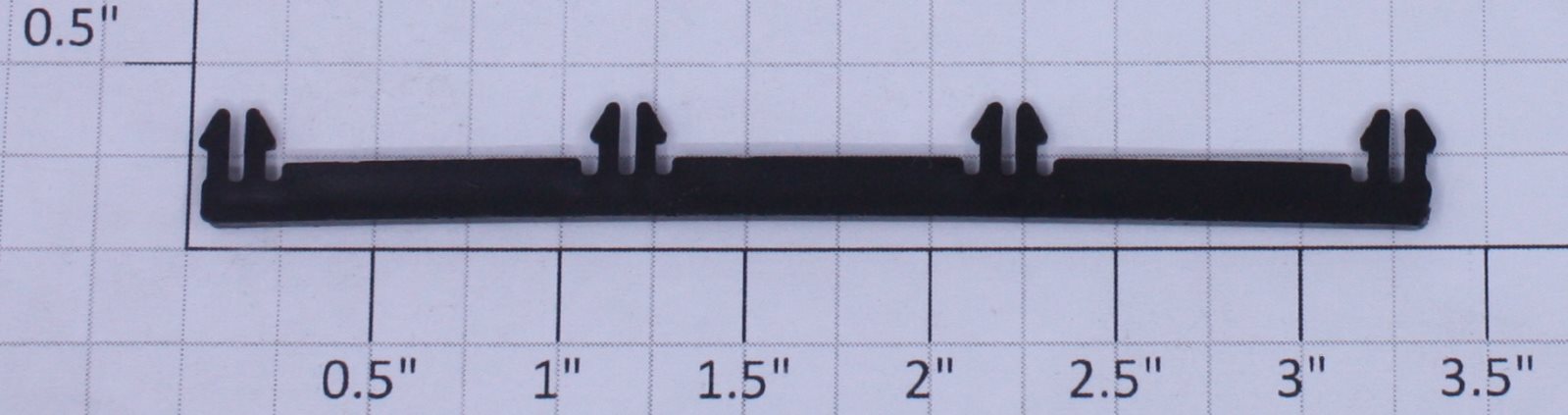

Lionel 9700-15 Black Plastic 4-Prong Door Guide (New-4 Prong)
Lionel 9700-15 Black Plastic 4-Prong Door Guide (New-4 Prong)
— —
3

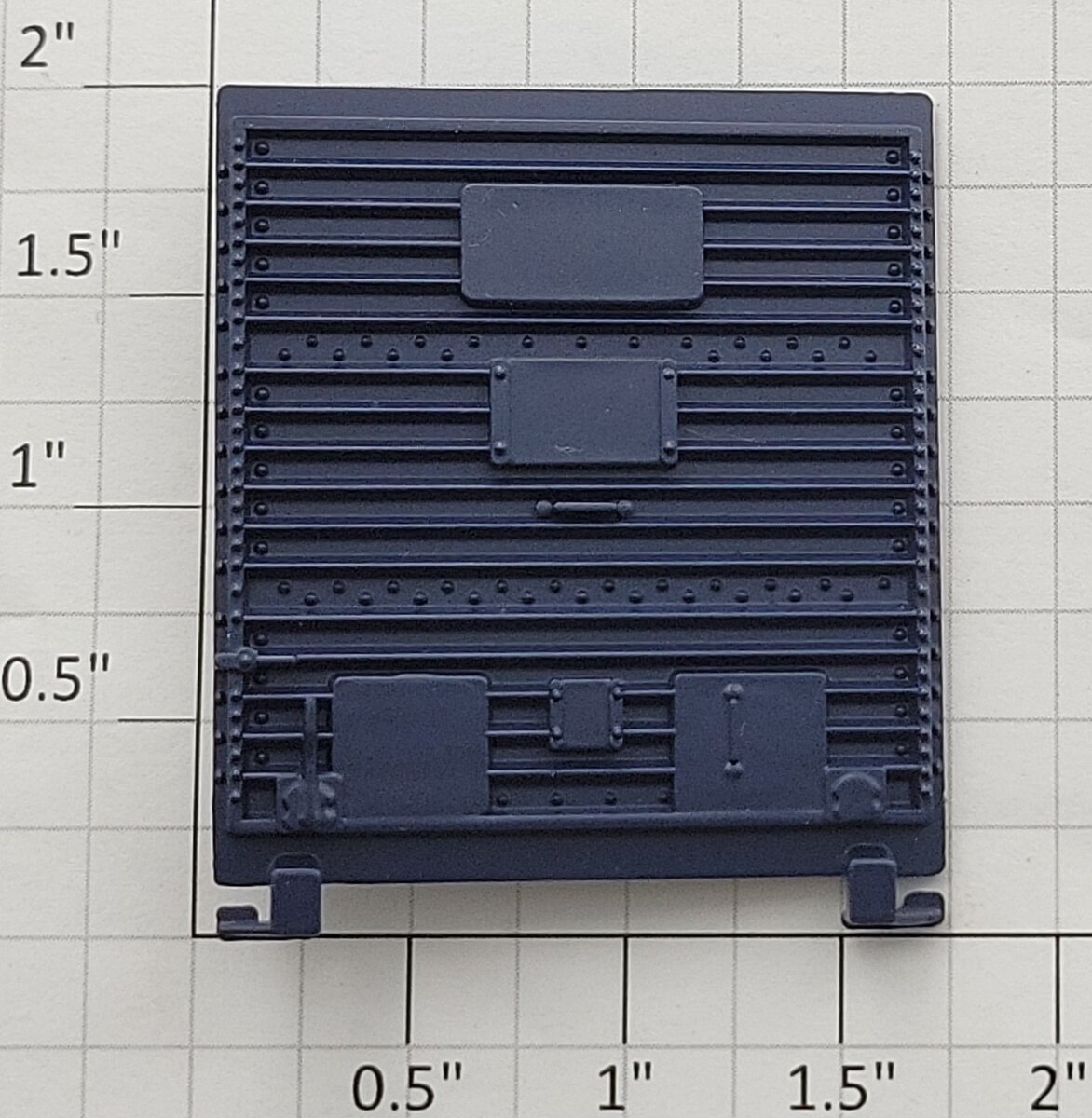

Lionel 16791-14 NYC Lights Dark Blue Multi-Panel Box Car Door with Guides (New)
Lionel 16791-14 NYC Lights Dark Blue Multi-Panel Box Car Door with Guides (New)
— —
4

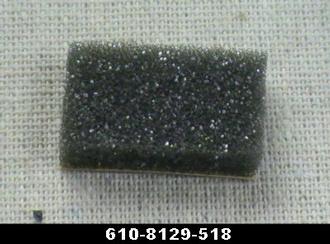

Lionel 6108129518 5/8 x 1 Adhesive Foam Pad (New)
Lionel 6108129518 5/8 x 1 Adhesive Foam Pad (New)
— —
5

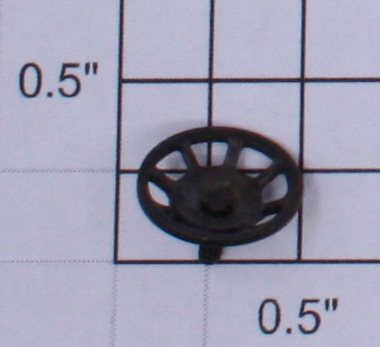

Lionel 9284-60 Metal Brake Wheel & Shaft Assembly (New)
Lionel 9284-60 Metal Brake Wheel & Shaft Assembly (New)
— —
6
Lionel 6106791344 Lead 5.0 Blk W/2 Terminals (New)
Lionel 6106791344 Lead 5.0 Blk W/2 Terminals (New)
 — —
7
8

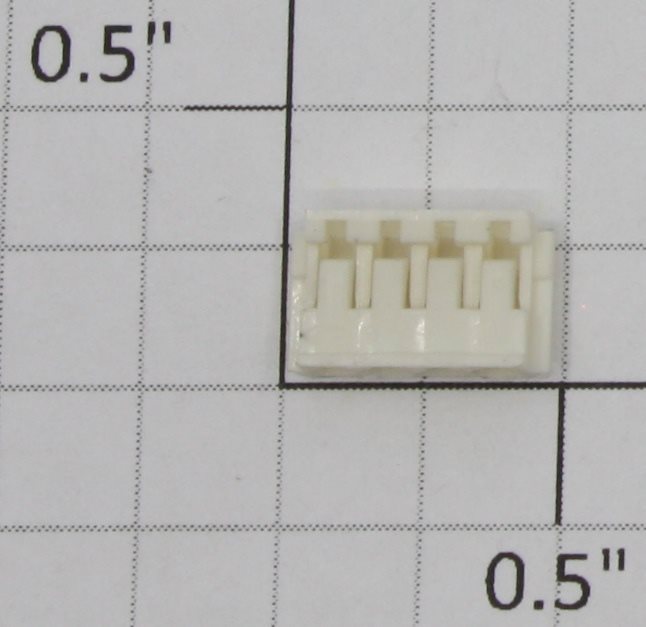

Lionel 8221-40 4 Circuit Plug Housing Type A (New)
Lionel 8221-40 4 Circuit Plug Housing Type A (New)
— —
9

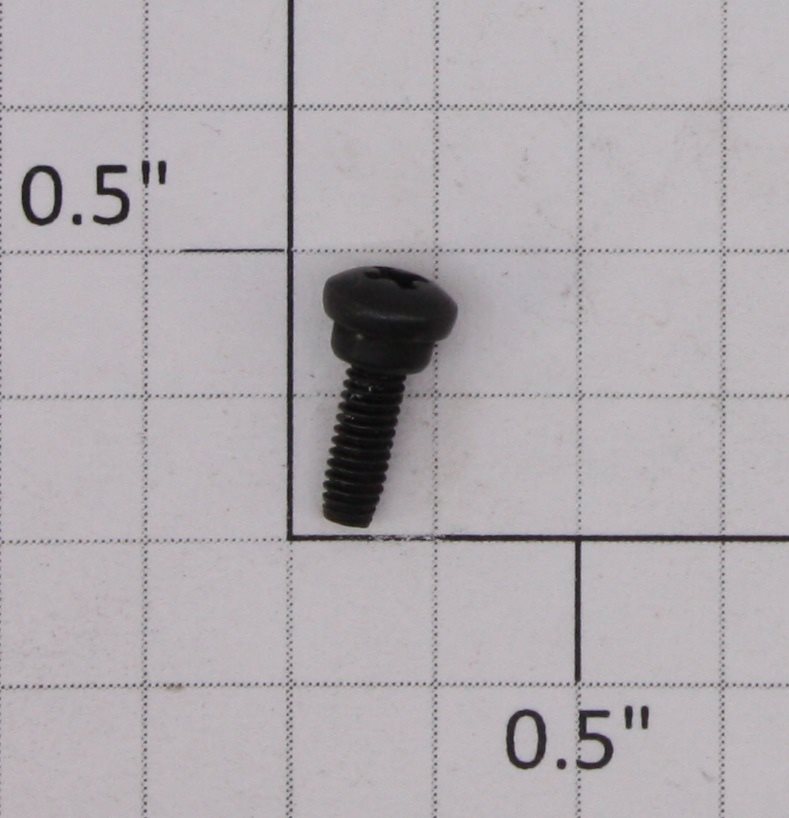

Lionel 8040-172 4-40x5/16 Black RHST Phillips Binding Head "Z" Screws (4-40x5/16)
Lionel 8040-172 4-40x5/16 Black RHST Phillips Binding Head "Z" Screws (4-40x5/16)
— —
10

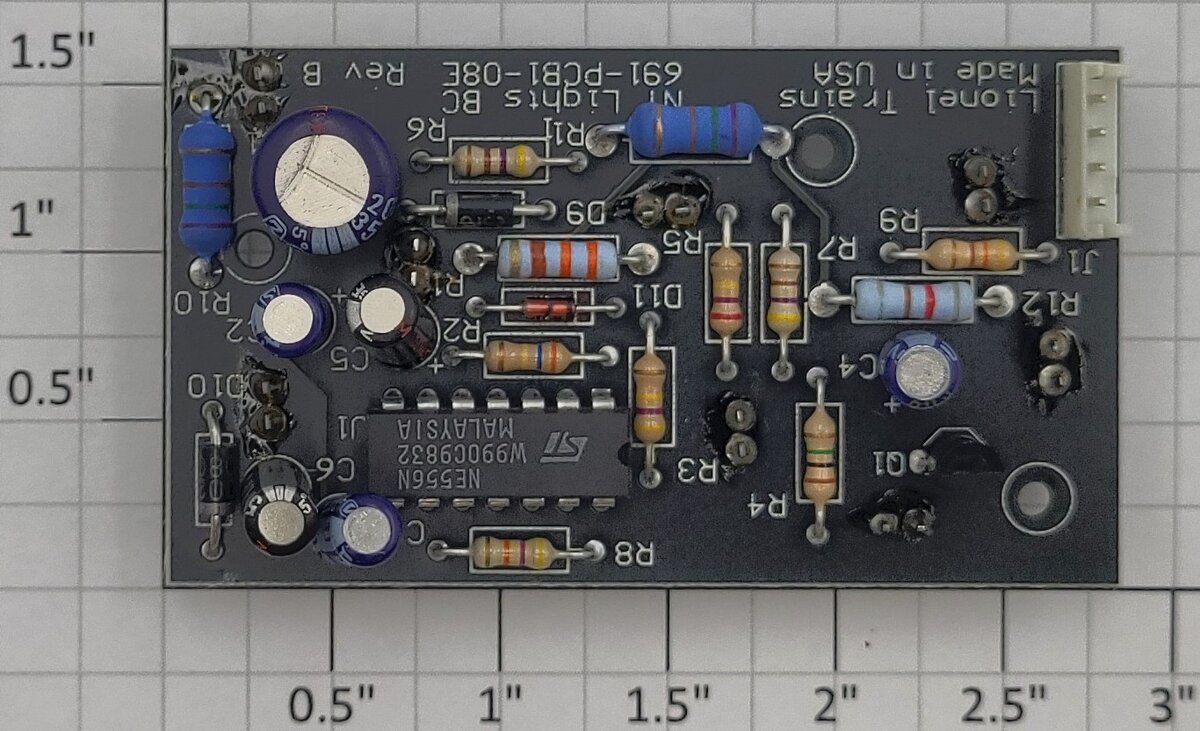

Lionel 691PCB108E New York Boxcar Blinking Lights PCB Circuit Board (New)
Lionel 691PCB108E New York Boxcar Blinking Lights PCB Circuit Board (New)
— —
11

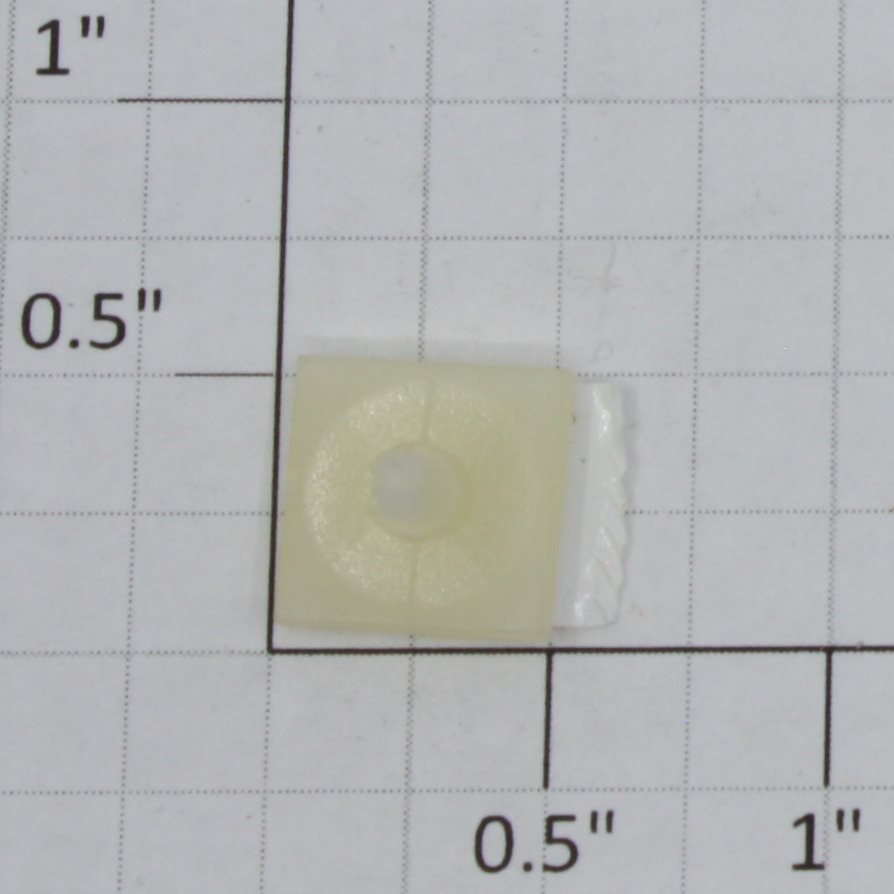

Lionel 16791-75 3/16" PCB Standoff Bushing (New)
Lionel 16791-75 3/16" PCB Standoff Bushing (New)
— —
12

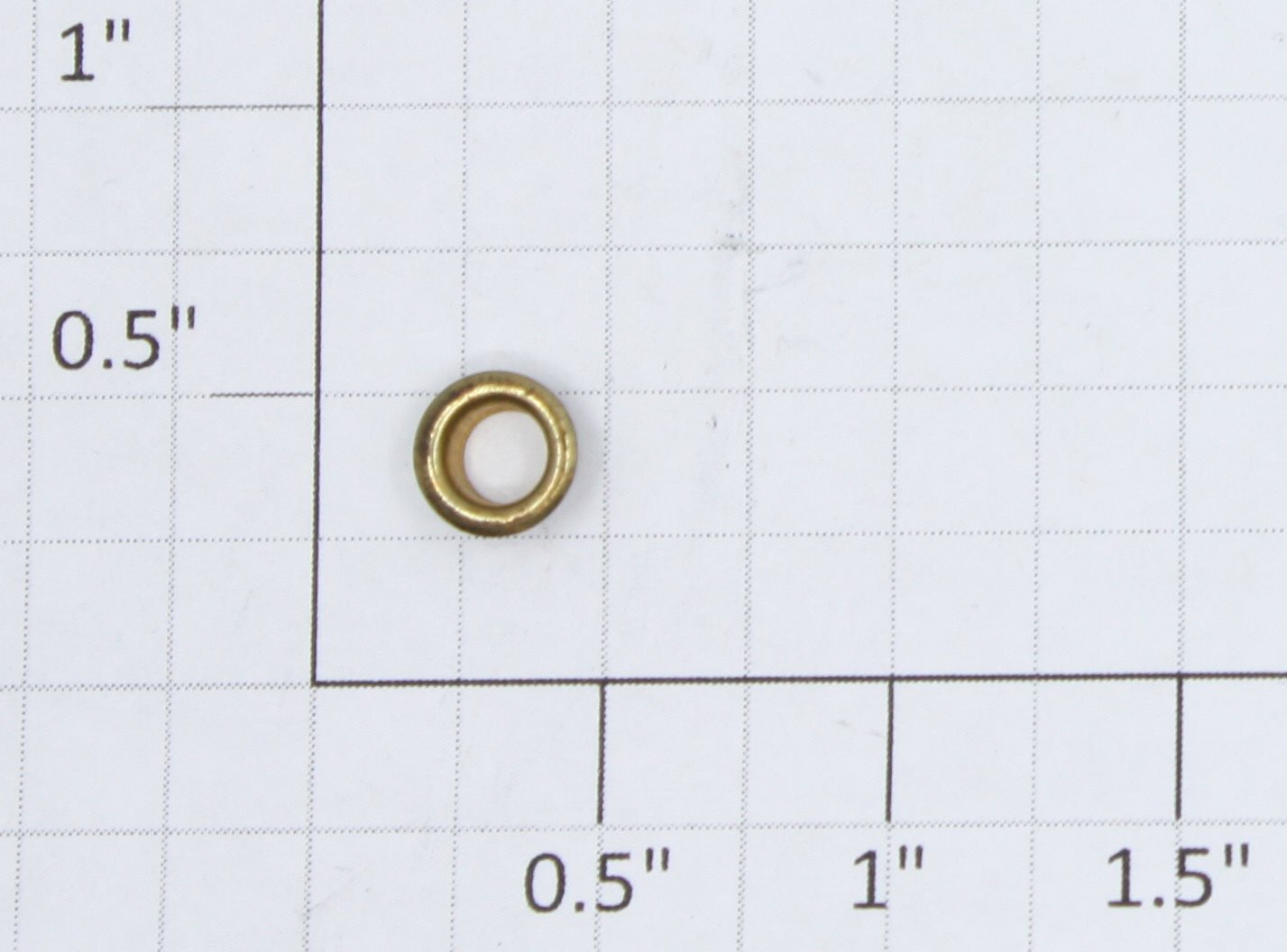

Lionel 8071-30 SE-54 5/32"" x 1/8"" Equivalent Eyelet
Lionel 8071-30 SE-54 5/32"" x 1/8"" Equivalent Eyelet
— —

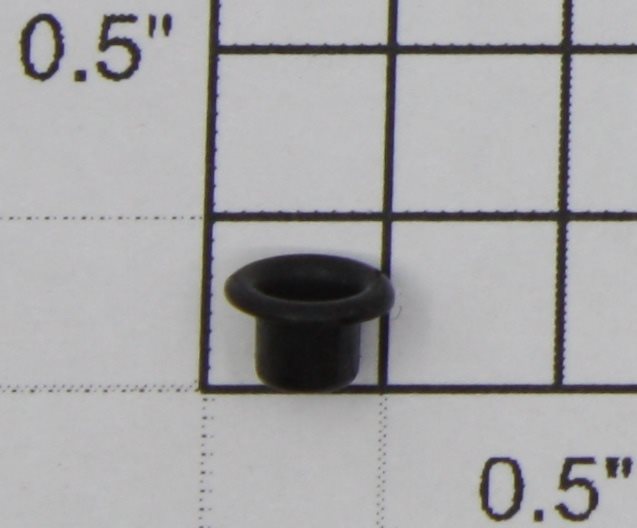

Lionel 8071-30 SE-54 5/32"" x 1/8"" Black Eyelet (New)
Lionel 8071-30 SE-54 5/32"" x 1/8"" Black Eyelet (New)
— —

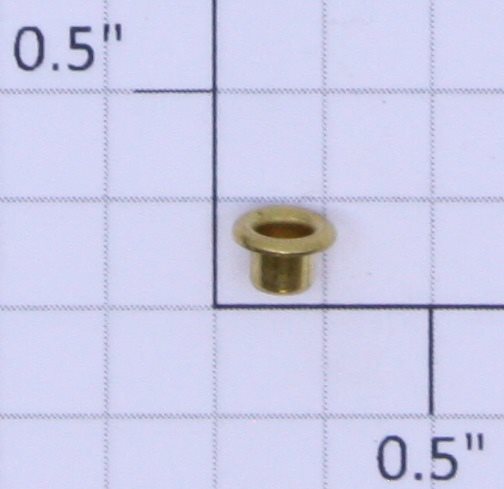

Lionel SE-54 5/32"" x 1/8"" Brass Eyelet (Repro-Brass)
Lionel SE-54 5/32"" x 1/8"" Brass Eyelet (Repro-Brass)
— —

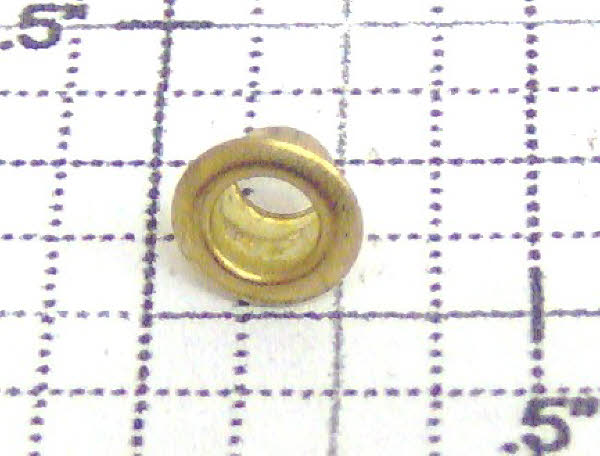

Lionel SE-54 5/32"" x 1/8"" Eyelet
Lionel SE-54 5/32"" x 1/8"" Eyelet
 — —
13

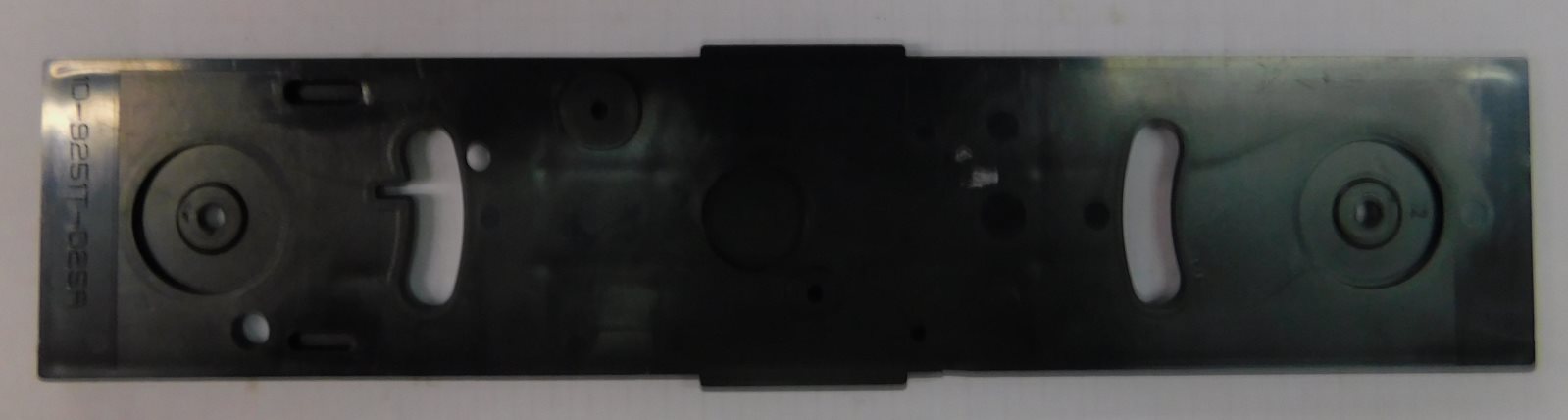

Lionel 6109251025 Black Plastic Boxcar Frame (New)
Lionel 6109251025 Black Plastic Boxcar Frame (New)
 — —
14

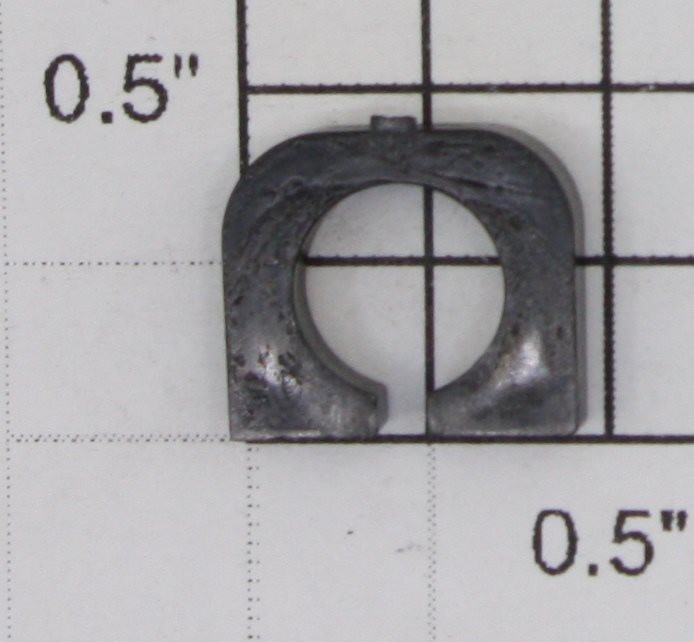

Lionel 19738-55 O Gauge Plastic Black Horseshoe Retaining Washer (New)
Lionel 19738-55 O Gauge Plastic Black Horseshoe Retaining Washer (New)
— —
15
Lionel 6108122162 Lead 6.0 w/ Crimp Terminal Blk (New)
Lionel 6108122162 Lead 6.0 w/ Crimp Terminal Blk (New)
 — —
16
17
Lionel 6109251050 Truck Asmbly
Lionel 6109251050 Truck Asmbly
 — —
18
Lionel 9050-156 Axle Ground Contact (Reproduction)
Lionel 9050-156 Axle Ground Contact (Reproduction)
— —
19
20

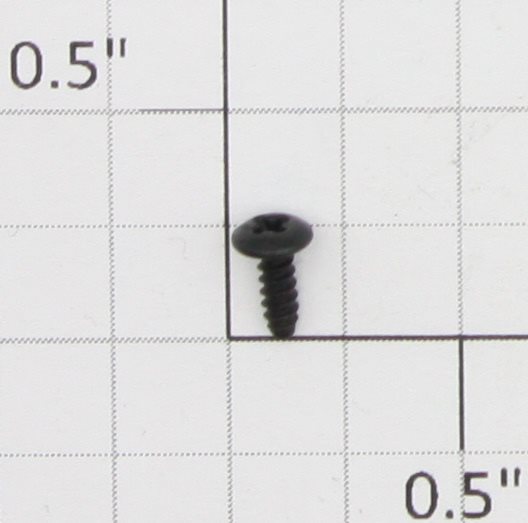

Lionel 87401-12 #2 x 1/4" Black Phillips Oval Head Self Tapping Screw (New)
Lionel 87401-12 #2 x 1/4" Black Phillips Oval Head Self Tapping Screw (New)
 — —
21

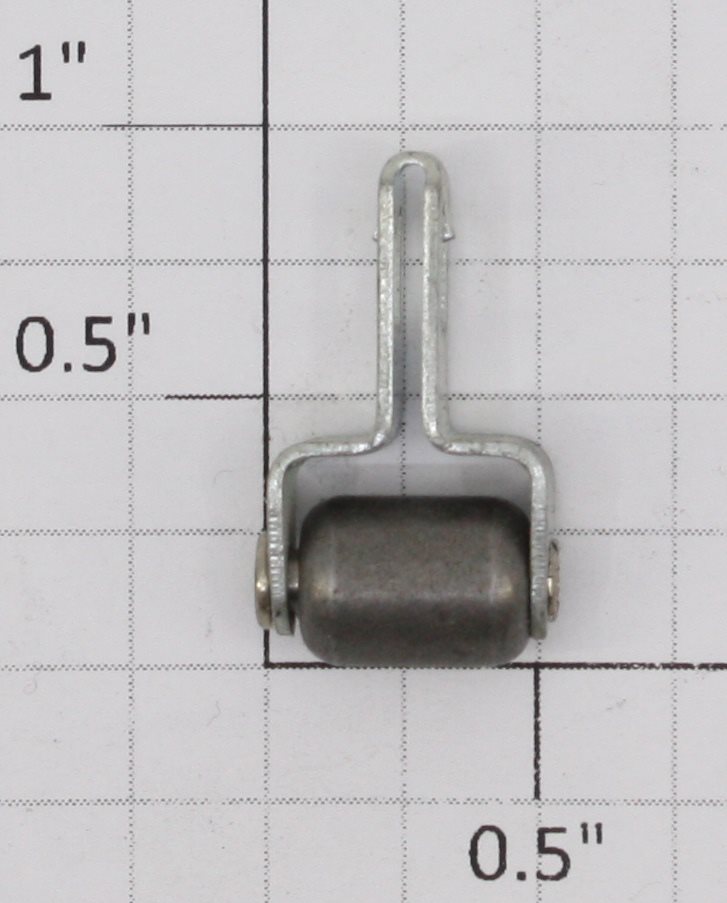

Lionel 9536-57 O Gauge Passenger Car Collector Roller Pickup Assembly (New)
Lionel 9536-57 O Gauge Passenger Car Collector Roller Pickup Assembly (New)
— —

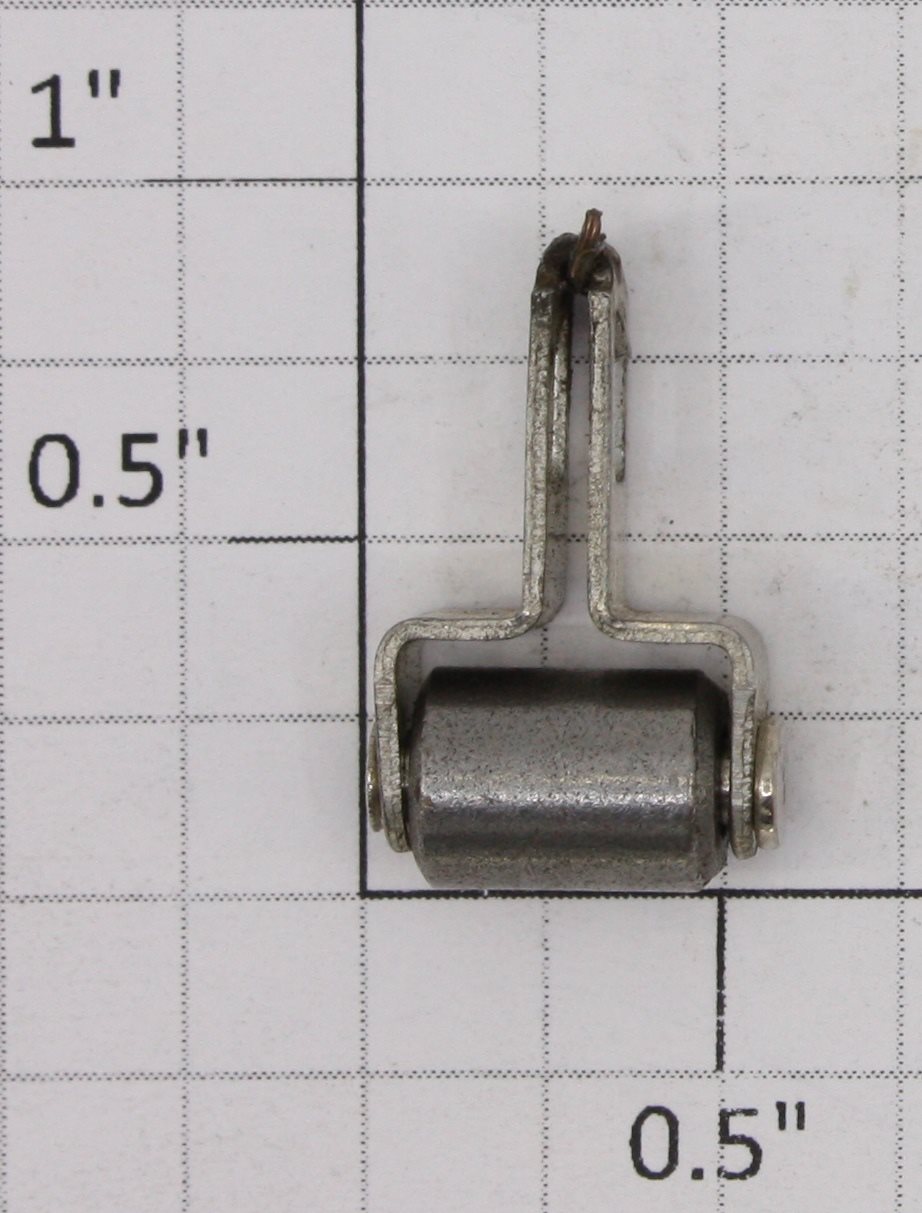

Lionel 9536-57 O Gauge Tender Collector Roller Pickup Assembly (Used)
Lionel 9536-57 O Gauge Tender Collector Roller Pickup Assembly (Used)
 — —

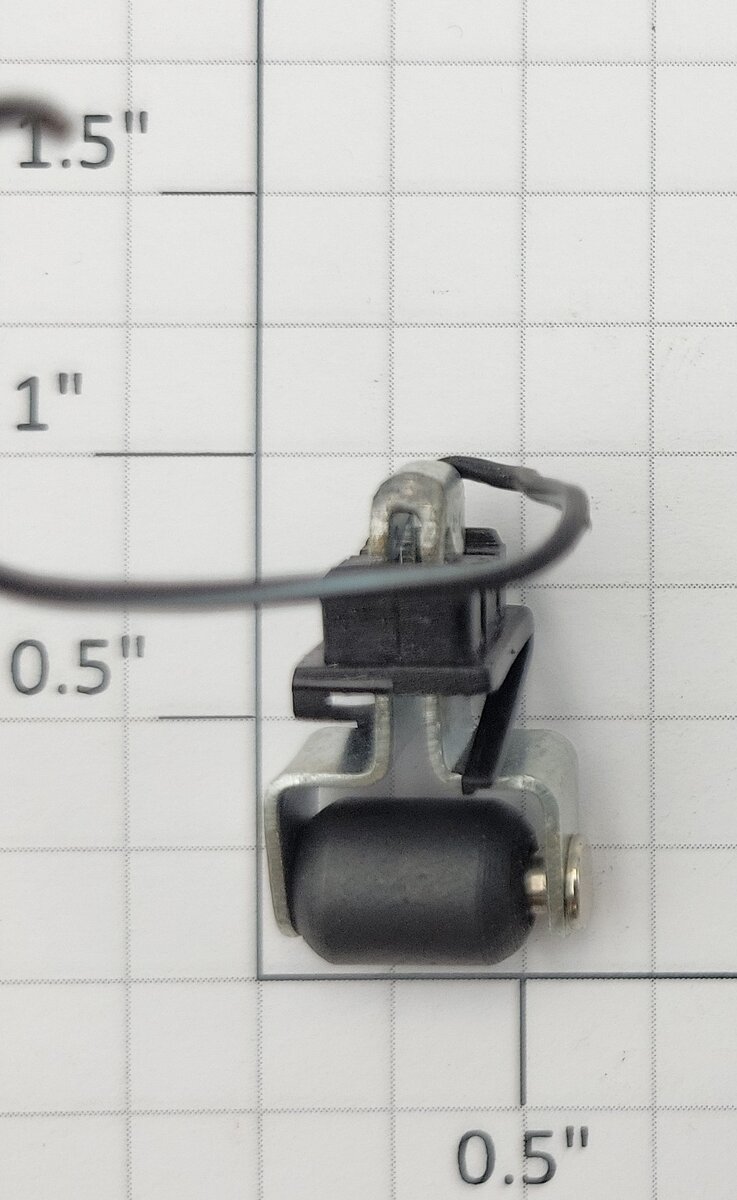

Lionel 9536-57 O Gauge Collector Roller Pickup with Plastic Bushing (Original)
Lionel 9536-57 O Gauge Collector Roller Pickup with Plastic Bushing (Original)
— —
