Lionel LTI 6-18052 PRR Torpedo 4-6-2 - Exploded View Parts Diagram

Below is a Lionel LTI 6-18052 PRR Torpedo 4-6-2 for the Lionel LTI 6-18052 PRR Torpedo 4-6-2. Model Train enthusiasts can use this parts list for identifying and sourcing components to restore their Lionel LTI 6-18052 PRR Torpedo 4-6-2. The embedded Lionel LTI 6-18052 PRR Torpedo 4-6-2 can be used to easily add parts directly into your shopping cart. You are welcome to use this exploded parts diagram to aid in the maintenance and assembly of your Lionel LTI 6-18052 PRR Torpedo 4-6-2.

Parts Lists and Exploded Parts Diagrams:

In addition to this Lionel LTI 6-18052 PRR Torpedo 4-6-2 - Exploded View Parts Diagram, you can find numerous other Lionel parts lists on Trainz.com. We have parts lists for hundreds of Lionel postwar, prewar and MPC trains, including exploded view parts diagrams.

Lionel LTI 6-18052 PRR Torpedo 4-6-2

Lionel LTI 6-18052 PRR Torpedo 4-6-2 Exploded View Parts Diagram

Applicable Products

Hide Sold Out:

Product Title	Status	Starting From
Lionel 6-18052 O Gauge Pennsylvania K-4 Torpedo Steam Locomotive & Tender #238E	—	—

Parts List

Hide Sold Out:

#

Part Title

Status

Starting From

1

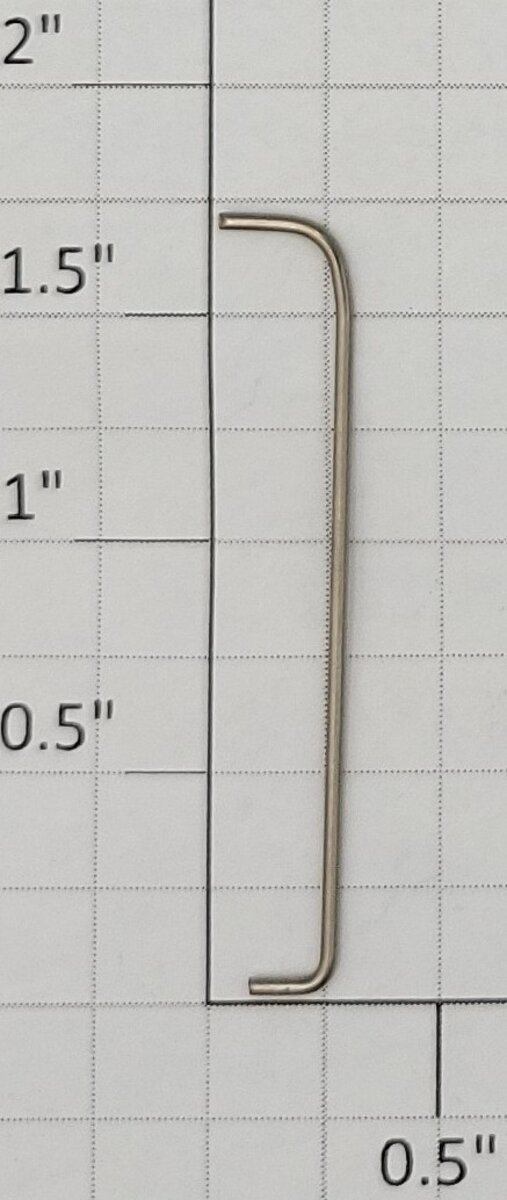

Lionel 18052-013 K4 Torpedo Pennsylvania Steam Loco Door Hand Rail #238E (New)

—

—

2

Lionel 18045-315 Black Plastic Handrail Stanchion (New)

—

—

3

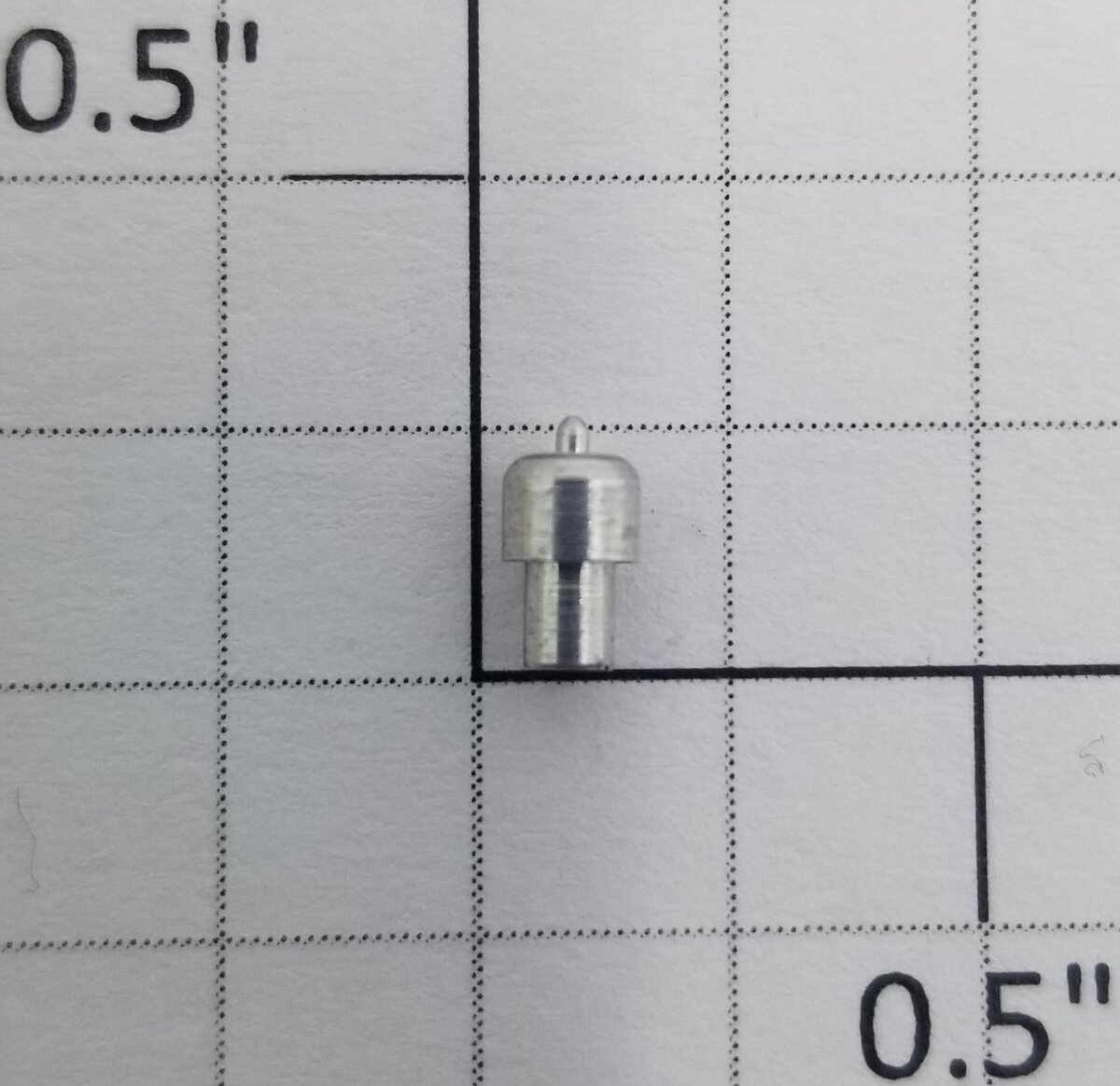

Lionel 250E-36 Safety Valve (Original)

—

—

4

Lionel 6108052150 Handrail And Lead Assy (New)

—

—

5

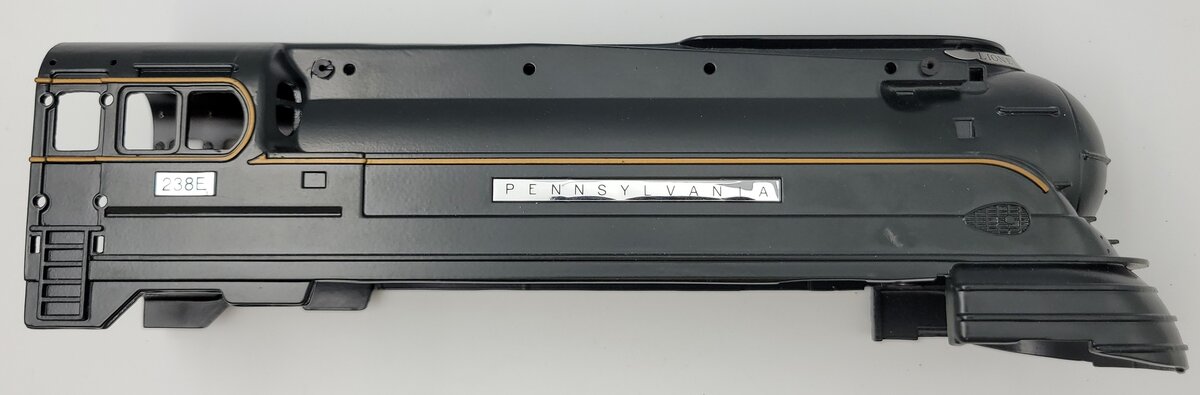

Lionel 18052-7 PRR Torpedo Boiler Cab "238E" (New)

—

—

6

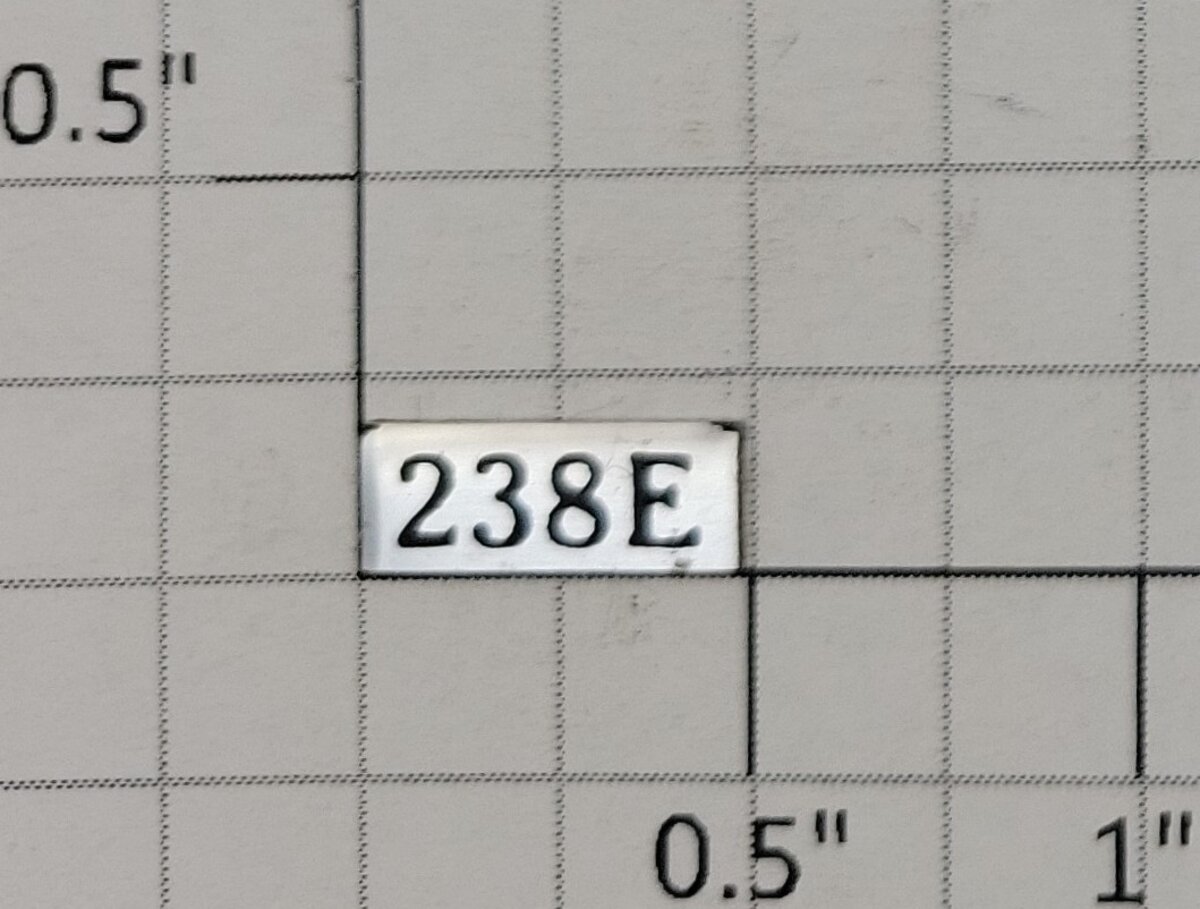

Lionel 238E-4 "238E" Adhesive Nameplate (Reproduction)

—

—

7

Lionel 8042-75 Insulator for Handrail (New)

—

—

8

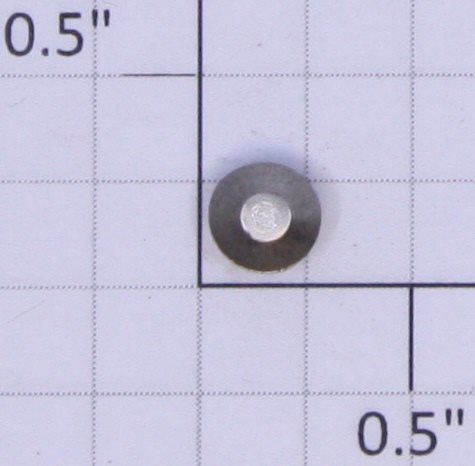

Lionel 250E-35 Nickel Sand Dome (Reproduction)	—	—

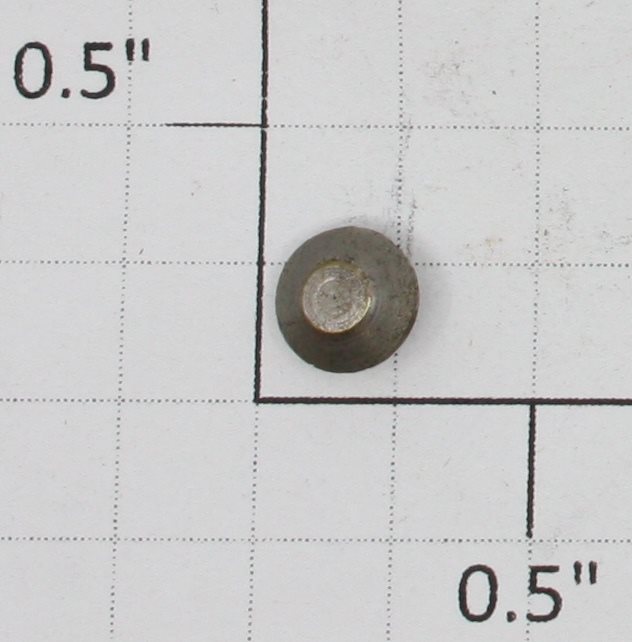

Lionel 250E-35 Sand Dome (Original Nickel)	—	—

9

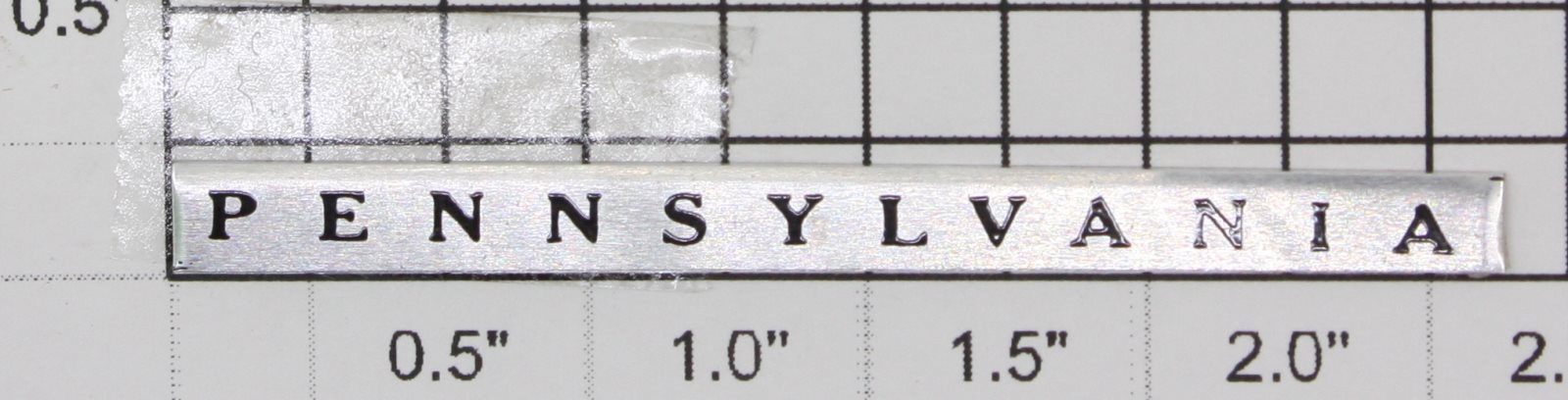

Lionel 238E-6 Pennsylvania Adhesive Nameplate (Reproduction)

—

—

10

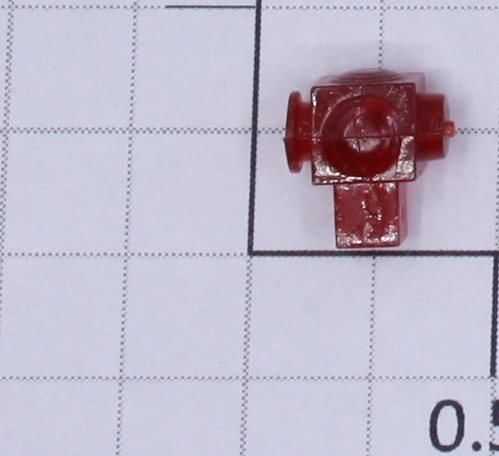

Lionel 249E-1 Dark Red Side Marker Lens - Fits 238E, 289, 1668,1689 (Repro-Dark Red)	—	—

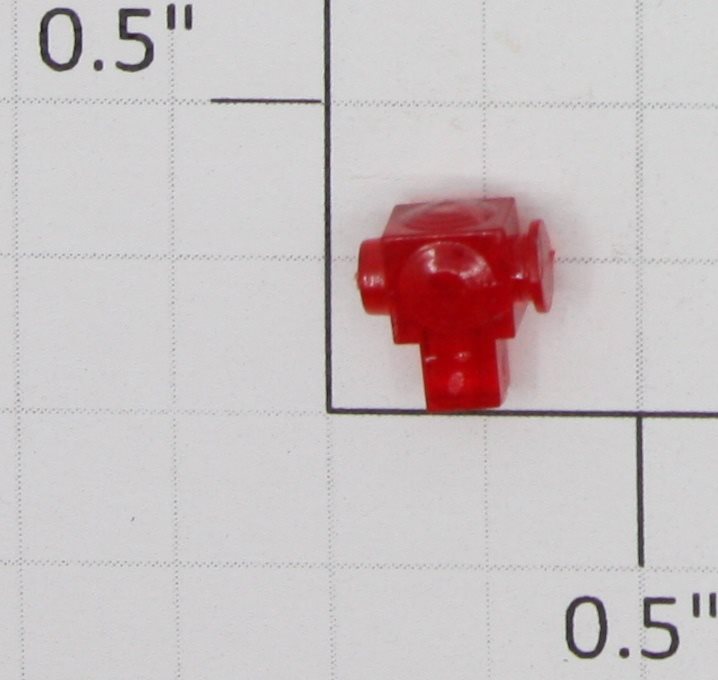

Lionel 249E-1 Light Red Side Marker Lens - Fits 238E, 289, 1668,1689 (Repro-Light Red)	—	—

11

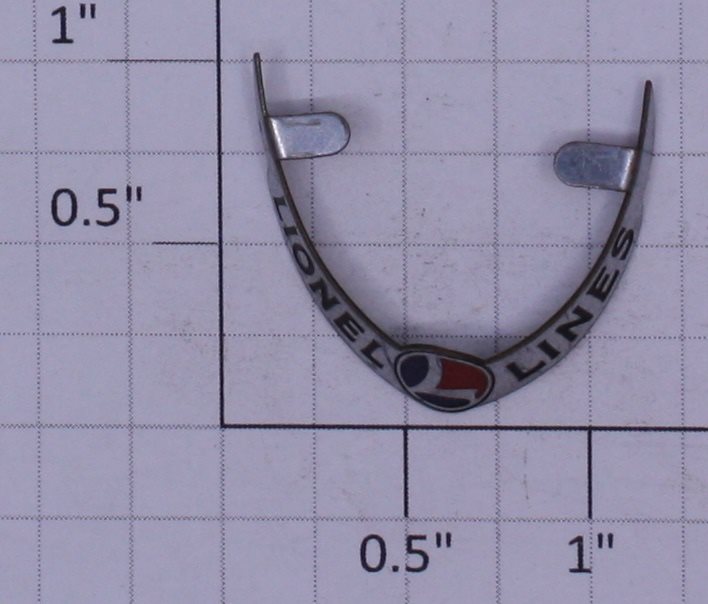

Lionel 238E-17 Lionel Lines Winged Nameplate

—

—

12

Lionel 18049-300 18 Volt 2-Pin Clear Light Bulb (Reproduction)

—

—

13

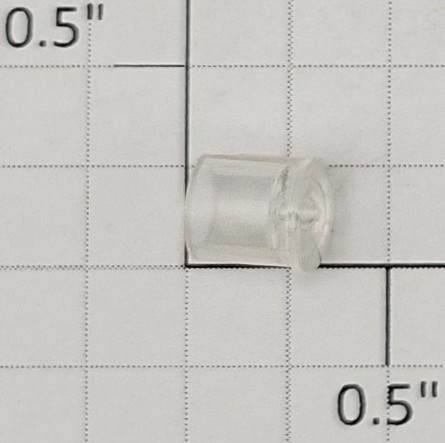

Lionel 18052-165 K4 Torpedo Pennsylvania PRR Steam Headlight Lens #238E (New)

—

—

14

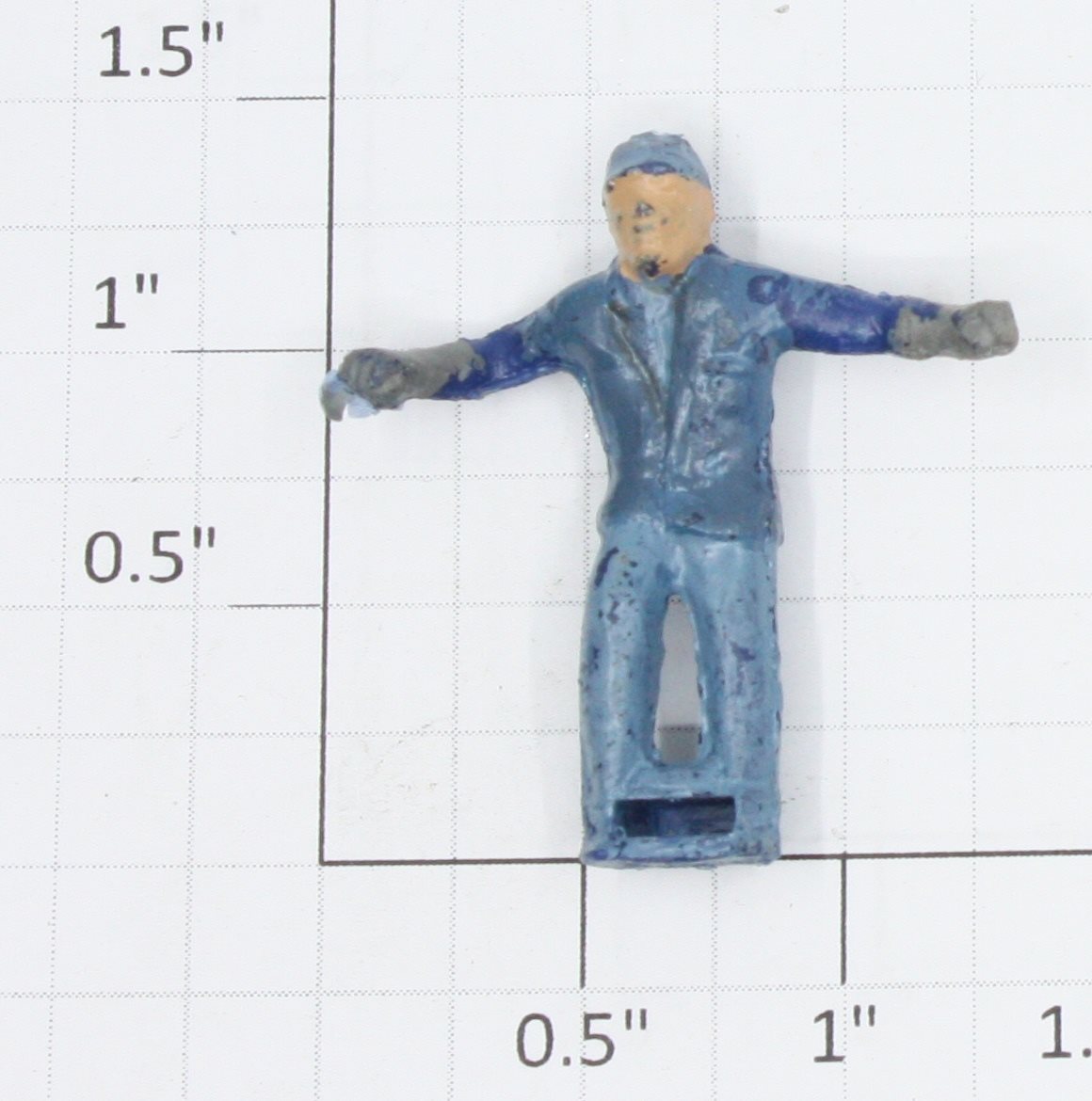

Lionel 6109811045 Brakeman Car Blue Figure with Painted Face (New)

—

—

15

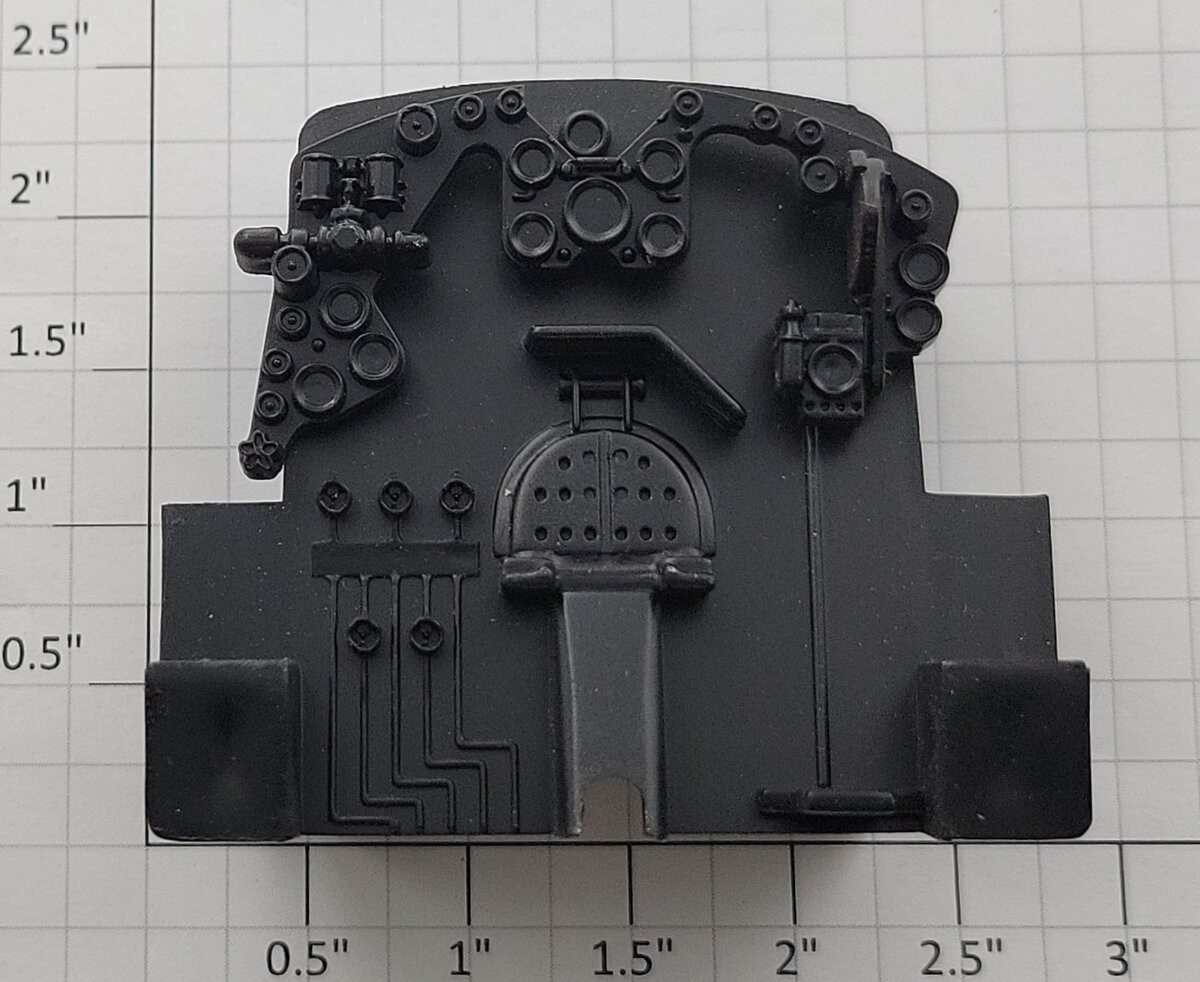

Lionel 18052-244 PRR K-4 Torpedo Steam Loco Black Plastic Backhead Detail #238E (New)

—

—

16

Lionel 6108052025 Figure-Mld Vinyl (New)

—

—

17

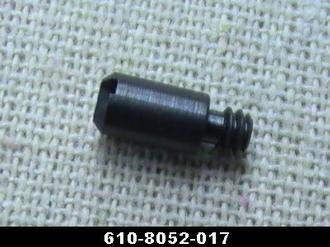

Lionel 6108052017 #6-32 Black Shoulder Screw (New)

—

—

18

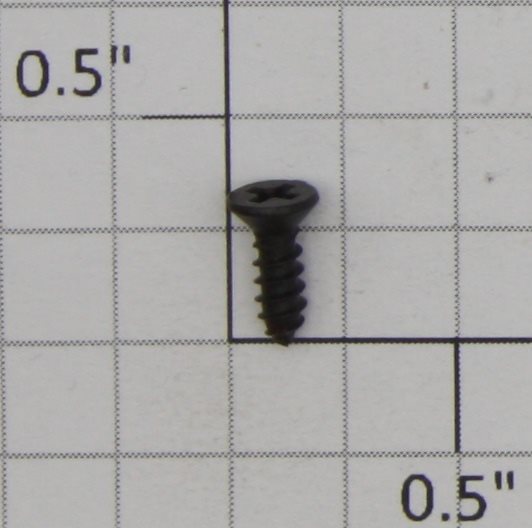

Lionel 87701-12 #4 x 3/8" Phillips Flat Head Self-Tapping Screw (New)

—

—

19

Lionel 8010-165 Truss Head Self Tapping Mounting Screws 4-40x1/4" (#4-40x1/4" )

—

—

20

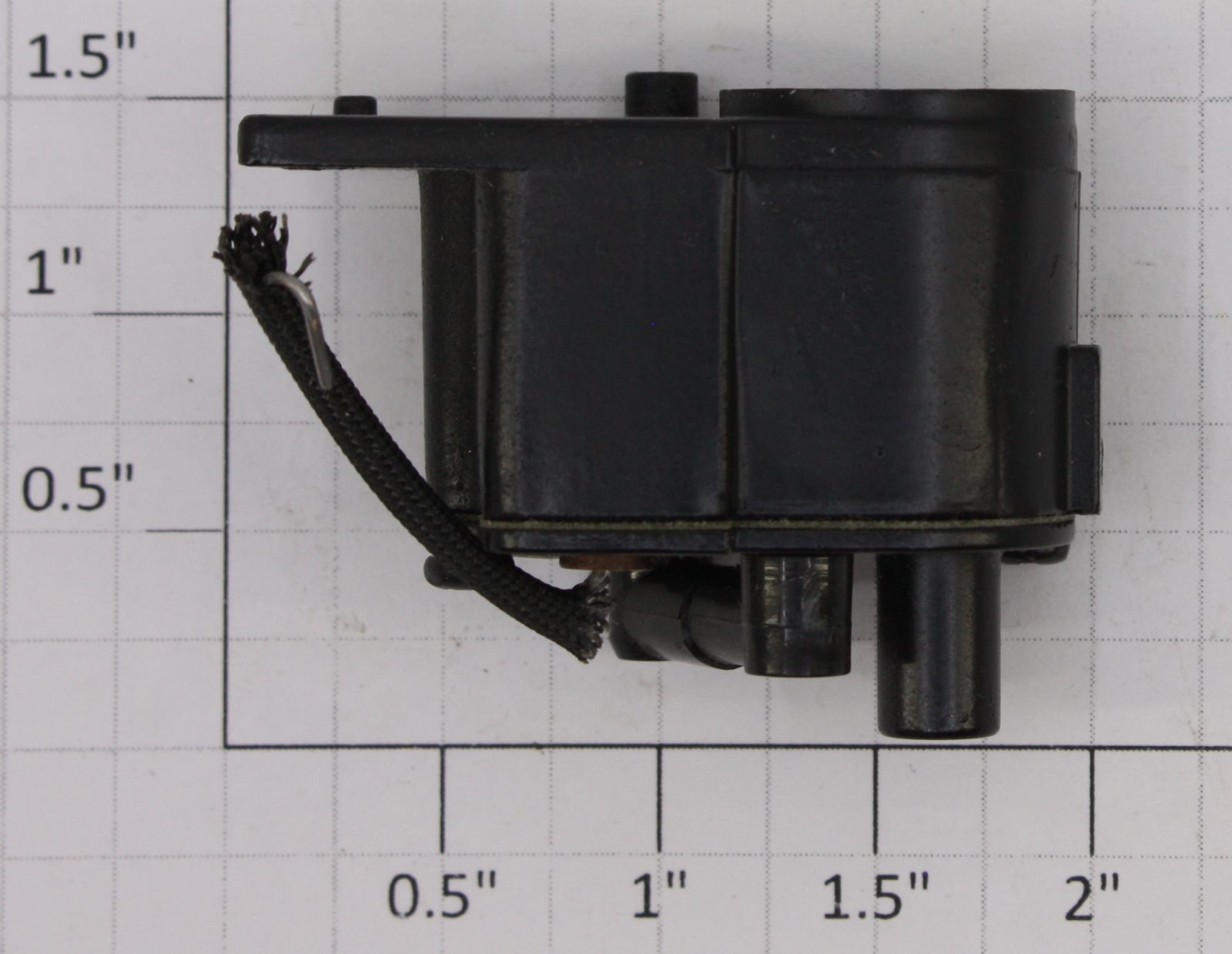

Lionel 18052-200 Penn Torpedo Smoke Unit (New)

—

—

21

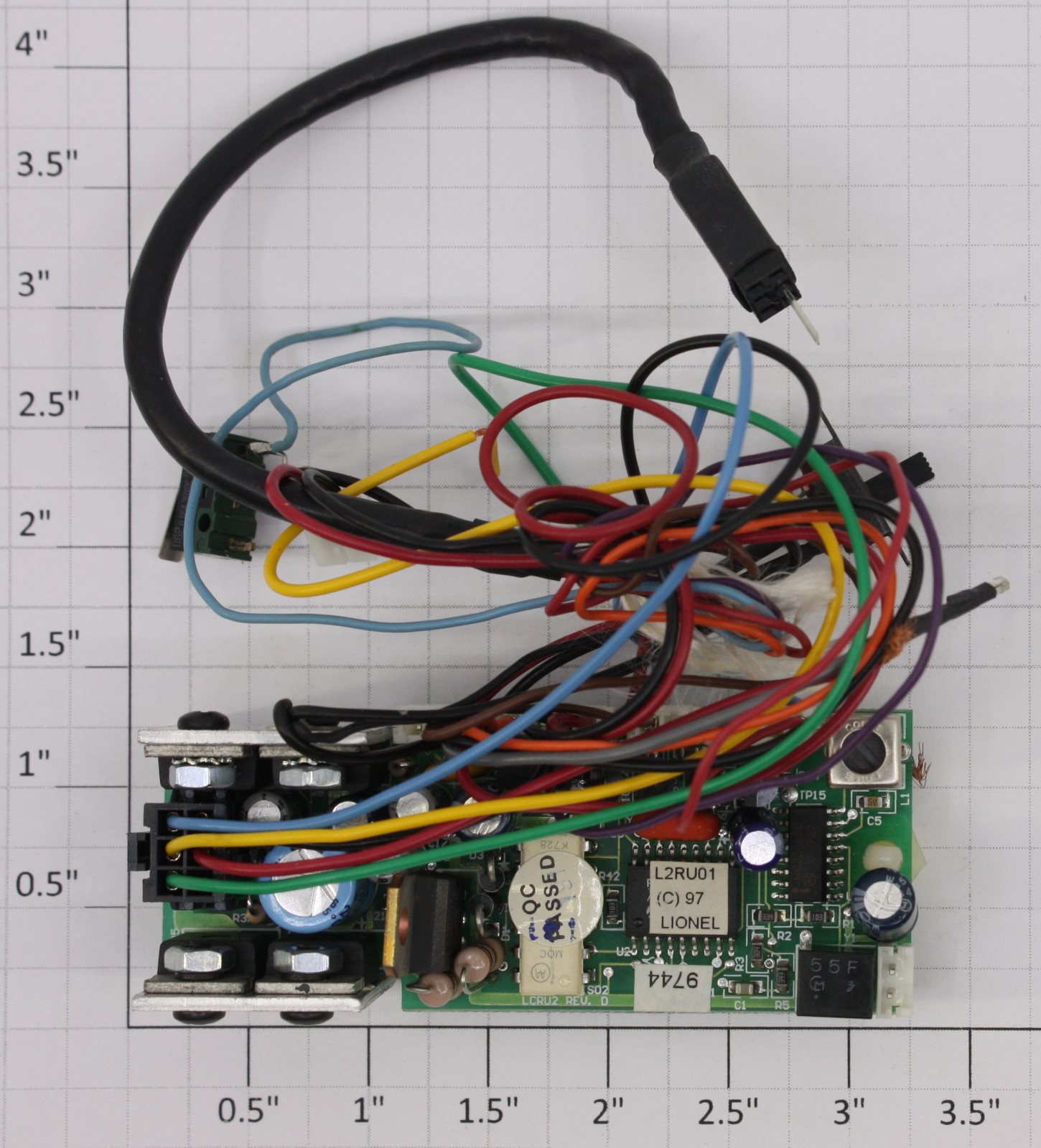

Lionel 18052-256 LCRU with Plug Assembly (New)

—

—

22

Lionel 8142-51 #4-40 x 1/4" Crosshead Guide Phillips Panhead Screw (New)

—

—

23

Lionel 8306-213 O Gauge Smoke Unit Piston and Spring Assembly .70" OD (New)

—

—

24

Lionel 3664-303 E-Unit Miniature Slide Switch (New)

—

—

25

Lionel 401-162 Cherry Limit Switch (New)

—

—

26

27

Lionel 6108052153 Shscr #1-72 Hxmasskns (New)

—

—

28

Lionel 8002-123 #2-56 x 3/16" Black Phillips Head Self Tapping Screw (New)

—

—

29

Lionel 6108052016 1-72x5/16 Black Phillips Pan Head Screws (New)

—

—

30

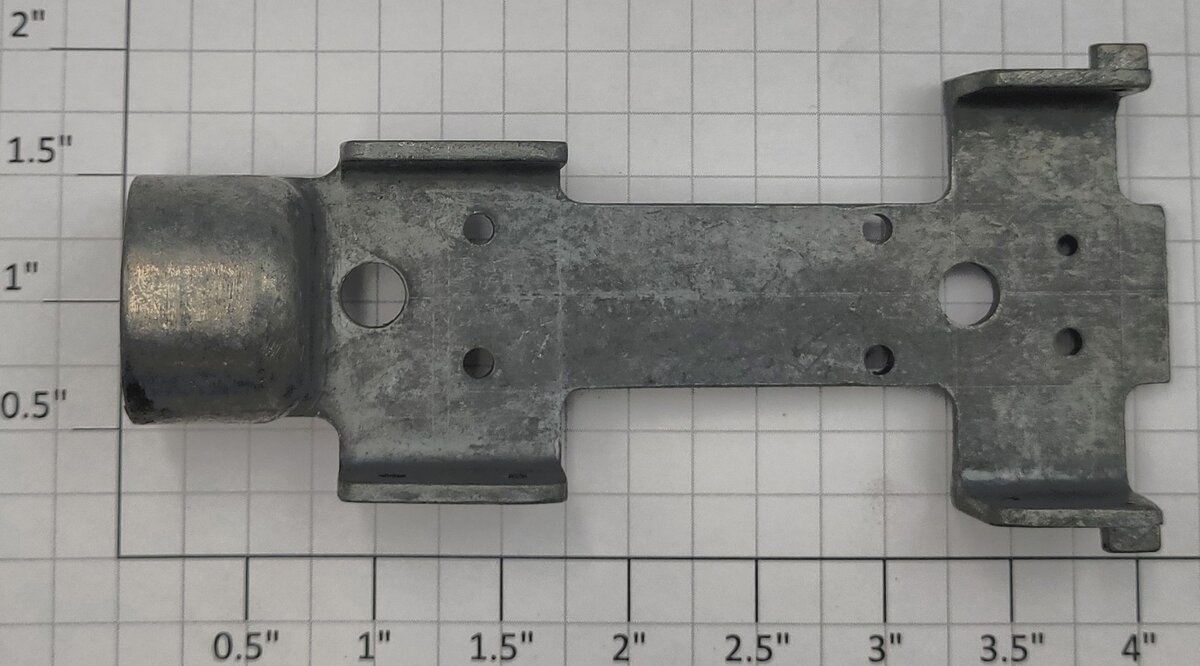

Lionel 18052-35 Unfinished Diecast PRR Torpedo Steam Loco Gear Box Cover (New)

—

—

31

32

Lionel 6108052057 Eccn. Rod, Sulf.Nck (New)

—

—

33

Lionel 671M-23 3/16"x3/8"x1/128" Thin Steel Thrust Washer (Reproduction)

—

—

34

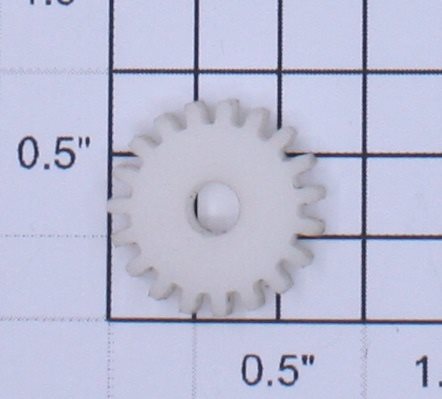

Lionel 8000-61 Spur Gear (New)

—

—

35

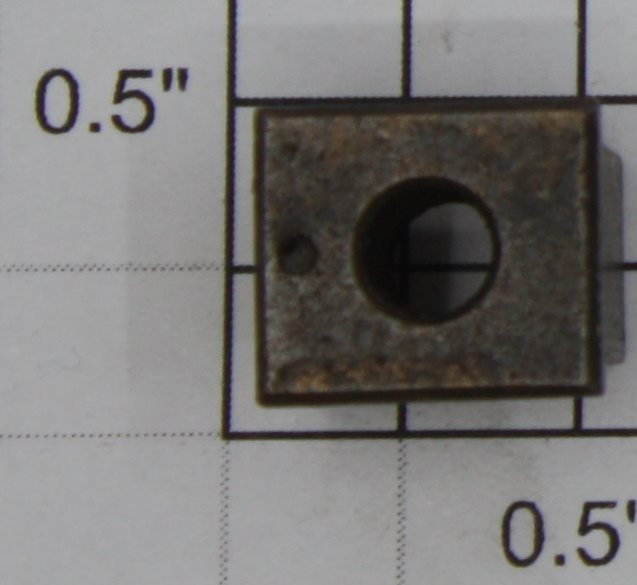

Lionel 700E-24 Bronze Worm Shaft Bearing (Repro-Bronze)

—

—

36

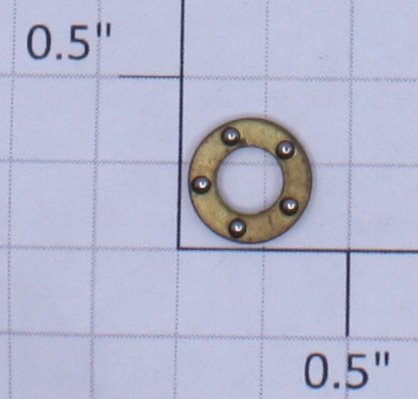

Lionel 681-121 Motor 5- Ball Bearing Set/Thrust Bearing (New)	—	—

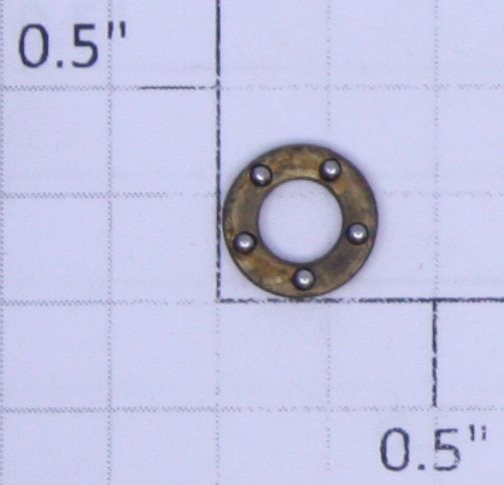

Lionel 681-121 Motor 5-Ball Bearing Set/Thrust Bearing (Original)	—	—

37

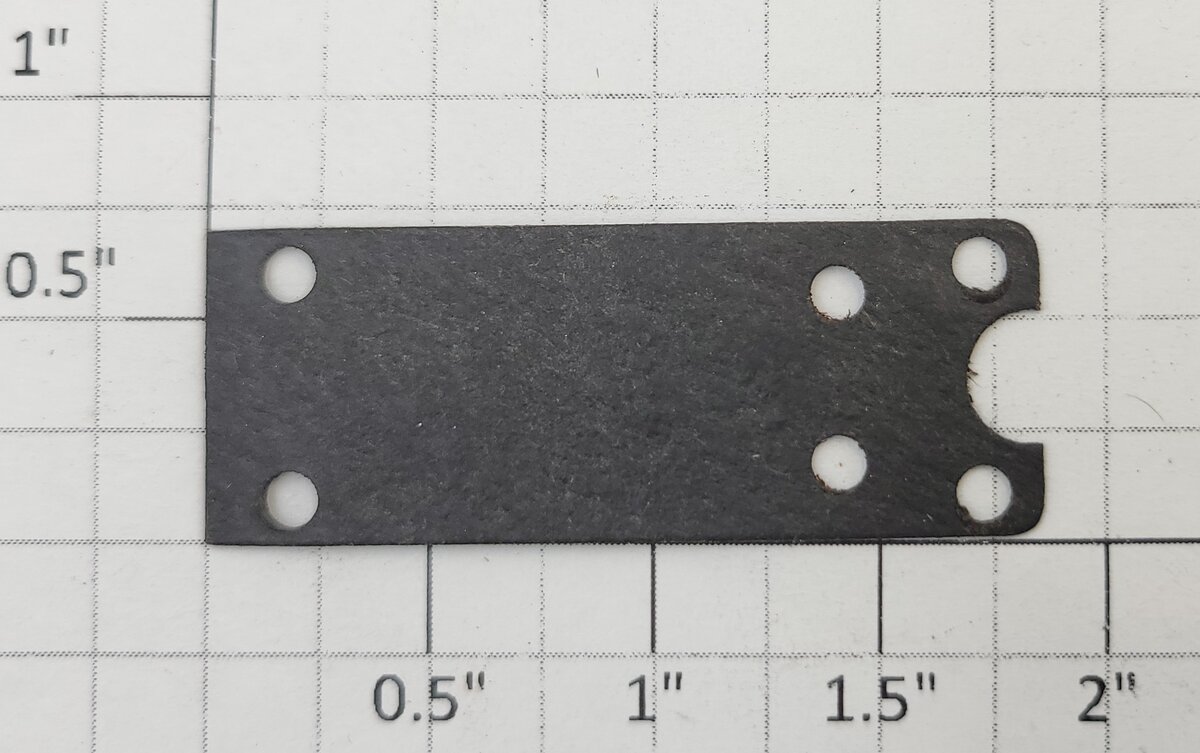

Lionel 227-69 Worm Cover Gasket (New)

—

—

38

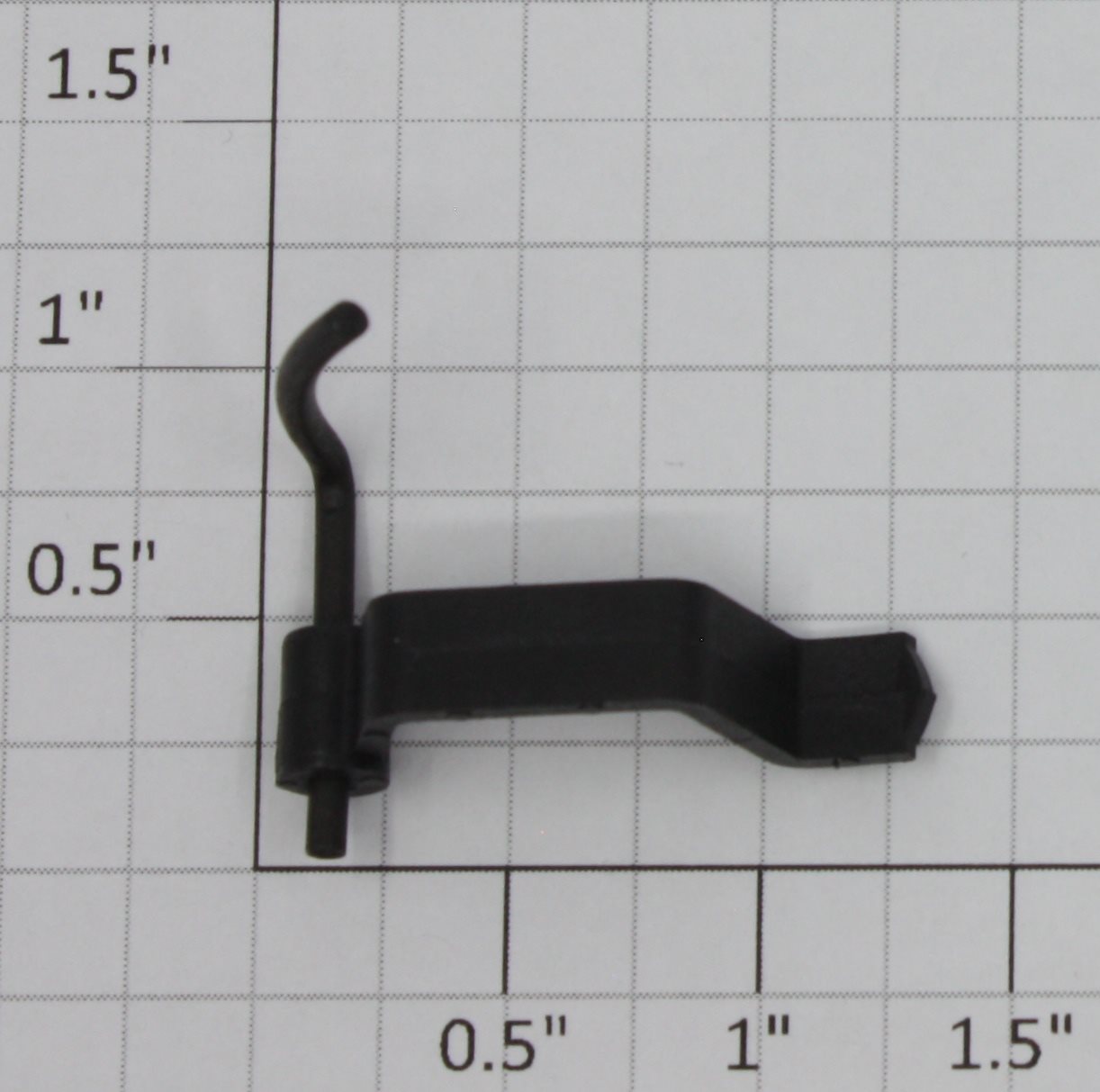

Lionel 18052-220 Smoke Lever Assembly (New)

—

—

39

Lionel 8251-7 1/8" x 1-1/2" Heat Shrink Tube (New)

—

—

40

Lionel 227-69 Worm Cover Gasket (New)

—

—

41

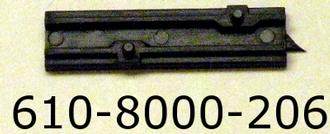

Lionel 6108000206 Smk Manifold-Top Mld (New)

—

—

42

Lionel 8142-51 #4-40 x 1/4" Black Phillips Round Head Machine Screw (New)

—

—

43

Lionel 671M-23 3/16"x3/8"x1/128" Thin Steel Thrust Washer (Reproduction)

—

—

44

Lionel 6108000207 Smk Manifold-Btm Mld (New)

—

—

45

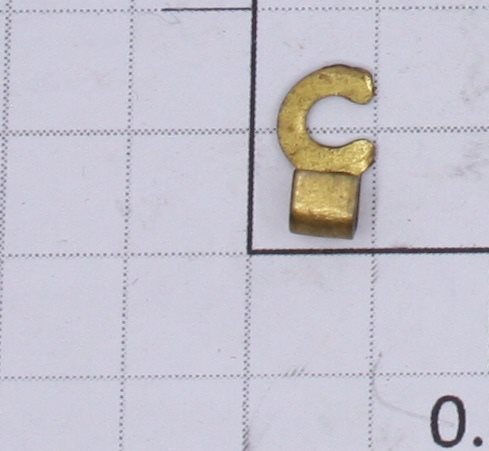

Lionel 2020M-9 Late Brass Terminal Lug (Repro-Brass)

—

—

46

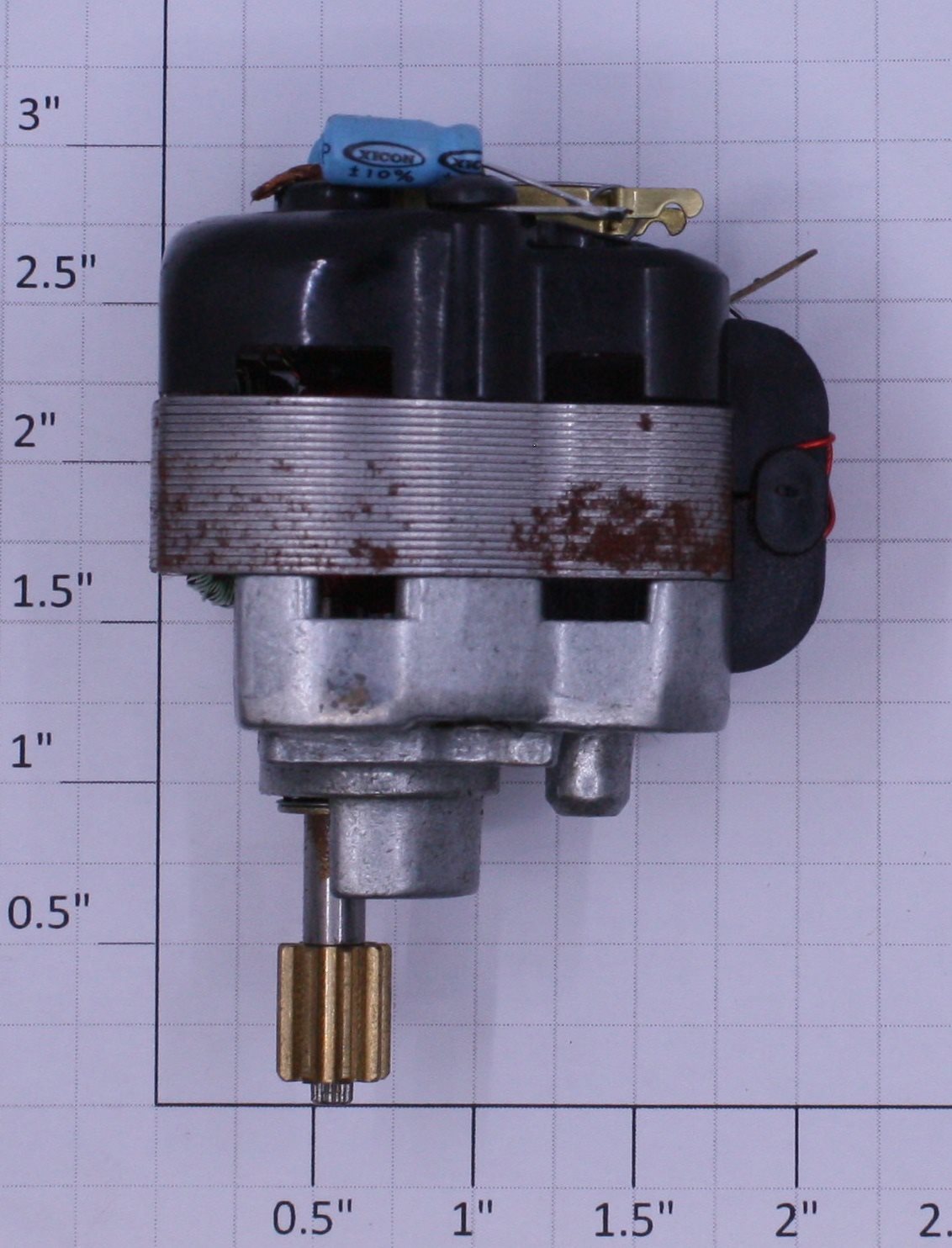

Lionel 18052-100 PRR Torpedo AC Motor with 9-Tooth Gear (New-Rusty)

—

—

47

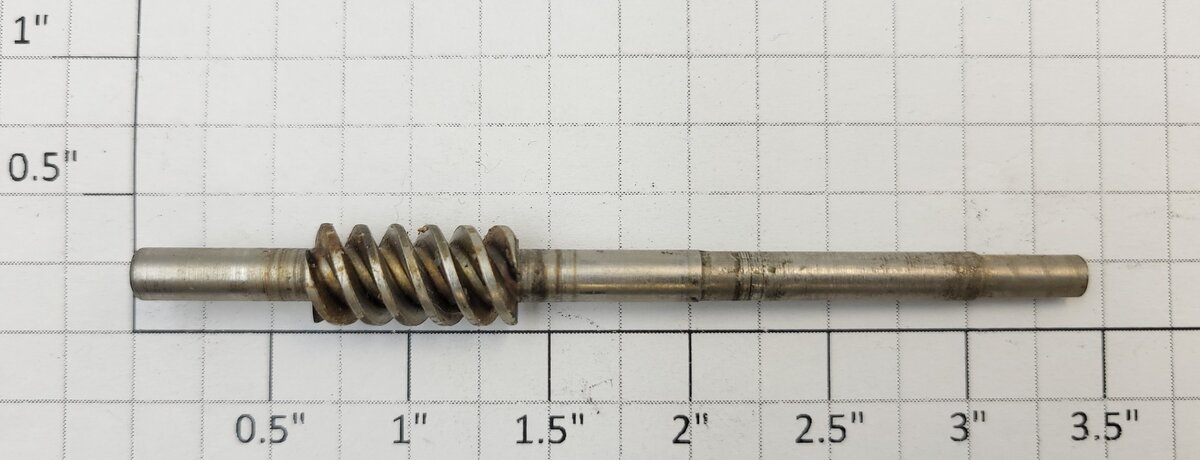

Lionel 227-56 Worm Shaft (Used)	—	—

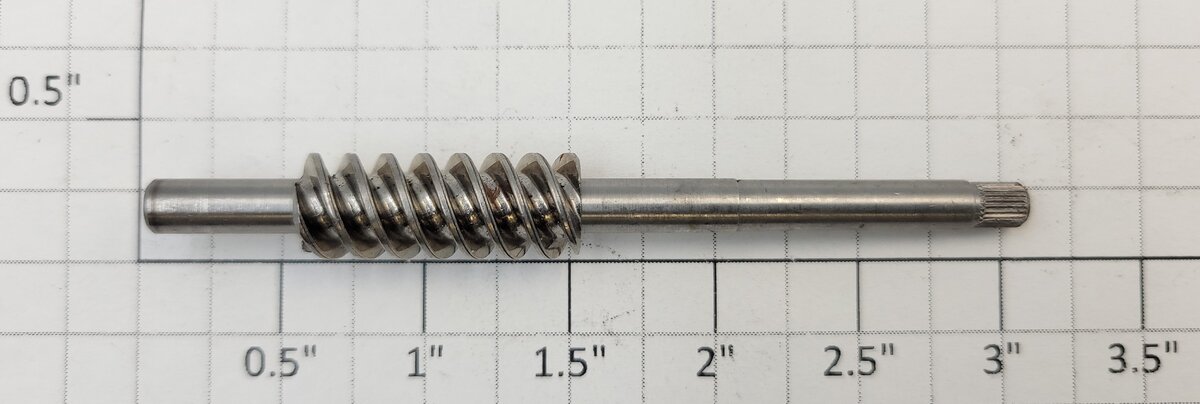

Lionel 227-56 Worm Shaft (New)	—	—

48

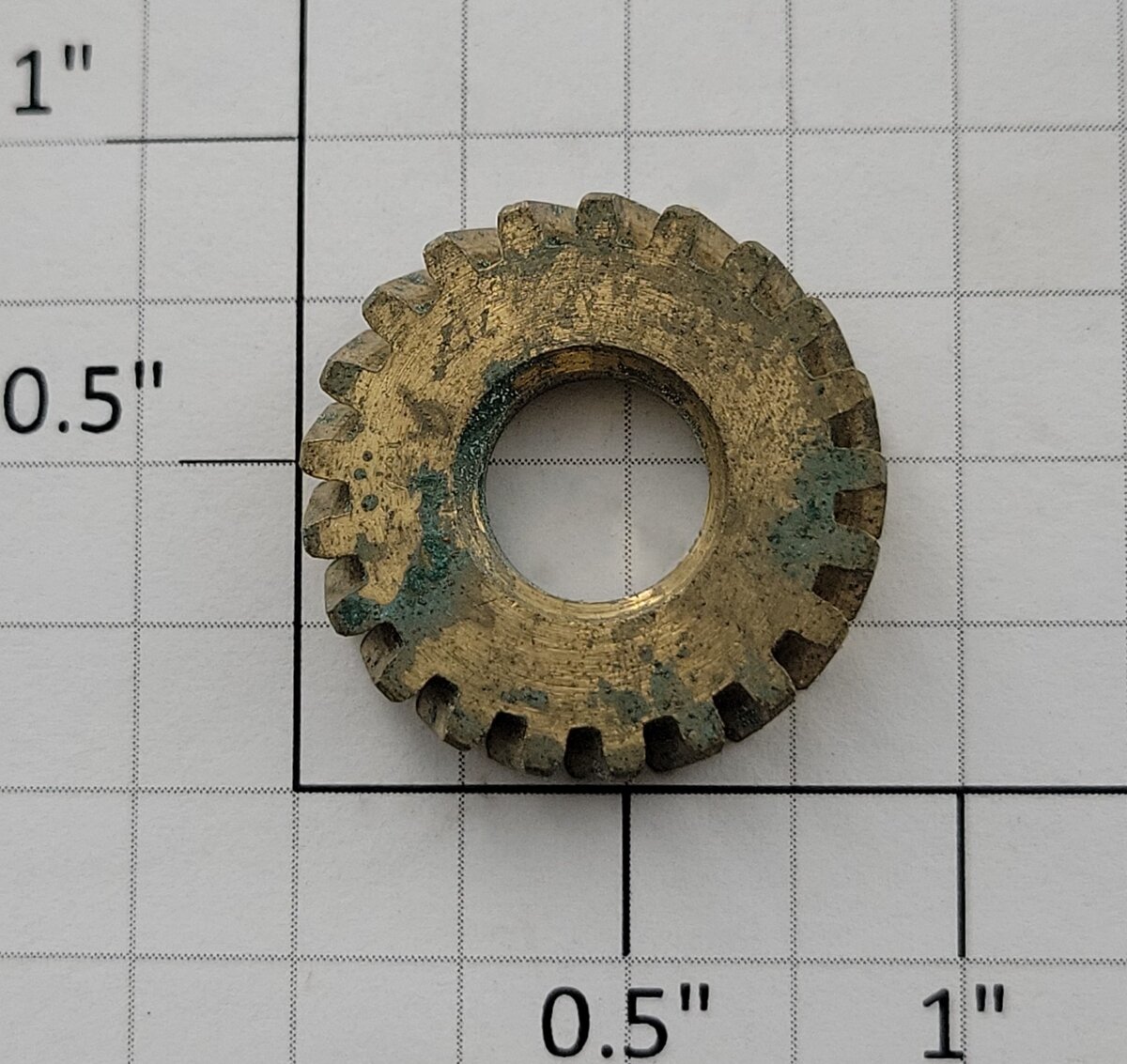

Lionel 18052-32 PRR Torpedo Steam Locomotive Brass Worm Wheel #238E (New)

—

—

49

Lionel 2-111 #6 Lockwasher (Reproduction)

—

—

50

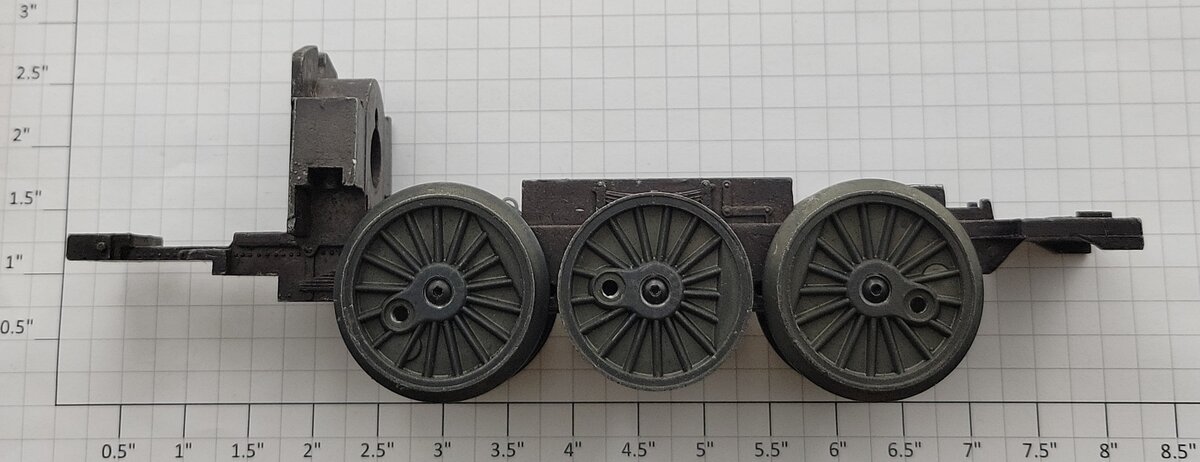

Lionel 18052-601 PRR Torpedo Steam Locomotive Frame and Wheel Assembly #238E (New)

—

—

51

Lionel 8306-533 #6-32 x 1/2" Black Allen Head Motor Screw fits 773 (#6-32 x 1/2)

—

—

52

Lionel 8000-39 #6-32 x 3/4" Black Pan Head Phillips Machine Screw (#6-32 x 3/4)

—

—

53

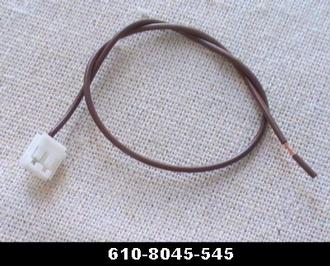

Lionel 6108045545 Lead & Conn.-Ant/Coil Cplr Frt (New)

—

—

54

Lionel 17401-22 #4 x 3/8" Black Phillips Pan Head Self Tapping Screw (New)

—

—

55

Lionel 2333-42 Insulator Washer (Reproduction )

—

—

56

Lionel 9001-30 Small Yellow Twist-on Wire Connector (Reproduction)

—

—

57

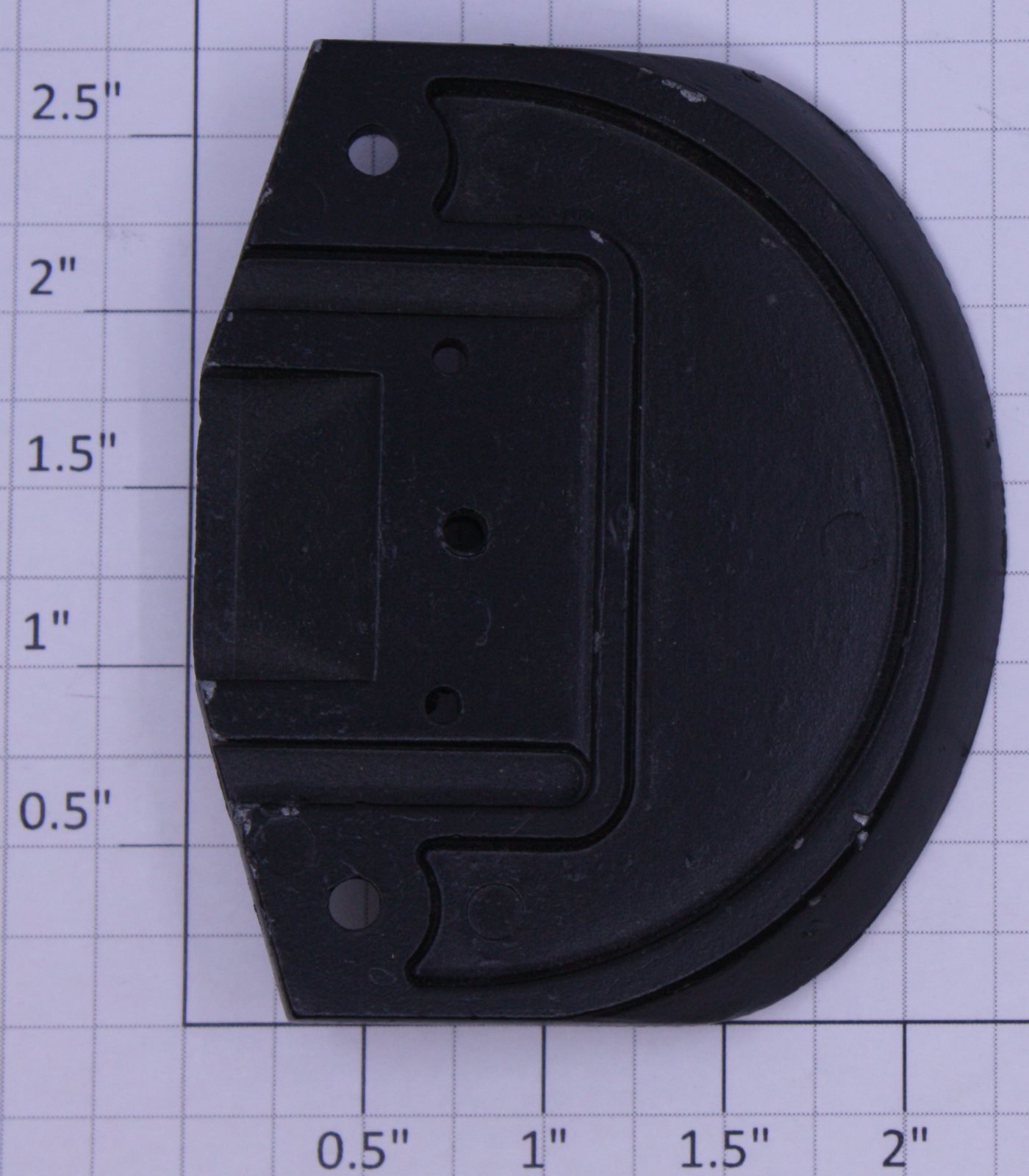

Lionel 18052-14 Pennsylvania Railroad Black Metal Frame Extension (New)

—

—

58

Lionel 8306-632 #4-40 x 1/8" Black Phillips Pan Head Oil Plug Screw (#4-40x1/8)

—

—

59

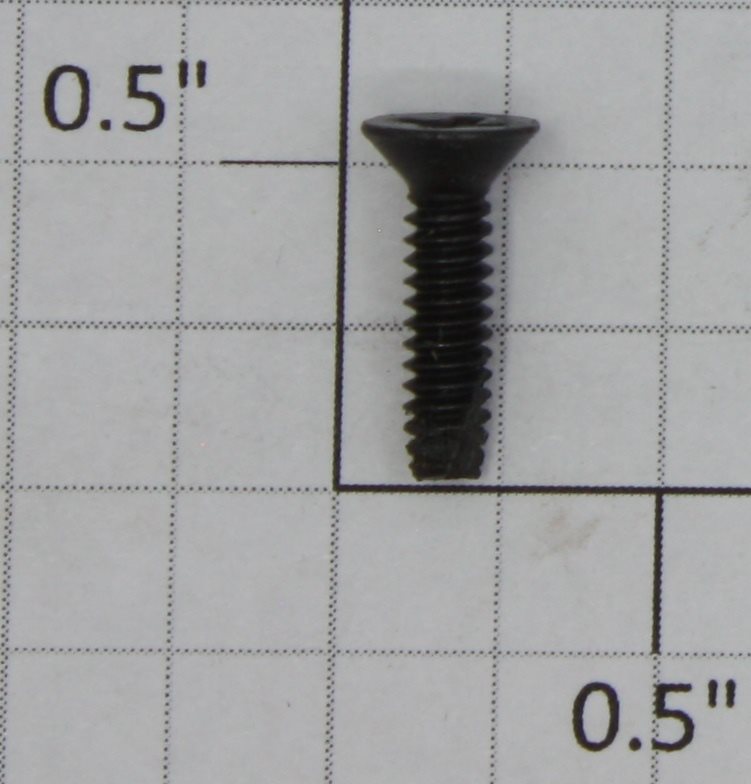

Lionel 8753-325 #6-32 x 9/16" Black Phillips Flat Head Machine Screw (Reproduction)

—

—

60

Lionel 6108301055 Cable Tie (New)

—

—

61

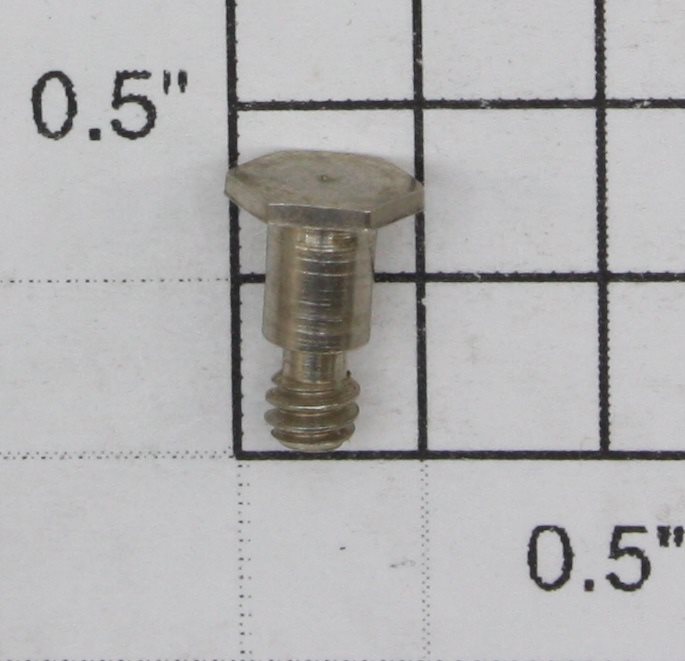

Lionel 8043-917 Shoulder Screws #6-32 (New)

—

—

62

Lionel 18052-212 Left Hand Side Rod Assembly (New)

—

—

63

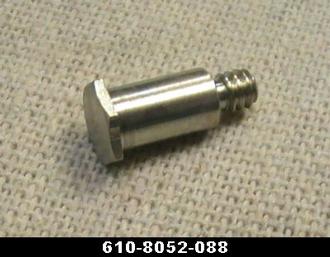

Lionel 6108052088 #6-32 Hex Head Shoulder Screw (New)

—

—

64

65

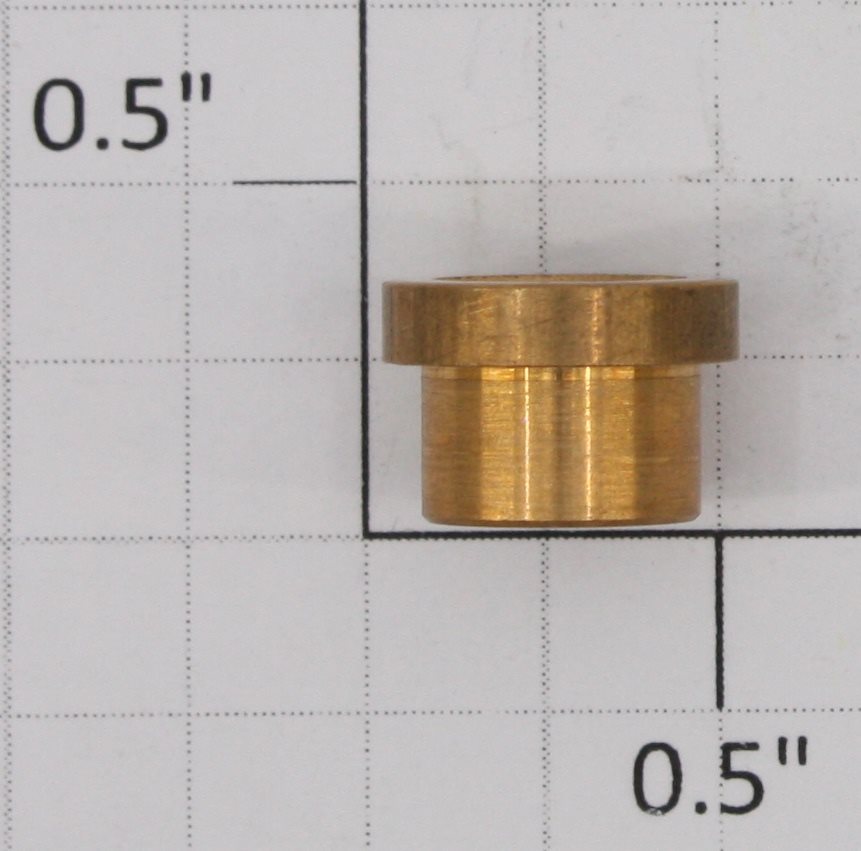

Lionel 18052-610 11/32" ID x 13/32" OD Axle Bushing (New)

—

—

66

Lionel 6108052090 3-48 x 3/8" Screws (New)

—

—

67

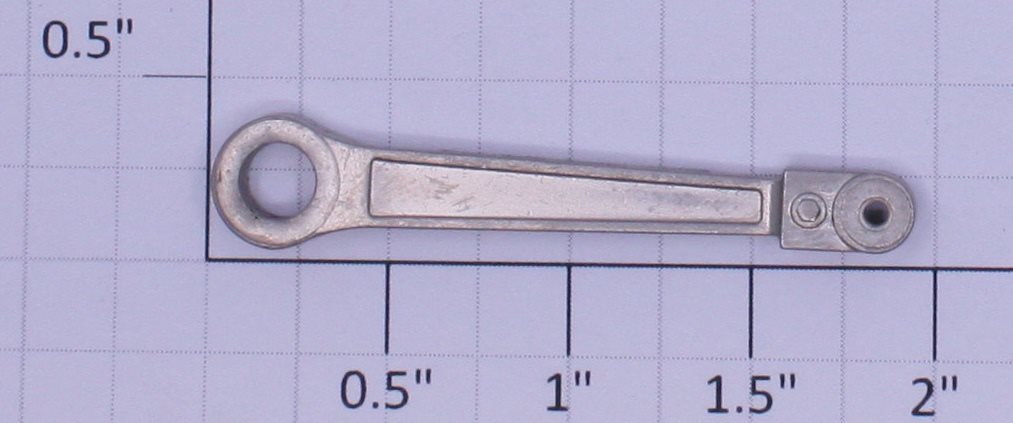

Lionel 18052-51 PRR Torpedo Drive Rod Only (New)	—	—

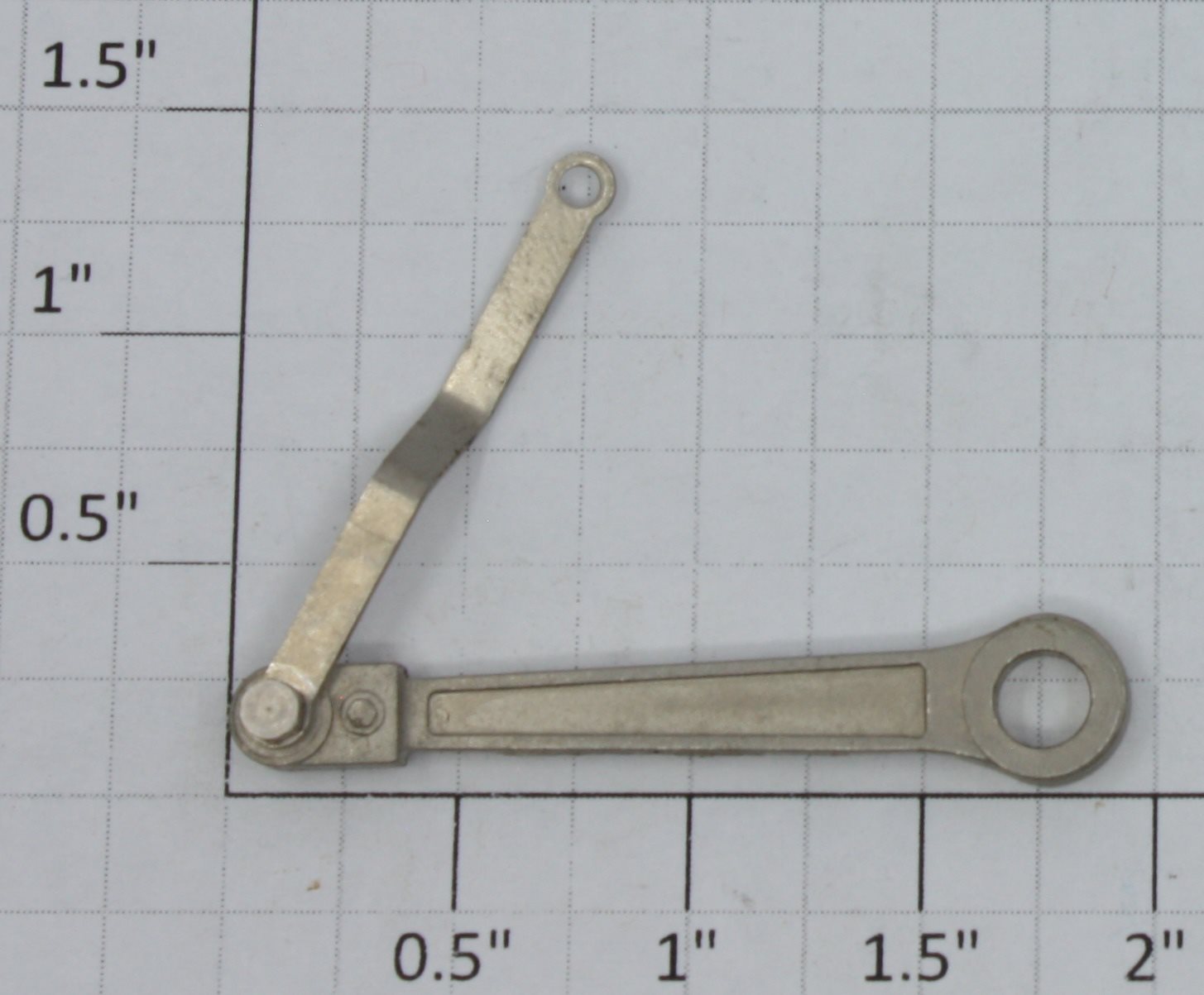

Lionel 18052-51 PRR Torpedo Drive Rod Assembly (New)	—	—

68

Lionel 18052-8 PRR Plain Torpedo Driver Wheel with Flange (New)

—

—

69

Lionel 8045-18 Drive Axle (New)

—

—

70

Lionel 8045-19 Knurled Magnatraction Drive Axle (New- Knurled)

—

—

71

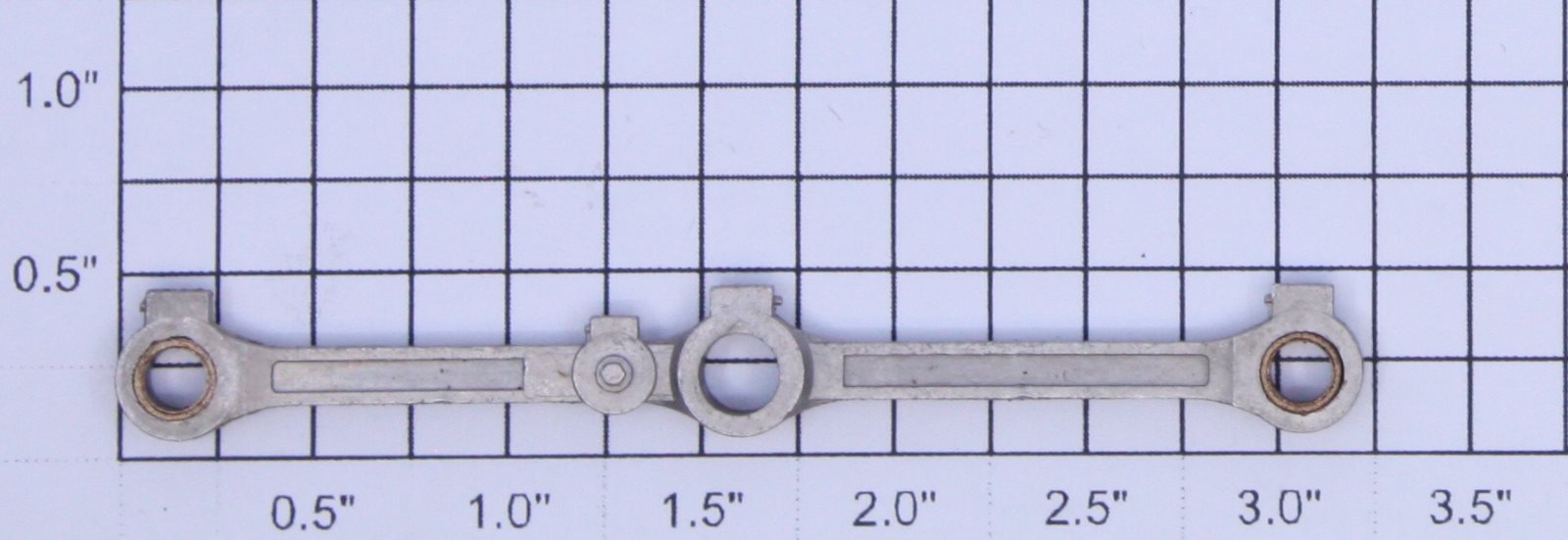

Lionel 18052-213 Right Hand Side Rod Assembly with Bushings (New)

—

—

72

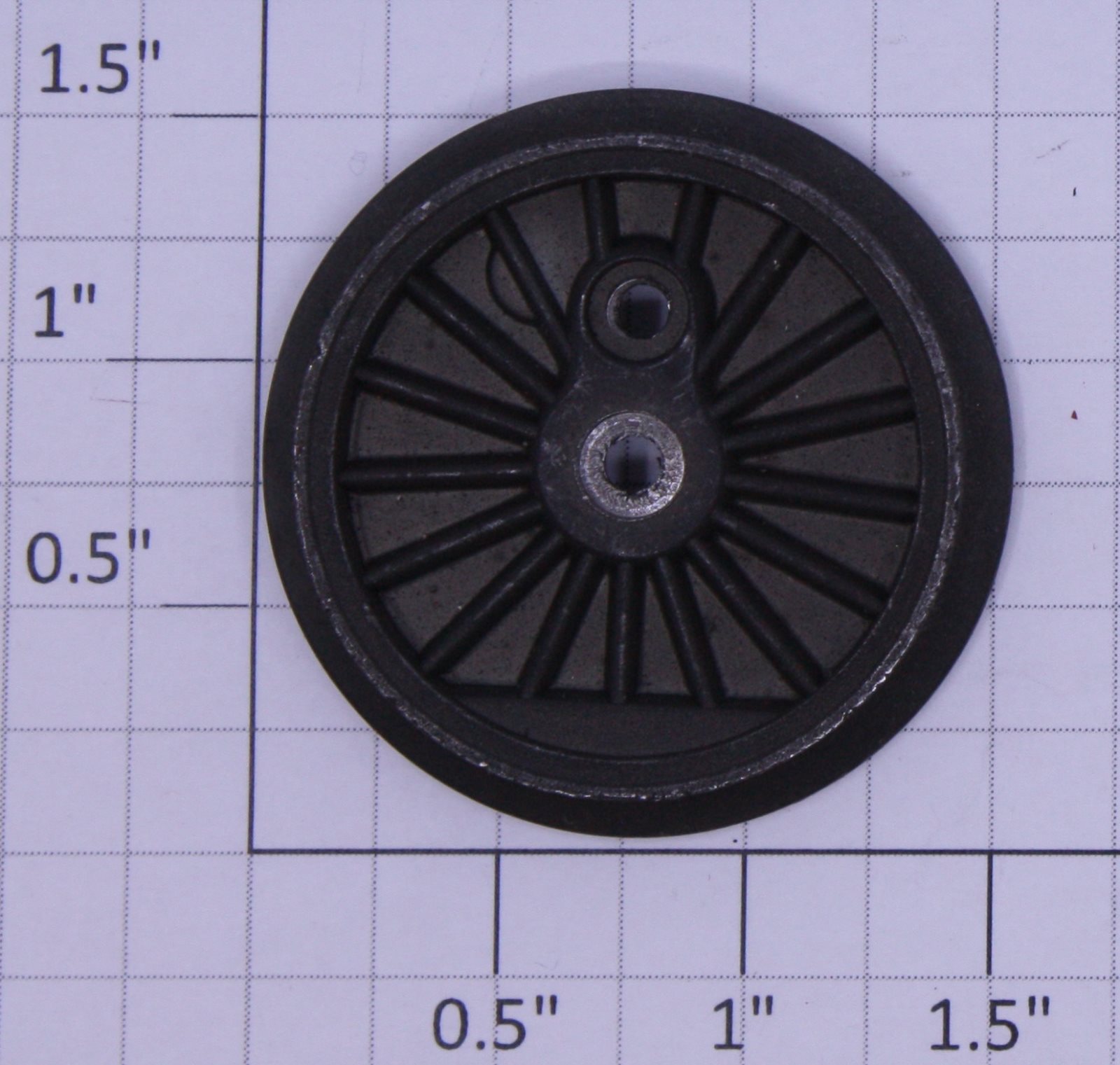

Lionel 18052-11 Pennsylvania Railroad Torpedo Flanged Blind Driver Wheel (New)

—

—

73

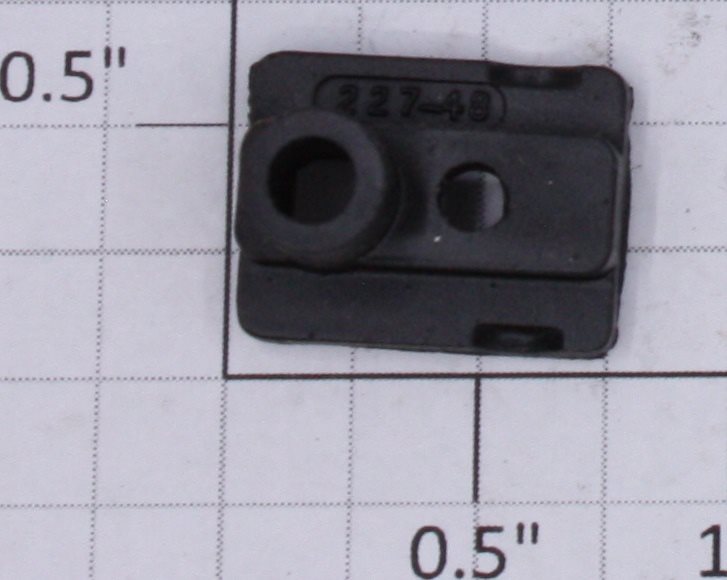

Lionel 227-48 Collector Insulation (New)

—

—

74

Lionel 8142-51 #4-40 x 1/4" Crosshead Guide Phillips Panhead Screw (New)

—

—

75

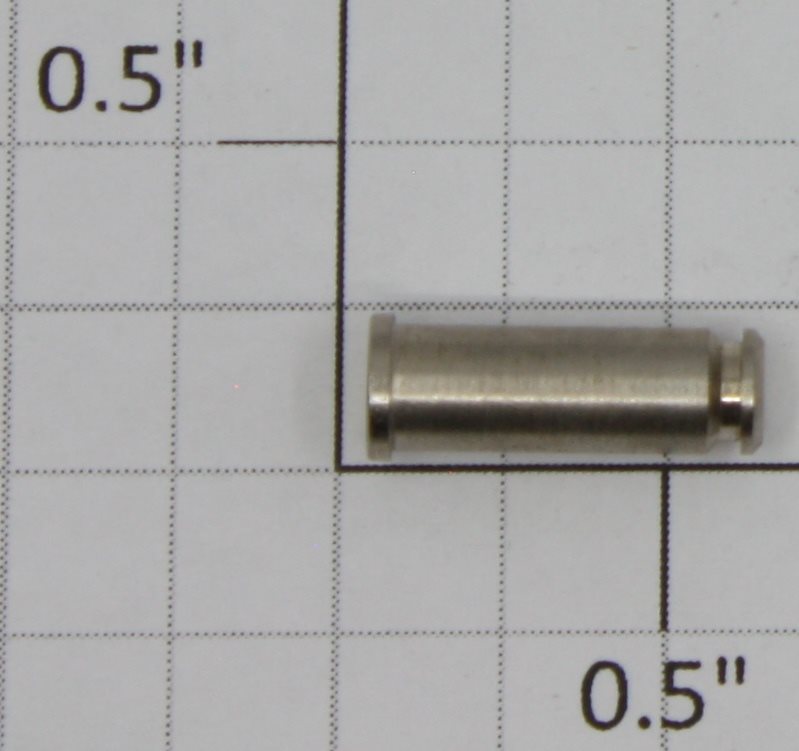

Lionel 226E-90 Nickel Pivot Stud (Reproduction)	—	—

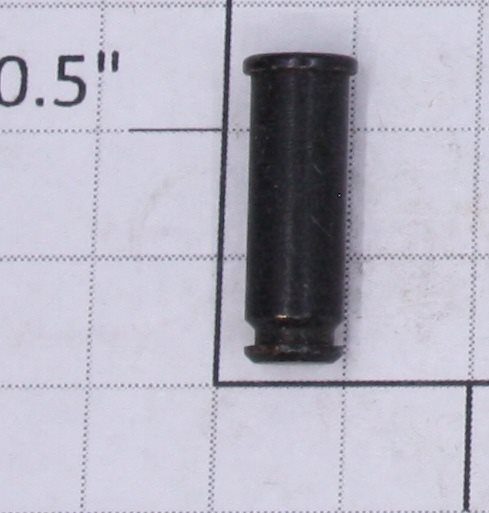

Lionel 226E-90 Blackened Pivot Stud (Repro-Blackend)	—	—

76

Lionel 773-63 Brass Collector Insert (New-Brass)

—

—

77

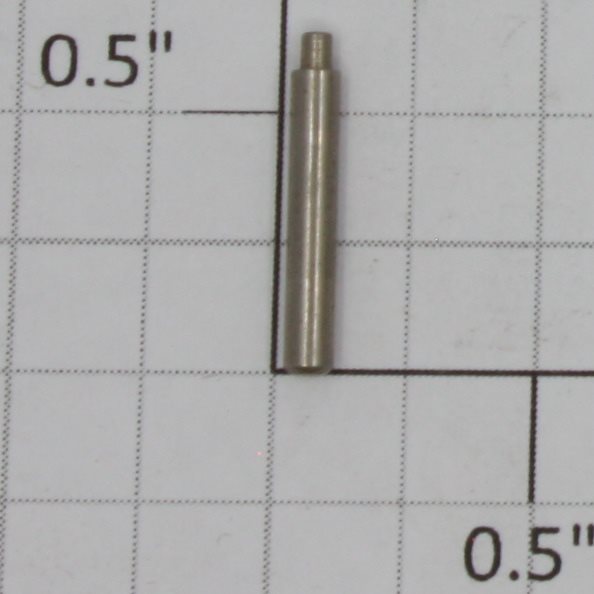

Lionel 2023-44 Collector Roller Pin 3/32" x 9/16" (Repro/Nickel)

—

—

78

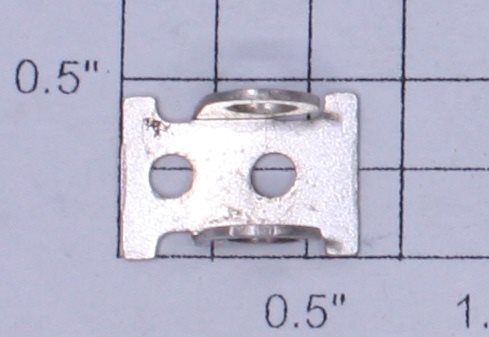

Lionel 227-52 Collector Bracket (Reproduction)

—

—

79

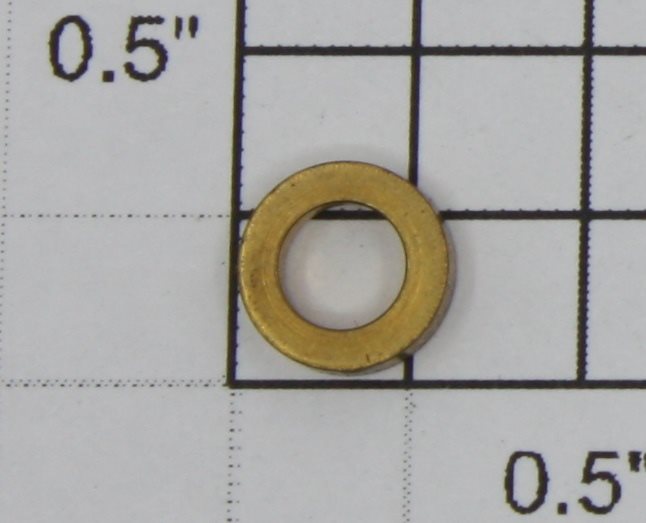

Lionel 8600-167 .090 Thrust Washer Bearing (New)

—

—

80

Lionel 671M-22 Coated Retaining E-Clip (Repro-Coated)

—

—

81

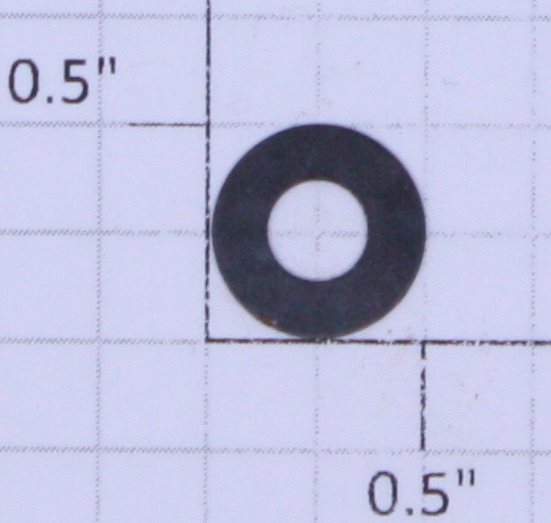

Lionel 2332-107 1/2" OD x 7/32" ID Steel Washer (Reproduction)

—

—

82

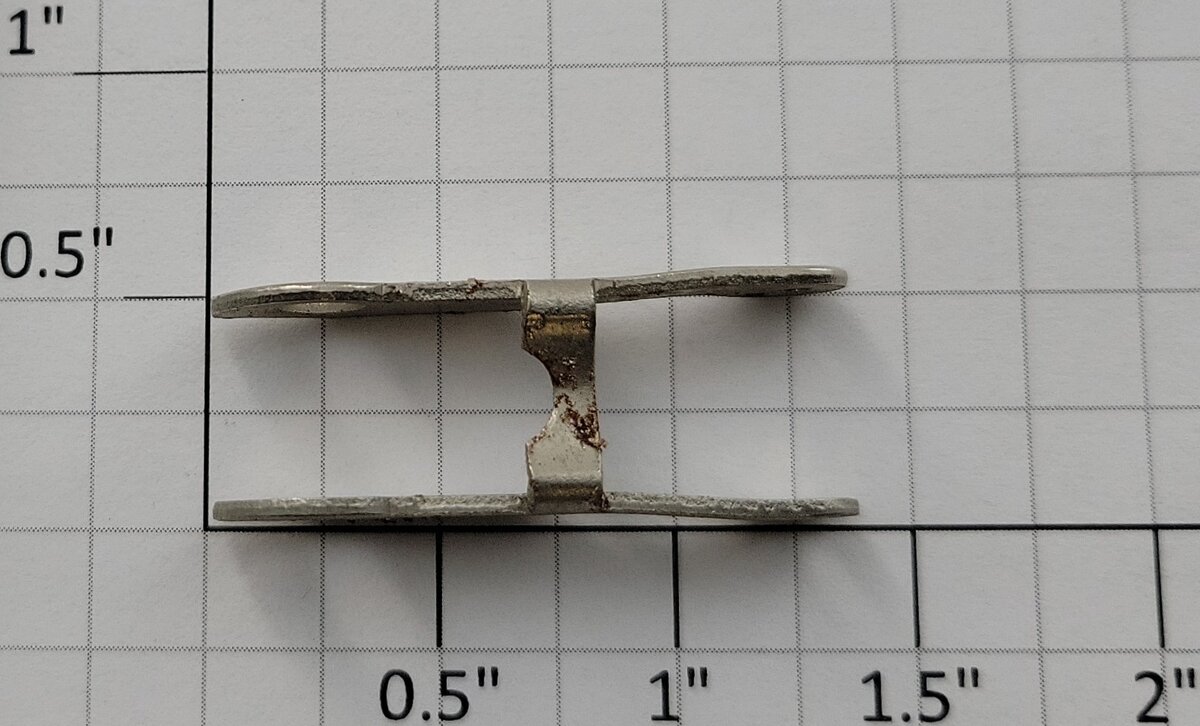

Lionel 18000-141 PRR 0-6-0 B-6 Switcher Collector Arm (New)

—

—

83

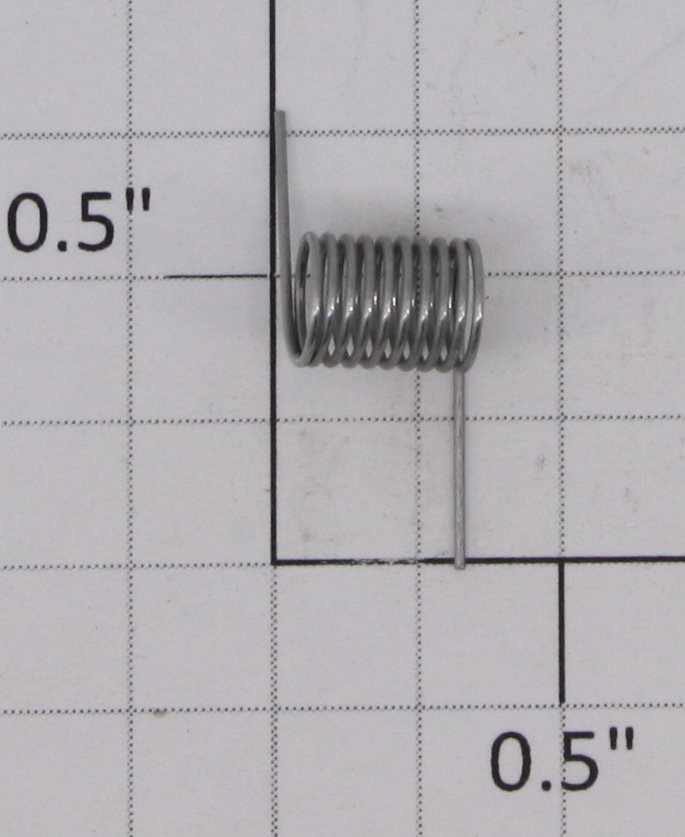

Lionel 226E-49 Collector Spring (Reproduction)

—

—

84

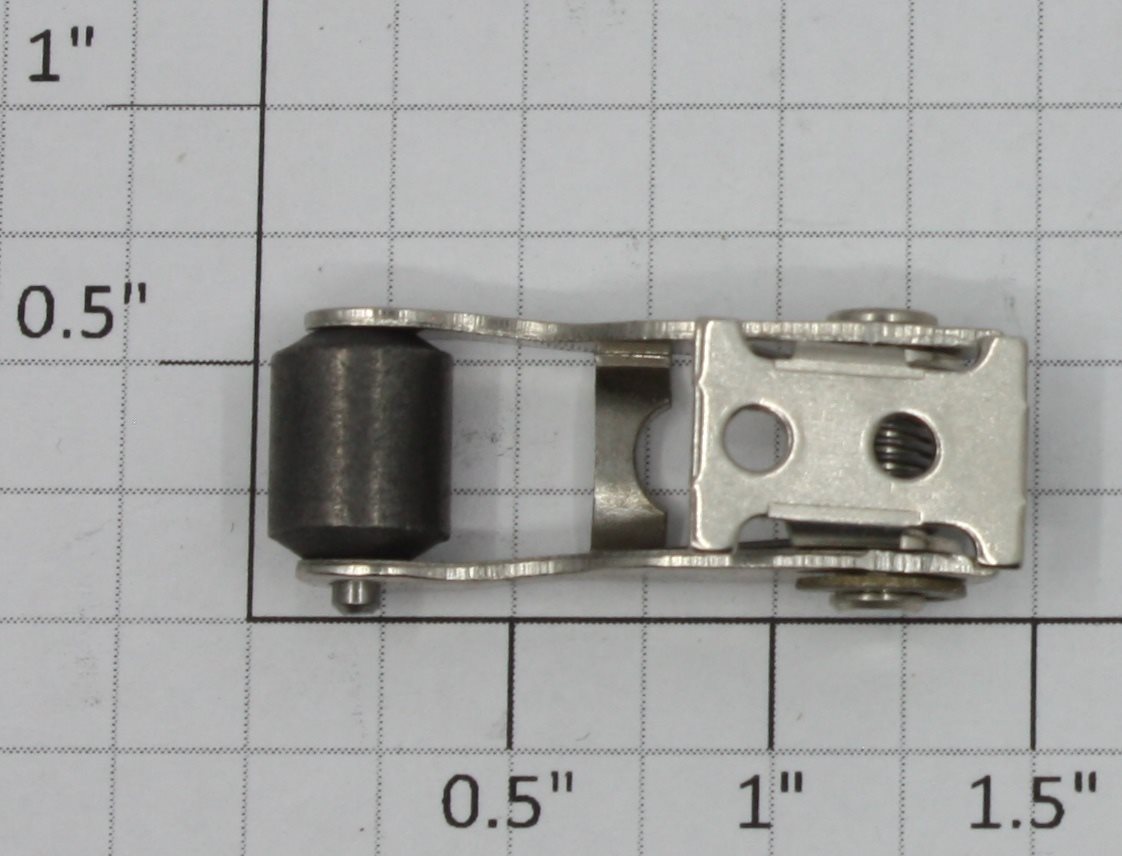

Lionel 18000-51 #238 Torpedo Single Arm Collector Assembly (New)

—

—

85

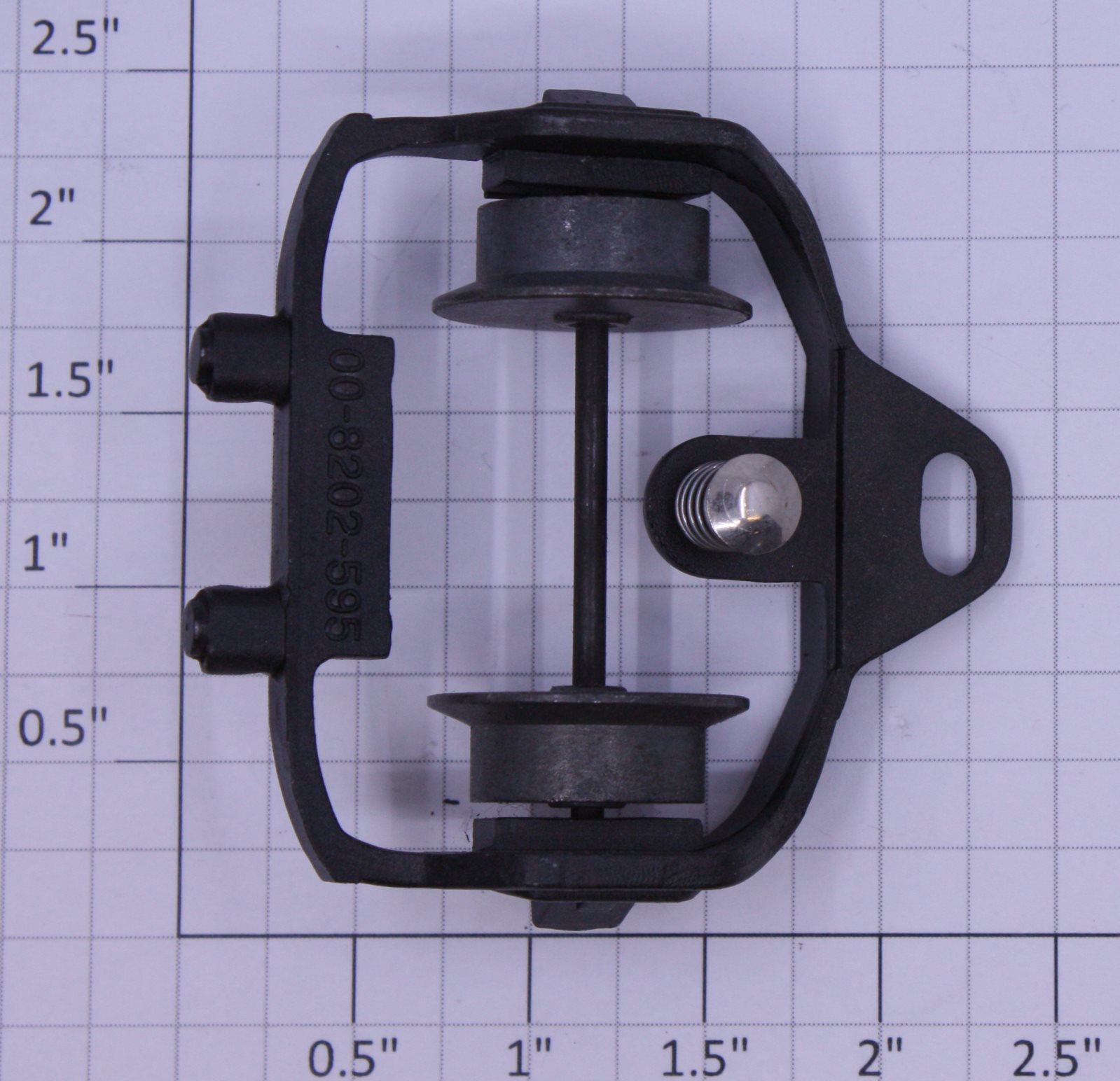

Lionel 18052-81 Pennsylvania Railroad Torpedo 2-Wheel Trailing Truck (New)

—

—

86

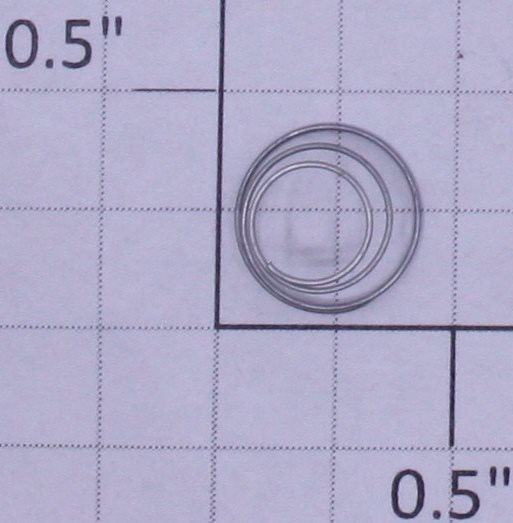

Lionel 8403-22 Front Truck Spring (Reproduction)

—

—

87

Lionel 8142-51 #4-40 x 1/4" Crosshead Guide Phillips Panhead Screw (New)

—

—

88

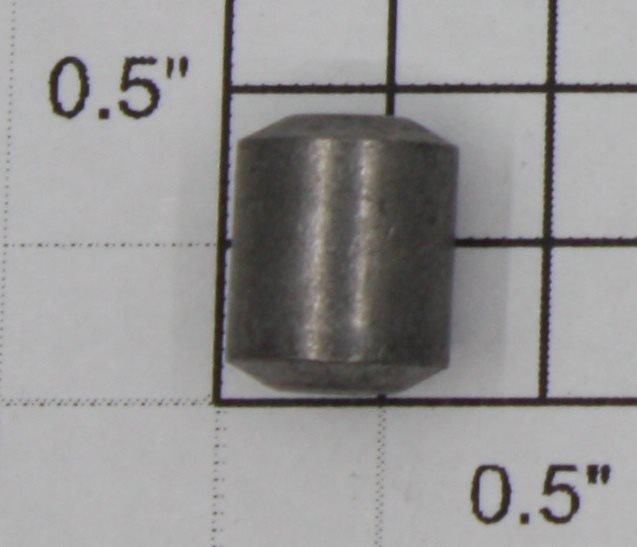

Lionel 2035-140 11/32"x 7/16" Locomotive Pickup Collector Roller (Reproduction )

—

—

89

Lionel 8142-51 #4-40 x 1/4" Crosshead Guide Phillips Panhead Screw (New)

—

—

90

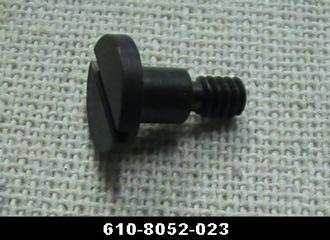

Lionel 6108052023 #6-32 Black Slotted Cheese Head Shoulder Screw (New)

—

—

91

Lionel #6-32 Black Slotted Flat Head Shoulder Screw (New)

—

—

92

Lionel 6108052061 Pilot Truck (New)

—

—
