Lionel LTI 6-18574 Milwaukee Road GP-20 w/TMCC & Railsounds Parts Diagram

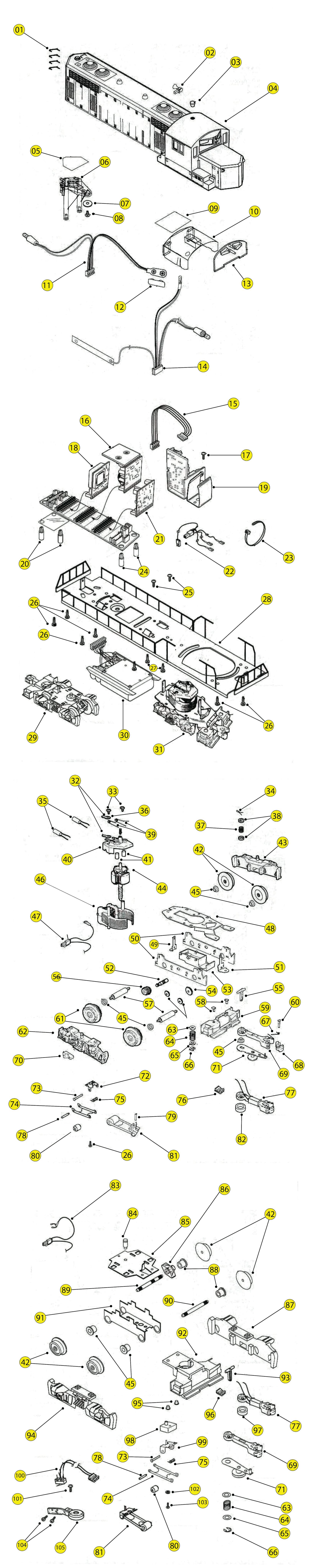

Below is a Lionel LTI 6-18574 Milwaukee Road GP-20 w/TMCC & Railsoundsv parts list and exploded view parts diagram for the Lionel LTI 6-18574. Model Train enthusiasts can use this parts list for identifying and sourcing components to restore their Lionel LTI 6-18574 Milwaukee Road GP-20 w/TMCC & Railsoundsv. The embedded Lionel LTI 6-18574 parts list can be used to easily add parts directly into your shopping cart. You are welcome to use this exploded parts diagram to aid in the maintenance and assembly of your Lionel LTI 6-18574 Milwaukee Road GP-20 w/TMCC & Railsounds.

Parts Lists and Exploded Parts Diagrams:

In addition to this Lionel LTI 6-18574 Milwaukee Road GP-20 w/TMCC & Railsounds, you can find numerous other Lionel parts lists on Trainz.com. We have parts lists for hundreds of Lionel postwar, prewar and MPC trains, including exploded view parts diagrams.

Lionel LTI 6-18574 Milwaukee Road GP-20 w/TMCC & Railsounds

Applicable Products

Hide Sold Out:

Product Title	Status	Starting From
Lionel 6-18574 O Gauge Milwaukee Road GP-20 Diesel Locomotive #2381	—	—

Parts List

Hide Sold Out:

Part Title

Status

Starting From

Lionel 8477-6 GP-9 Diesel Locomotive Grab Handle (New)

—

Lionel 50-100 O Gauge Diecast Metal Ornamental Horn (Original-Metal)

—

Lionel 8205-285 Orange Mars Light Dome Lens (New)

—

Lionel 6108574007 Shell / Milwaukee Rd Gp-20 #2381 (New)

—

Lionel 2321-146 FM Bulb Heat Reflector Plate (Reproduction)

—

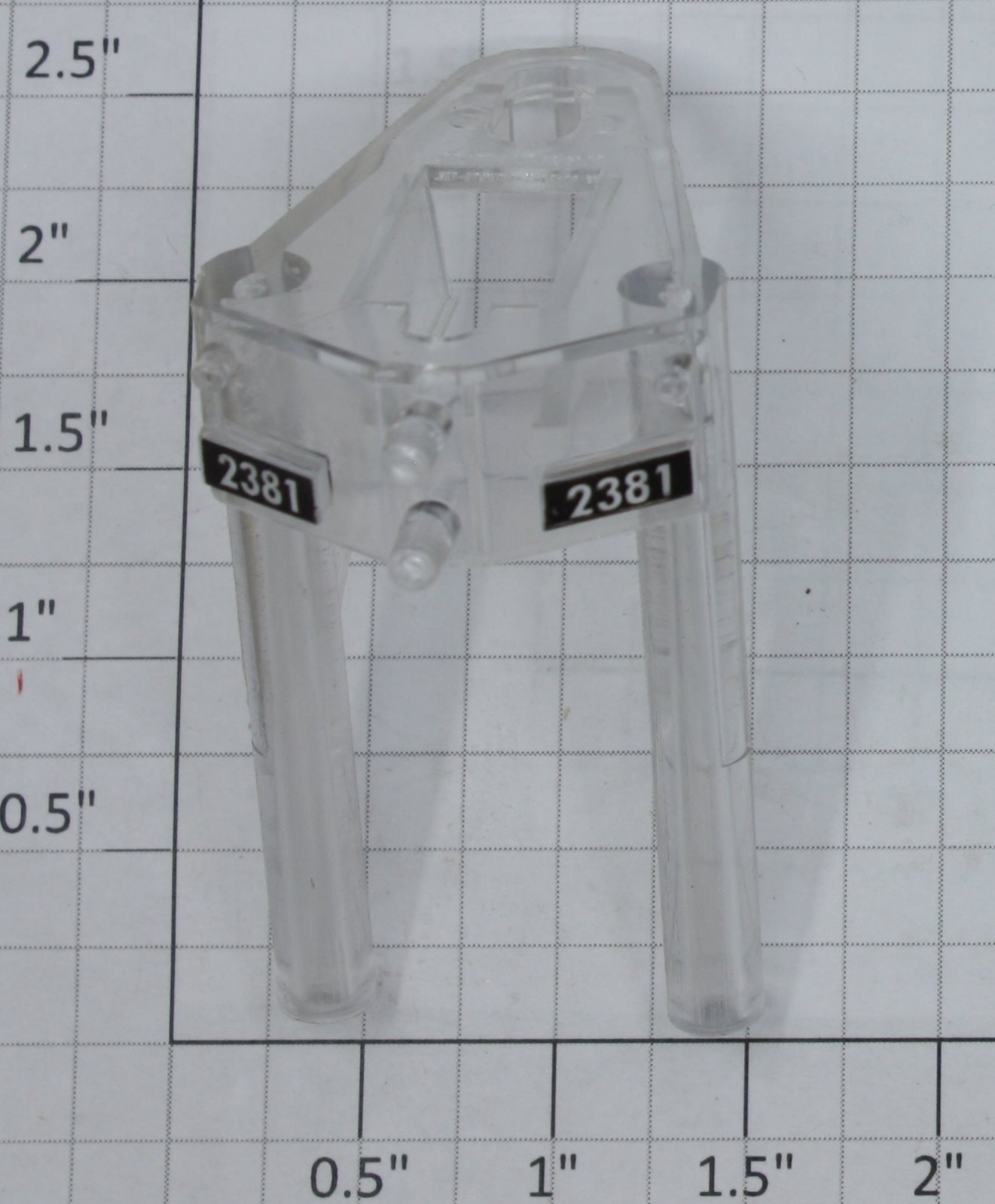

Lionel 18574-127 GP-20 Rear Number Board and Lens Insert #2381 (New)

—

Lionel 8610-583 Washer 1/8" Id x 23/64" Od x 1/64" W (New)

—

Lionel 8240-71 #4 x 1/4" Black Phillips Pan Head Self Tapping Screw (New)

—

Lionel 2321-146 FM Bulb Heat Reflector Plate (Reproduction)	—	—
Lionel 2321-146 FM Bulb Heat Reflector Plate (Original)	—	—
Lionel 2321-146 FM Bulb Heat Reflector Adhesive Sticker (Reproduction)	—	—

Lionel 8360-56 Diesel Window Shell (New)

—

Lionel 8574-136 12V 120MA Lamp Harness with Adapter and Socket (New)

—

Lionel 6108053350 Protective Cap, Battery (New)

—

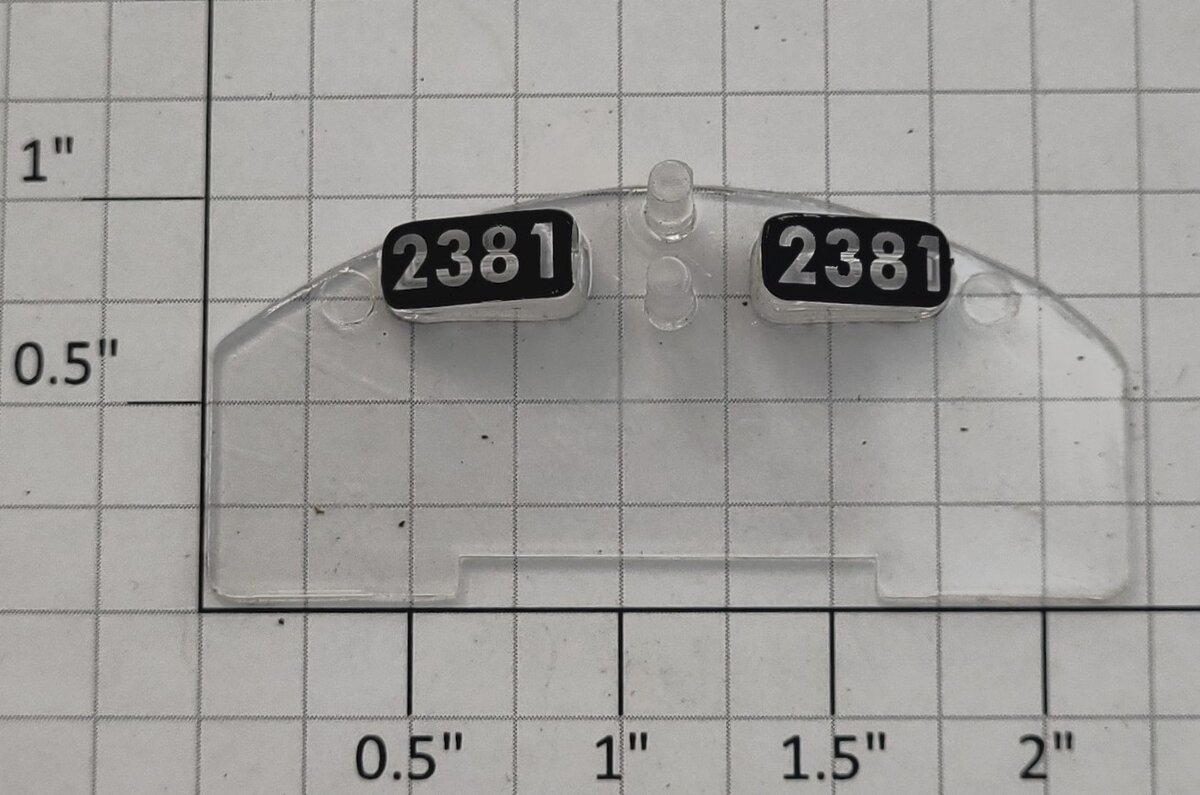

Lionel 18574-27 Clear Plastic GP-20 Diesel Loco Number Board Insert #2381 (New)

—

Lionel 18574-116 Front Light and Antenna Harness (New)

—

Lionel 8574-126 ACDR Motherboard Harness (New)

—

Lionel 18574-125 Railsounds 3.0 Power PCB Circuit Board w/Heat Sink (New)

—

Lionel 85101-092 .4 x 1/2" Black Phillips Binding Head Self Tapping Screw (New)

—

Lionel 691PCB103A MILW GP-20 #2381 Railsounds 3.0 PCB Circuit Board (New)

—

Lionel 8574-50 Battery Clip (New)

—

Lionel 6108574113 Stand Off (New)

—

Lionel 691PCB1024 TMCC R2LC-7 Radio Receiver PCB Circuit Board (New)	—	—
Lionel 691R2LCC07 R2LC Radio Receiver PCB Circuit Board - C07 Code (New)	—	—

Lionel 8574-156 Motor Harness Assembly (New)

—

Lionel 6108301055 Cable Tie (New)

—

Lionel 6108574113 Stand Off (New)

—

Lionel 85101-092 .4 x 1/2" Black Phillips Binding Head Self Tapping Screw (New)

—

Lionel 690-8040-T5#0 4 x 7/16" Black Phillips Pan Head Self Tapping Screw (New)

—

Lionel 18401-30 #4-40 x 3/8" Black Phillips Flat Head Machine Screw (#4-40 x 3/8 )

—

Lionel 6108574510 Frame / One Ac Motor / Gp-20 / Black (New)

—

Lionel 6108858025 Pl.Trk W/Mech Couplr (New)

—

Lionel 18574-506 Metal Fuel Tank with Speaker and Controls (New-Metal)

—

Lionel 6108858100 Motor Truck & Pilot / Gp-20 / Blk Sides & Pilot (New)

—

Lionel 82-43 Solder Lug (Reproduction)

—

Lionel 8010-165 Truss Head Self Tapping Mounting Screws 4-40x1/4" (#4-40x1/4" )

—

Lionel 1666E-11 Thin .060" Handrail Cotter Pin fits 224, 225, 226, 1666 (Reproduction)

—

Lionel 691CNP1000 1uF 50 Volt Non-Polarized Capacitor (New)

—

Lionel 82-43 Solder Lug (Reproduction)

—

Lionel 8855-56 Spring (Reproduction)

—

Lionel 601-131 Blackened Motor Mounting Cup Washer (Reproduction)	—	—
Lionel 601-131 Motor Mounting Cup Washer (Reproduction)	—	—

Lionel 622-191 Motor Brush Spring (New)

—

Lionel 8010-139 Black Brush Adjustable Plate (Housing Only) (Repro-Housing Only)	—	—
Lionel 8010-139 Black Diesel Brush Plate Assembly (Used-Black)	—	—
Lionel 8010-139 White Diesel Brush Plate Assembly (Used-White)	—	—
Lionel 8010-139 Black Adjustable Brush Plate (New)	—	—

Lionel 8507-150 Shunted Motor Brush with Lead (New)

—

Lionel 2343-33 Plain Diesel Wheel (Original)

—

Lionel 8010-125 Alco Motor Armature (Reproduction)	—	—
Lionel 8010-125 Alco Motor Armature (Used)	—	—

Lionel 8206-118 Magnetraction Axle Bearing (New)

—

Lionel 600-123 GP-9 Field Coil Assembly (New - Rusty)

—

Lionel 8574-118 Lead with Connector (New)

—

Lionel 600-106 Field Stud

—

Lionel 8010-190 Worm Gear Axle (New)

—

Lionel 6108206125 Collector Insulator / Black / Atsf Dash-8 (New)

—

Lionel 8010-116 Black Nylon Drive Gear (Reproduction)	—	—
Lionel 8010-116 Off White Nylon Drive Gear (Reproduction)	—	—

Lionel 600-138 Narrow T-Bar Coupler Head Shaft (Reproduction)

—

Lionel 8030-115 T-24 Bronze Worm Gear ID 3/16” x OD 37/64" (New)

—

Lionel 2353-30 Brass Magnetic Non-Gear Axle (New-Brass)	—	—
Lionel 2353-30 Steel Magnetic Non-Geared Axle Assembly (Repro-Steel)	—	—

Lionel 8240-71 #4 x 1/4" Black Phillips Pan Head Self Tapping Screw (New)

—

Lionel 627-122 2-Step Black Plastic Pilot	—	—
Lionel 627-122 2-Step Black Plastic Pilot (Reproduction)	—	—

Lionel TC-23 O Gauge .058" OD x .43" L Nickel Coupler Knuckle Rivet (Repro-Nickel)	—	—
Lionel TC-23 .059" x .045" Black Coupler Knuckle Rivet (Repro-Black)	—	—

Lionel 622-176/8950-35 Magnetraction Geared Wheel Fit 622 623 2023 2032 (New)

—

Lionel 671M-23 3/16"x3/8"x1/128" Thin Steel Thrust Washer (Reproduction)

—

Lionel 2321-162 Coupler Armature Spring (Reproduction)

—

Lionel 8250-35 Fiber Washer (New)

—

Lionel 671M-22 Coated Retaining E-Clip (Repro-Coated)

—

Lionel 480-16 Coupler Spring (TC-22) (Reproduction)

—

Lionel 480-8 Metal Coupler Knuckle (Reproduction)

—

Lionel 2321-182 Diecast Coupler Head without Knuckle (New)	—	—
Lionel 2321-182 Diecast Coupler Head without Knuckle (Original)	—	—

Lionel 8010-105 Mounting Plate Pivot Bearing (New)

—

Lionel 2321-156 Postwar Steel Coupler Armature Plate (Repro-Steel)

—

Lionel 2367-97 Collector Bracket (Reproduction)	—	—
Lionel 2367-97 Collector Bracket with Wire (Used)	—	—

Lionel 2367-198 Collector Arm Rivet (Reproduction)

—

Lionel 2321-135 Collector Spring (Reproduction)

—

Lionel 8221-12 2 Circuit Type A Wire Plug Housing (Reproduction)

—

Lionel 8854-550 Coil Coupler Assembly

—

Lionel 2328-96 3/32" x 9/16" Roller Pin (Repro-Rusty)	—	—
Lionel 2328-96 3/32" x 9/16" Roller Pin (New)	—	—

Lionel 8251-7 1/8" x 1-1/2" Heat Shrink Tube (New)

—

Lionel 2328-96 3/32" x 9/16" Roller Pin (Repro-Rusty)	—	—
Lionel 2328-96 3/32" x 9/16" Roller Pin (New)	—	—

Lionel 8851-146 Collector Roller Assembly (Reproduction)

—

Lionel 8574-117 Rear Collector Harness (New)

—

Lionel 8030-22 Truck Stud (Reproduction)

—

Lionel 2328-168 Top Plate (Reproduction)

—

Lionel 401-515 Sound Car Clear Cam (New)

—

Lionel 8504-84 Black Truck Side Frame

—

Lionel 8010-118 Dummy Truck Axle Bearing Bushing (Reproduction)

—

Lionel 8102-525 Offset Knurled Axle (New)

—

Lionel 8811-25 Plain Nickel Plated Axle (New)

—

Lionel 8030-76 2-Step GP-7/9 Diesel Locomotive Pilot (New)	—	—
Lionel 8030-76 Black Plastic 2-Step Pilot (Repro- Black )	—	—

Lionel 2321-164 Coupler T-Bar with Narrow Top (Reproduction)

—

Lionel 8504-84 Black Truck Side Frame

—

Lionel 530-40 1/8" D x 5/32" L Rail Rivet (Reproduction)

—

Lionel 8221-12 2 Circuit Type A Wire Plug Housing (Reproduction)

—

Lionel 2367-93 Collector Pickup Insulator (Repro/Tebolt)

—

Lionel 2367-97 Collector Bracket (Reproduction)

—

100

Lionel 18221-13 3 Circuit Type A Plug Housing (New)	—	—
Lionel 401-162 Cherry Limit Switch (New)	—	—

101

Lionel 87401-12 #2 x 1/4" Black Phillips Oval Head Self Tapping Screw (New)

—

102

Lionel 2333-42 Insulator Washer (Reproduction )

—

103

Lionel 8141-22 #6 x 3/8" Black Phillips Pan Head Self Tapping Screw (New)

—

104

American Flyer 6408251033 2-56x3/8" Phillips BH Screw (New)

—

105

Lionel 10-0401-165 Micro Switch & Clear Mounting Braket Assembly (New)	—	—
Lionel 10401-165 Clear Cherry Switch Mounting Bracket for GP-7/9 (New)	—	—
