Lionel MPC 8206 8603 8900 Parts List & Exploded Parts Diagram

Below is a Lionel MPC 8206 8603 8900 parts list and exploded view parts diagram for the Lionel MPC 8206 8603 8900 4-6-4 Small Hudson Steam Locomotive. Model Train enthusiasts can use this parts list for identifying and sourcing components to restore their Lionel MPC 8206 8603 8900 4-6-4 Small Hudson Steam Locomotive. The embedded Lionel MPC 8206 8603 8900 parts list can be used to easily add parts directly into your shopping cart. You are welcome to use this exploded parts diagram to aid in the maintenance and assembly of your Lionel MPC 8206 8603 8900 4-6-4 Small Hudson Steam Locomotive.

Parts Lists and Exploded Parts Diagrams:

In addition to this Lionel MPC 8206 8603 8900 Parts List & Exploded Parts Diagram, you can find numerous other Lionel parts lists on Trainz.com. We have parts lists for hundreds of Lionel postwar, prewar and MPC trains, including exploded view parts diagrams.

Lionel MPC 6-8206 6-8603 6-8900 Small Hudson 4-6-4 Steam Locomotive

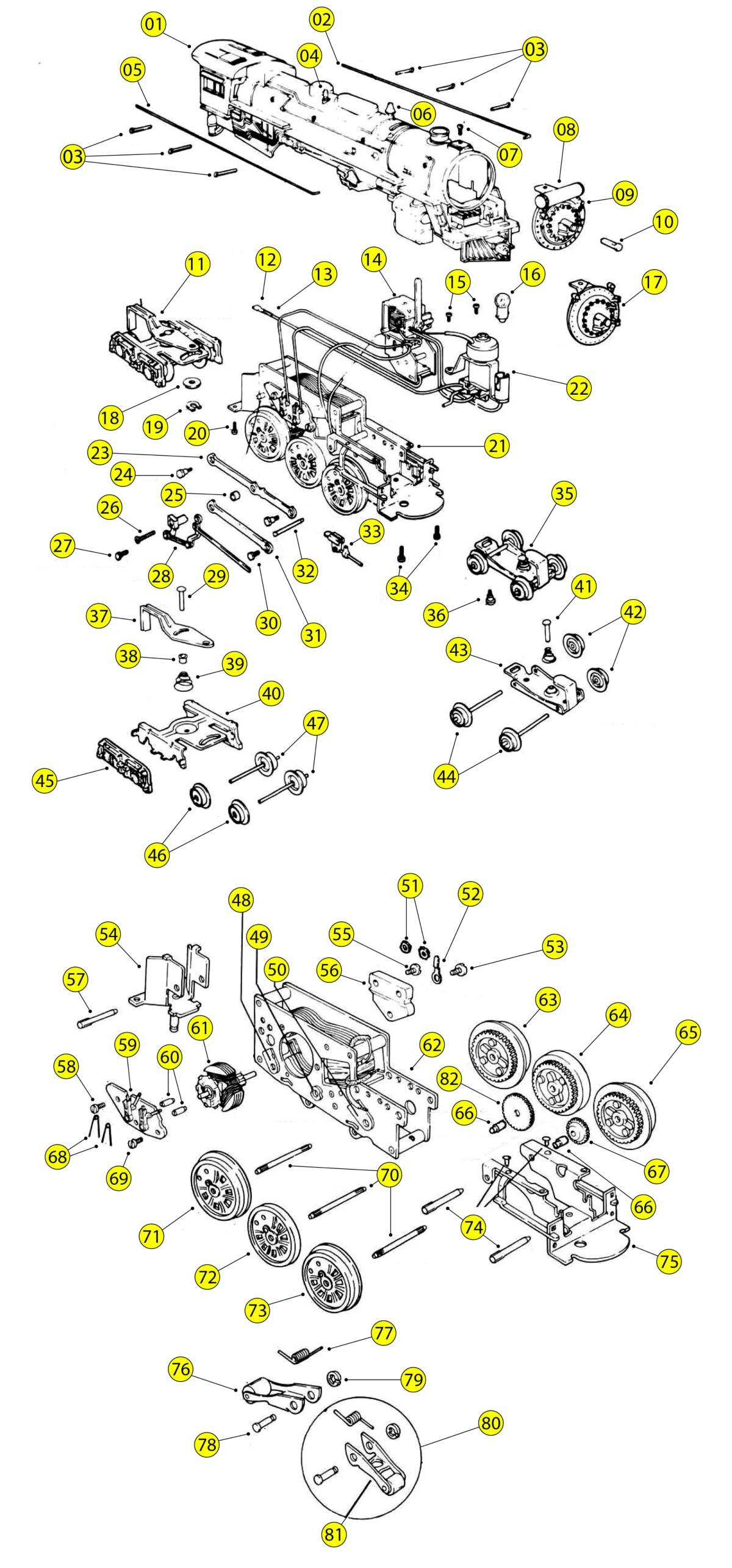

Lionel MPC 8206 8603 8900 Parts List and Exploded Parts Diagram

Applicable Products

Hide Sold Out:

Product Title	Status	Starting From
Lionel 6-8206 O New York Central 4-6-4 Steam Locomotive	—	—
Lionel 6-8206 O Gauge New York Central Hudson 4-6-4 Steam Locomotive & Tender	—	—
Lionel 6-8900 O Gauge ATSF 4-6-4 Steam Locomotive & Tender #8900	—	—
Lionel 6-8206 O Gauge New York Central 4-6-4 Steam Locomotive & Tender	—	—
Lionel 6-8603 O Gauge Chesapeake and Ohio 4-6-4 Steam Locomotive	—	—
Lionel 6-8603 O Gauge Chesapeake & Ohio 4-6-4 Steam Locomotive & Tender	—	—
Lionel 6-8900 AT&SF 4-6-4 Steam Locomotive FARR #1	—	—

Parts List

Hide Sold Out:

Part Title

Status

Starting From

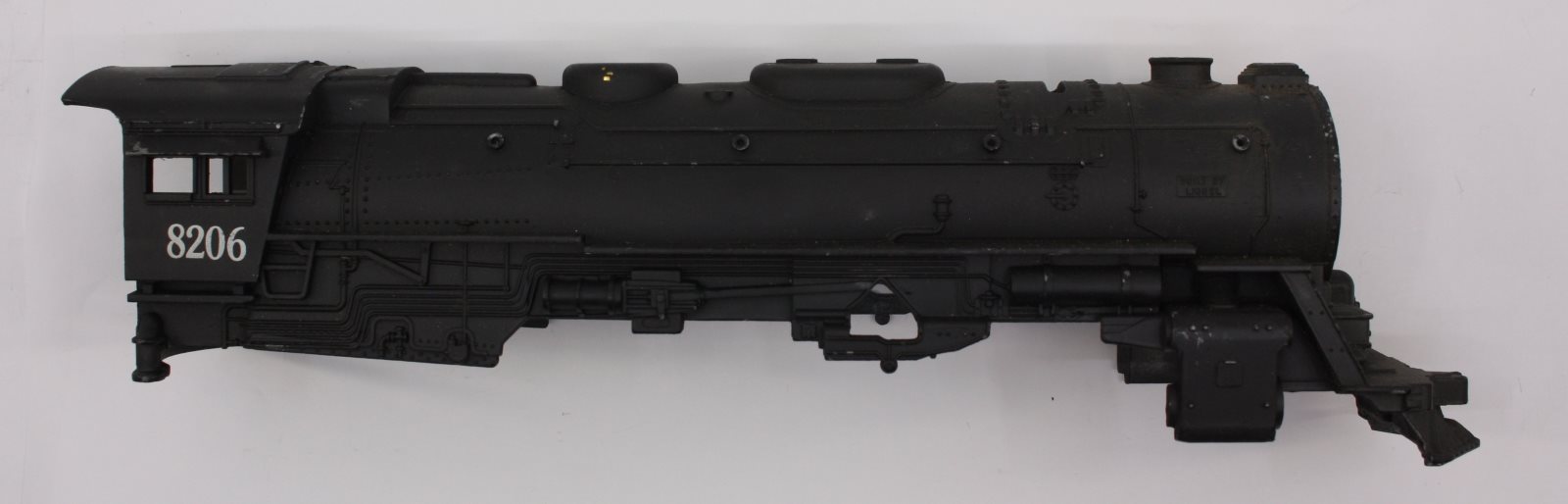

Lionel 8206-2 Boiler Shell without Front	—	—
Lionel 8603-2 Hudson Cab Deco 8603	—	—

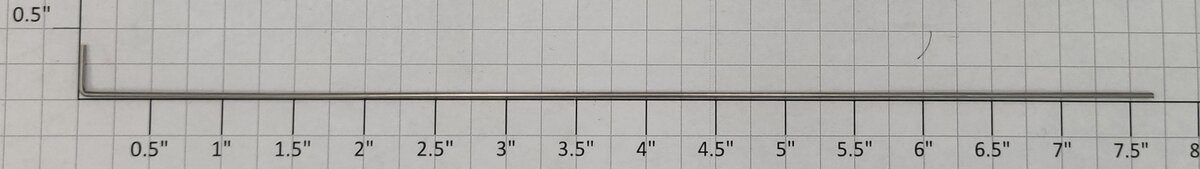

Lionel 2055-10 Handrail (Reproduction)

—

Lionel 1666E-11 Thin .060" Handrail Cotter Pin fits 224, 225, 226, 1666 (Reproduction)	—	—

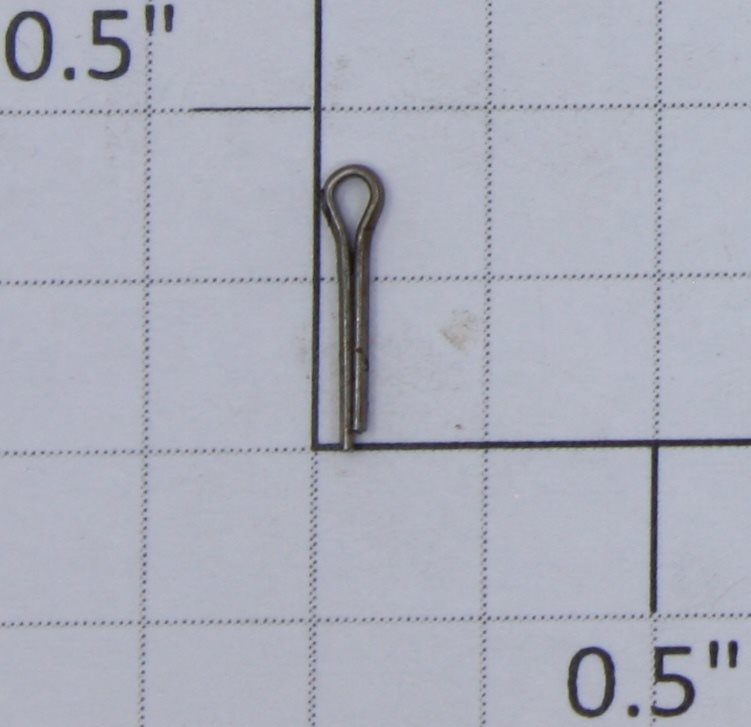

Lionel 1666E-11 0.43" Handrail Cotter Pin (Reproduction)	—	—

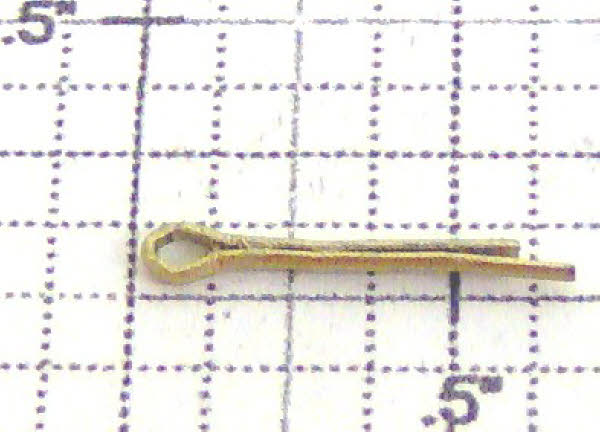

Lionel 1666E-11 Brass Handrail Cotter Pin (Reproduction)	—	—

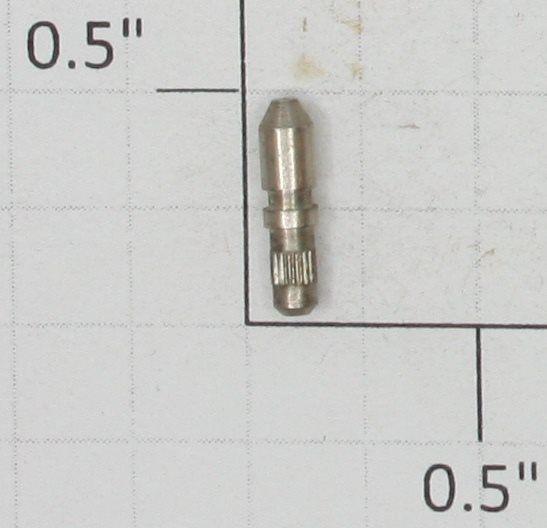

Lionel 1666E-2 Ornamental Whistle (Reproduction)

—

Lionel 2055-10 Handrail (Reproduction)

—

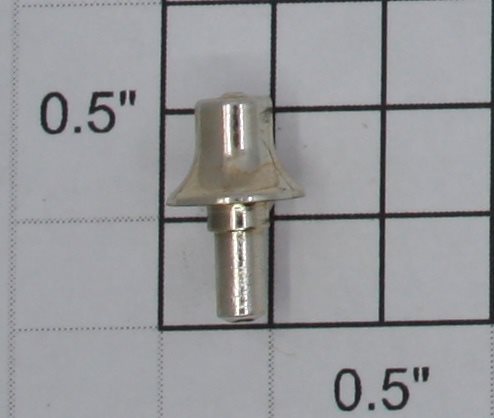

Lionel 675-31 Plastic Shiny Ornamental Bell (Repro-Plastic)	—	—
Lionel 675-31 Ornamental Bell (Reproduction)	—	—
Lionel 675-31 Ornamental Bell (Original)	—	—

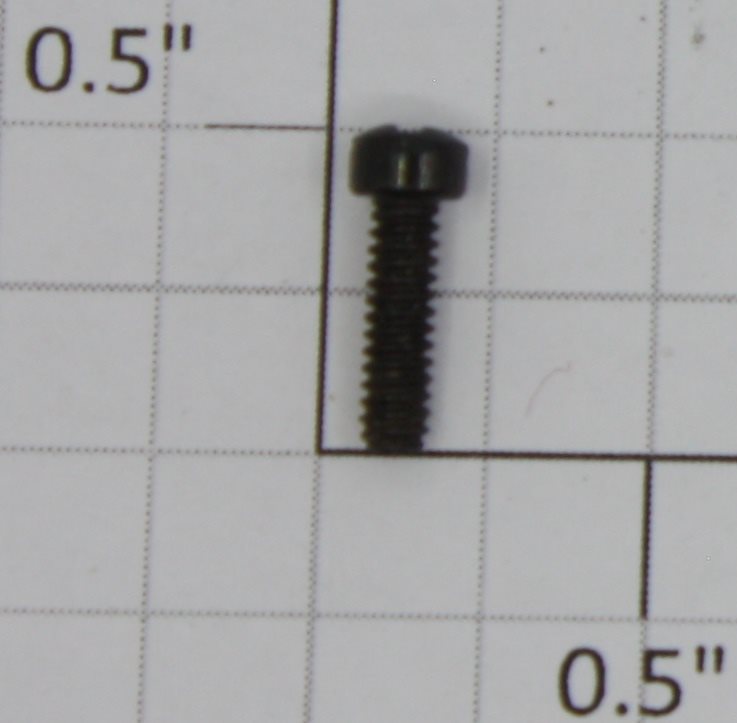

Lionel 8600-49 #4-40x3/8" Black Phillips Fillister Head Boiler Screw #2046 (Reproduction)

—

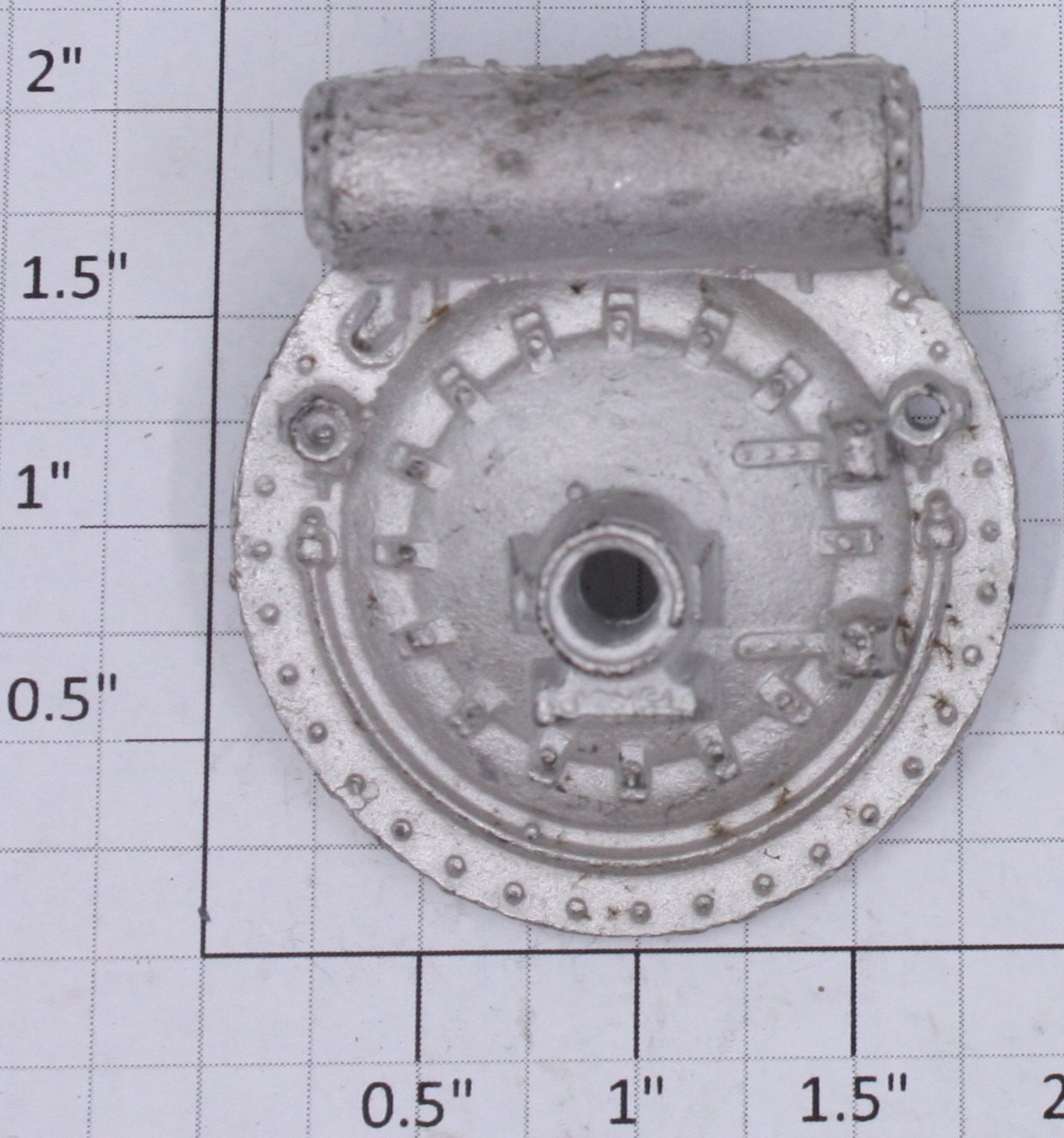

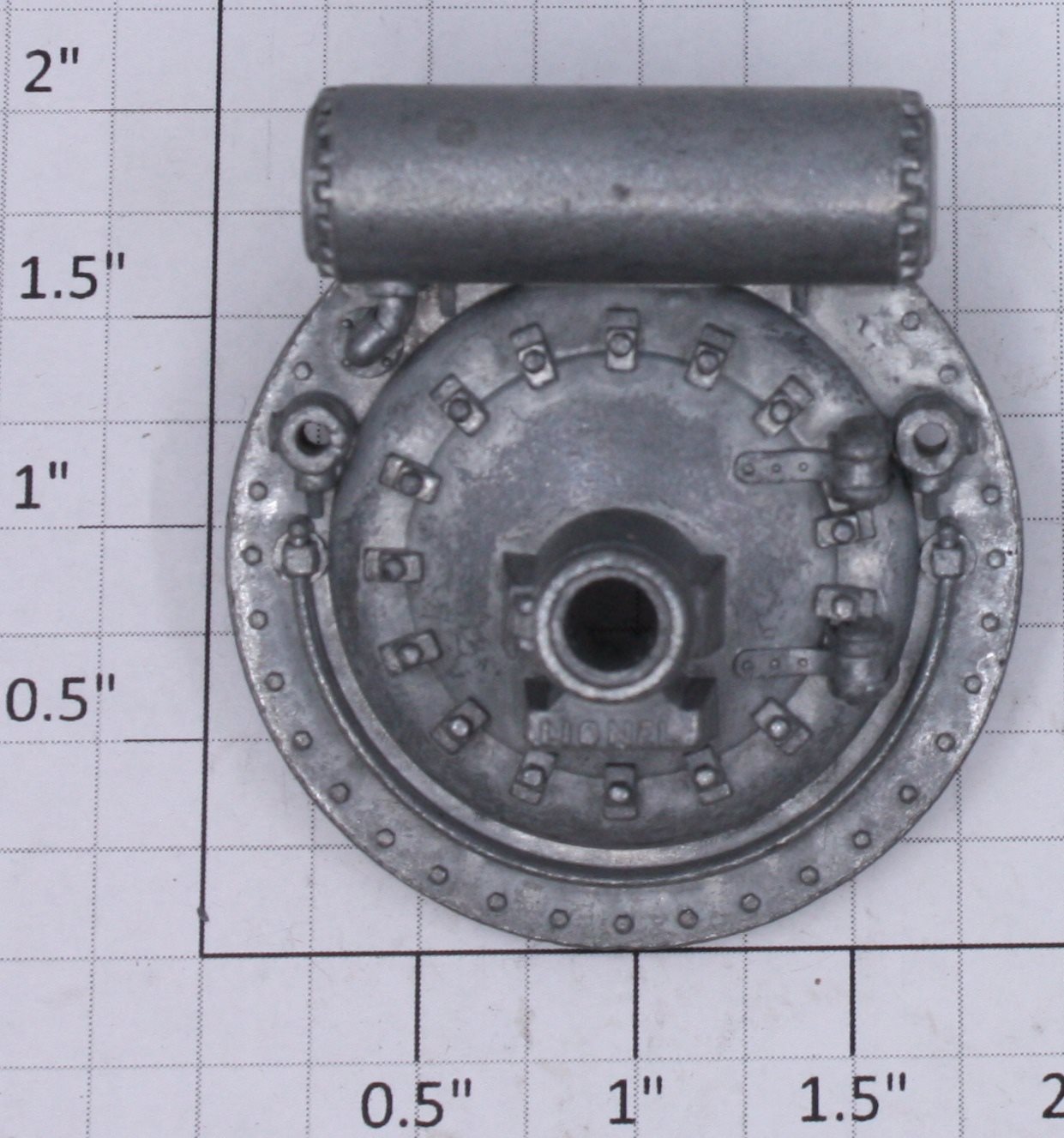

Lionel 2065-13 Diecast Unpainted Boiler Front No Lenses or Markers (Repro-Unpainted)	—	—
Lionel 2065-13 Boiler Front Casting (Repro-Incomplete)	—	—

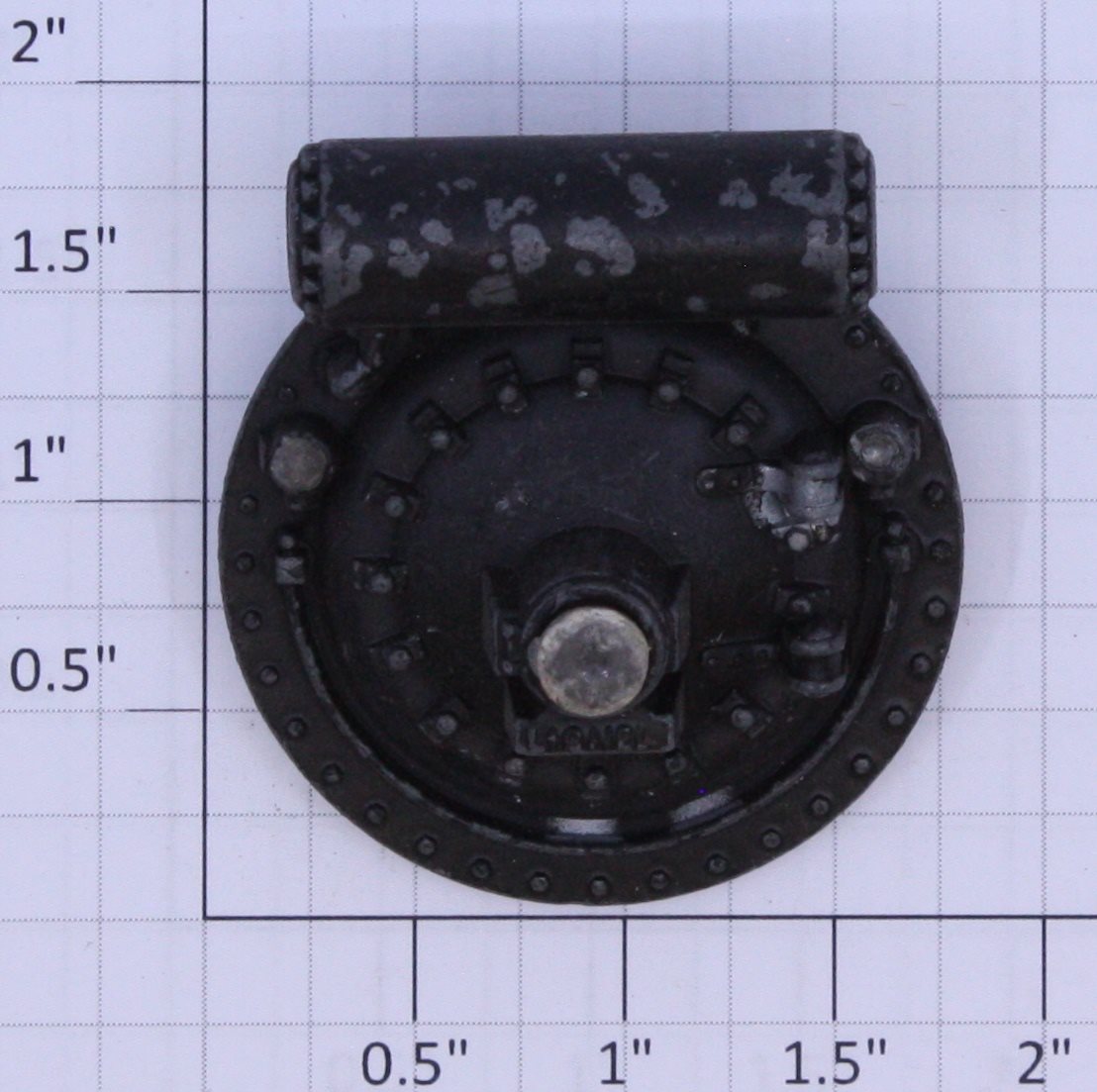

Lionel 2065-13 Black Boiler Front with Headlight Lens (Original)	—	—

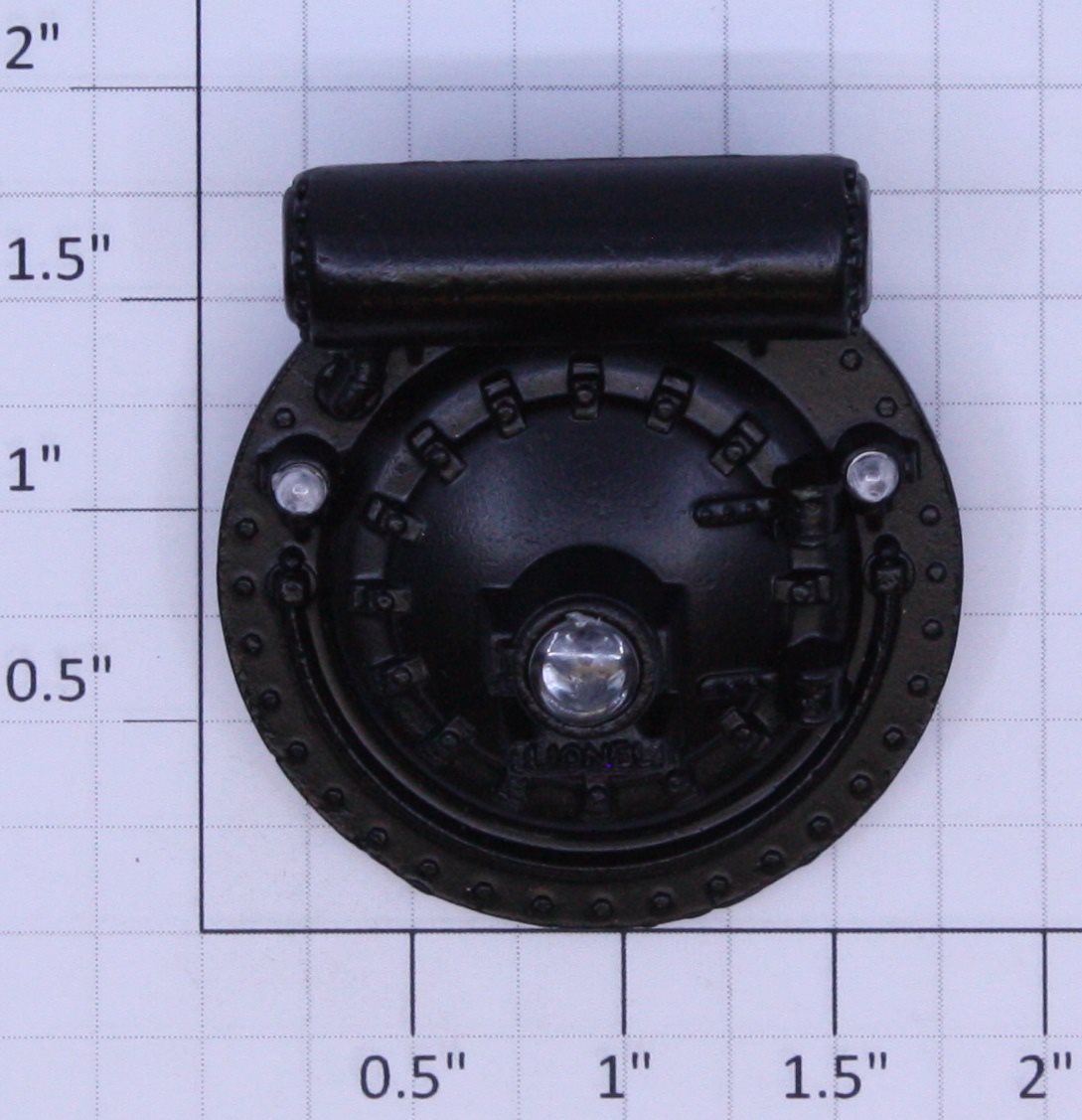

Lionel 2065-13 Black Boiler Front with Lens (Reproduction)	—	—

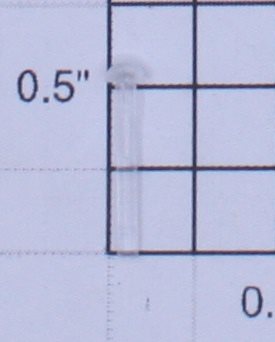

Lionel 2065-16 Long Clear Running Light (Reproduction)

—

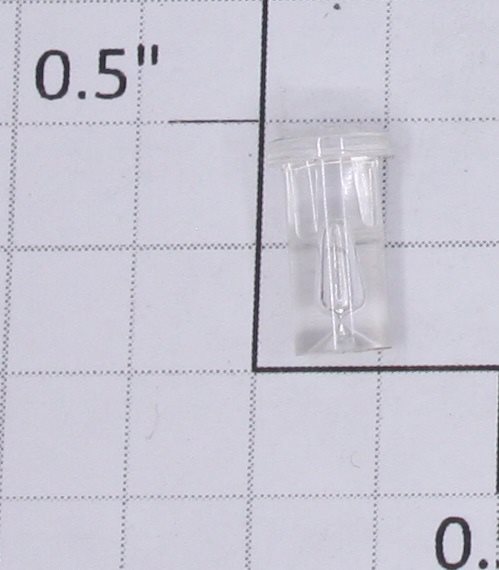

Lionel 8040-151 Short Clear Headlight Lens (Reproduction)

—

Lionel 2055-42 Rear Truck and Drawbar	—	—

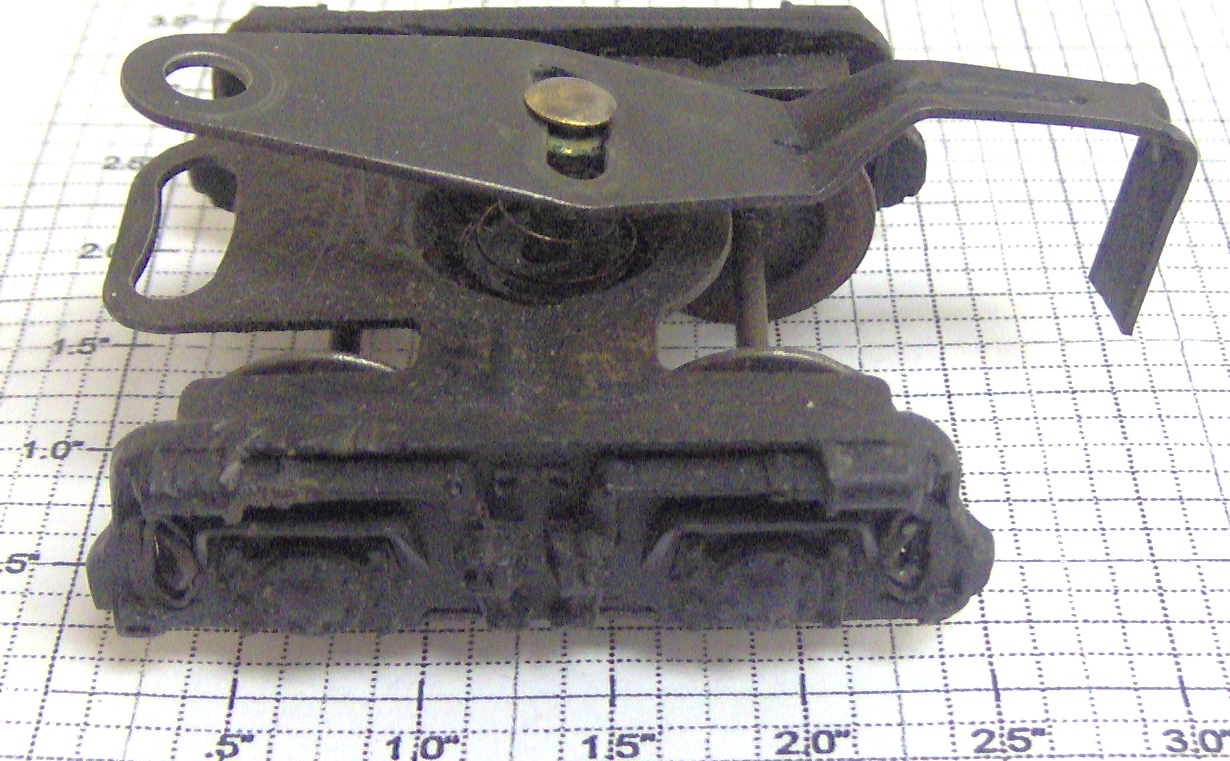

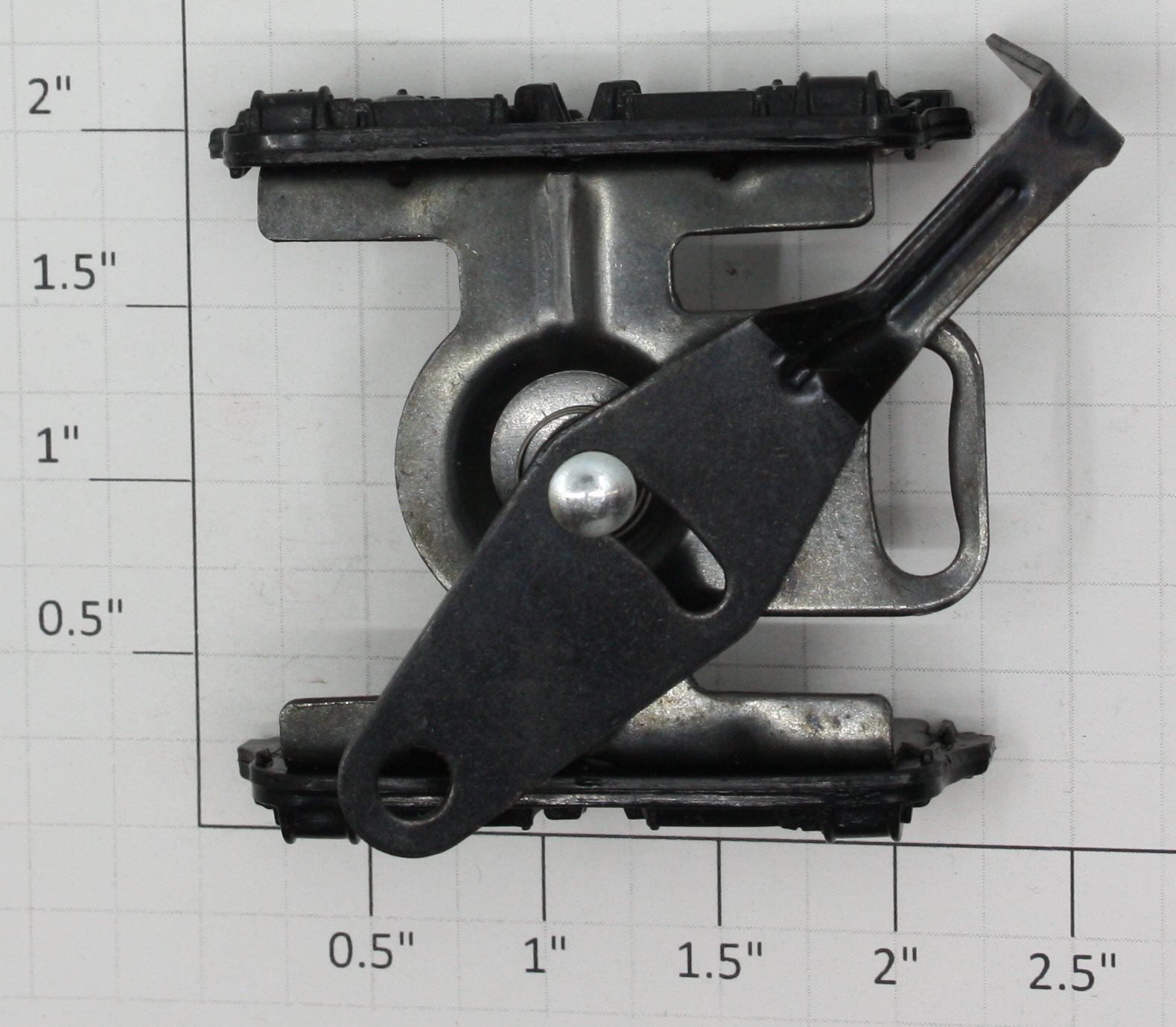

Lionel 2055-42 Rear Truck Frame w/ Drawbar	—	—

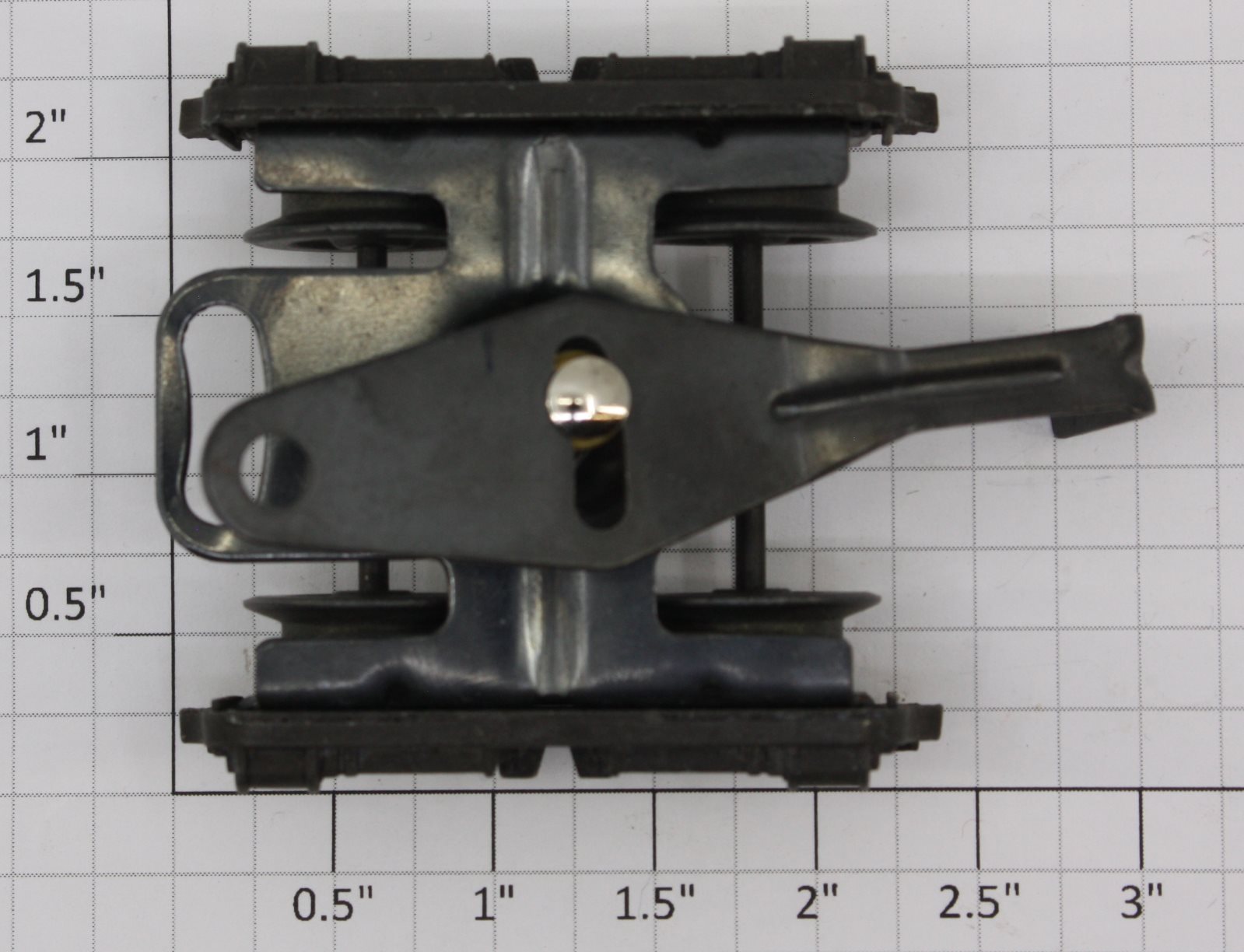

Lionel 2055-42 Rear Truck & Drawbar Assembly - Complete (Reproduction)	—	—

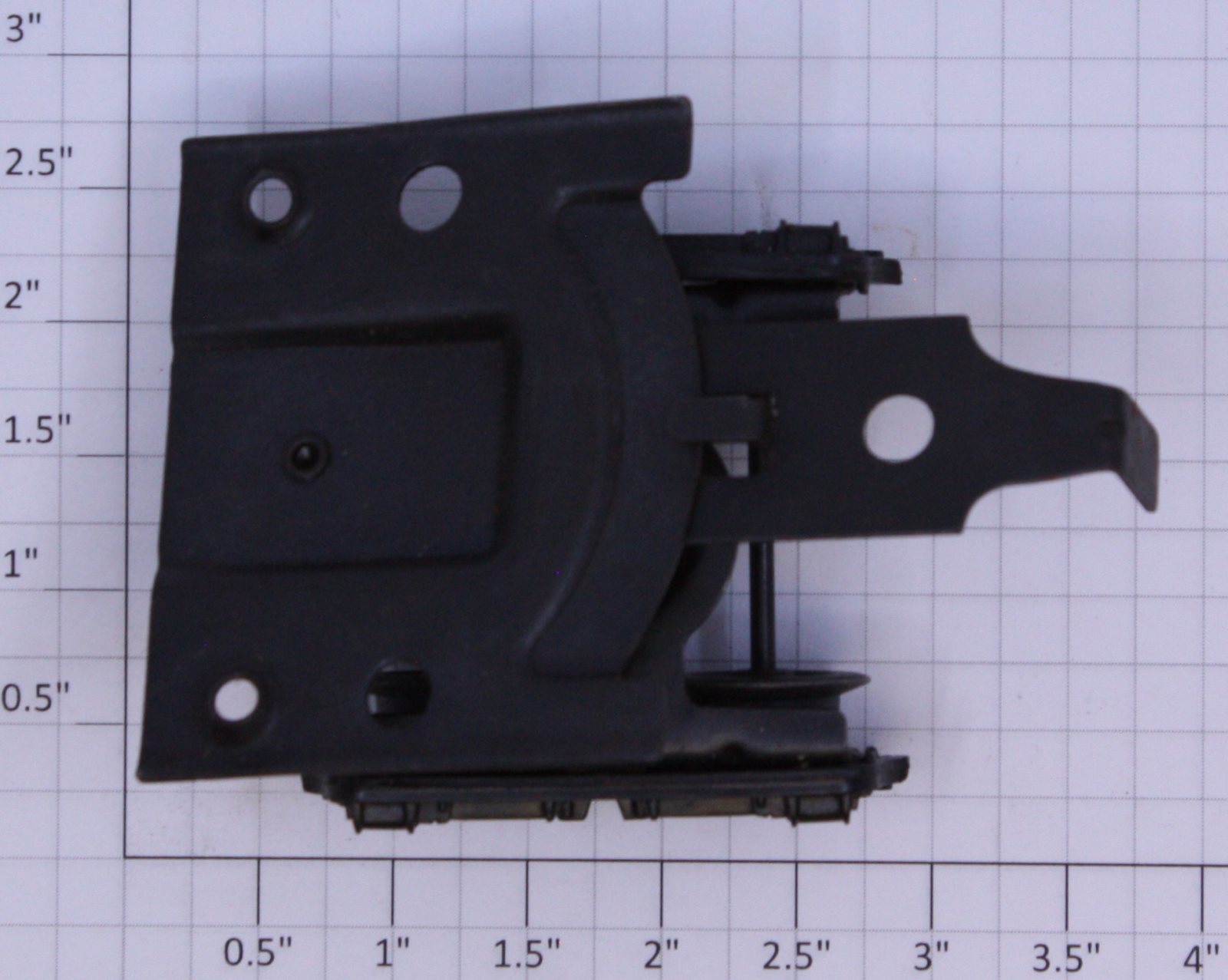

Lionel 2046-69 Rear Truck and Upper Plate (Reproduction)	—	—

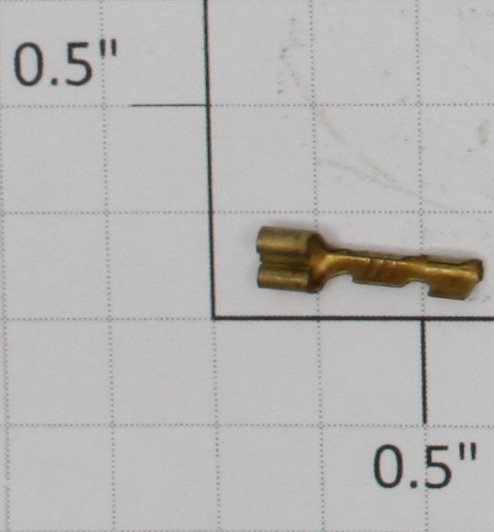

Lionel 8141-59 Brass Sound of Steam Female Terminal (New)	—	—

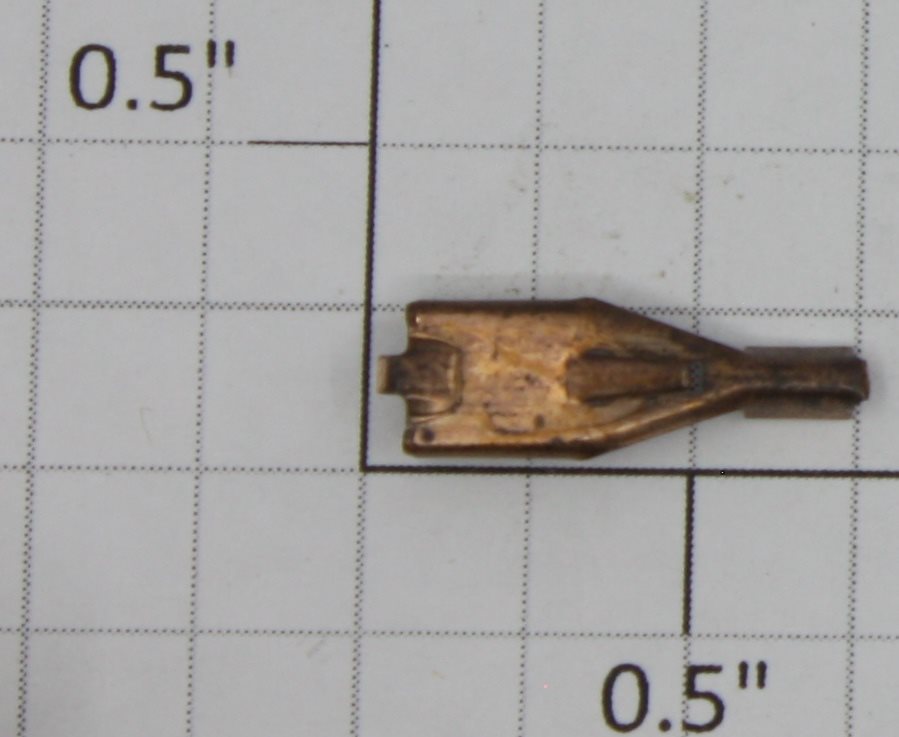

Lionel 8141-59 Copper Sound of Steam Female Terminal (Repro-Copper)	—	—

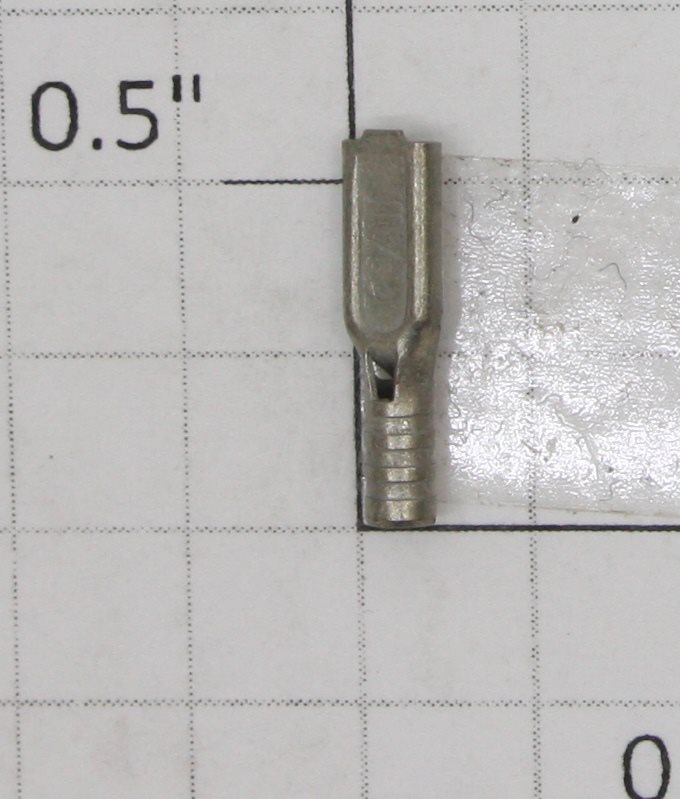

Lionel 8141-59 Sound of Steam Female Spade Terminal (Repro-Nickel)	—	—

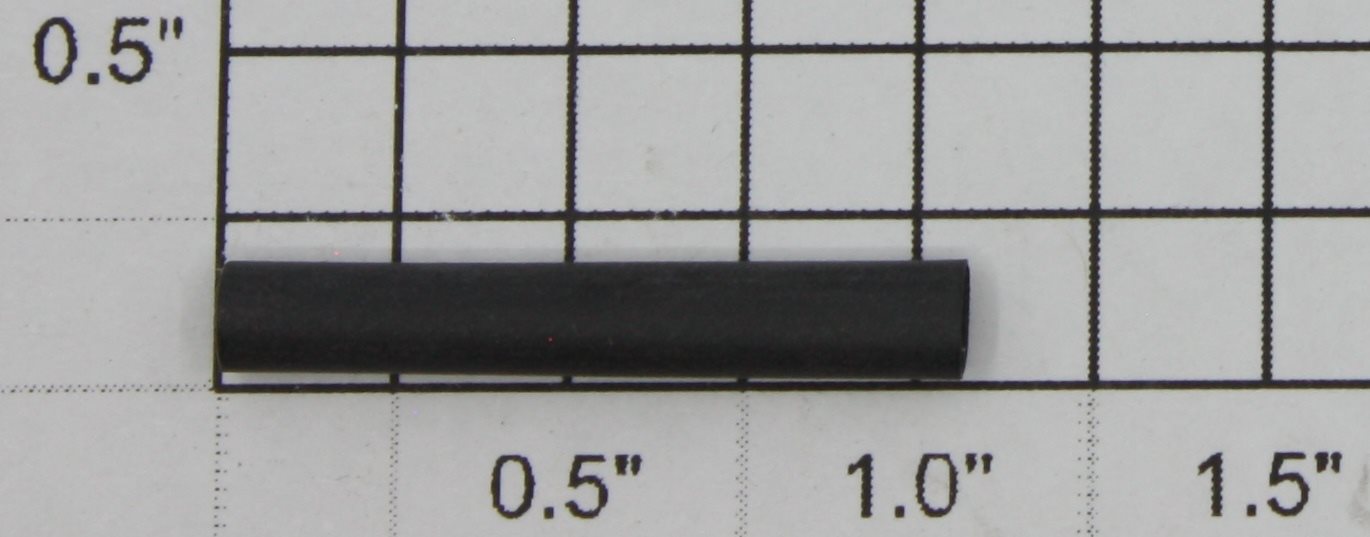

Lionel 8141-61 Insulation Heat Shrink Tube (Reproduction)

—

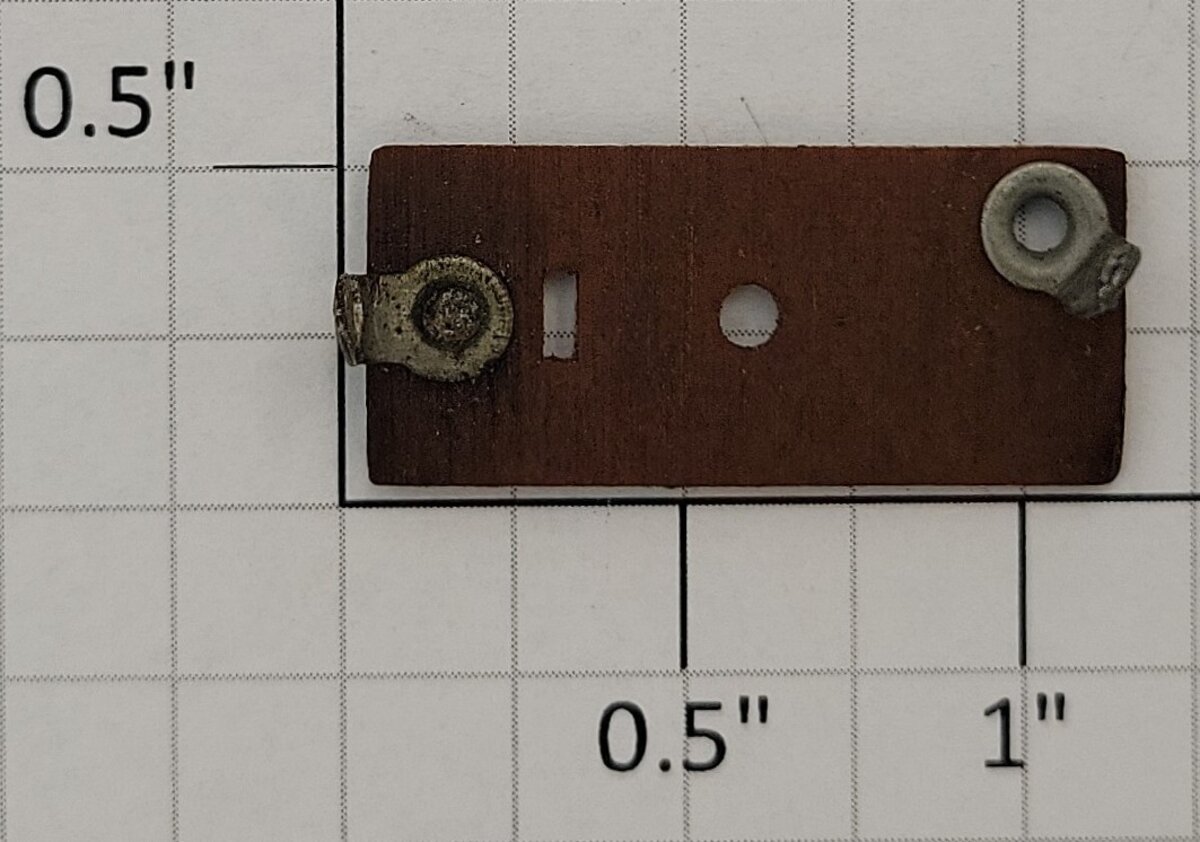

Lionel 100-43 E-Unit Switch Lever Back Plate (Original)	—	—

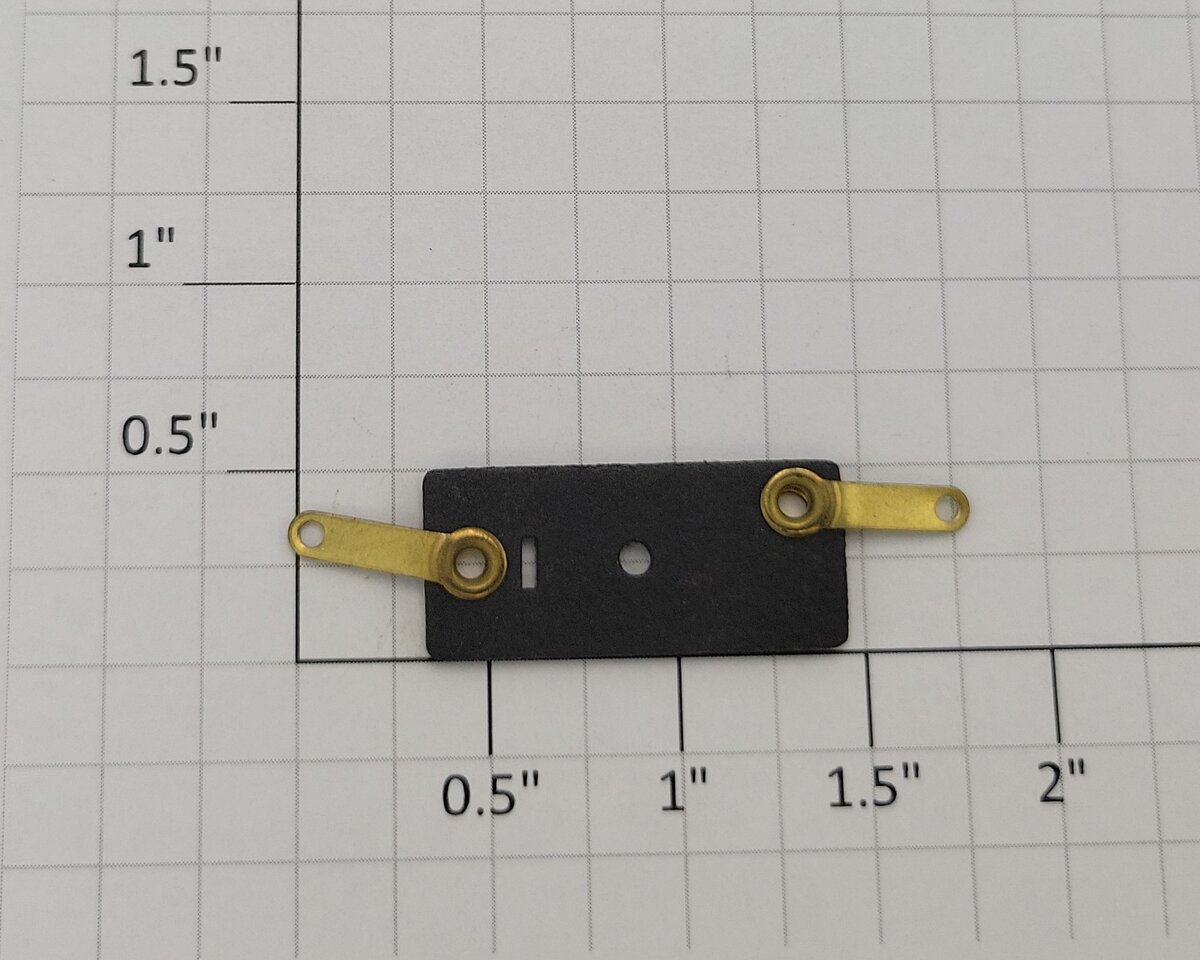

Lionel 100-43 E-Unit Switch Lever Back Plate (Reproduction )	—	—
Lionel 100-45 E-Unit 4-Finger Contact (8003-81) (Reproduction)	—	—
Lionel 100-45 E-Unit 4-Finger Contact with Wires (Original )	—	—
Lionel 100-45X E-Unit 4-Finger Contact with Short Wires (Used)	—	—
Lionel 100-46 Fiber Single 2-Finger E-Unit Contact without Wire (Reproduction)	—	—
Lionel 100-46 E-Unit Single 2-Finger Contact with Short Wire (Original)	—	—
Lionel 100-46 E-Unit Single 2-Finger Used Contact with Wire (Original)	—	—
Lionel 100-46 E-Unit Single 2-Finger Contact with Wire (8003-82) (New Without Shield)	—	—
Lionel 100-46 2 Finger Contact & Shield for E-unit - Postwar New Old Stock (Original)	—	—

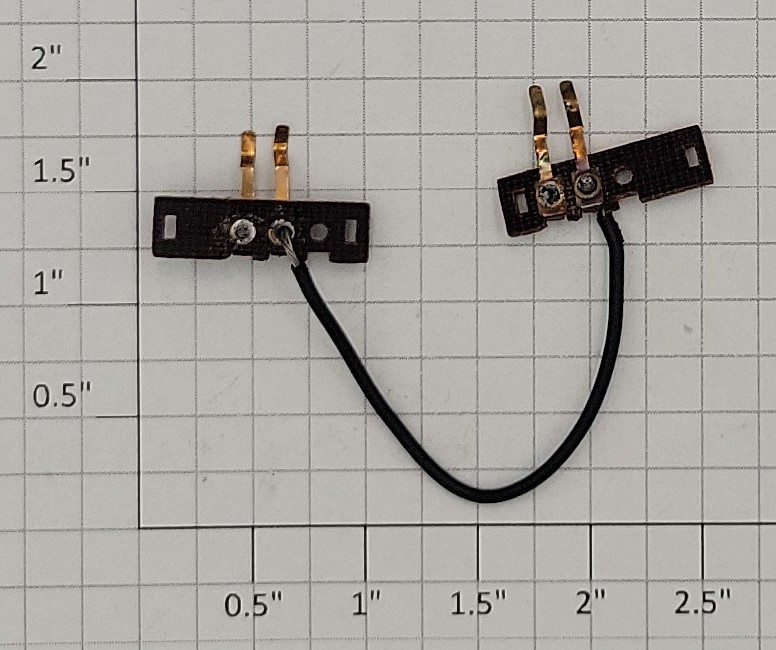

Lionel 100-466 Two Fiber 2-Finger E-Unit Contacts Wired (Reproduction)	—	—
Lionel 259E-1 Light Blue E-Unit Drum (Repro-Light Blue)	—	—
Lionel 259E-1 Dark Gray E-Unit Drum (Repro-Dark Gray)	—	—
Lionel 259E-1 Olive Drab E-Unit Drum (Repro-Olive Darb)	—	—
Lionel 259E-1 Off White E-Unit Drum (Repro-Off White)	—	—
Lionel 259E-1 Pink E-Unit Drum (Repro-Pink)	—	—

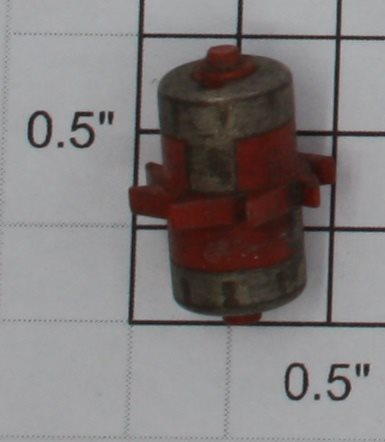

Lionel 259E-1 Original E-Unit Drum - Various Colors (Each) (Original)	—	—
Lionel 259E-1 Light Green E-Unit Drum (Repro-Light Green)	—	—

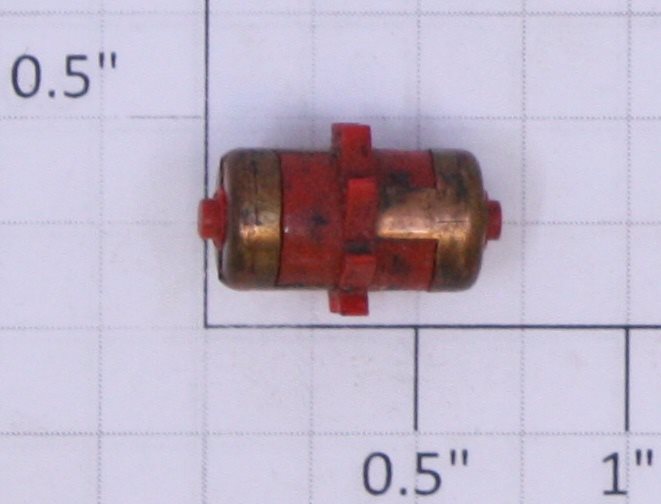

Lionel 259E-1 Red E-Unit Drum (Repro-Red)	—	—
Lionel 259E-1 Black E-Unit Drum (Repro-Black)	—	—

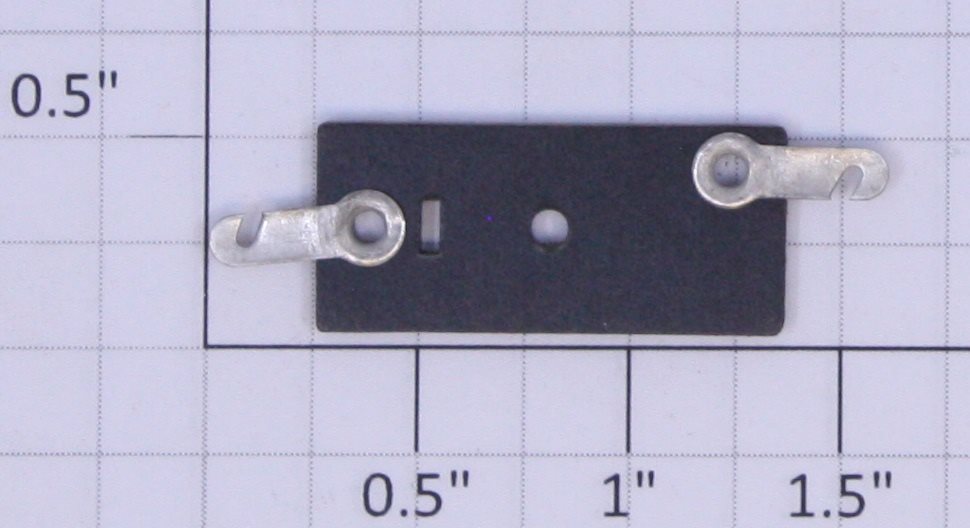

Lionel 259E-3 E-Unit Switch Fiber Plate Assembly (New)	—	—
Lionel 259E-41 Bottom Shield with Hole (Repro-with Hole)	—	—
Lionel 259E-41 Bottom Shield with Hole (Repro-With Hole)	—	—

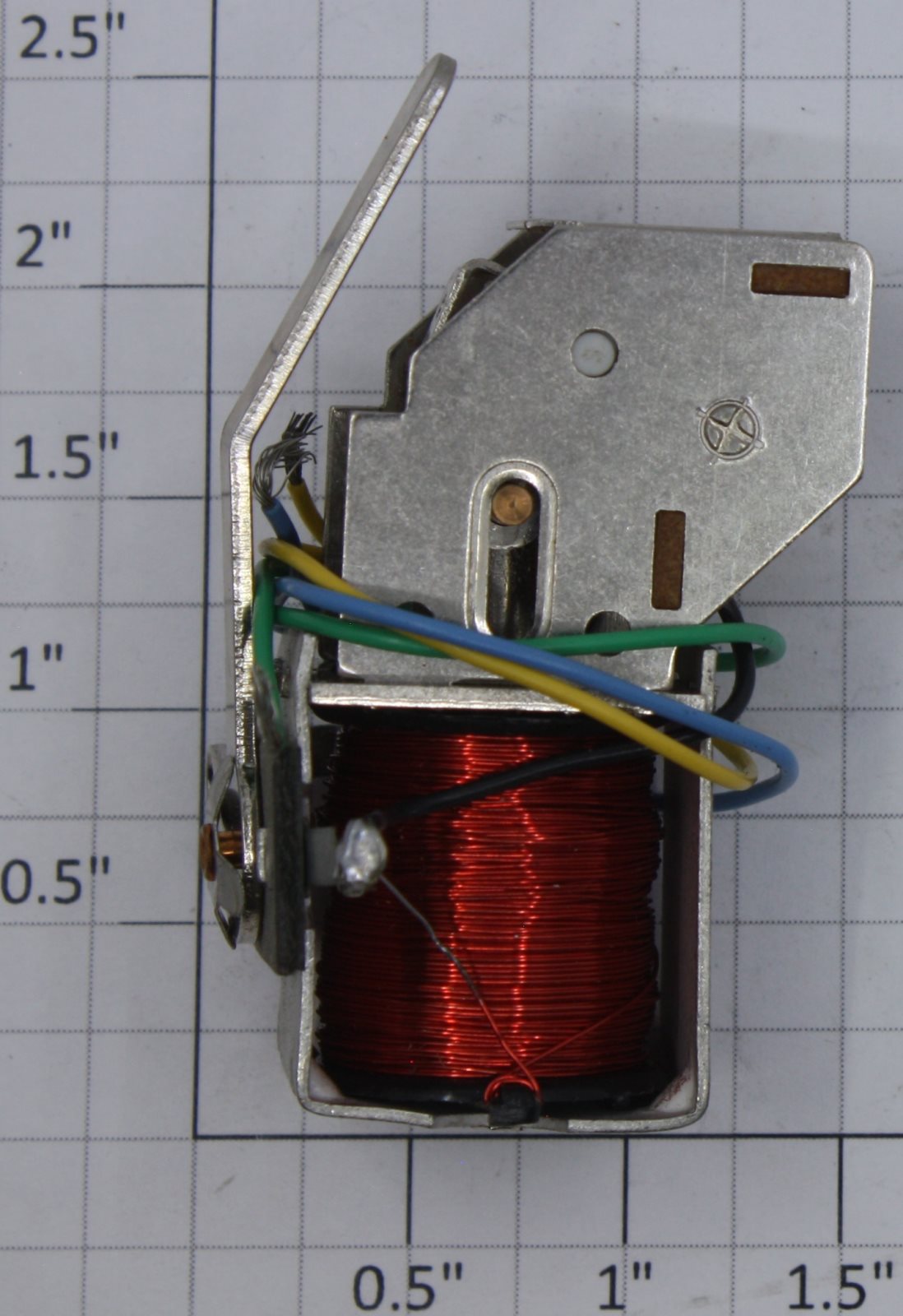

Lionel 100-15 3 Position E-Unit (8603-50) Long Bent Arm Down Fits 2031 2032 2033 (New)	—	—
Lionel 100-45 E-Unit 4-Finger Contact with Wire (Used)	—	—
Lionel 100-45 E-Unit 4-Finger Contact (Reproduction)	—	—

Lionel 8010-165 Truss Head Self Tapping Mounting Screws 4-40x1/4" (#4-40x1/4" )

—

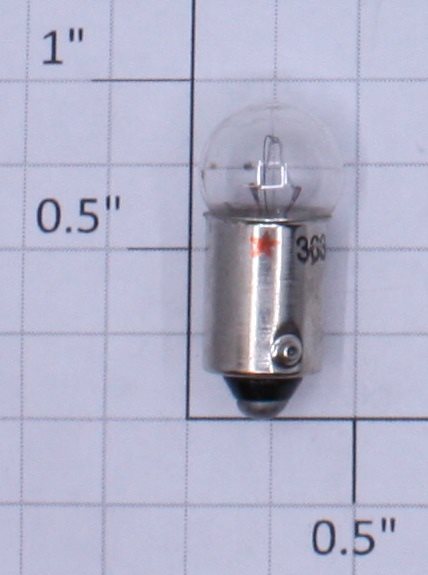

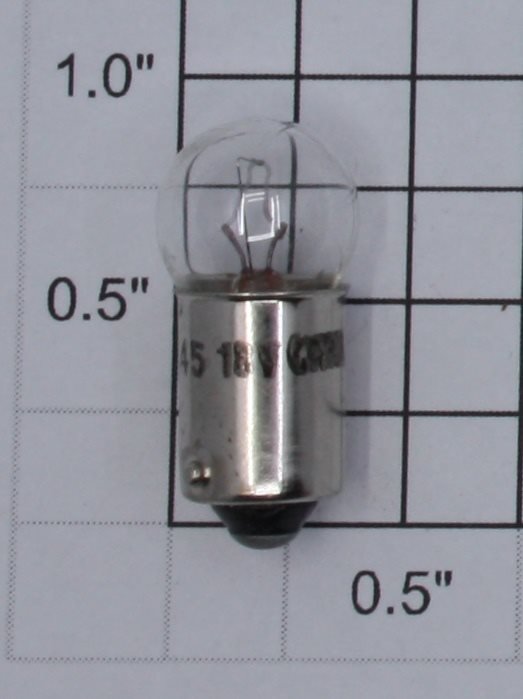

Lionel 1445 18 Volt Bayonet Base Clear Small Globe Light Bulb (Clear)	—	—
Lionel 363 14-Volt Bayonet Base Clear Small Globe Extra Bright Light Bulb (Clear)	—	—

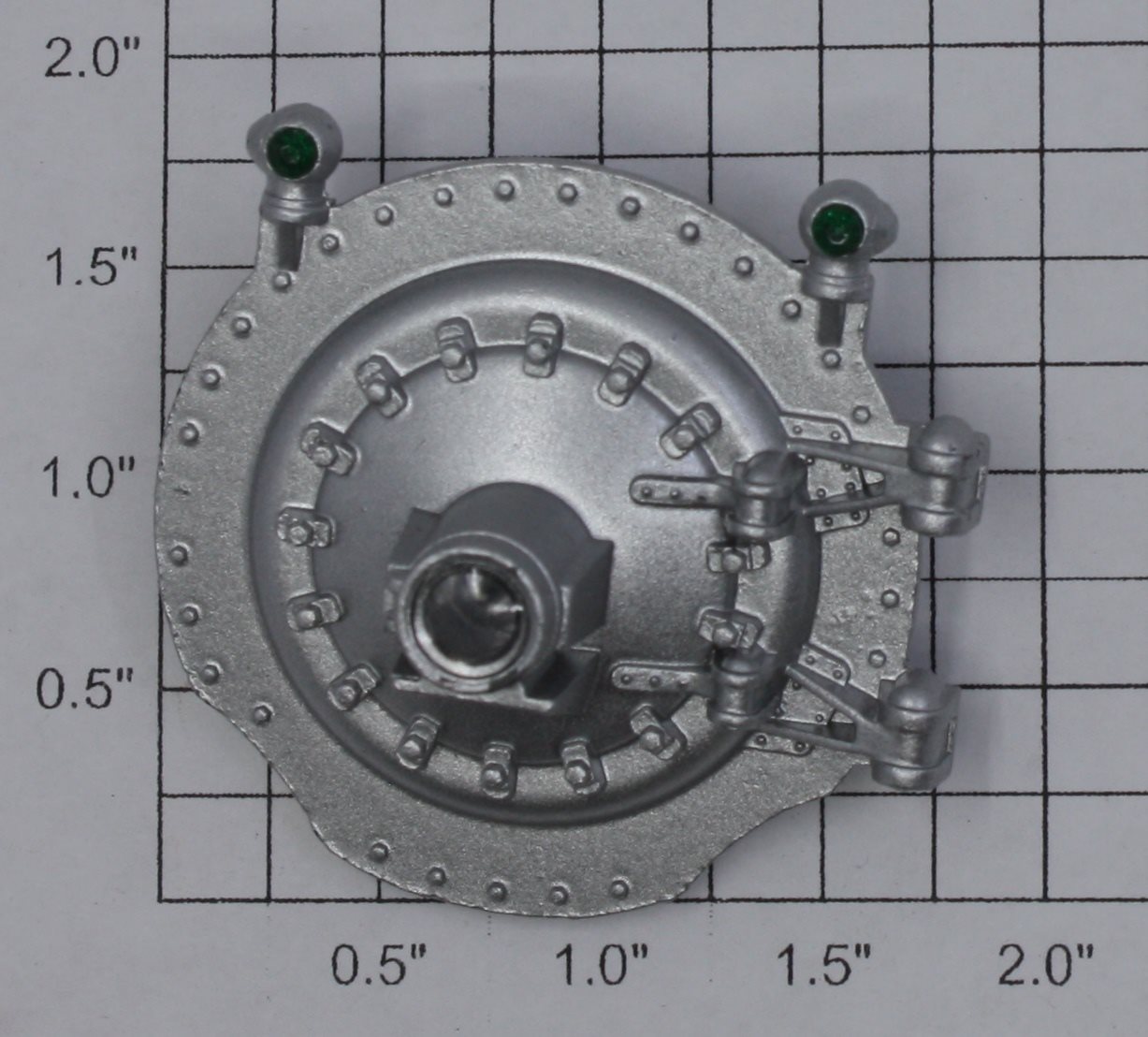

Lionel 8600-13 Silver Painted Non-Opening Boiler Front (Repro- Silver)

—

Lionel 2332-107 1/2" OD x 7/32" ID Steel Washer (Reproduction)

—

Lionel 671M-22 Coated Retaining E-Clip (Repro-Coated)	—	—
Lionel 671M-22 Blackened Retaining E-Clip (Repro-Blackend)	—	—
Lionel 671M-22 Steel Retaining E-Clip (Repro-Steel)	—	—

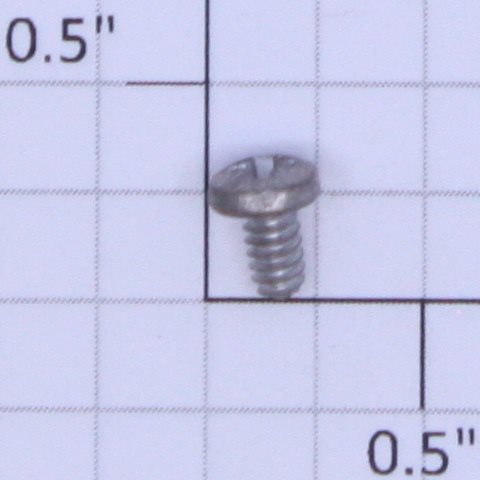

Lionel 8142-46 #6-32 x 1/4" Phillips Pan Head Machine Screw (New)

—

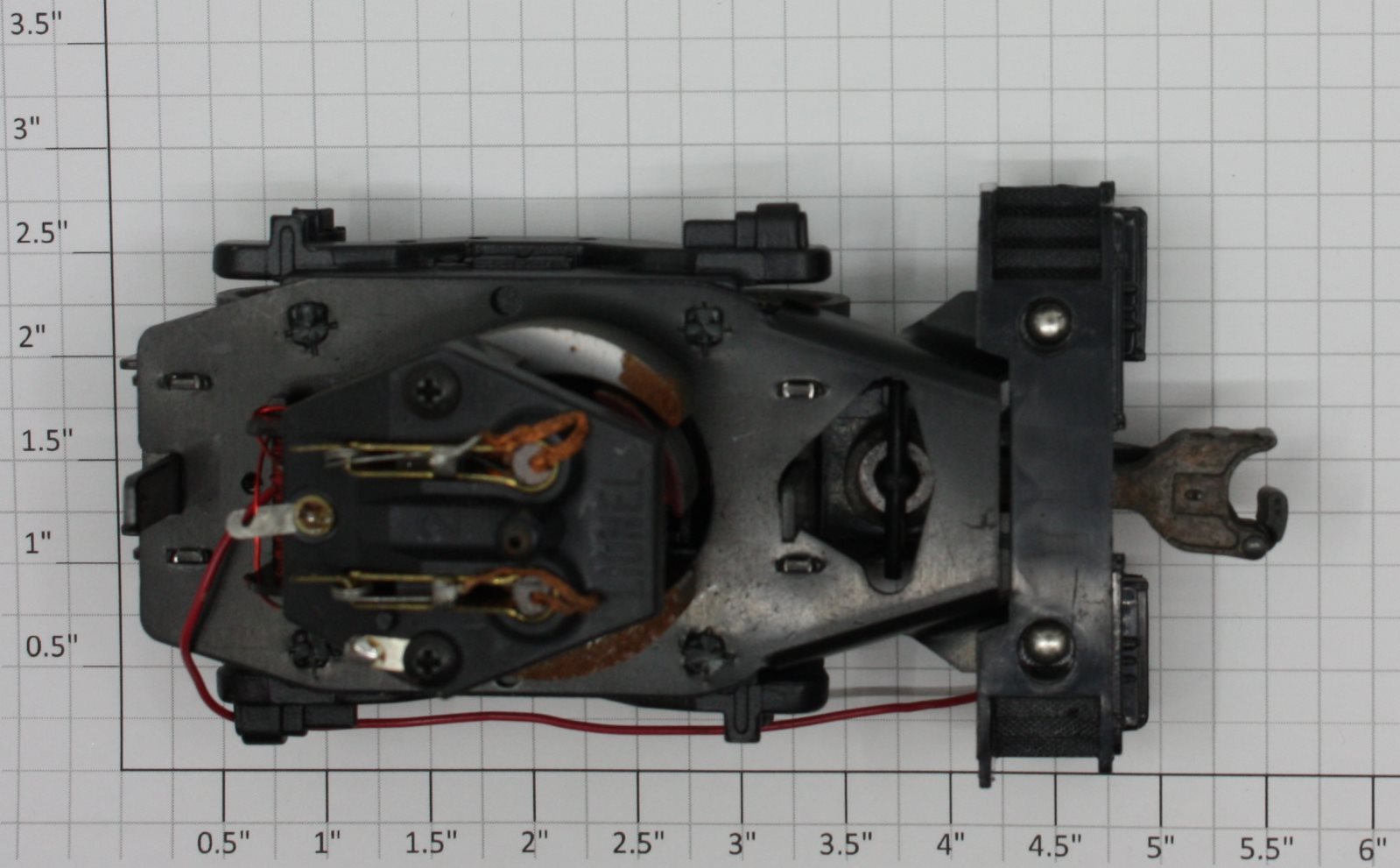

Lionel 8206-100 4-Wheel Motor Truck with Black Sides (Repro-Black)	—	—

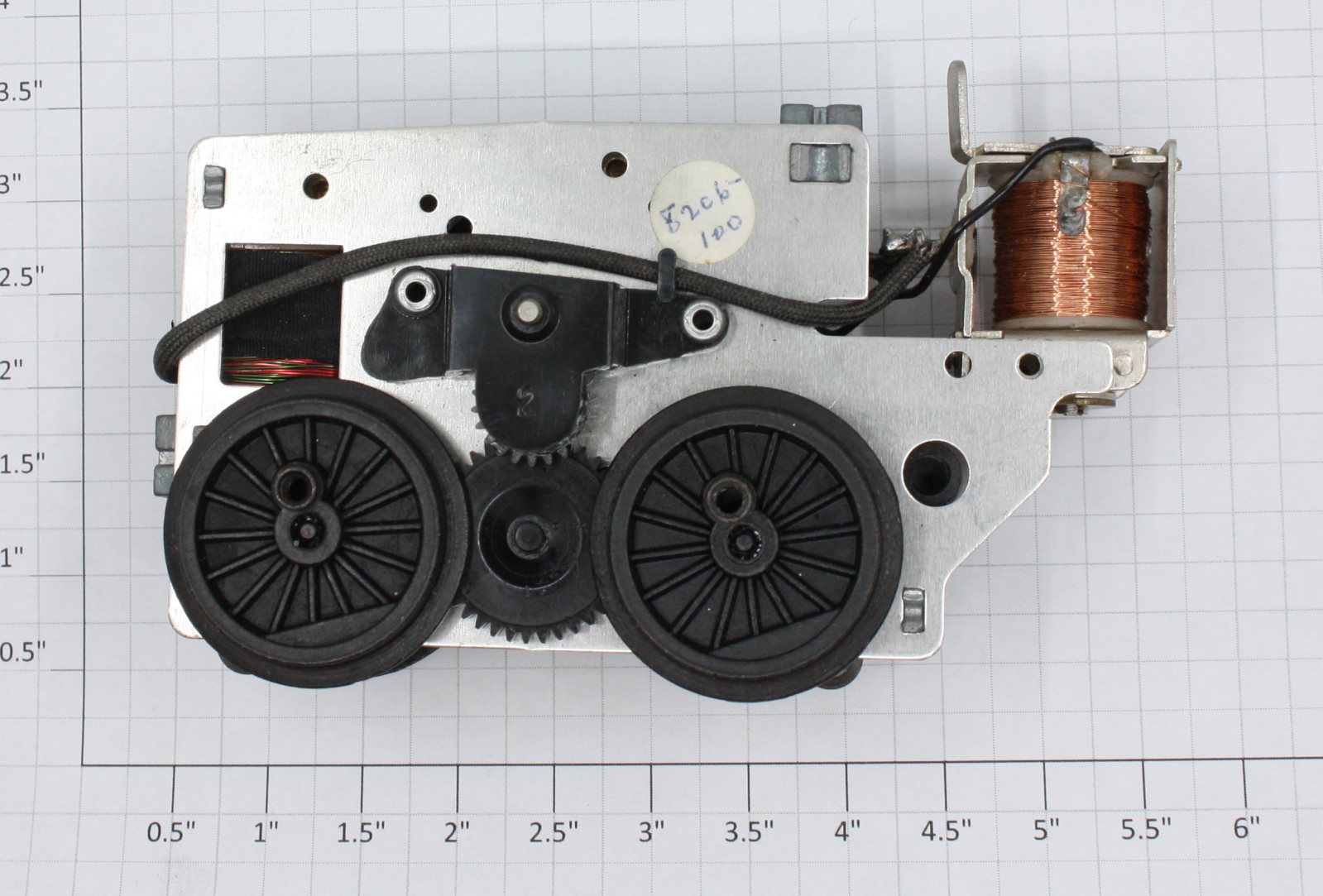

Lionel 8206-100 Motor Chassis Complete	—	—

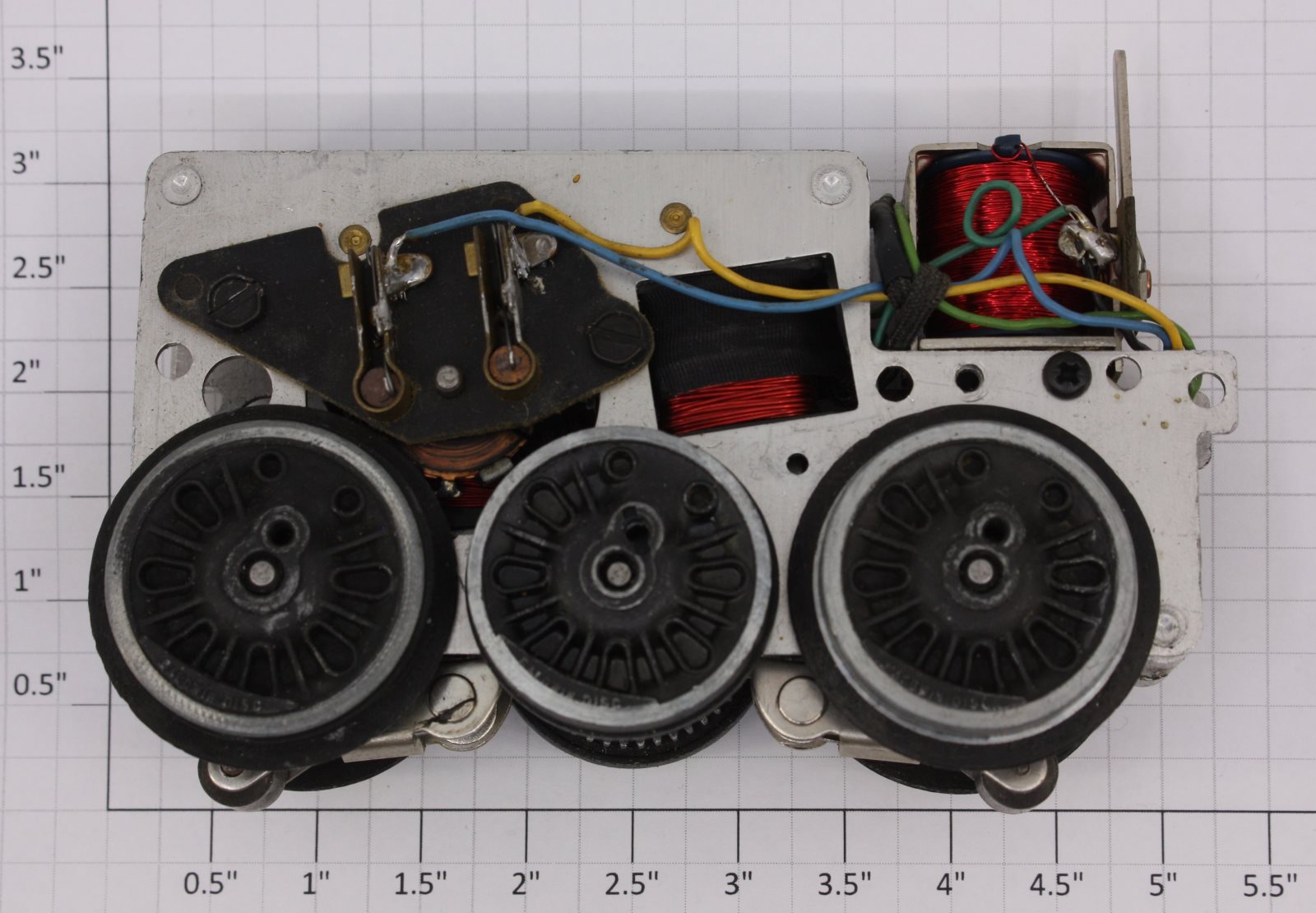

Lionel 8603-100 Hudson Steam Locomotive 6-Wheel Magnetraction Motor Assembly (New)	—	—

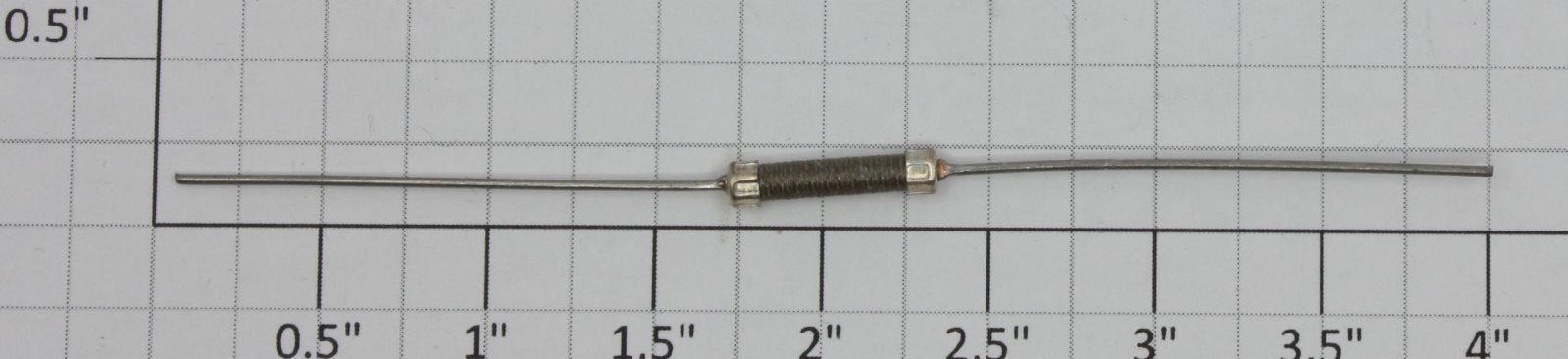

Lionel 8141-55 27 OHM Smoke Heating Element (Reproduction)	—	—
Lionel 8206-42 Smoke Unit	—	—

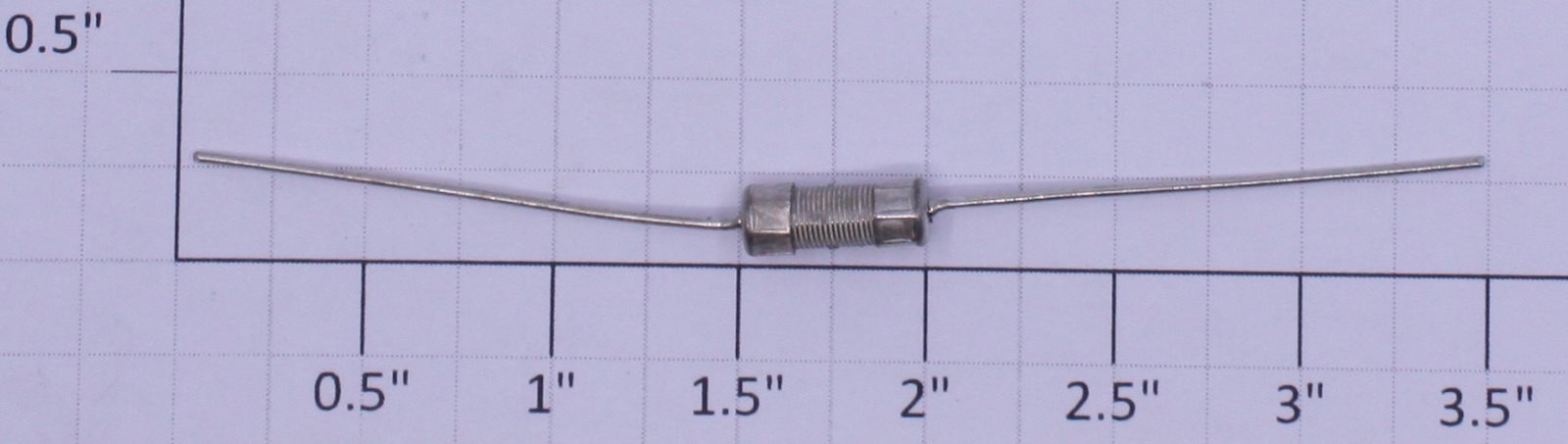

K-Line K2001-12 O Gauge 22 Ohm Smoke Resistor Heating Element (New)	—	—

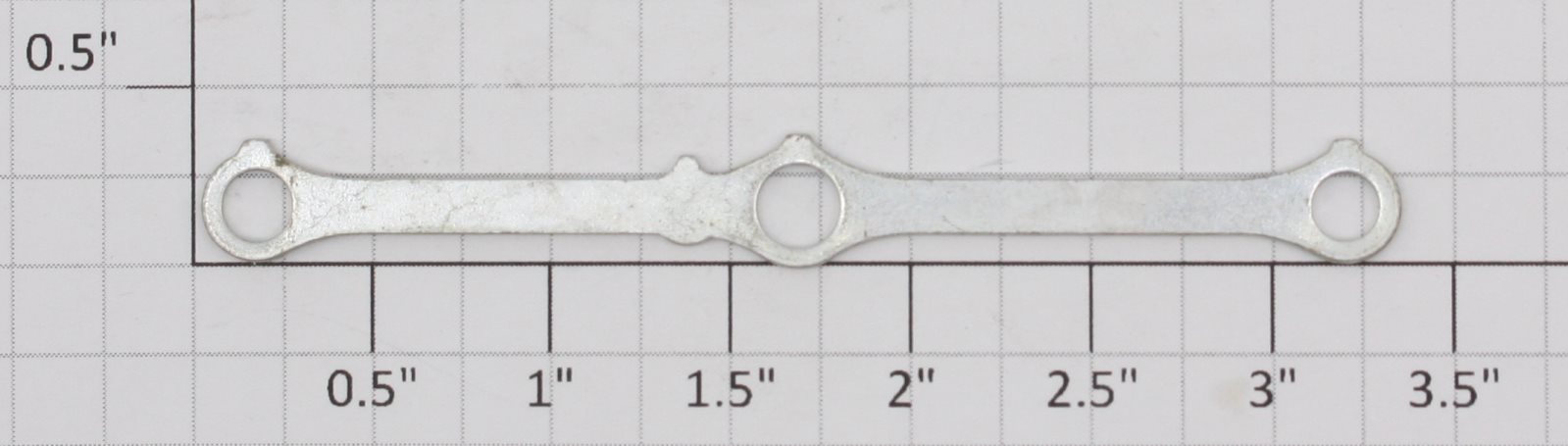

Lionel 226E-73 Right / Left Hand Plain Side Rod (New)	—	—

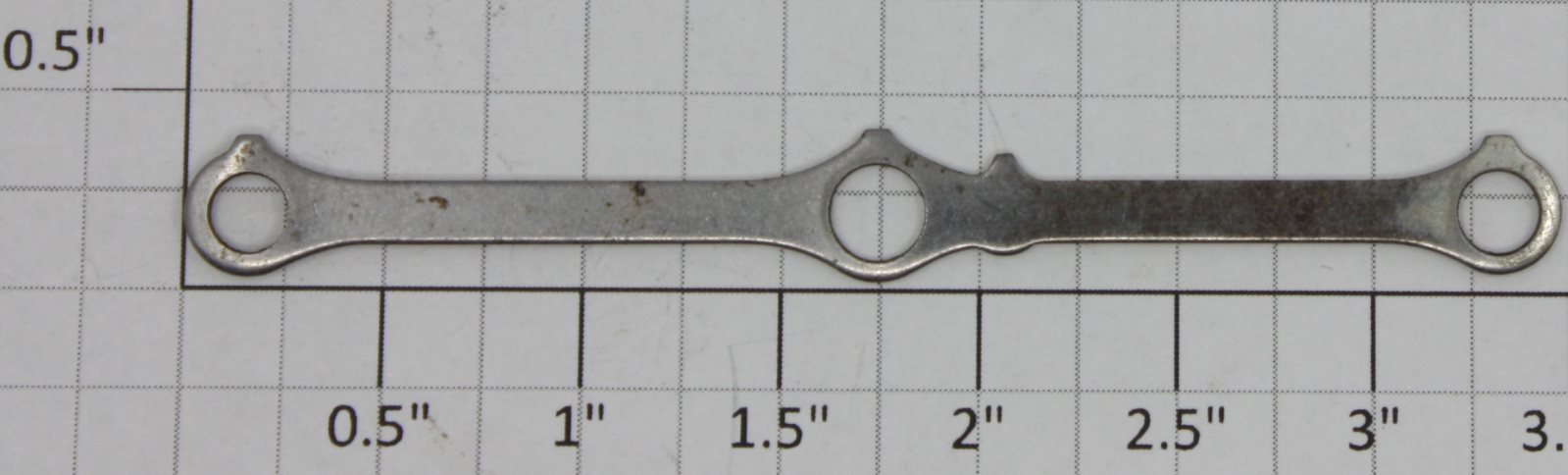

Lionel 226E-73 Left Hand / Right Hand Plain Side Rod (Original)	—	—

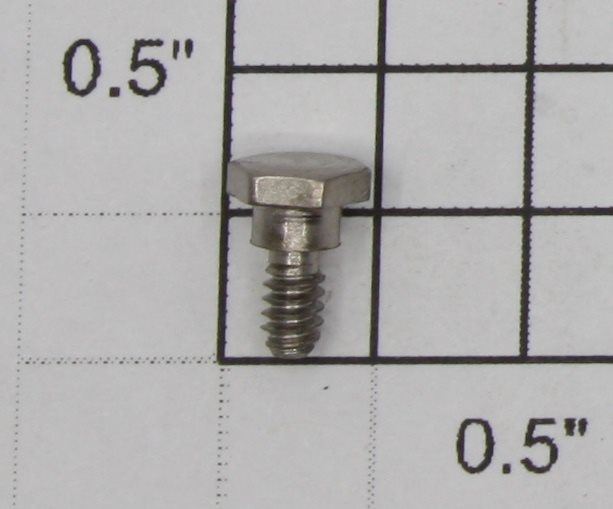

Lionel 2035-106 #4-40 x 3/16" Hex Head Side Rod Screw (Reproduction)

—

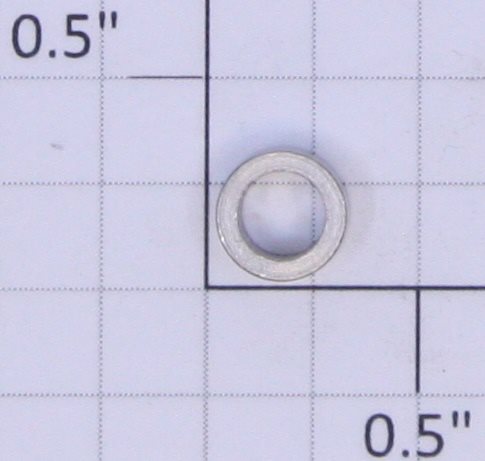

Lionel 2055-67 Nickel Thin Siderod Spacer (Reproduction)	—	—

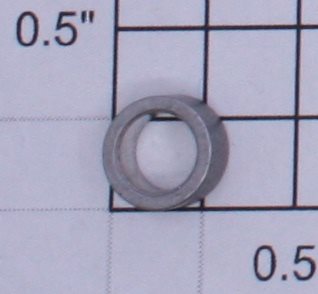

Lionel 2055-67 Aluminum .145" Thin Siderod Spacer (Reproduction)	—	—

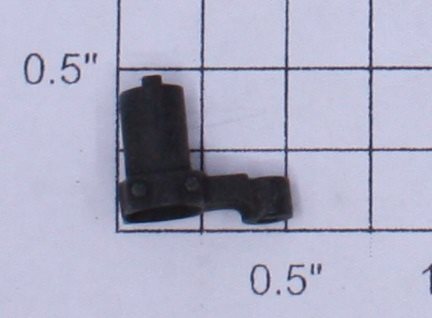

Lionel 2055-32 Short 2-Pin Eccentric Crank (New)	—	—

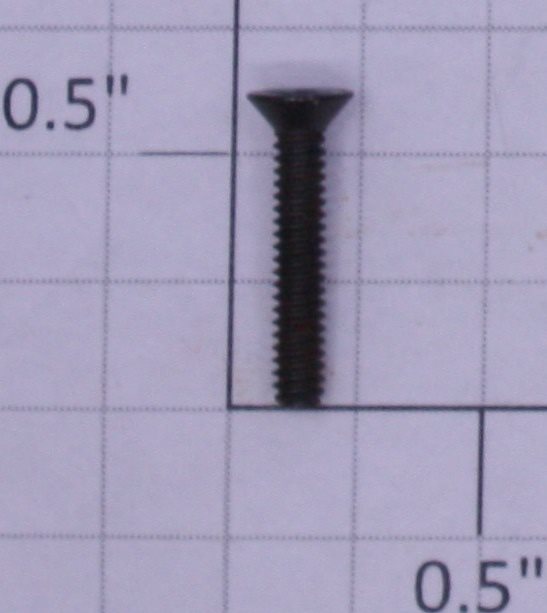

Lionel 2055-93 #4-40 x 5/8" Black Eccentric Crank Flat Head Phillips Screw (New)	—	—

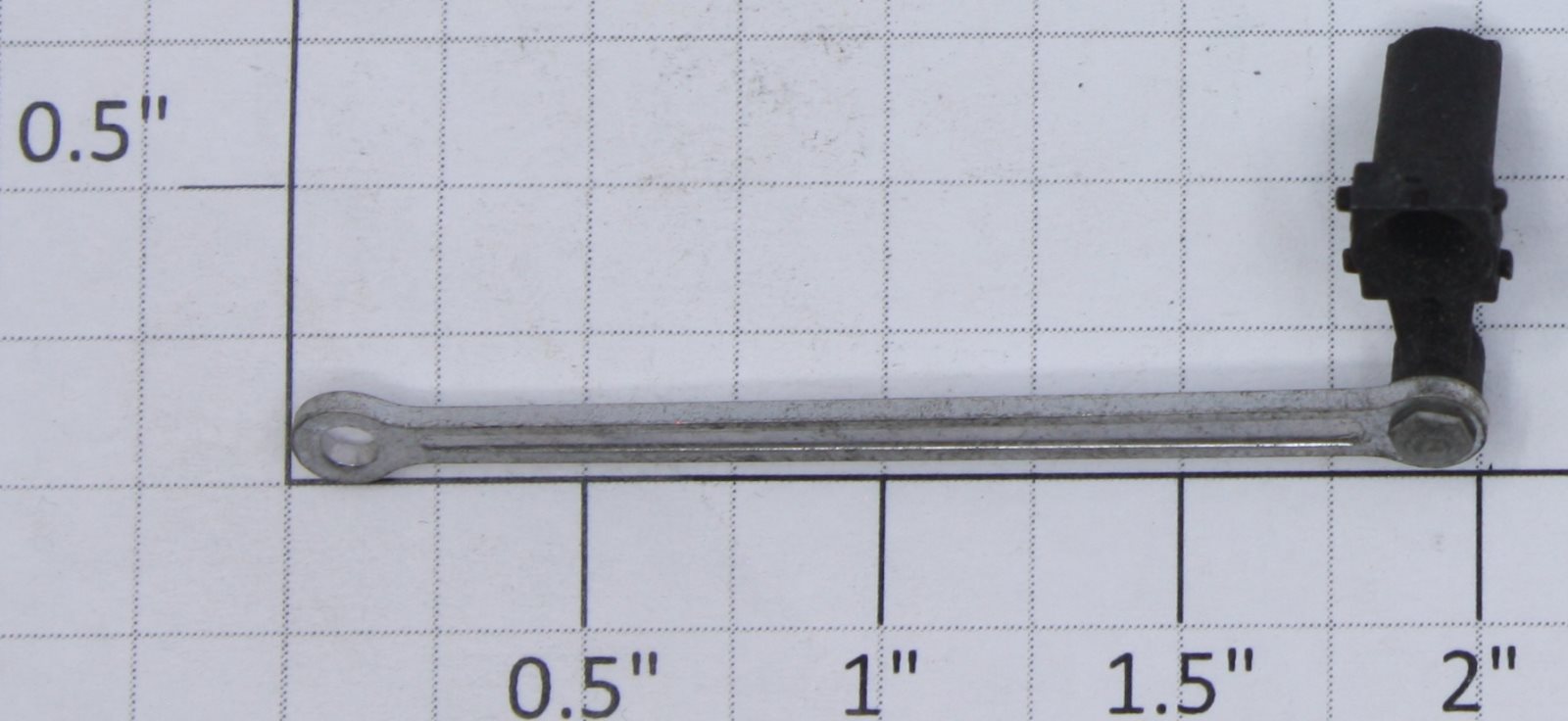

Lionel 224E-14X Eccentric Rod, Crank and Rivet Assembly (Original)	—	—
Lionel 700E-53 Longest Eccentric Crank Rivet (Reproduction)	—	—

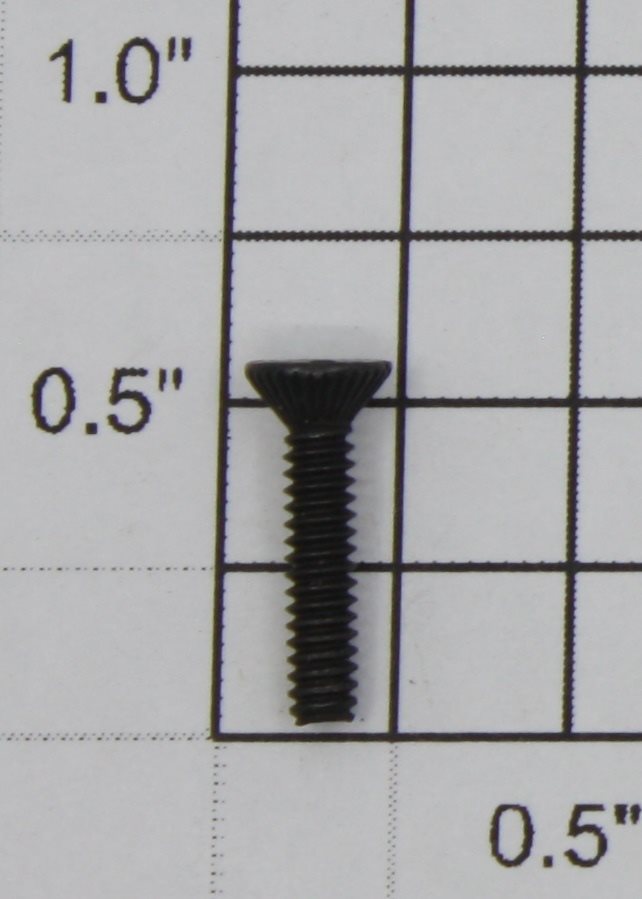

Lionel 2055-93 #3-48 x 21/32" Black Phillips Flat Head Eccentric Screw (Reproduction)	—	—

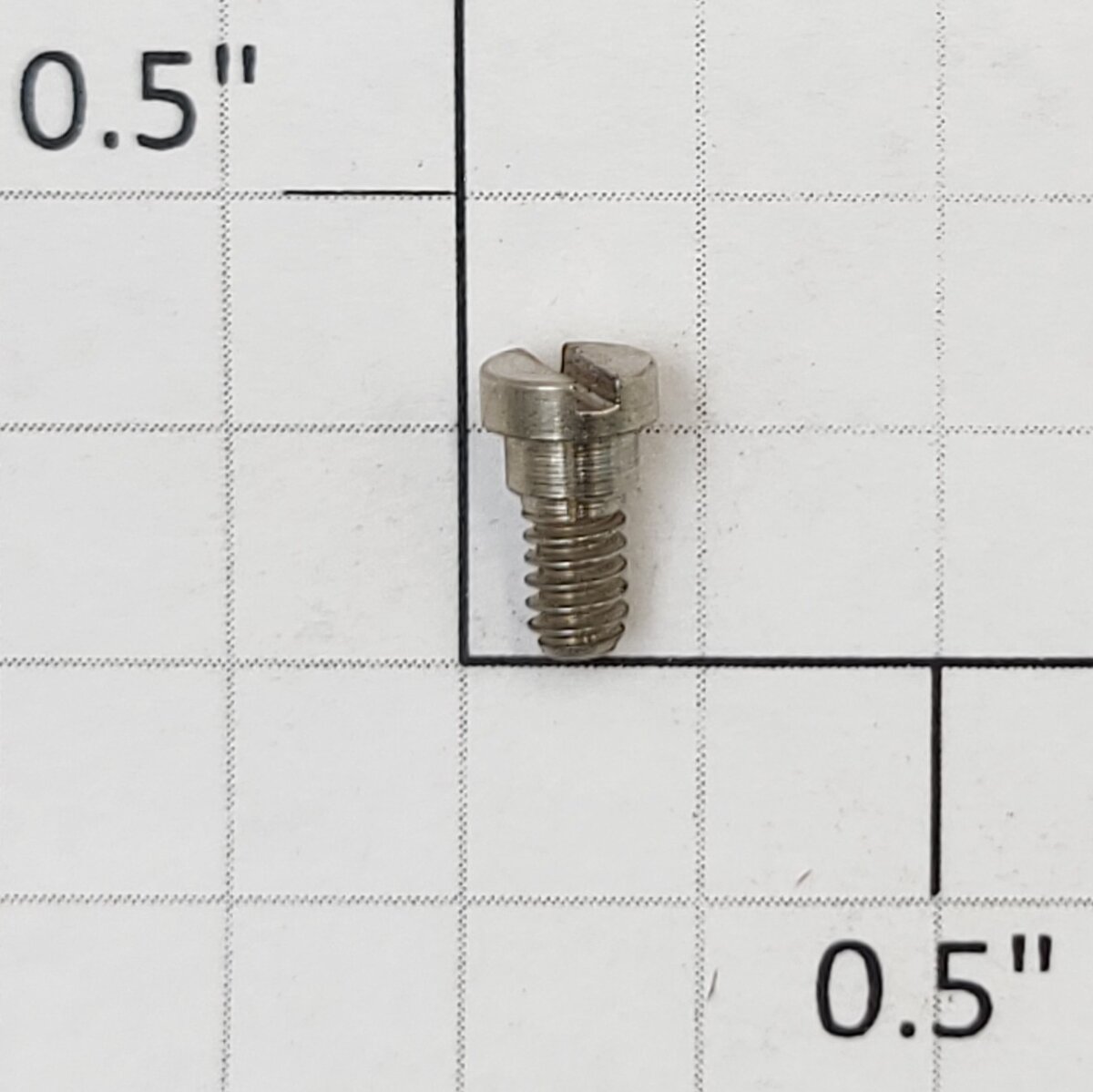

Lionel 2055-37 #4-40 Nickel Valve Gear Screw (Repro-Nickel)	—	—

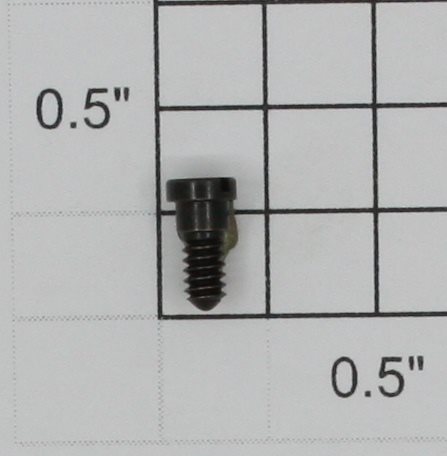

Lionel 2055-37 #4-40 Blackened Valve Gear Shoulder Screw (Repro-Black)	—	—

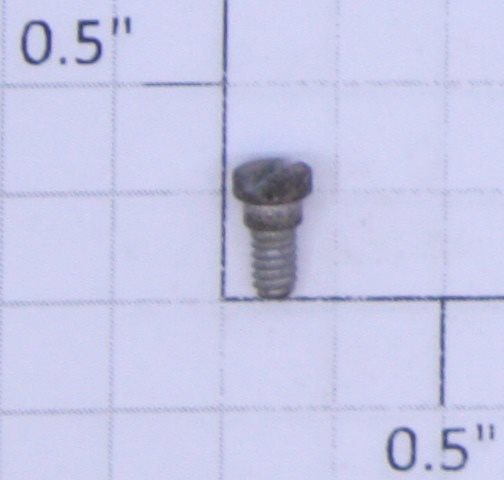

Lionel 2055-37 #4-40 Unfinished Valve Gear Shoulder Screw (Repro-Unfinished)	—	—

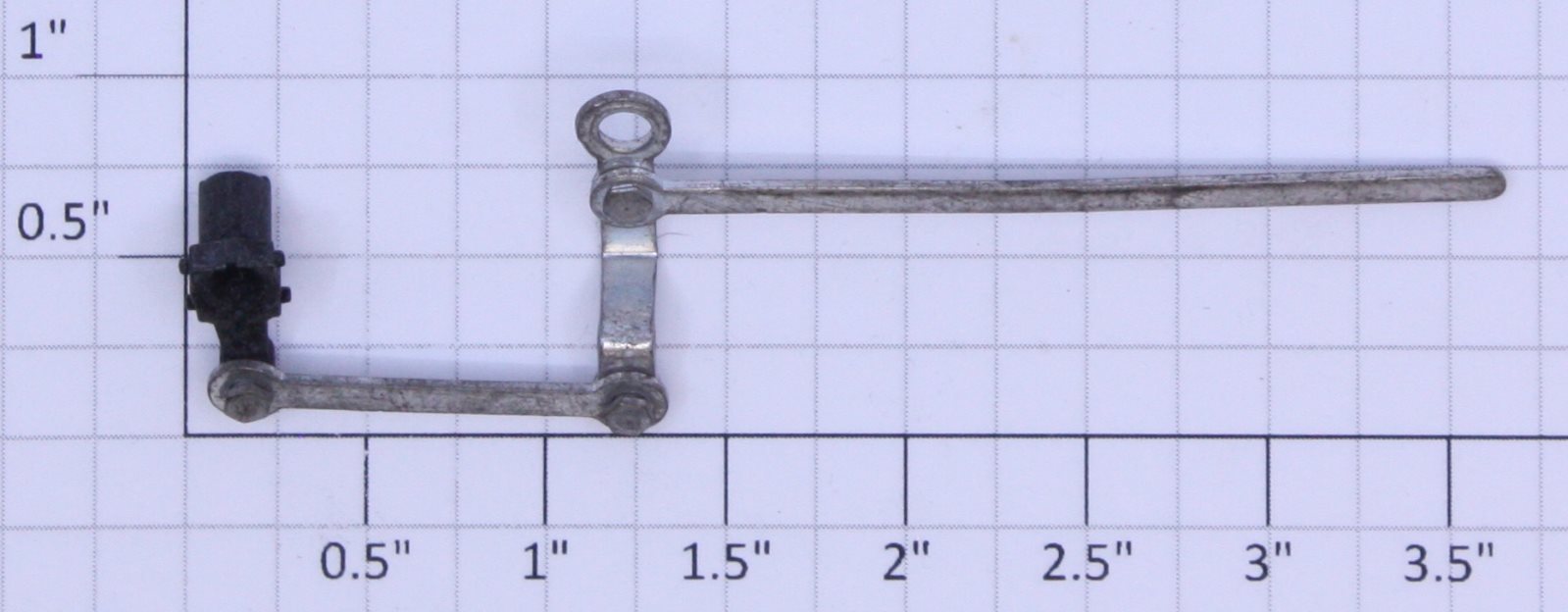

Lionel 8206-41 Valve Gear Assembly (Used)

—

Lionel 2660-25 Pilot Truck Rivet (New)

—

Lionel 2035-106 #4-40 x 3/16" Hex Head Side Rod Screw (Reproduction)

—

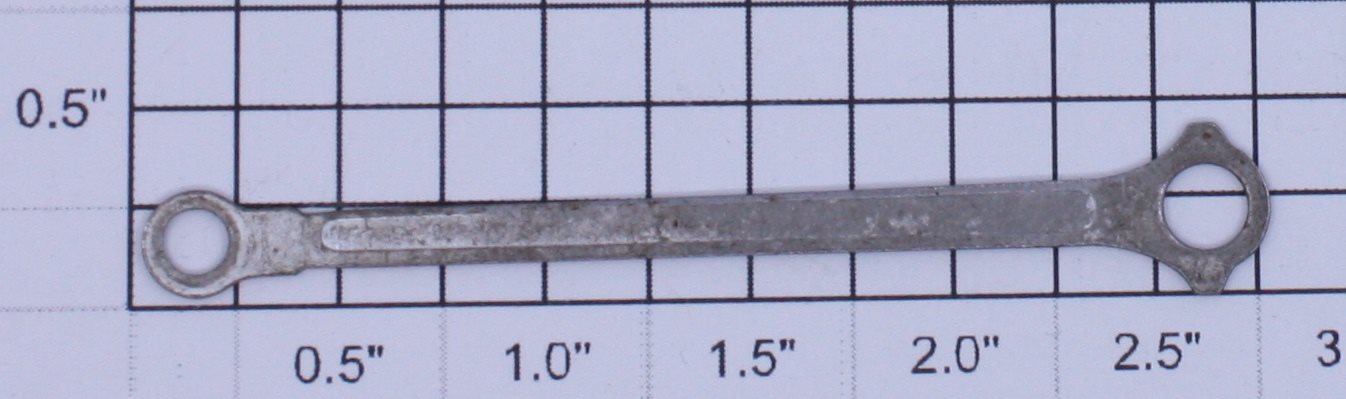

Lionel 2046-35 Main Rod (Used)	—	—

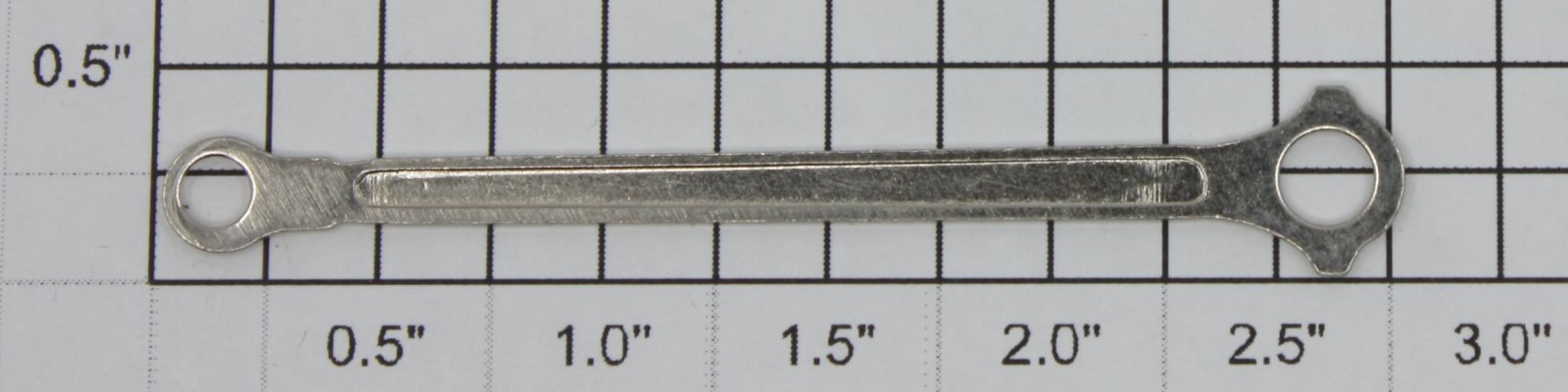

Lionel 2046-35 Main Rod (Reproduction)	—	—

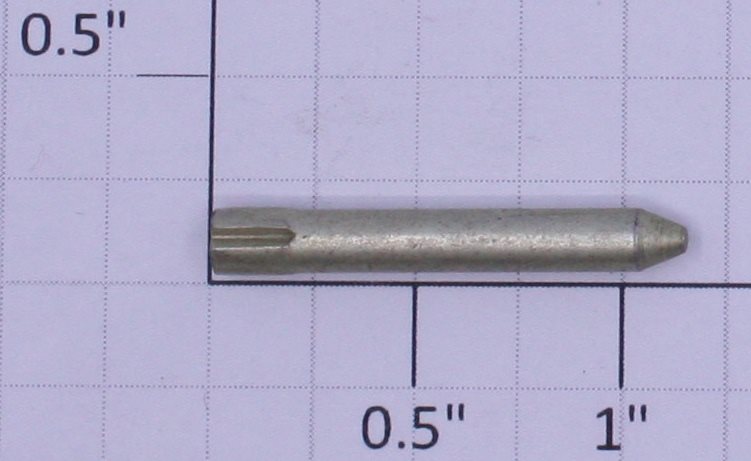

Lionel 2055-92 Rear Truck Bracket Headless Drive Stud (Original)	—	—

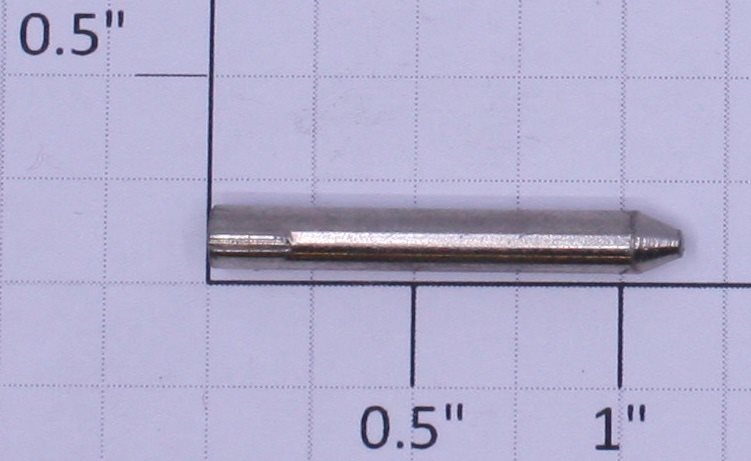

Lionel 2055-92 Headless Drive Stud (New)	—	—

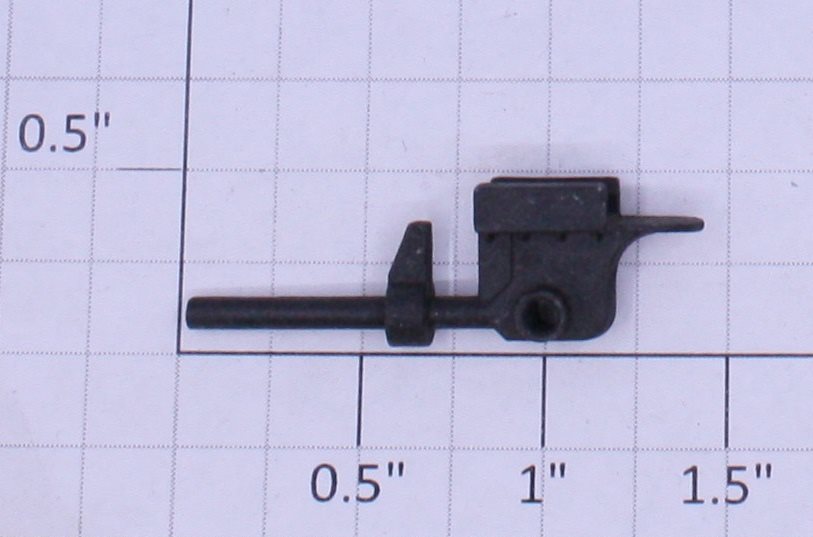

Lionel 8206-45 Crosshead with Piston Trip Finger (Reproduction)

—

Lionel 8040-172 4-40x5/16 Black RHST Phillips Binding Head "Z" Screws (4-40x5/16)

—

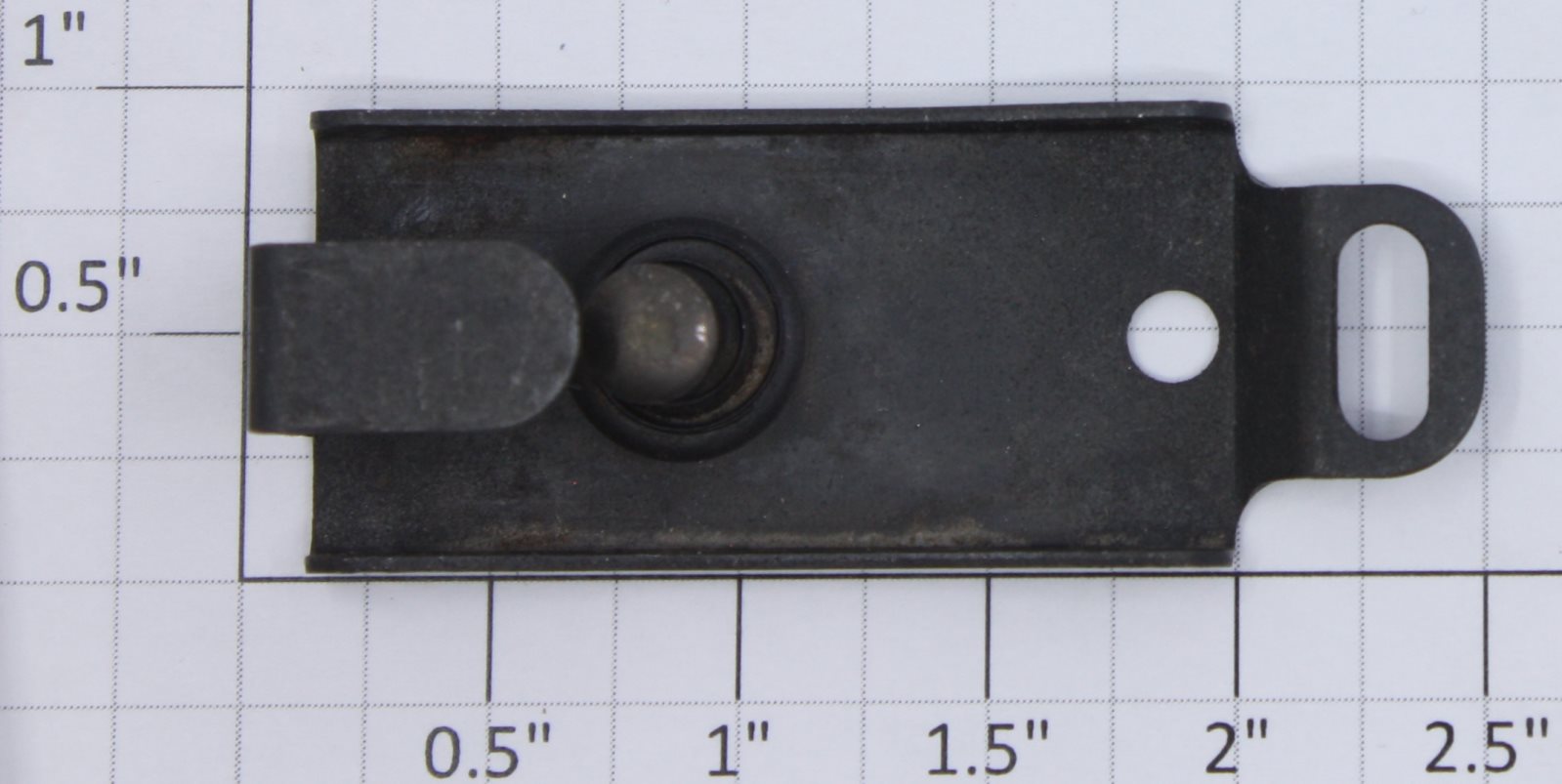

Lionel 2046-22 4-Wheel Front Truck Frame (Original)	—	—

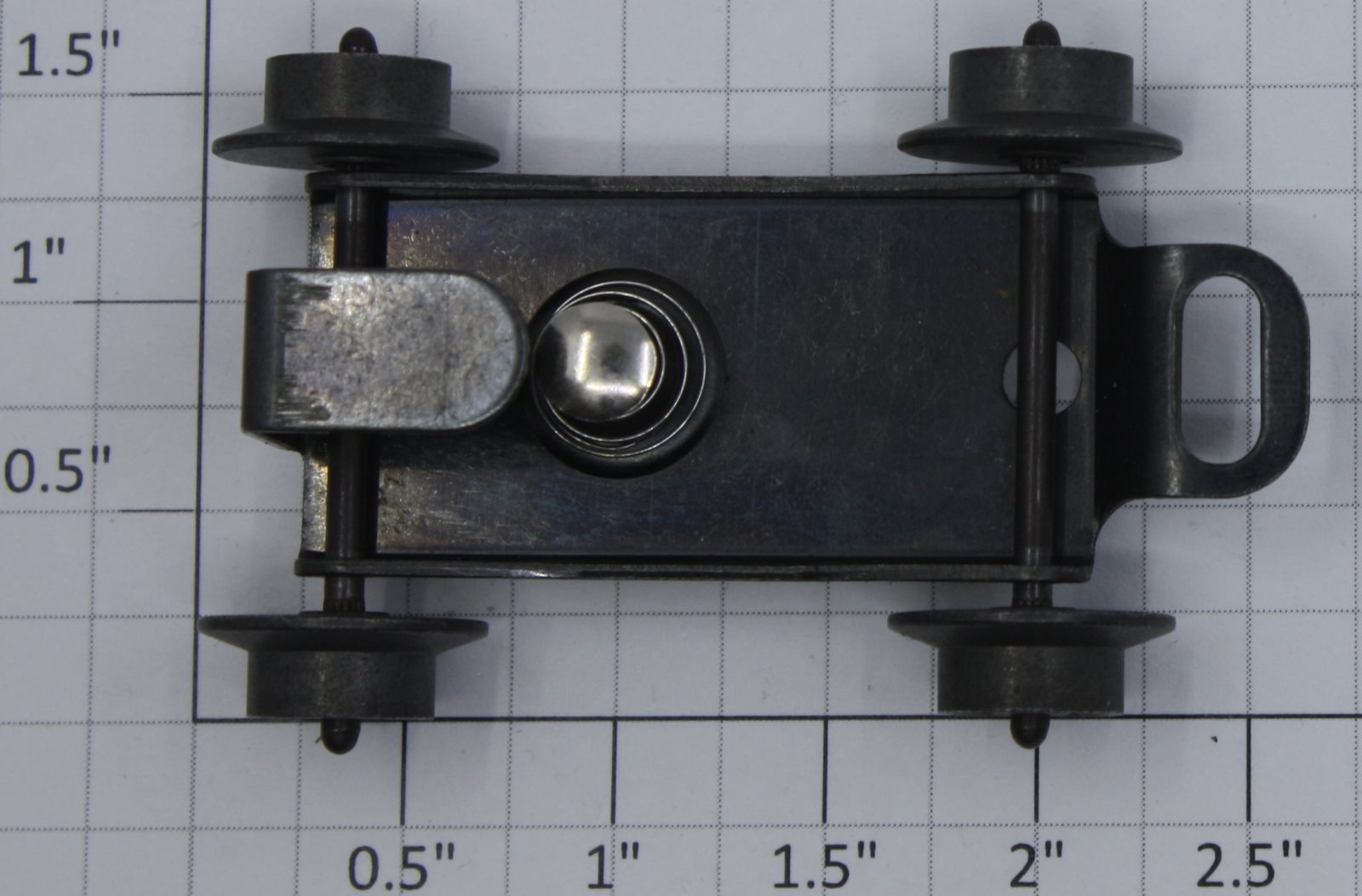

Lionel 2046-22 4-Wheel Front Truck Assembly (New-MPC)	—	—

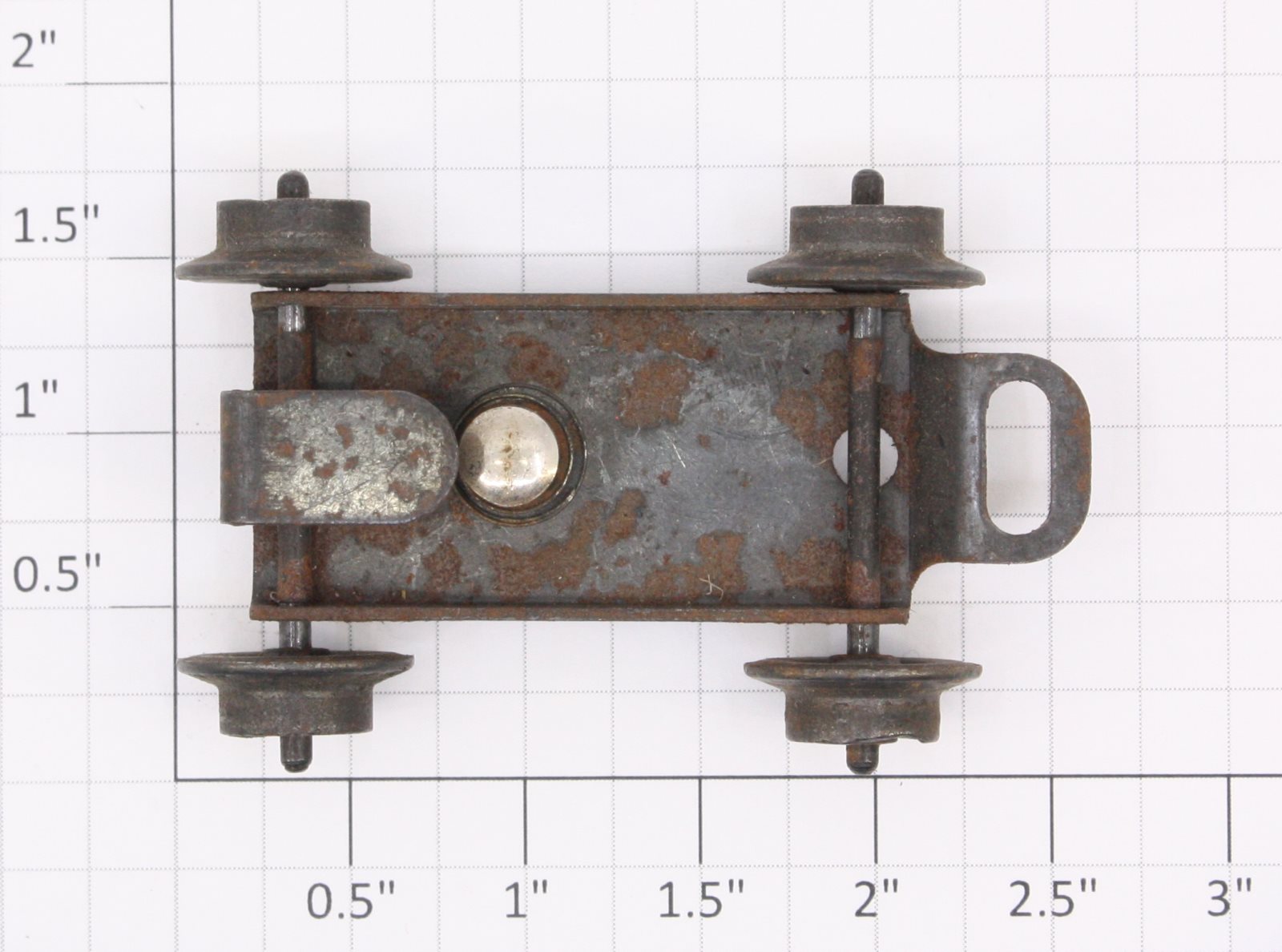

Lionel 2046-22 4-Wheel Front Truck Assembly (Original)	—	—

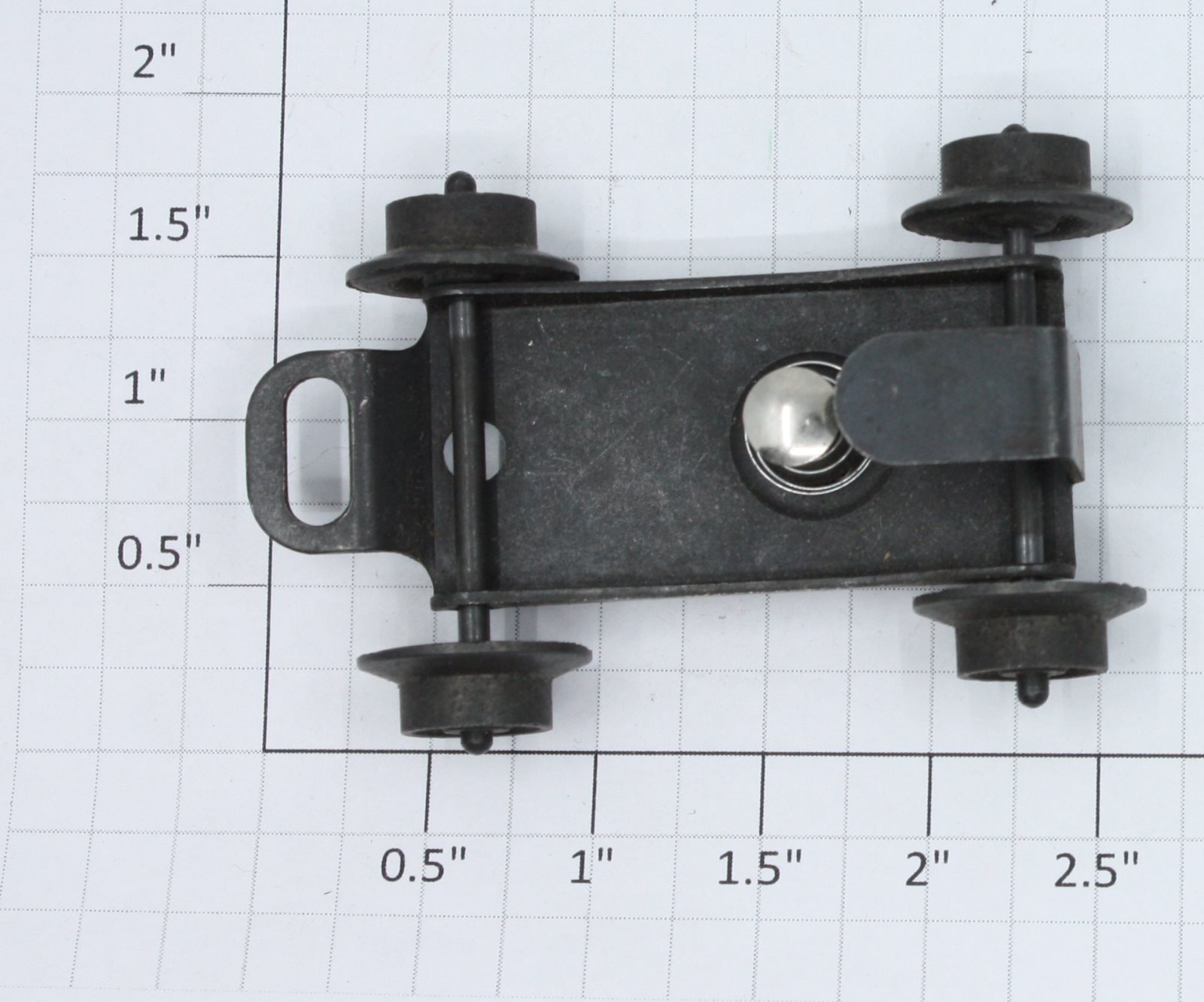

Lionel 2046-22 Front Truck Assembly-J Class (Reproduction)	—	—

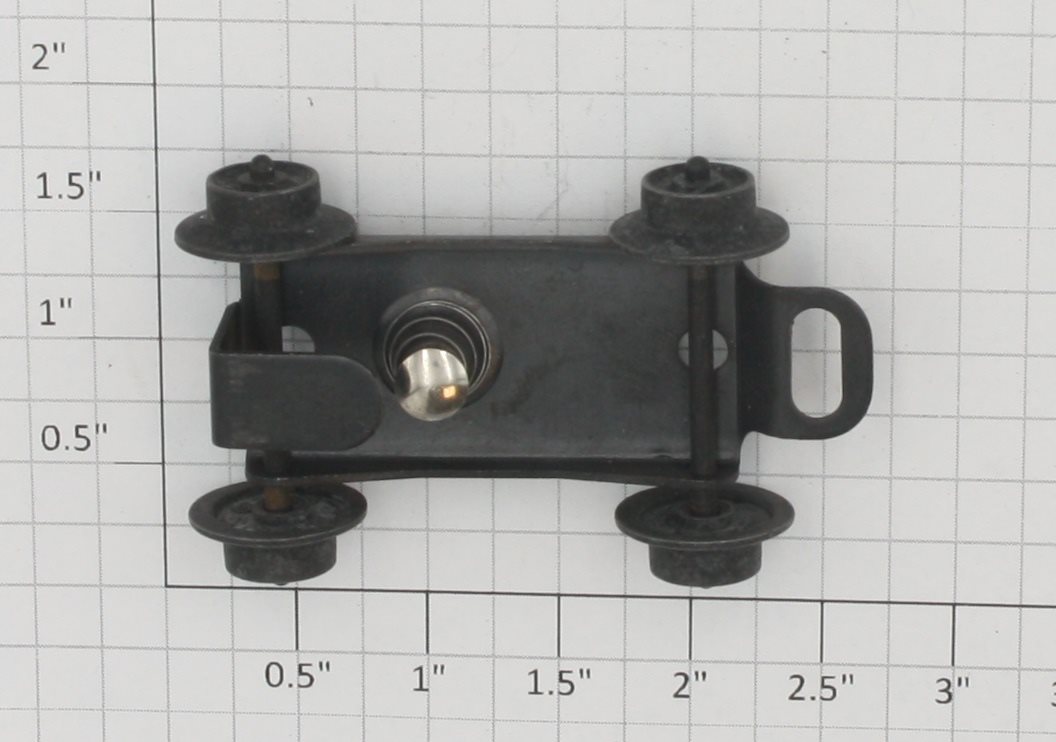

Lionel 2046-22 4-Wheel Front Truck Assembly - J Class (Used-MPC)	—	—

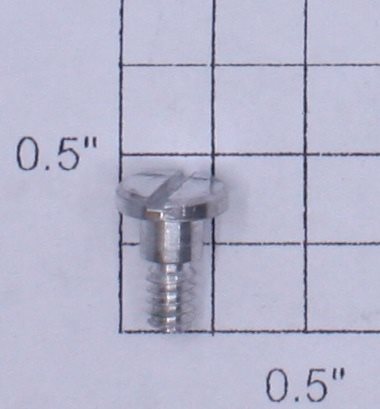

Lionel 2046-28 #6-32 Pilot Truck Shoulder Screw (Reproduction)

—

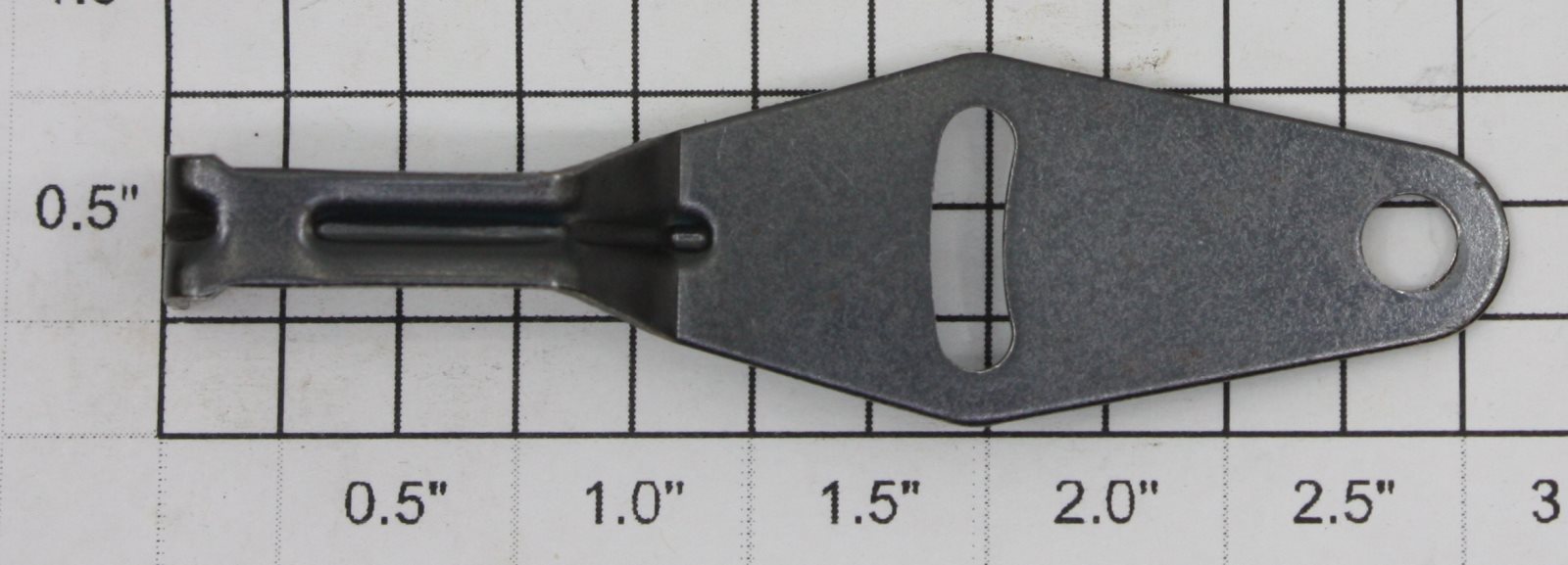

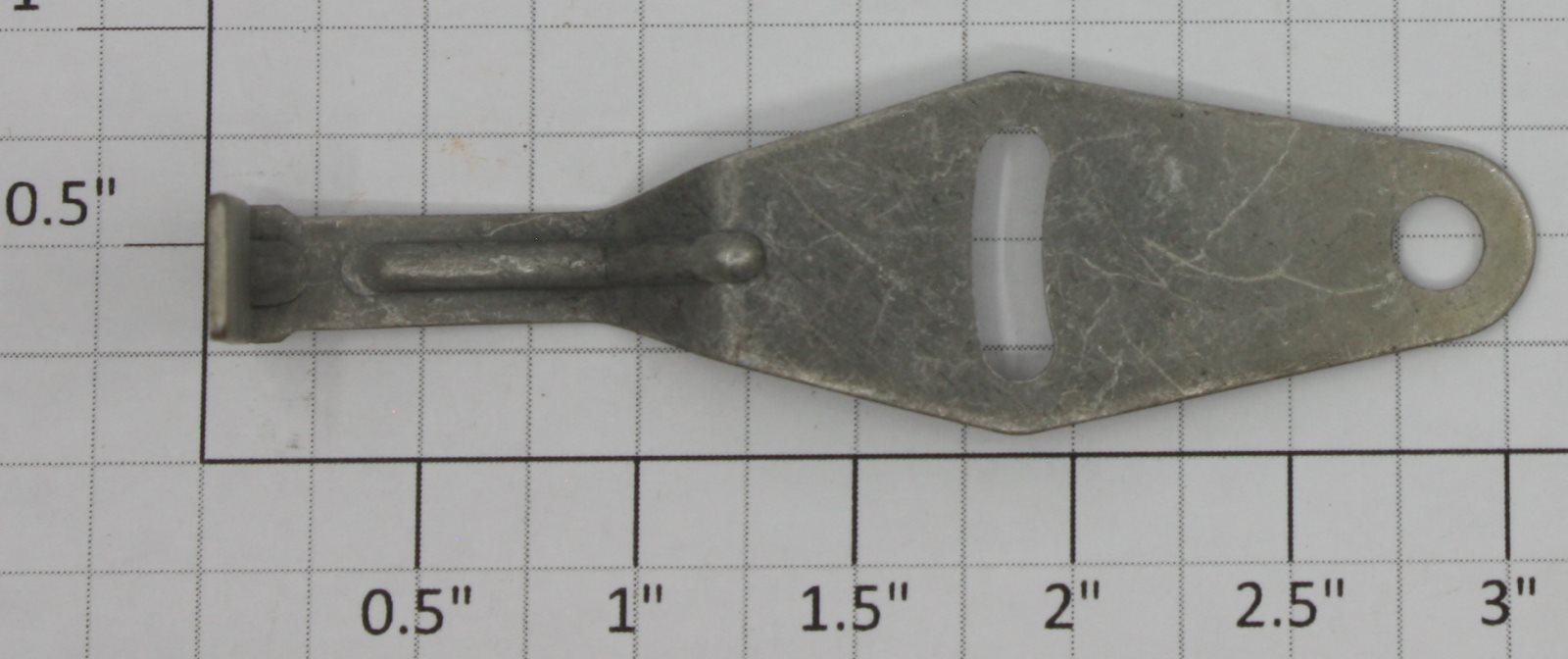

Lionel 2055-61 Drawbar (Original)	—	—
Lionel 2055-61 Drawbar (Reproduction)	—	—

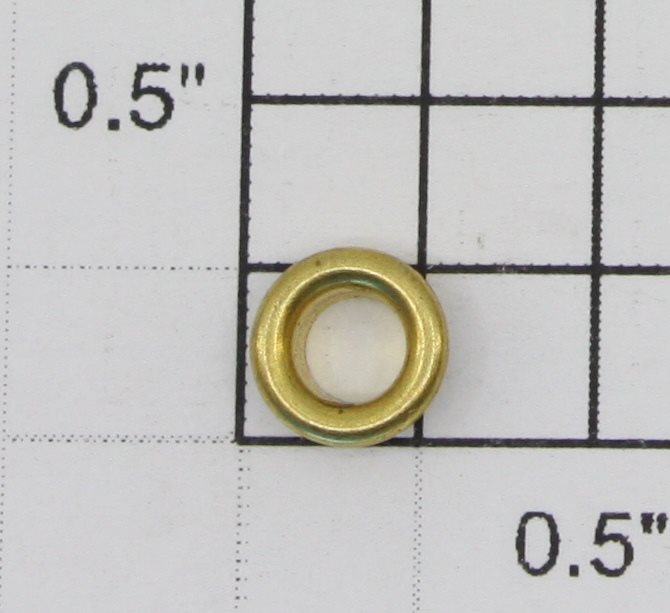

Lionel 2055-47 Rear Truck Eyelet (Original)

—

Lionel 2055-46 Rear Truck Spring (Reproduction)

—

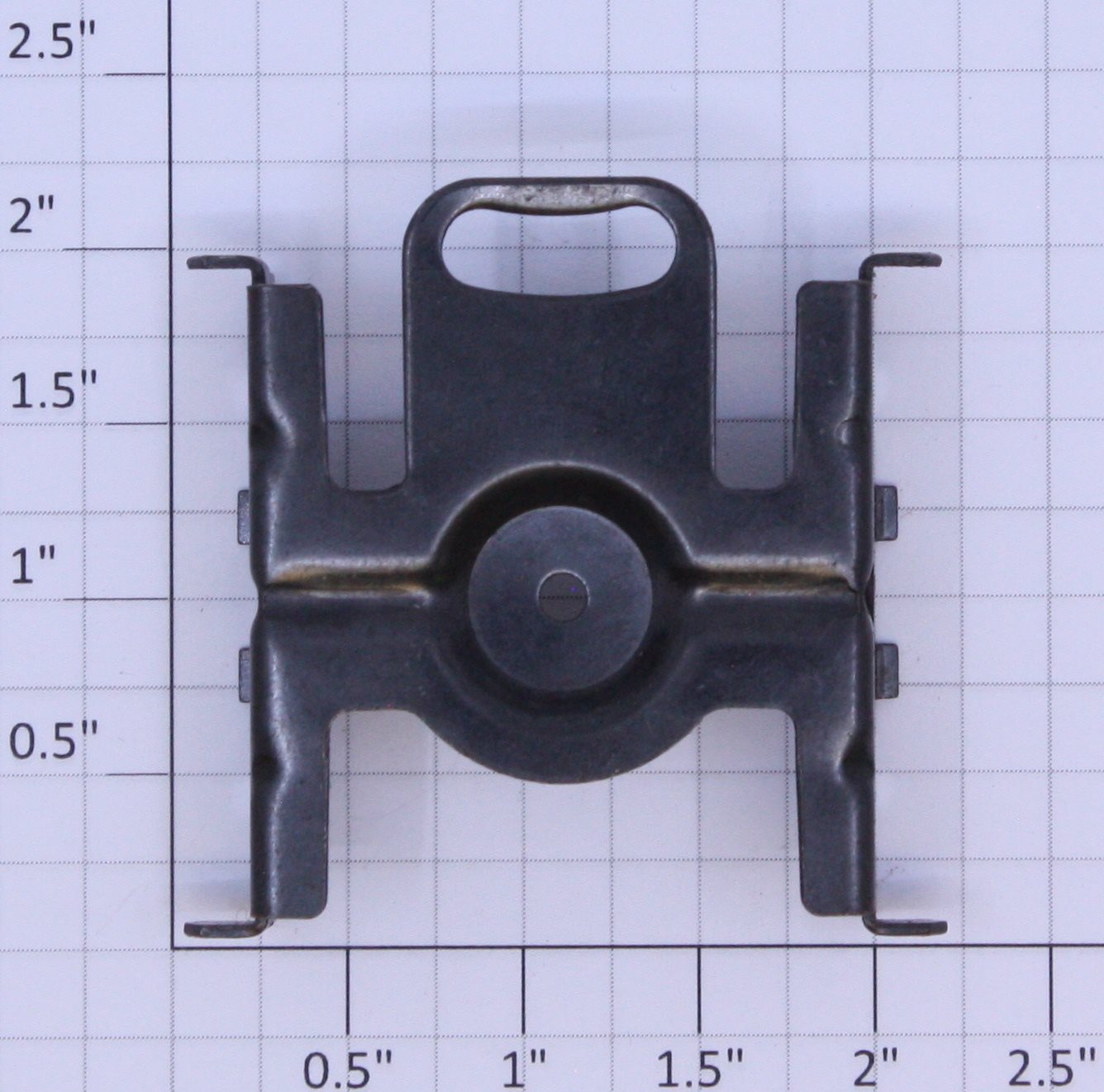

Lionel 2055-44 Rear Truck Frame

—

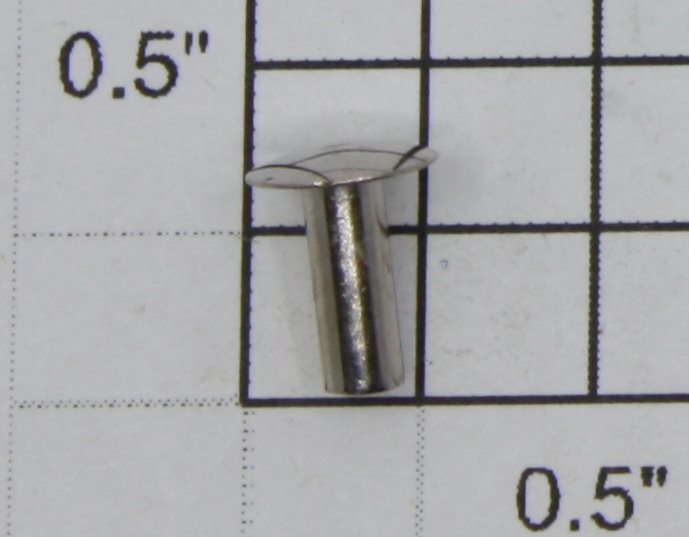

Lionel 2046-120 5/16" x 1/8" Front Truck Large Head Rivet (Reproduction)

—

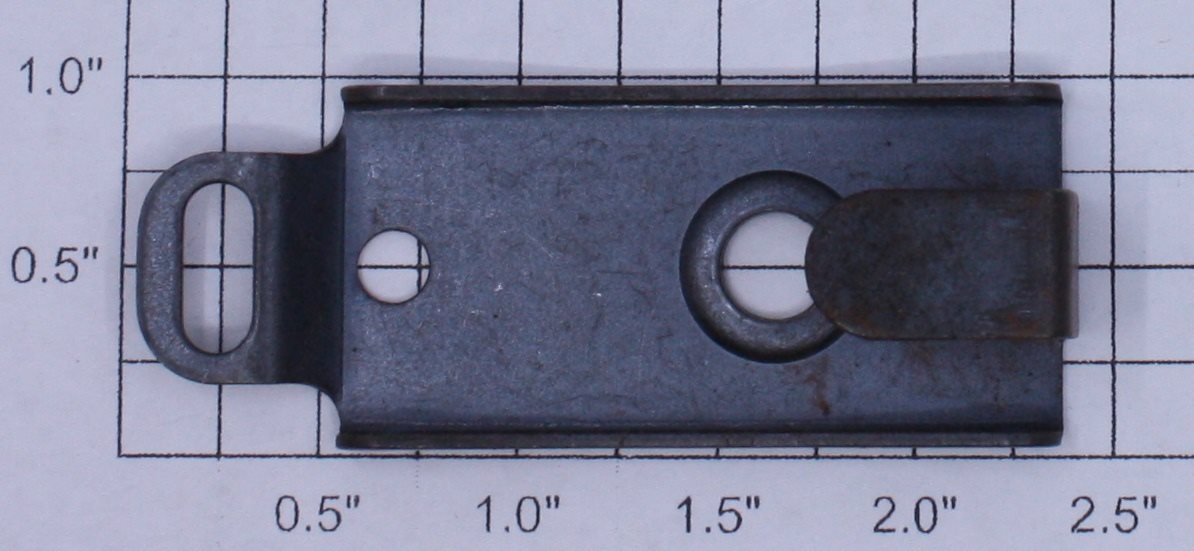

Lionel 2046-24 Front Truck Frame (Original)

—

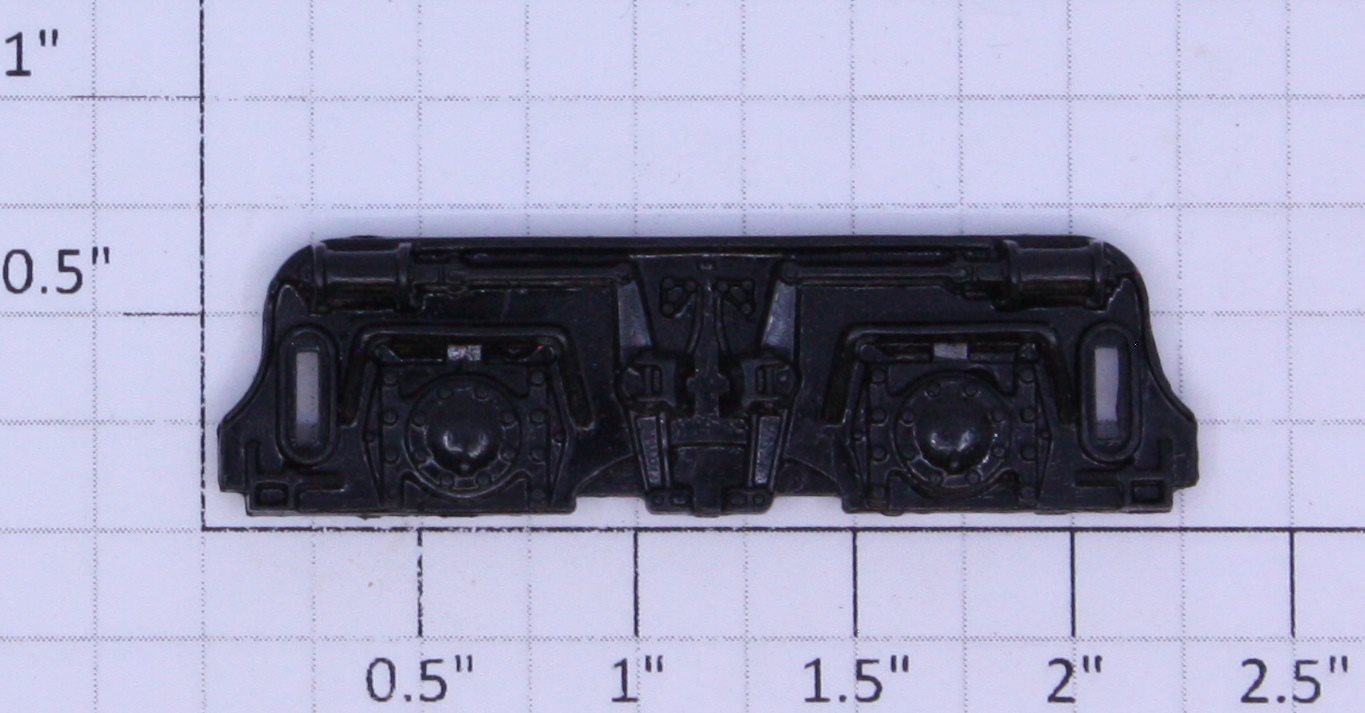

Lionel 2055-43 Plastic Rear Truck Side (Reproduction)

—

Lionel 2055-61 Drawbar (Original)	—	—
Lionel 2055-61 Drawbar (Reproduction)	—	—

Lionel 2055-61 Drawbar (Original)	—	—
Lionel 2055-61 Drawbar (Reproduction)	—	—

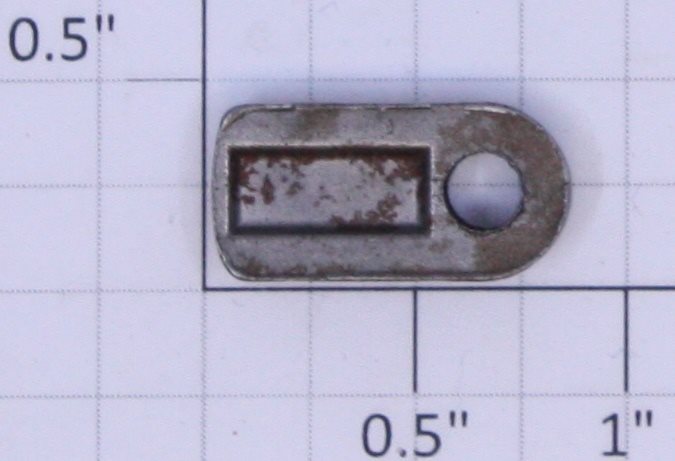

Lionel 2055-109 Motor Pole Piece for Plain Side (Original)

—

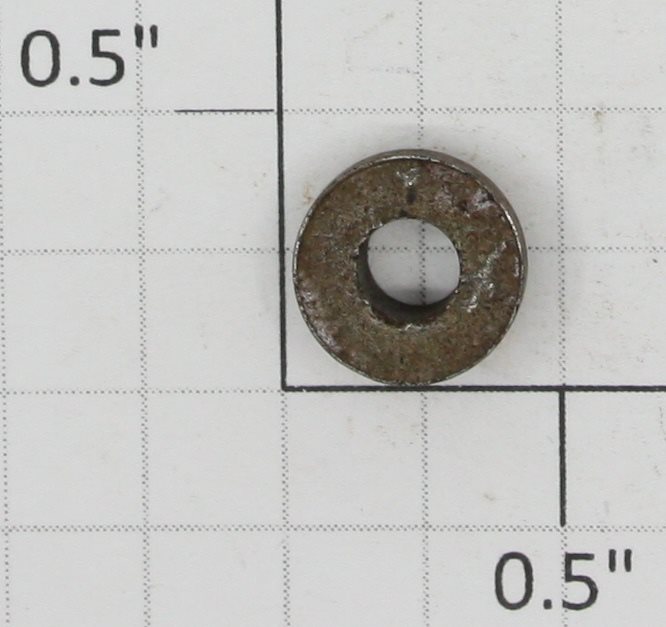

Lionel 2035-162 Right Hand Axle Bearing (Reproduction )

—

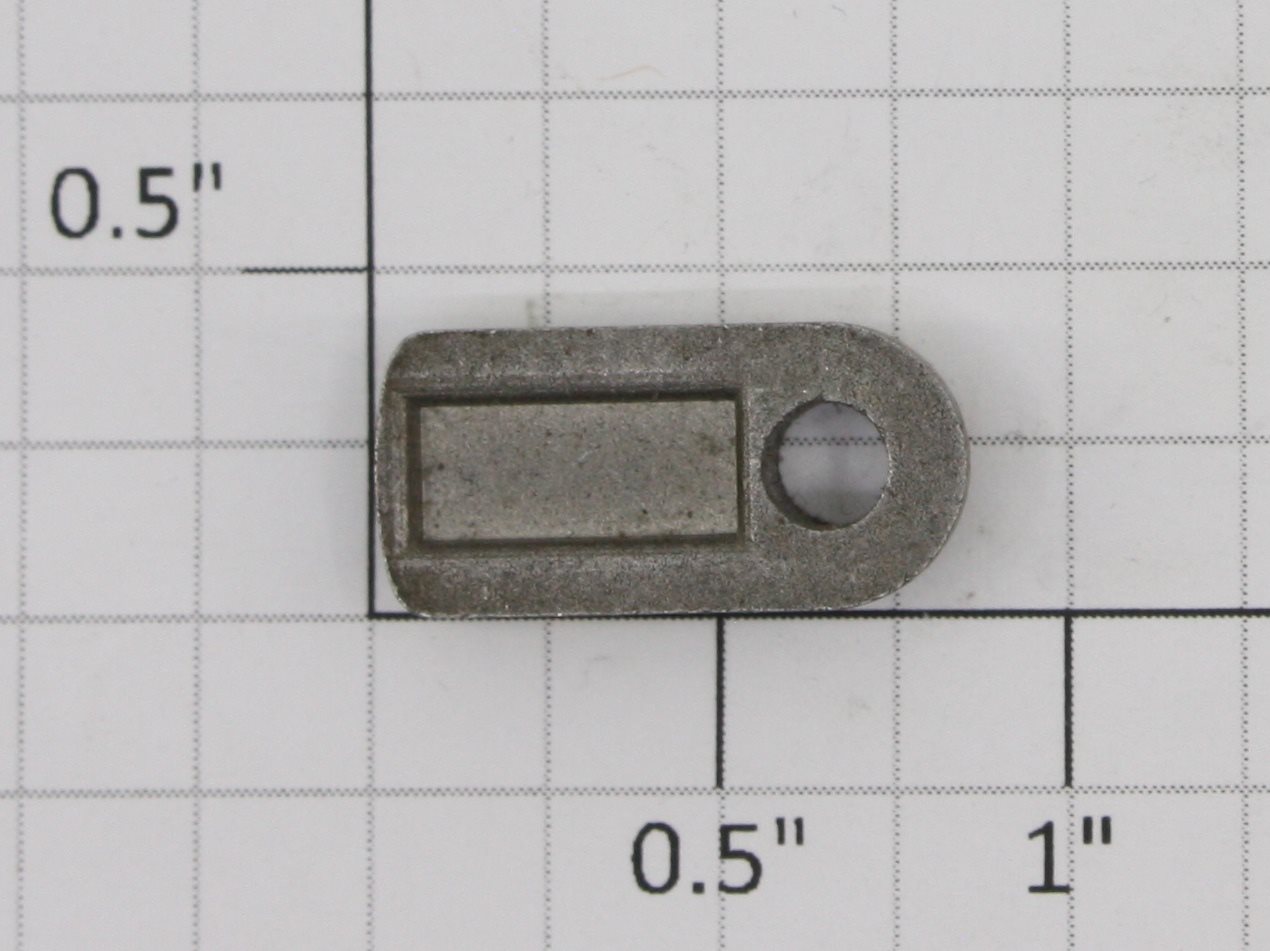

Lionel 2055-110 Motor Pole Piece for Gear Side (Original)

—

Lionel 8142-63 #4 External Tooth Lock Washer (New)

—

Lionel 82-43 Solder Lug (Reproduction)

—

Lionel 2036-164 #6-32 x 1/4" Black Phillips Round Head Machine Screw (Reproduction)	—	—

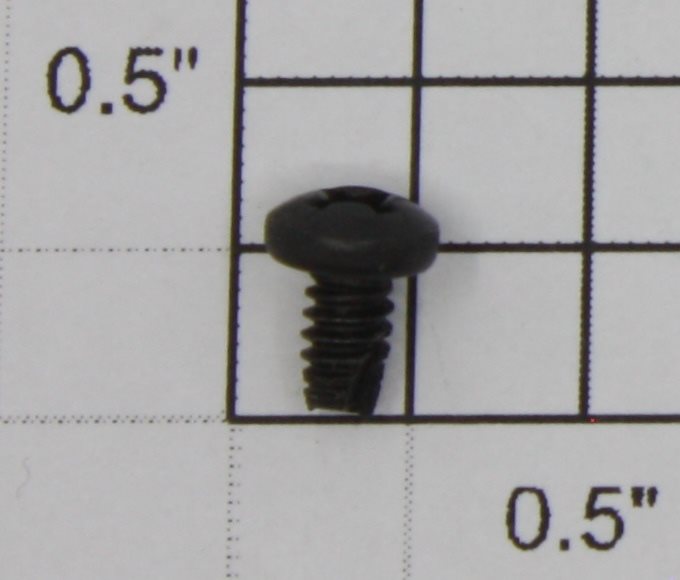

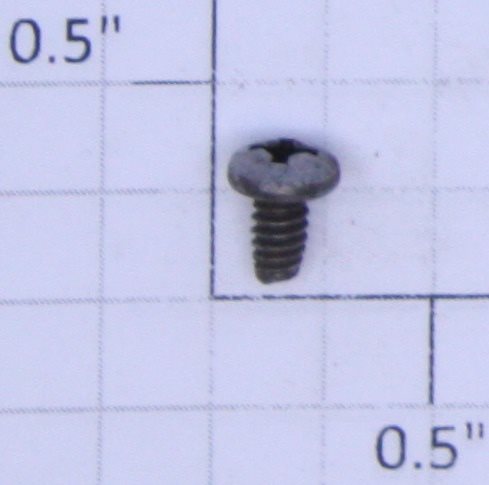

Lionel 2036-164 #6-32 x 1/4" Black Pan Head Self Tapping Machine Screw (Reproduction)	—	—
Lionel 2036-164 #6-32 x 1/4" Black Pan Head Self Tapping Machine Screw (Original)	—	—

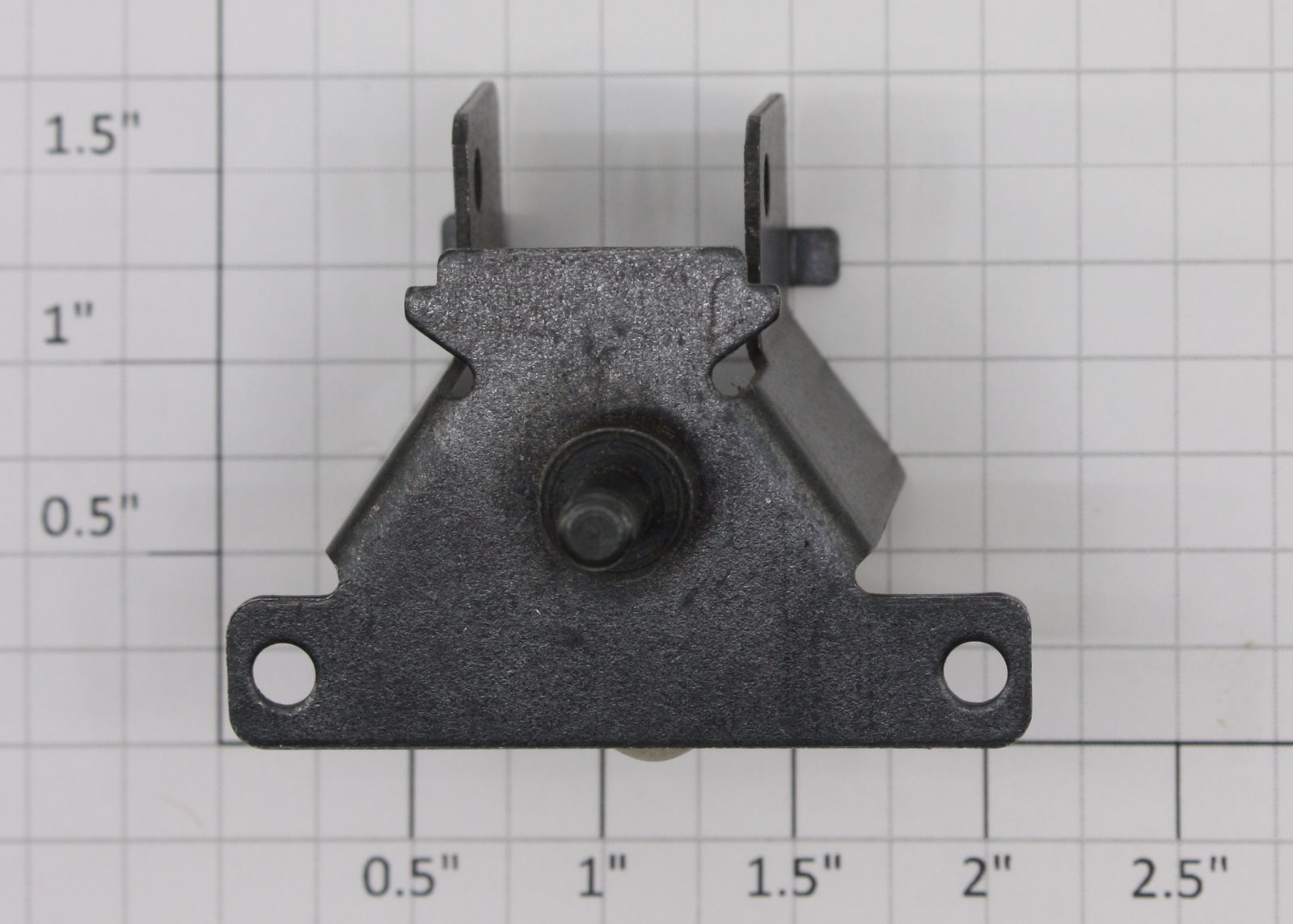

Lionel 2055-55 Rear Truck & Motor Mount Bracket Assembly (Original)

—

Lionel 2036-164 #6-32 x 1/4" Black Phillips Round Head Machine Screw (Reproduction)	—	—
Lionel 2036-164 #6-32 x 1/4" Black Pan Head Self Tapping Machine Screw (Reproduction)	—	—
Lionel 2036-164 #6-32 x 1/4" Black Pan Head Self Tapping Machine Screw (Original)	—	—

Lionel 2055-92 Rear Truck Bracket Headless Drive Stud (Original)	—	—
Lionel 2055-92 Headless Drive Stud (New)	—	—

Lionel 2036-164 #6-32 x 1/4" Black Phillips Round Head Machine Screw (Reproduction)	—	—
Lionel 2036-164 #6-32 x 1/4" Black Pan Head Self Tapping Machine Screw (Reproduction)	—	—
Lionel 2036-164 #6-32 x 1/4" Black Pan Head Self Tapping Machine Screw (Original)	—	—

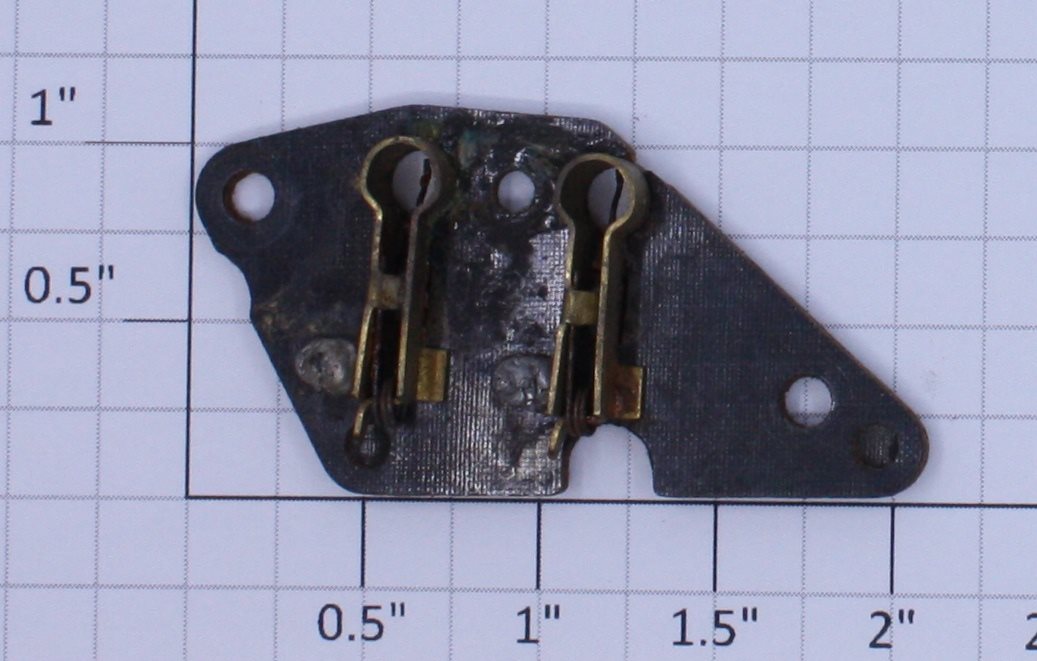

Lionel 226E-62 O Gauge Brush Plate Assembly (2035-132) (Original)

—

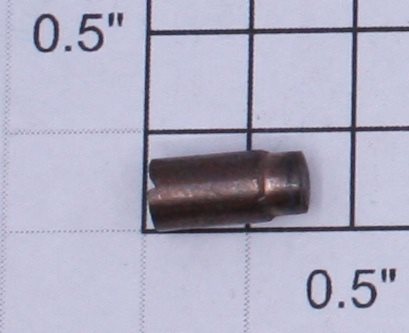

Lionel 8040-150 Motor Brush (New)	—	—
Lionel 8040-150 Motor Brush (New)	—	—

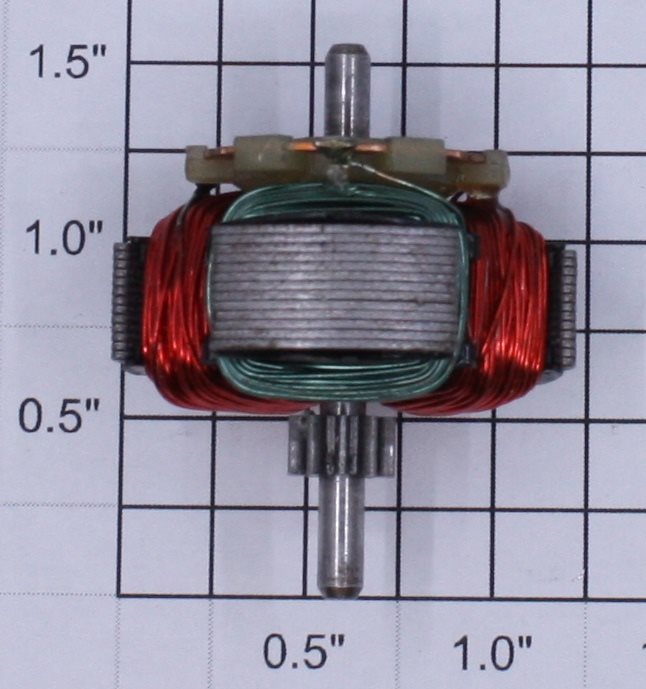

Lionel 8600-69 Modern Motor Armature (New)

—

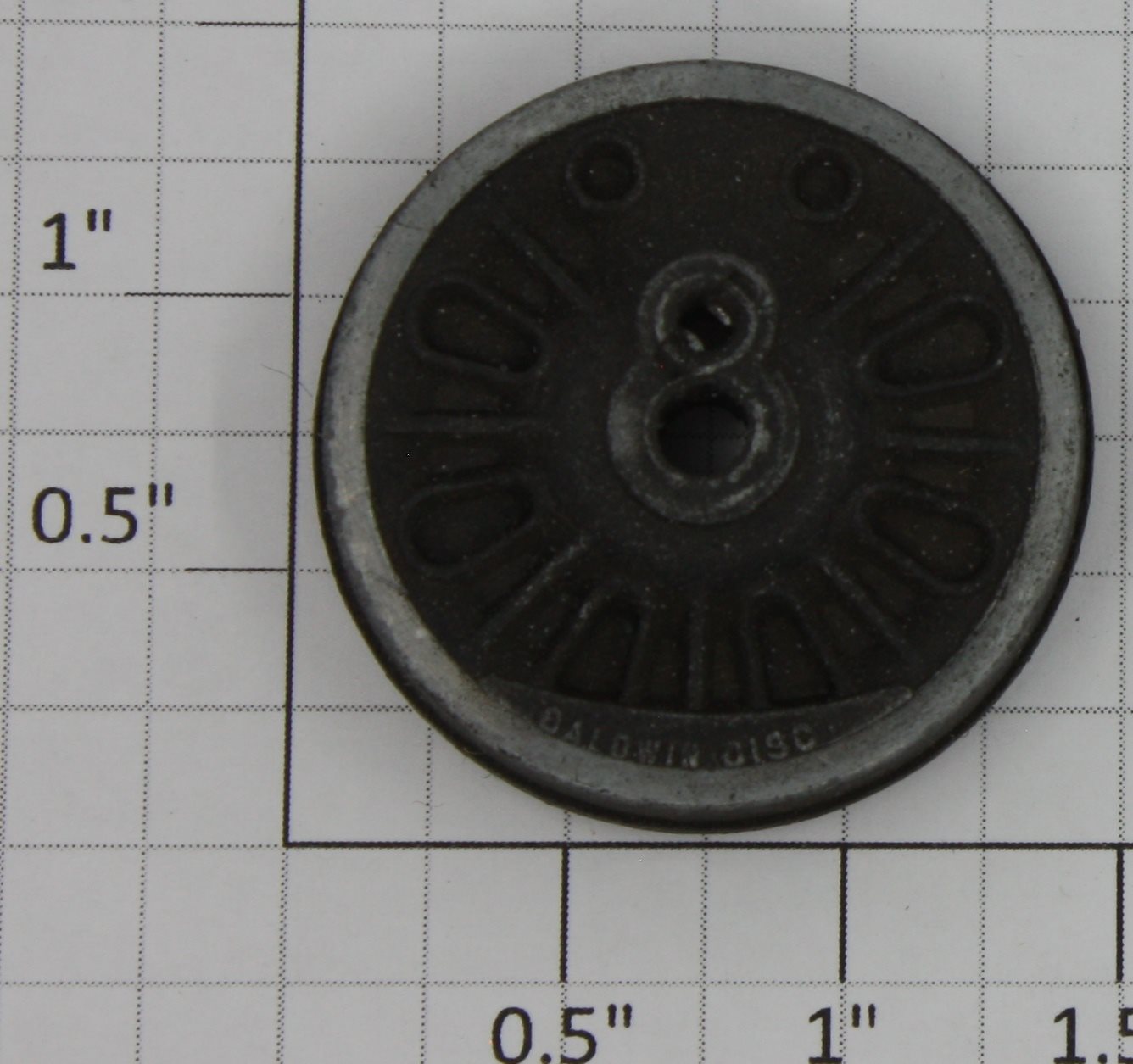

Lionel 8603-22 Geared Center Wheel (New-Geared)	—	—
Lionel 226E-202 Baldwin Disc Gear Center Wheel Assembly	—	—

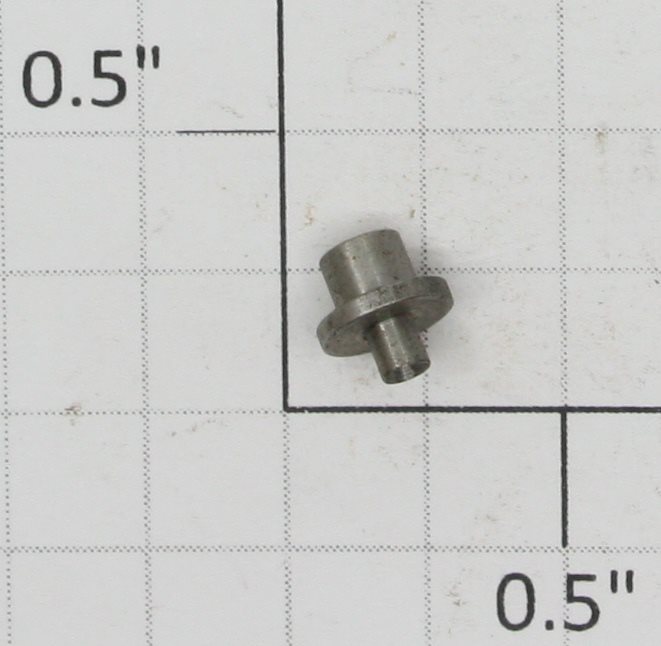

Lionel 2035-135 Shoulder Gear Stud (New )

—

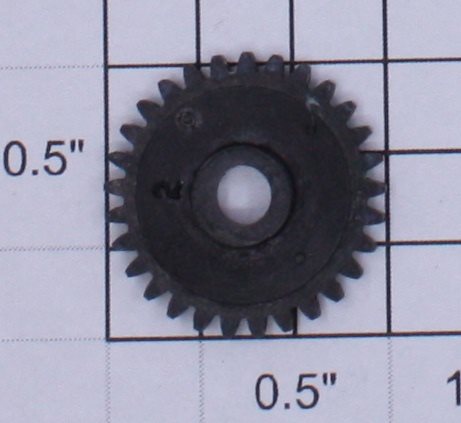

Lionel 8600-143 2nd Intermediate Gear (Reproduction)

—

Lionel 2036-157 Brush Spring (Reproduction)

—

Lionel 2036-164 #6-32 x 1/4" Black Phillips Round Head Machine Screw (Reproduction)	—	—
Lionel 2036-164 #6-32 x 1/4" Black Pan Head Self Tapping Machine Screw (Reproduction)	—	—
Lionel 2036-164 #6-32 x 1/4" Black Pan Head Self Tapping Machine Screw (Original)	—	—

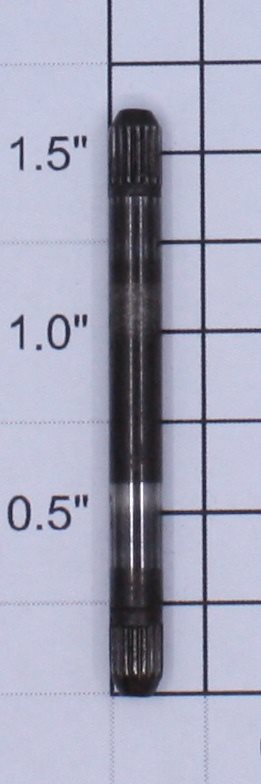

Lionel 2025-111 Knurled Axle (Original)

—

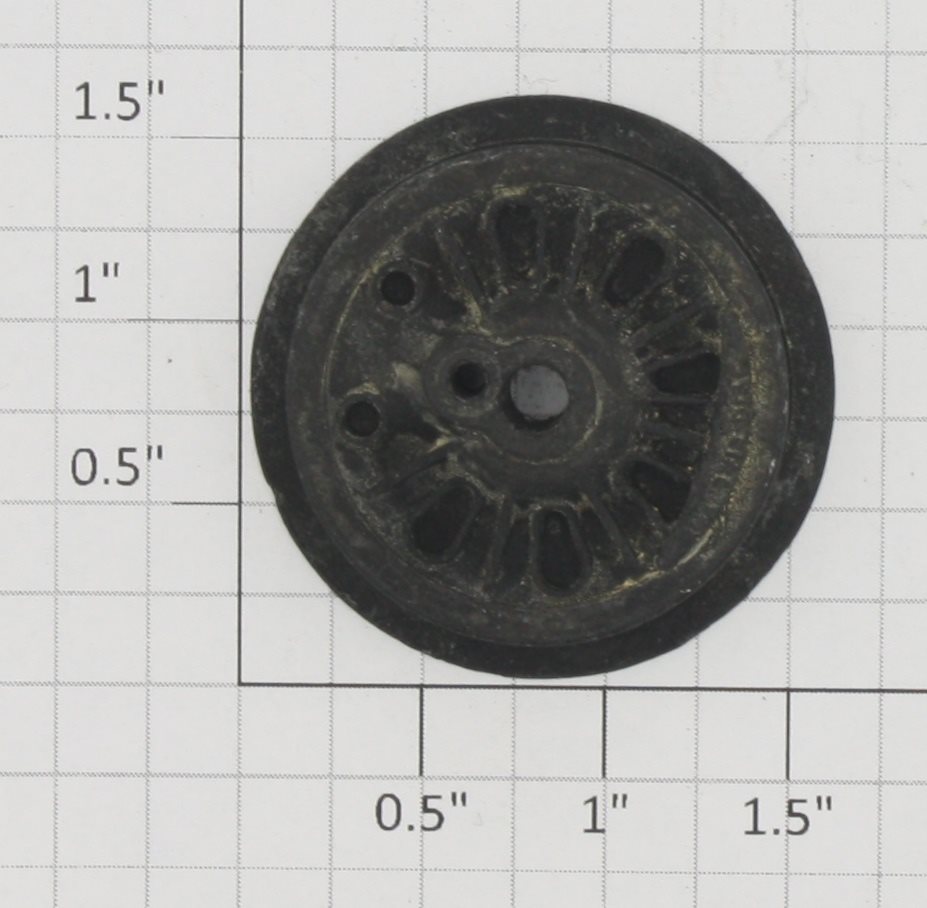

Lionel 8206-59 Baldwin Grooved End Drive Wheel (Used)

—

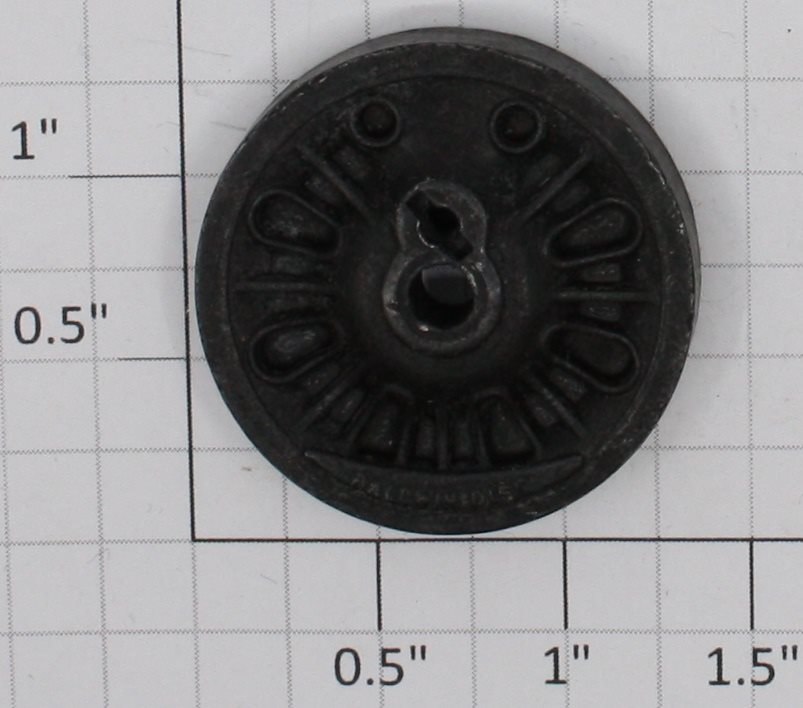

Lionel 226E-11 Blind Center Baldwin Disc Wheel (Original)

—

Lionel 2055-92 Rear Truck Bracket Headless Drive Stud (Original)	—	—
Lionel 2055-92 Headless Drive Stud (New)	—	—

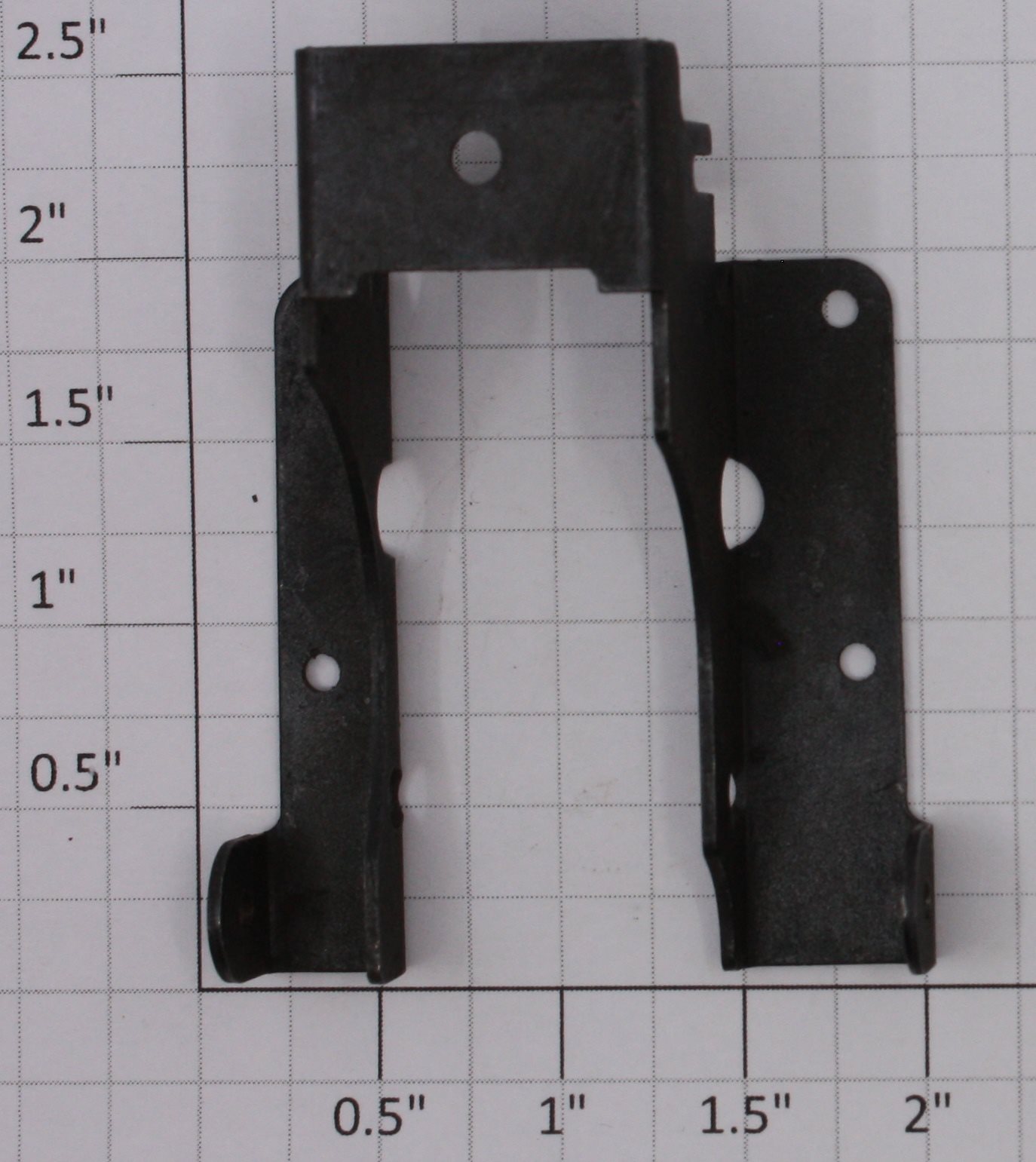

Lionel 2055-21 Crosshead Bracket (New)	—	—

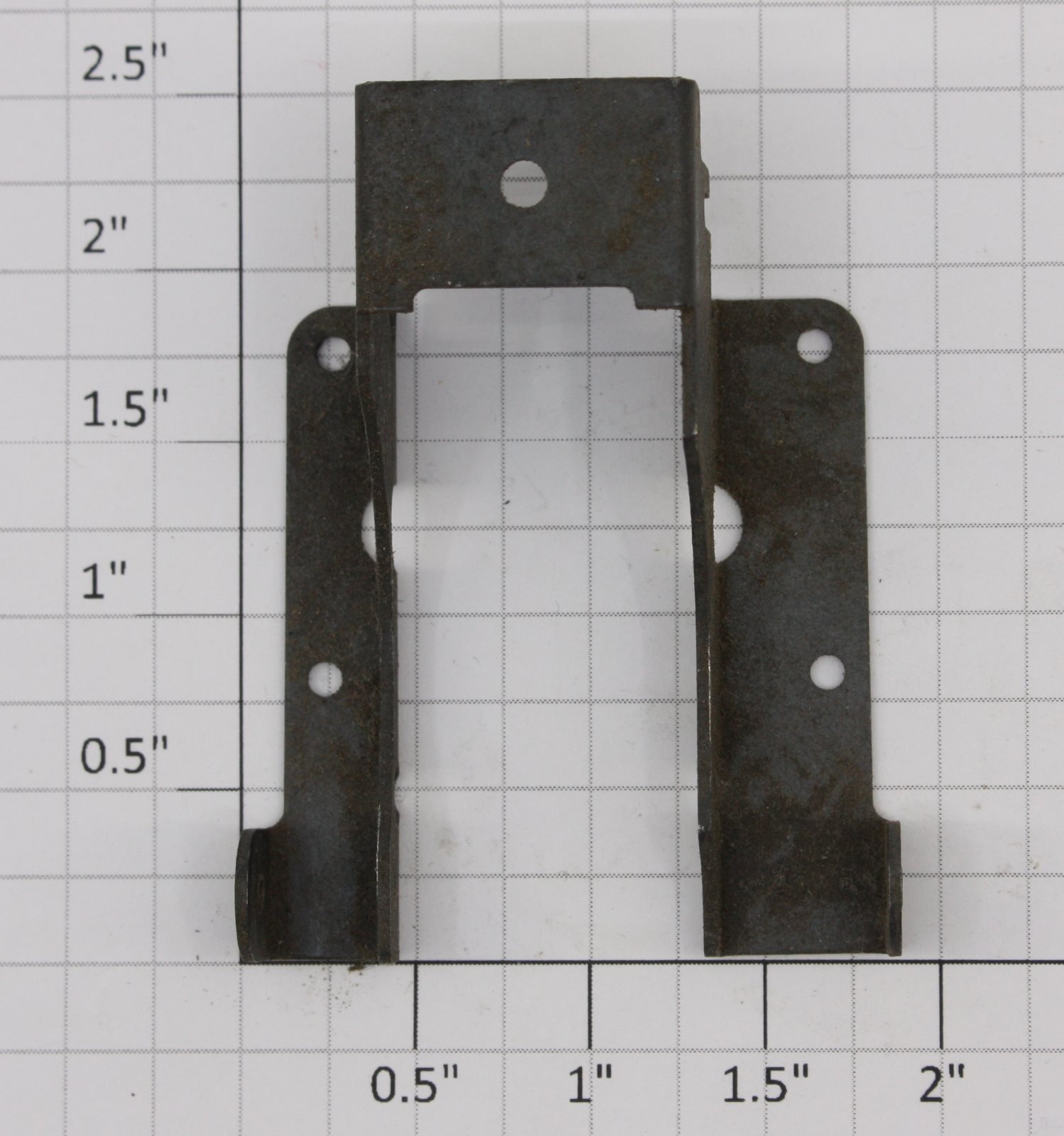

Lionel 2055-21 Crosshead Bracket (Original)	—	—

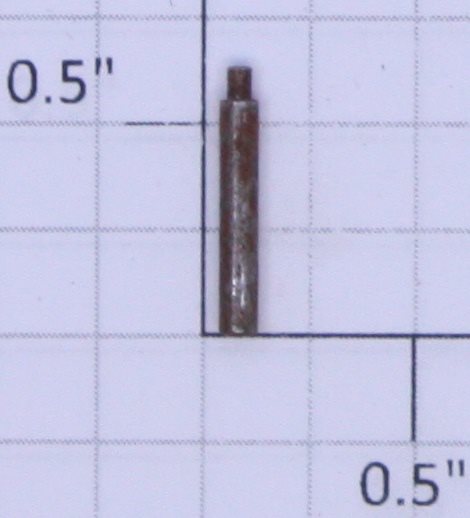

Lionel 2023-44 Nickel Collector Roller Pin 3/32" x 9/16" (Original-Rusty)	—	—
Lionel 2023-44 Collector Roller Pin 3/32" x 9/16" (Repro/Nickel)	—	—
Lionel 2035-140 11/32"x 7/16" Locomotive Pickup Collector Roller (Reproduction )	—	—

Lionel 226E-49 Collector Spring (Reproduction)	—	—

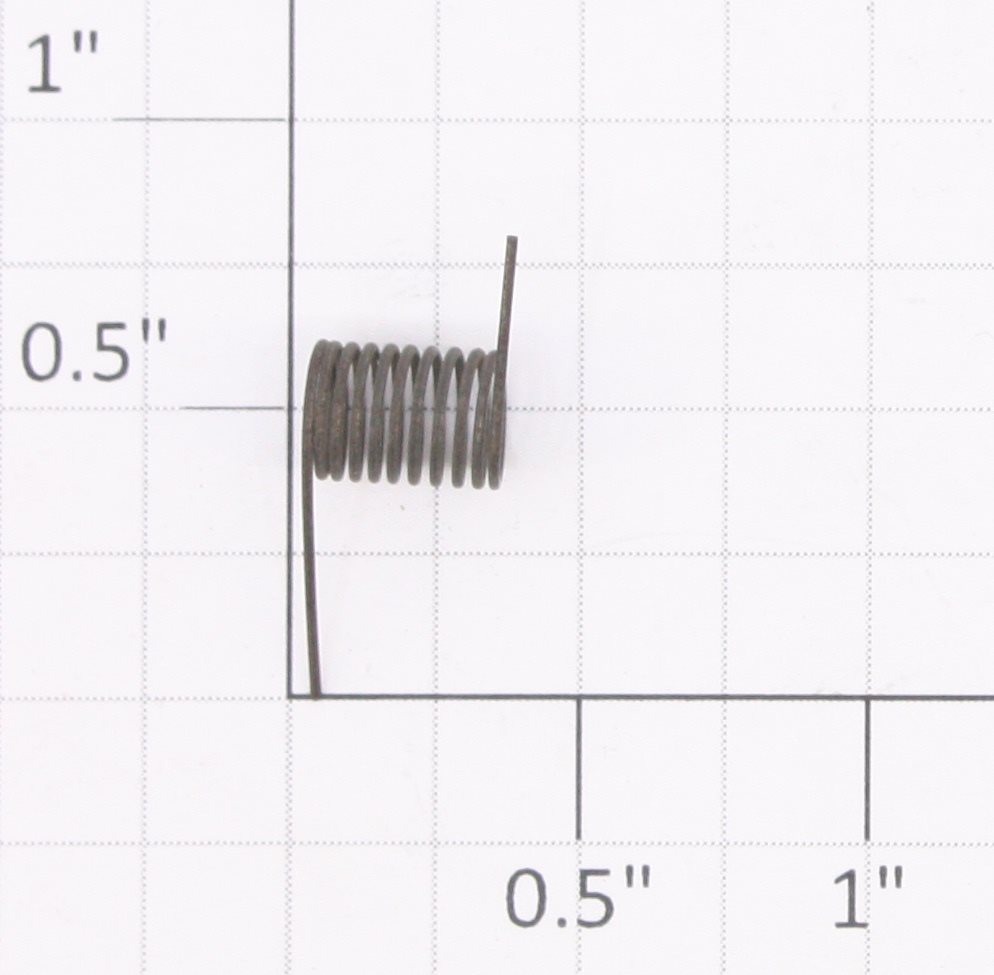

Lionel 226E-49 Collector Spring (Original)	—	—

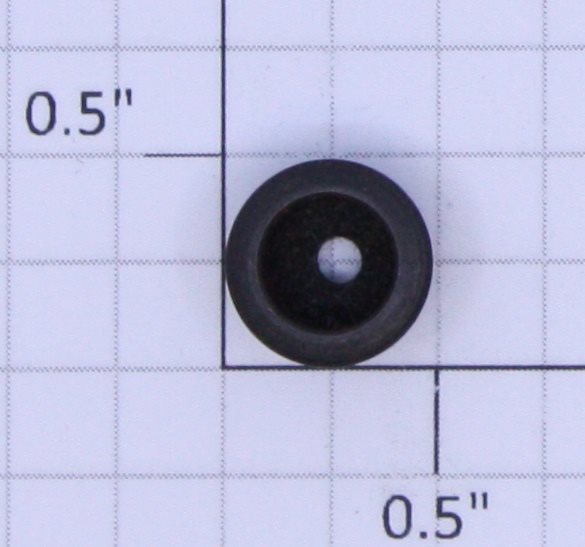

Lionel 226E-29 Loco Smoke Stack (Reproduction)

—

Lionel 671M-23 3/16"x3/8"x1/128" Thin Steel Thrust Washer (Reproduction)	—	—

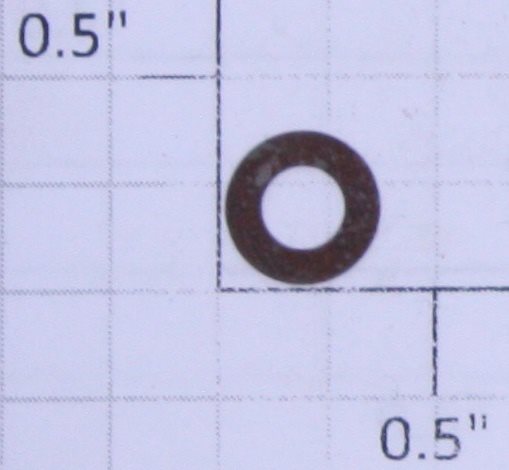

Lionel 671M-23 Thin Armature Thrust Washer (Original)	—	—
Lionel 2020M-37 SHIM WASHER Alt Part No 671M-23	—	—

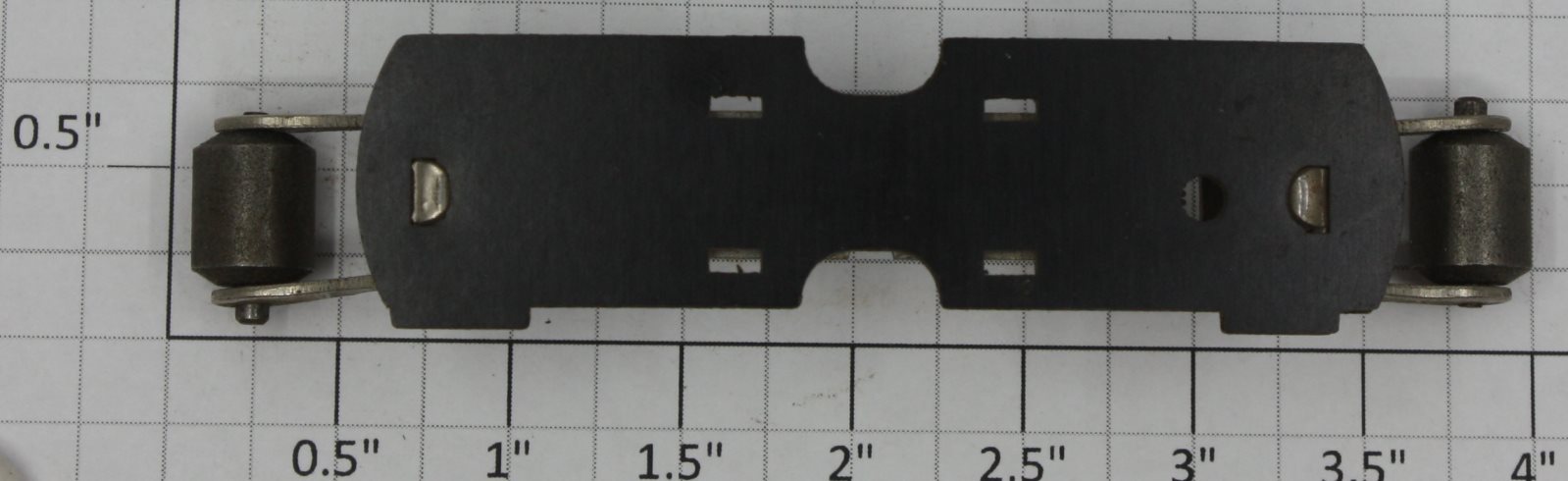

Lionel 2046-133 Collector Assembly (Original-NOS)	—	—

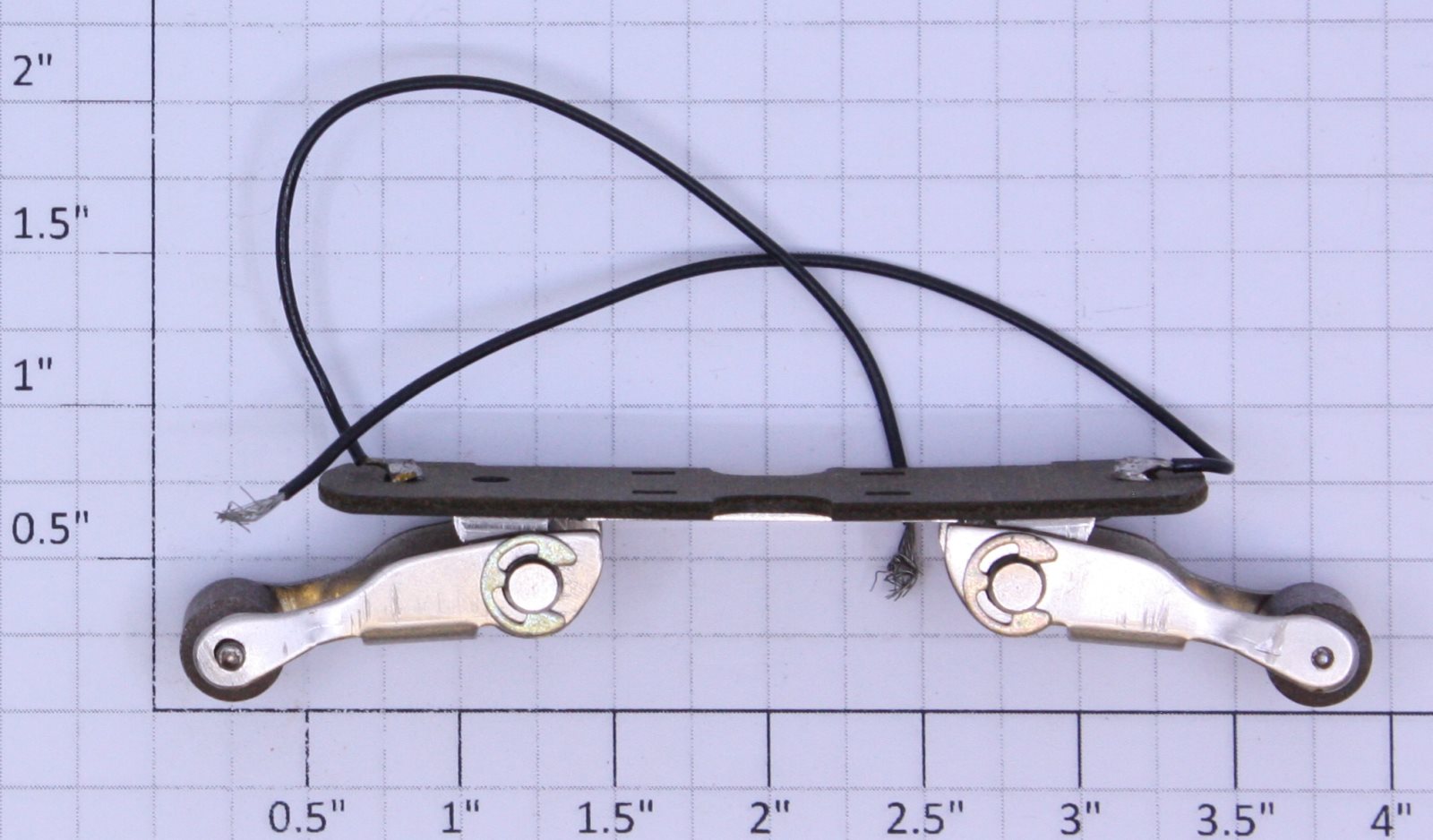

Lionel 2046-133 Collector Assembly (Reproduction)	—	—

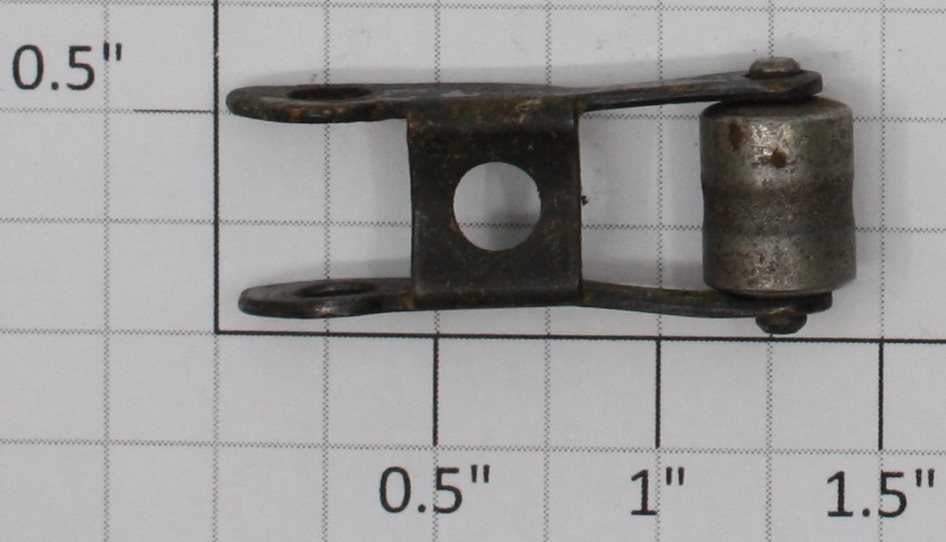

Lionel 2035-142 O Gauge Black Collector Arm and Carbon Roller (Original)	—	—

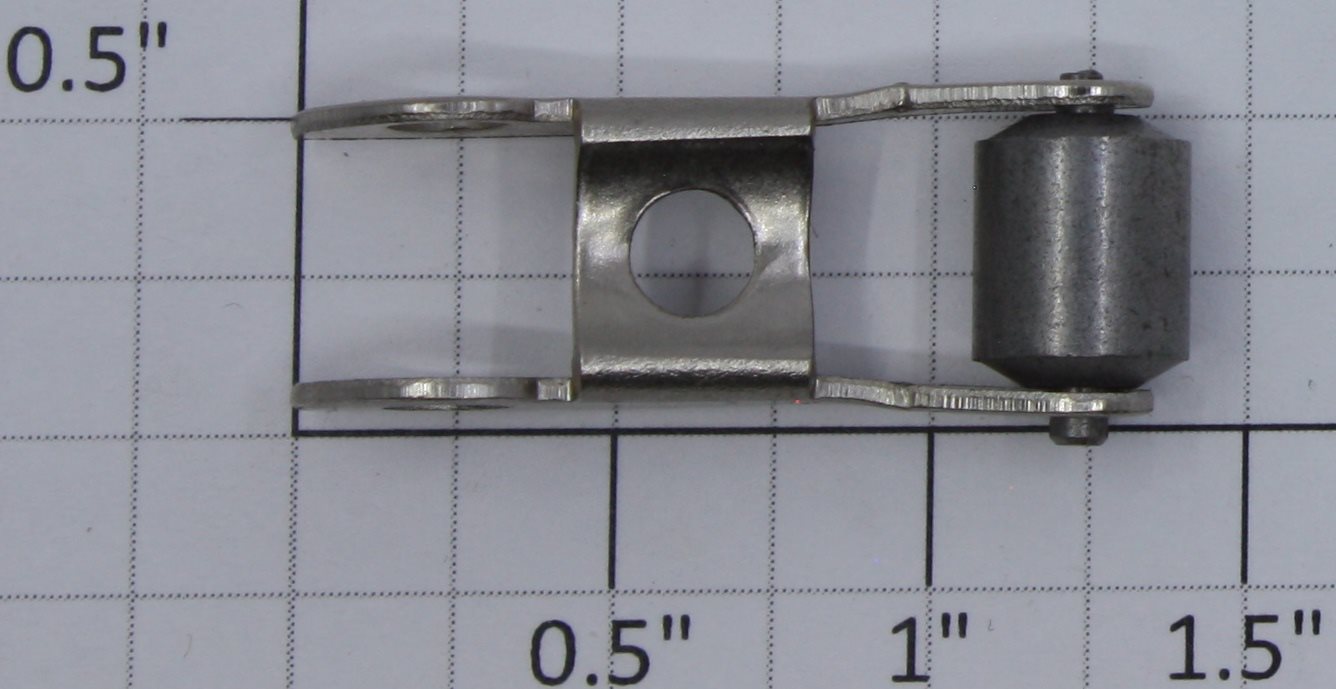

Lionel 2035-142 O Gauge Nickel Collector Arm and Carbon Roller (Reproduction )	—	—
