Lionel 691ACRGES1 Secuirty Cabose AC Regulator PCB Circuit Board

Lionel 691ACRGES1 Secuirty Cabose AC Regulator PCB Circuit Board

Skip to product information
1 of 1
Regular price $45.00
Sale price
$45.00
In stock : Ships within 1 Business Day!

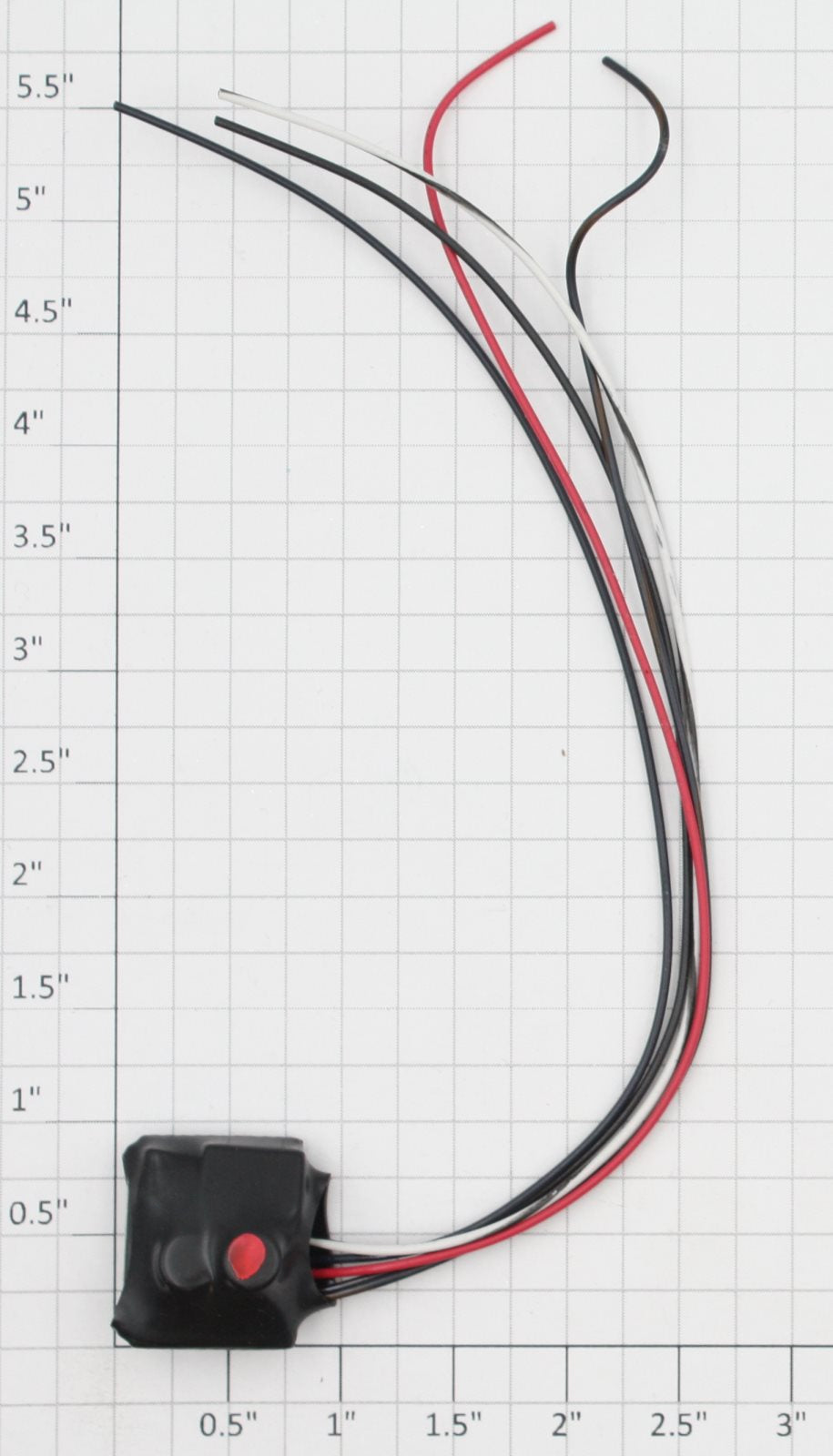

These AC Regs have 4 or 5 wires (there are 2 grounds that are connected internally, so some will have 5 wires & others will have 4 wires). The ones with the triac exposed (outside of the heat shrink) are only for Legacy applications (the triac needs to be electrically insulated from ground, but screwed to the grounded chassis for heat dissipation.

The 5 wires are marked all the AC regs as + / - / H+ / - / S That stands for:

(+) = AC center rail

(-) = AC ground

(H+) = Smoke unit hot

(-) = AC Ground *ground for the smoke unit, but you can ground it to the chassis to save all that extra wire routing)

(S) = serial data (pin 24 of the R2LC / R4LC

Condition: Factory New (C-9)
Operational Status: Functional
Original Box: No

Manufacturer: Lionel
Model Number: 691ACRGES1
Variation: New

Category 1: O Modern PCB Boards
Category 2: TMCC


We are unable to provide parts lookup service or fitment assistance.

The Trainz SKU for this item is P11995943.

Trainz Product Id: 11995943
