This is ANE Model A010 Smartswitch/Smartfrog/Dec. SmartSwitch, SmartFrog and stationary decoder set (without hand control board).
Its key features are:
Easy to install
Built-in drilling template
Dual DC & DCC available:
a. Dispatch mode (DCC stationary decoder) and
b. Switch mode. (Toggle switch or Push button switch options)
Remote programming technique: Improved user friendly fully adjustable “hand throttle” (control board)
Adjustable servo speed from slowest 1 to fastest 9. (factory default: middle 5)
Adjustable servo horn angles
Dual LED displays in the hand throttle
Improved servo silent technique for analog servos
Virtual center line for easy trouble free mounting
Minimal structural interference---the servo and its mounting linkage are compact in size
More mounting possibilities---traditional, off-center or horizontal rotary installation. The servo can be installed either below the road bed or next to the turnout
Adjustable servo speed and position through the programming features in the SmartSwitch™ control board to give you ultimate control for pressing the point rails against the stock rails
Each control board can control up to four turnouts
Can simultaneously control one or up to four servos by using one toggle switch or push button
Remember the turnout positions when power is off
Provides various settings for indication and signal light
Low current draw. 9V is the minimum requirement for the input power supply
DCC friendly--- the SmartSwitch™ stationary decoder supports a full range of DCC accessory addresses (1-2048) and offers simple mainline address programming
The decoder also supports route control features from major DCC manufacturers
The SmartFrog™ has easy DCC friendly power route wiring. The precise polarity switch when both the point rails are not in contact with the stock rails allows for zero chance of short circuit
The SmartSwitch™ gives you the ultimate flexibility
Dimensions: SmartSwitch main control board--87mm x 50mm x 15mm; Hand control board--30mm x 60mm x 12mm; Extension wire 100cm/ 39 inch

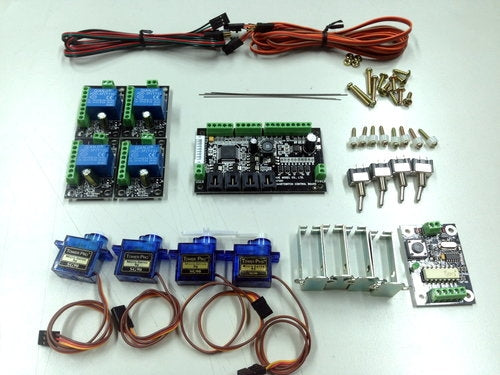

Set includes:
(1) SmartSwitch™ main control board
(4) SmartFrog™ board
(1) Stationary decoder
(4) 9g servo
(4) Servo bracket
(8) ?3 x 10mm wood screw (For securing servo bracket)
(16) ?2.6 x 15mm wood screw (For securing SmartSwitch™, SmartFrog™)
(4) ?3 x 20mm pan head machine screw
(4) Hex nut
(4) ?0.6 x 100mm (4 inch) control wire
(2) 500mm (19.5 inch) long extension wire
(2) 1000mm (39 inch) long extension wire
(5) SPST 2 pin toggle switch
(16) 5mm plastic spacer (For securing SmartSwitch™, SmartFrog™,Stationary decoder)
Condition: Factory New (
C-9)
Operational Status: FunctionalOriginal Box: Yes (
P-9)
Manufacturer: ANE Model
Model Number: A010
MSRP: $139.95
Scale/Era: Z Scale
Model Type: Control & Electrical
The Trainz SKU for this item is P12001257.
Trainz Product Id: 12001257
