ANE Model A011 5 Volt SmartSwitch Set

ANE Model A011 5 Volt SmartSwitch Set

Skip to product information
1 of 1
Sold Out
This is ANE Model A011 SmartSwitch 5v Version Set. Note: Use only an input voltage of 5V DC (any voltage input greater than 6V DC may damage control chip and peripheral devices).

Its key features are:
Easy to install
Built-in drilling template
DC available: Toggle switch or push button switch options
Adjustable servo speed from slowest 1 to fastest 9 (factory default: middle 5)
Adjustable servo horn angles
Virtual center line for easy trouble free mounting
Minimal structural interference---the servo and its mounting linkage are compact in size
More mounting possibilities---traditional, off-center or horizontal rotary installation. The servo can be installed either below the road bed or next to the turnout
Adjustable servo speed and position through the programming features in the SmartSwitch™ control board to give you ultimate control for pressing the point rails against the stock rails
Each control board can control up to four turnouts
Can simultaneously control one or up to four servos by using one toggle switch or push button
Remember the turnout positions when power is off
Provides various settings for indication and signal light
Dimensions: 60mm x 40mm x 15mm

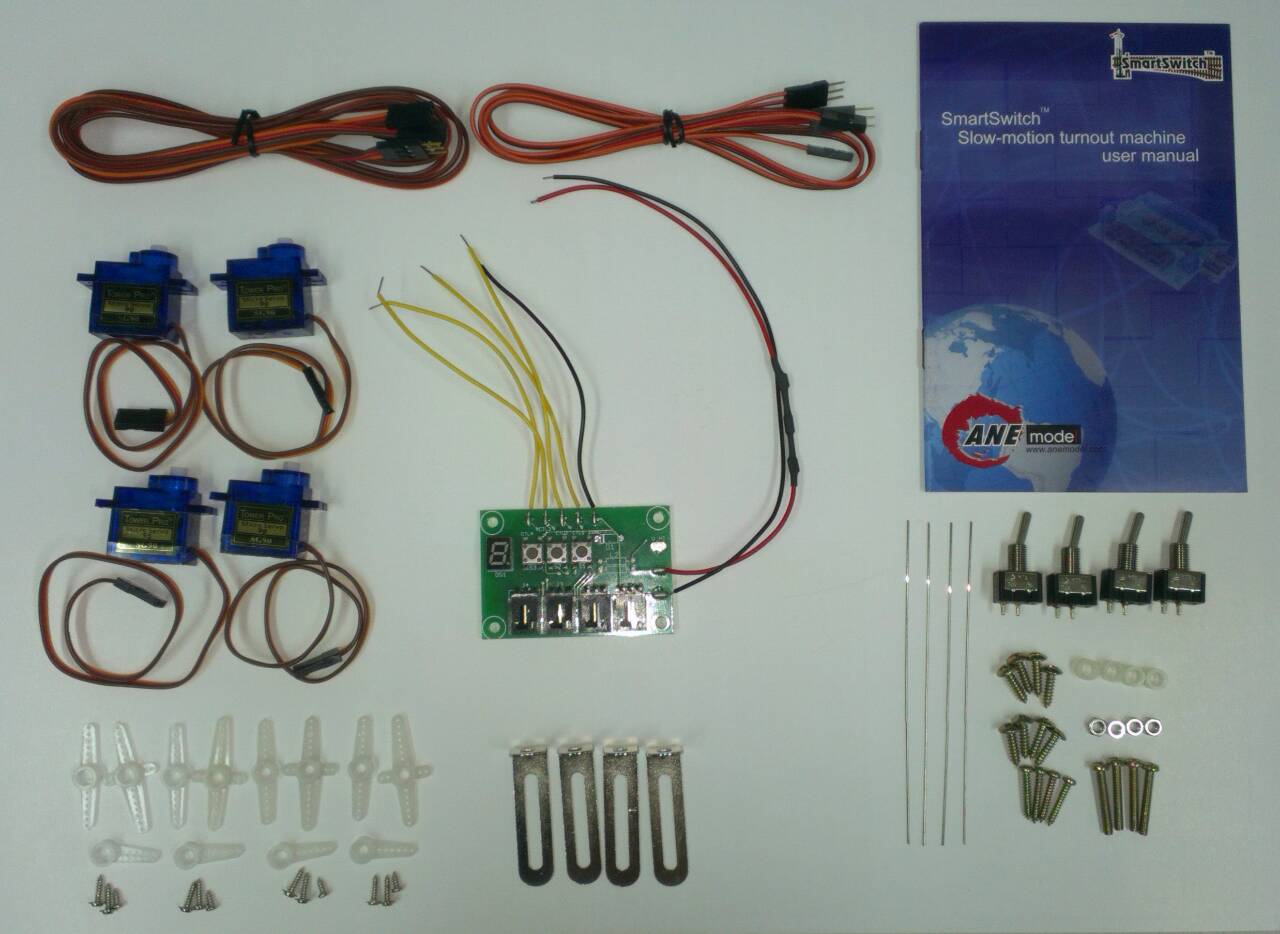

Set includes:
(1) SmartSwitch™ main control board 5V version
(4) 9g servo
(4) Servo bracket
(8) ?3 x 10mm wood screw (For securing servo bracket)
(4) ?2.6 x 15mm wood screw (For securing SmartSwitch™)
(4) ?3 x 20mm pan head machine screw
(4) Hex nut
(4) ?0.6 x 100mm (4 inch) control wire
(2) 500mm (19.5 inch) long extension wire
(2) 1000mm (39 inch) long extension wire
(4) SPST 2 pin toggle switch
(4) 5mm plastic spacer (For securing SmartSwitch™)

Condition: Factory New (C-9)
Operational Status: Functional
Original Box: Yes (P-9)

Manufacturer: ANE Model
Model Number: A011

Scale/Era: HO Scale
Model Type: Control


The Trainz SKU for this item is P12001258.

Trainz Product Id: 12001258
