This is ANE Model A014 SmartSwitch 5v/Smartfrog. SmartSwitch 5V version, SmartFrog and stationary decoder set. Note: Use only an input voltage of 5V DC (any voltage input greater than 6V DC may damage control chip and peripheral devices).
Its key features are: Easy to install Built-in drilling template DC available: Toggle switch or push button switch options Adjustable servo speed from slowest 1 to fastest 9 (factory default: middle 5) Adjustable servo horn angles Virtual center line for easy trouble free mounting Minimal structural interference---the servo and its mounting linkage are compact in size More mounting possibilities---traditional, off-center or horizontal rotary installation. The servo can be installed either below the road bed or next to the turnout Adjustable servo speed and position through the programming features in the SmartSwitch™ control board to give you ultimate control for pressing the point rails against the stock rails Each control board can control up to four turnouts Can simultaneously control one or up to four servos by using one toggle switch or push button Remembers the turnout positions when power is off Provides various settings for indication and signal light Dimensions: 60mm x 40mm x 15mm

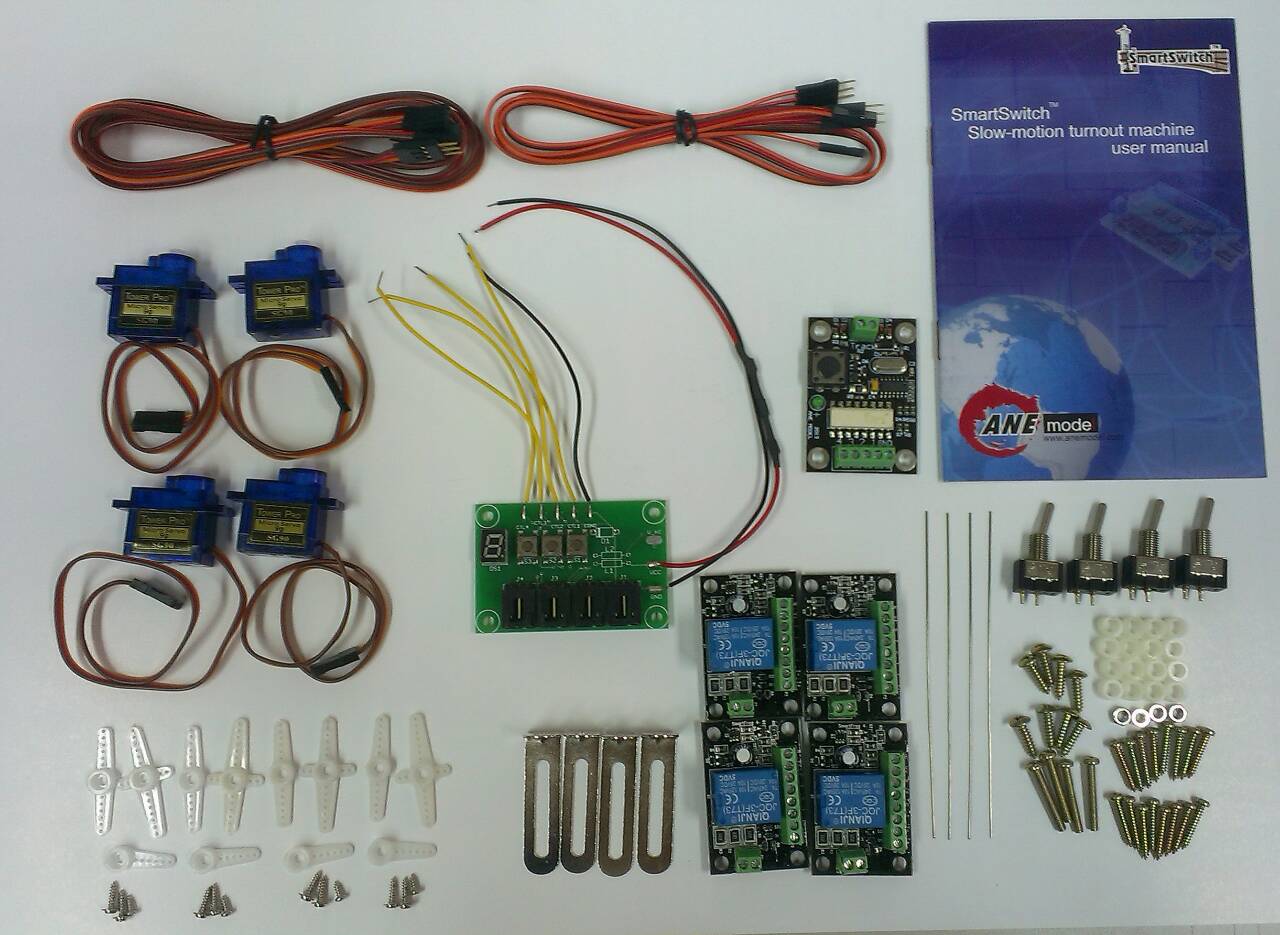

Set includes: (1) SmartSwitch™ main control board 5V version (4) SmartFrog™ board (1) Stationary decoder (4) 9g servo (4) Servo bracket (8) ?3 x 10mm wood screw (For securing servo bracket) (16) ?2.6 x 15mm wood screw (For securing SmartSwitch™, SmartFrog™) (4) ?3 x 20mm pan head machine screw (4) Hex nut (4) ?0.6 x 100mm (4 inch) control wire (2) 500mm (19.5 inch) long extension wire (2) 1000mm (39 inch) long extension wire (4) SPST 2 pin toggle switch (16) 5mm plastic spacer (For securing SmartSwitch™, SmartFrog™,Stationary decoder)
Condition: Factory New (C-9) Operational Status:Functional Original Box: Yes (P-9)
Manufacturer: ANE Model Model Number: A014
Scale/Era: HO Scale Model Type: Control & Electrical
The Trainz SKU for this item is P12001261.
Trainz Product Id: 12001261
