Its key features are: Remote programming technique: Separate hand control board design. It helps you in adjusting the servo position easier. When you complete the servo adjustment, plug out hand control board, you can use it to adjust another main control board. Several main control board only need one hand control board. This special design will help you to saving more money Support 9 different speed to change turnout point track (factory default: middle 5) Adjustable servo horn angles Dual LED displays in the hand throttle Improved servo silent technique for analog servos Virtual center line for easy trouble free mounting Support up to 4 servos in one control board. It also support different size servo from 1.7g to 55g Accept push button and toggle switch control Remember the turnout positions when power is off 8 LED outputs for 4 turnouts point track position indicate Low current draw. 9V is the minimum requirement for the input power supply Power Input: 9~15VDC, 9~20VDCC/AC Max current 2A Two switch terminal support DCC (CTC) and local panel control. (DCC decoder optional) Dimensions: SmartSwitch main control board --87mm x 50mm x 15mm; Hand control board--30mm x 60mm x 12mm; Extension wire 100cm/ 39 inch

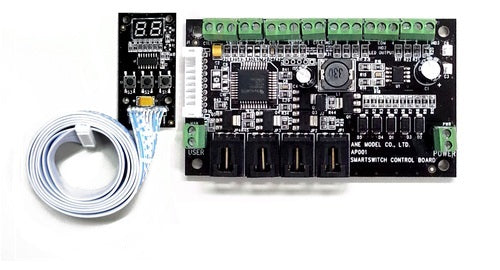

Set includes: (1) SmartSwitch™ main control board (1) SmartSwitch™ hand control board
Condition: Factory New (C-9) Operational Status:Functional Original Box: Yes (P-9)
Manufacturer: ANE Model Model Number: AP001
Scale/Era: HO Scale Model Type: Control
The Trainz SKU for this item is P12001262.
Trainz Product Id: 12001262
