ANE Model AP012 5 Volt Smart Switch Board

ANE Model AP012 5 Volt Smart Switch Board

Skip to product information
1 of 1
Sold Out

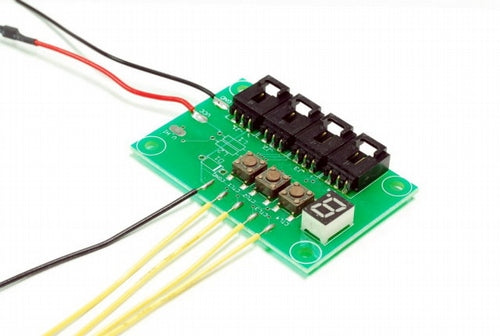

This is ANE Model AP012 SmartSwitch Board 5v. With its adjustable servo speed and adjustable servo position, SmartSwitchTM offers you an ultimate flexibility to operate not only turnouts but also crossing gates, semaphore signals or any creative animation that you can think of. AP012 SmartSwitch 5V control board is a simple version main control board that has 4 servo control and 9 speed adjustment. It only accepts 5VDC power input and without LED output indicate.

Its key features are:
Easy to install
DC available :Toggle switch or Push button switch options
Adjustable servo speed from slowest 1 to fastest 9. (factory default: middle 5)
Adjustable servo horn angles
Virtual center line for easy trouble free mounting
Minimal structural interference---the servo and its mounting linkage are compact in size
More mounting possibilities---traditional, off-center or horizontal rotary installation. The servo can be installed either below the road bed or next to the turnout
Adjustable servo speed and position through the programming features in the SmartSwitchTM control board to give you ultimate control for pressing the point rails against the stock rails
Each control board can control up to four turnouts
Can simultaneously control one or up to four servos by using one toggle switch or push button
Remember the turnout positions when power is off
Dimensions: 60mm x 40mm x 15mm

Condition: Factory New (C-9)
Operational Status: Functional
Original Box: Yes (P-9)

Manufacturer: ANE Model
Model Number: AP012

Scale/Era: HO Scale
Model Type: Control & Electrical


The Trainz SKU for this item is P12001268.

Trainz Product Id: 12001268
