Dwarvin DVFLRRXBELL Crossing Bell Sound Module For Fiber Lighting Systems

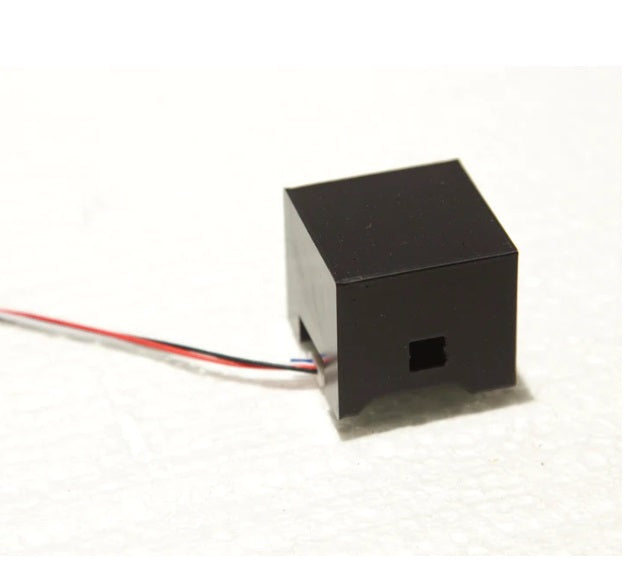

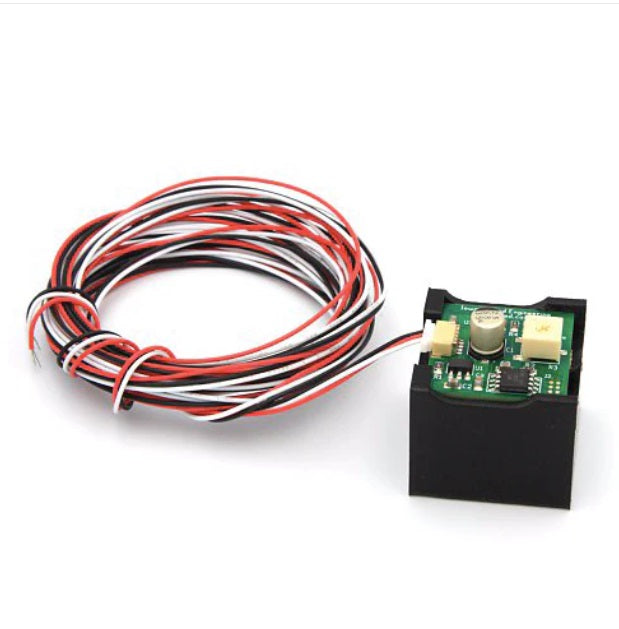

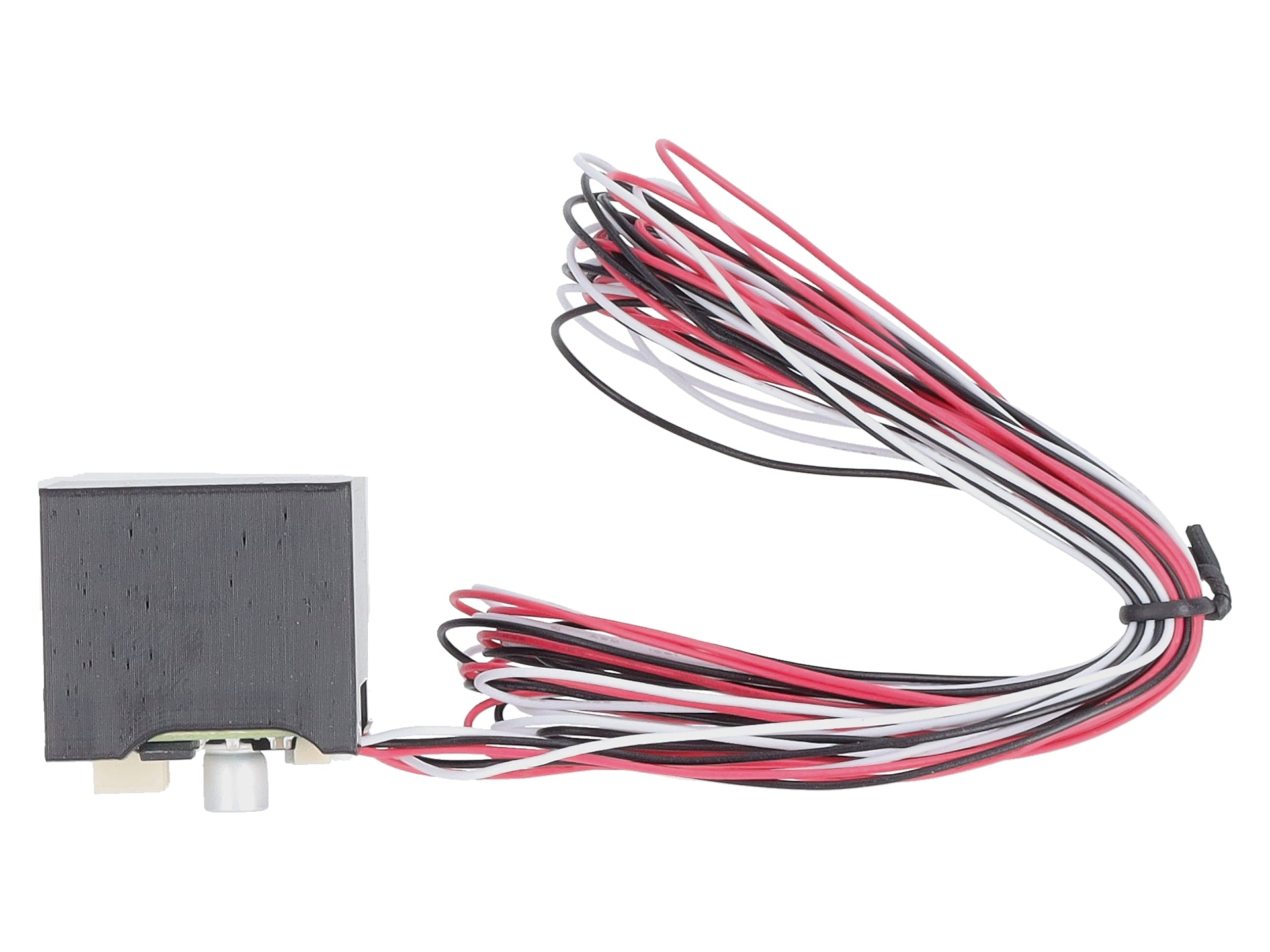

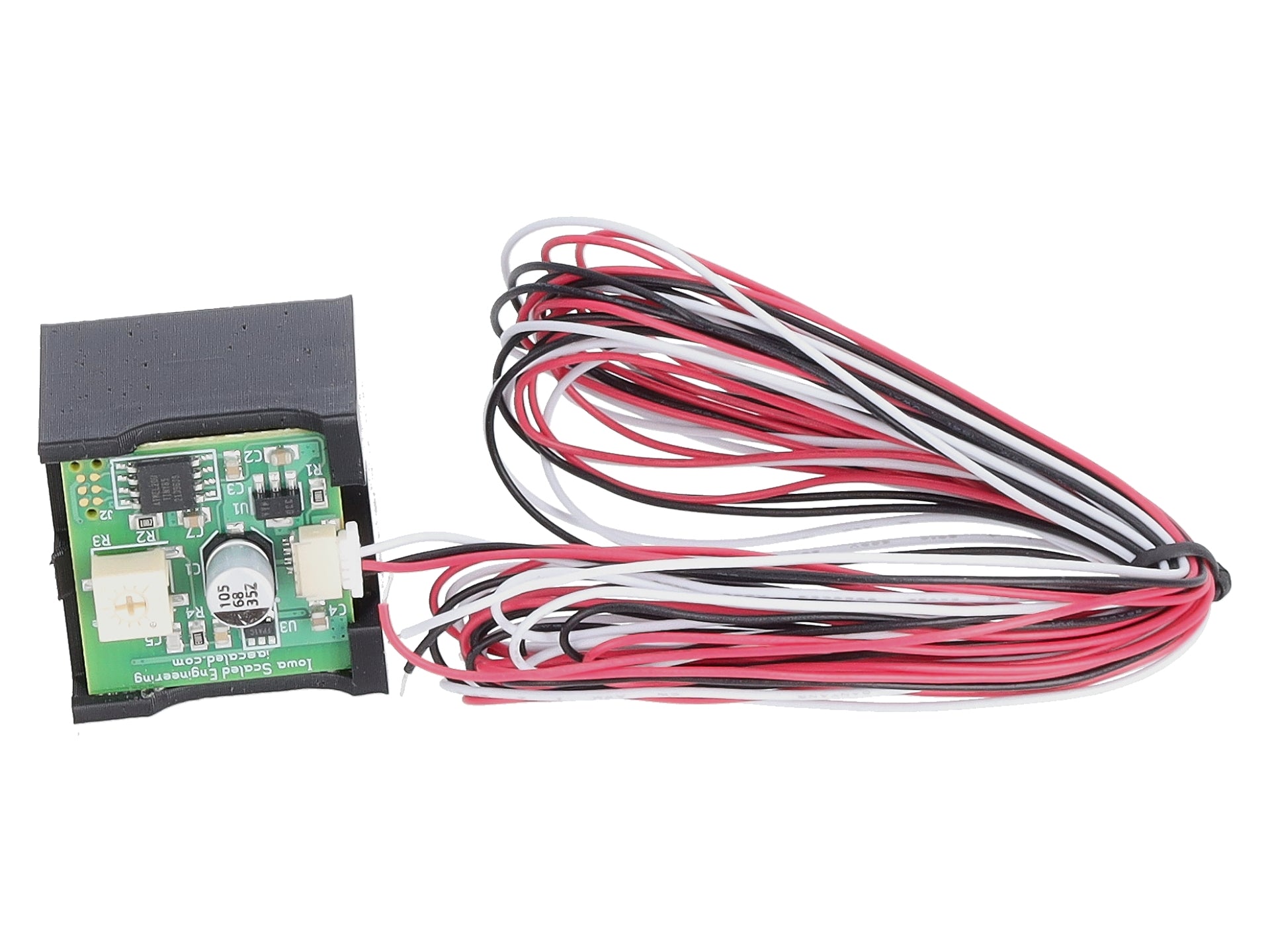

This is a Dwarvin DVFLRRXBELL Crossing Bell

This item is one component used with the Dwarvin Integrated Railroad Crossing System

To view the other components of the system and installation, click on the following links
-How it works
-Types of lighting systems
-All about fiber cables

This Crossing Bell is a simple, fully self-contained sound module that plays a standard grade crossing bell sound. It has been specifically designed to be part of the Fully Integrated RR Crossing System.

Features
Simple to use
Integrated speaker & volume control
Ideal for adding sound to grade crossings
Powered from 5V to 24V
Turn off time = 5sec*
* the unit turns off 5sec after the Detectors no longer see a train.

Electrical Connections:
It is designed to be used with the Lamplighter DFL animation unit. Just plug the output from the unit (the white wire) into the trigger port on the Lamplighter DFL unit, in conjunction with the Detectors, and the power into the power output on the unit.

Red Wire = 5V to 24V

Black Wire = GND
White Wire = GND to activate (connect to the trigger port of the Lamplighter FL Animation unit with Detectors attached)

When a train is detected the trigger units pull their output signals to round, which in turn activated the Bell.

Additional information:
The bell needs 5-24 volts of clean direct current (DC) power to operate.
Specifications
1.25"(L) x 1.25"(W) x 1.25"(H)

Condition: Factory New (C-9)
Operational Status: Functional

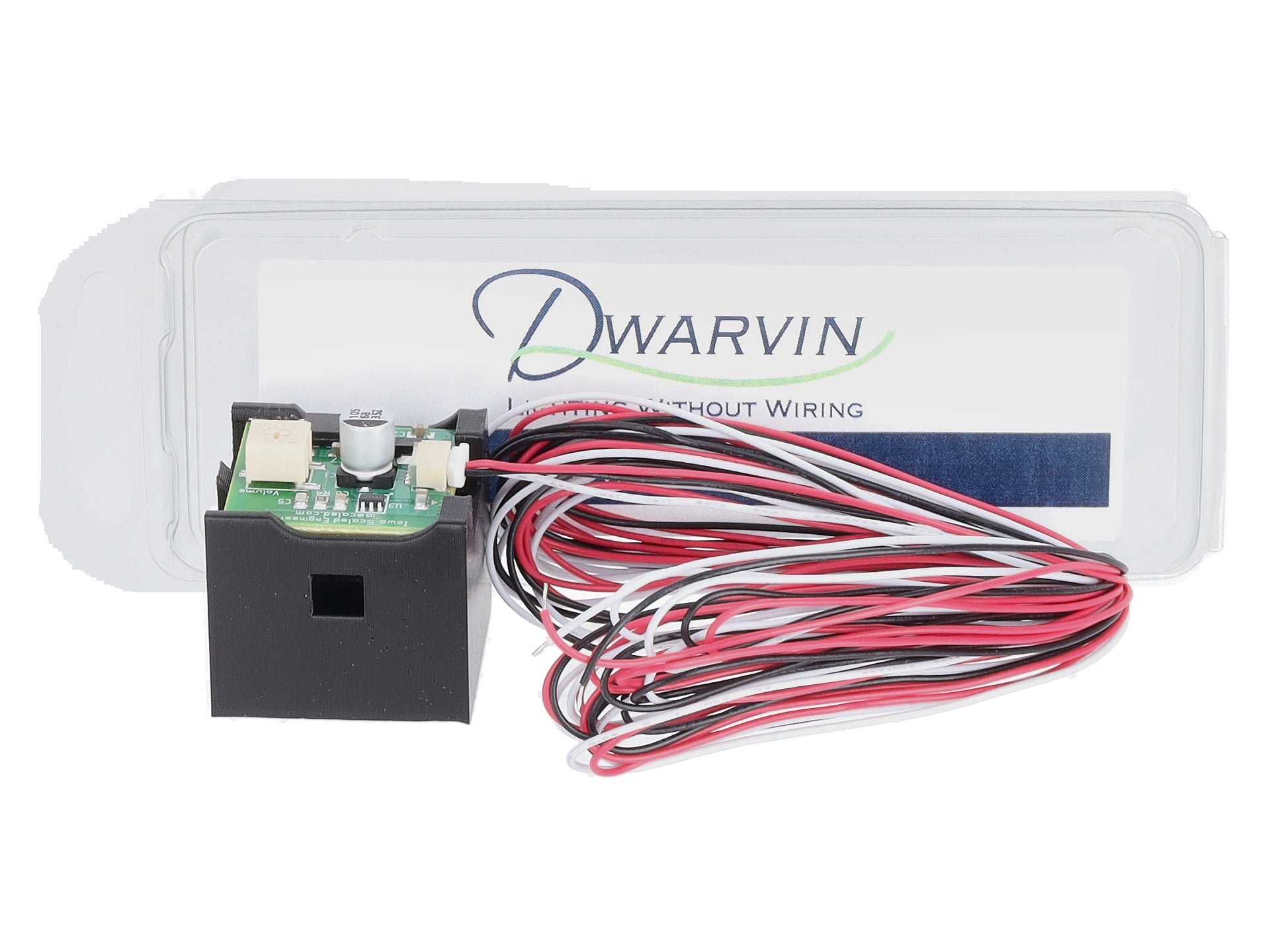

Original Box: Yes (P-9)

Manufacturer: Dwarvin
Model Number: DVFLRRXBELL

Category 1: Parts
Category 2: Control & Electrical

This video is included only to show the general features of this model and was not filmed with the exact item advertised.




The Trainz SKU for this item is P12642531.

Trainz Product Id: 12642531
