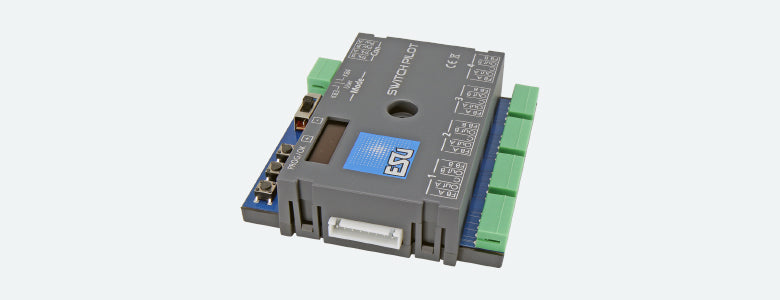

This is an ESU 51830 SwitchPilot V2.0 Accessory Decoder. The SwitchPilot 3 can be supplied directly from the digital system or from an external DC or change voltage source. It has a total of 8 transistor outputs, which are grouped in the 4 exit pairs 1 to 4. Each output pair contains two outputs (OutA and OutB) and can be configured individually for the desired use case: In pulse mode, the output is switched on as soon as a switching command is received. The fact that the output automatically switches off again as soon as the time stored in the decoder has elapsed prevents the burning of magnetic article drives. At the moment (K83-compatible) the output remains active as long as the button on the control panel is pressed. This operating mode is suitable for turnout drives with final shutdown or for de-caps. In bi-stable continuous operation (k84-compatible), the two outputs are switched on and off: When pressing the first button (red) on the control panel, the output Out A is switched on. It remains active until pressing the assigned button (green) activates the output Out B of the same output group. Out A and Out B behave like a change switch. In alternating flasher mode, the outputs Out A and Out B of an output pair are switched on alternately with an adjustable flashing frequency. The change indicator is started with the command Ge- ride/Green of the assigned button and stopped again with the command Branching/Red. Optionally, the output can also be slowly dimmed and dimmed (so-called zoom for glow lam pen simulation).With the switch 3 mode switch, you can switch all output pairs together to the k83 or k84 modes at lightning speed, regardless of how they are configured.
Condition: Factory New (C-9) Operational Status:Functional Original Box: Yes (P-9)
Manufacturer: ESU Model Number: 51830
Scale/Era: HO Scale Model Type: Control
The Trainz SKU for this item is P12622897.
Trainz Product Id: 12622897
