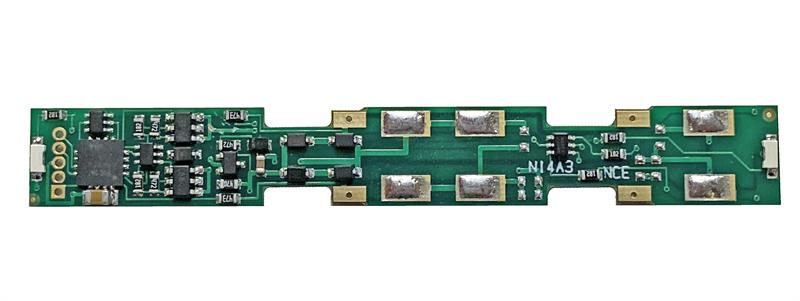

NCE 0181 N N14A3 DCC Decoder Atlas Drop-In Board Replacement

Reg Price: $39.95
In stock
This is a NCE Corporation 0181 N N14A3 DCC Decoder Atlas Drop-In Board Replacement. NCE Decoders offer the following features: Torque Compensation for ultra smooth low speed performance, Programmable Start, Mid and Maximum speed works for all speed modes, Motor rating 3/4 Amp continuous, .75 Amp peak (stall), All four function outputs have lighting effects generators, Select from 15 different lighting effects (Mars, strobes, beacon, flicker, etc), Lighting outputs can be mapped to different functions, Uploadable speed table interpolated to 128 speed steps, Decoder assisted consisting, Support for all forms of DCC programming, Decoder programming lock mechanism, Brake on DC feature assists automatic train control, Decoder Specifications: Size: 2.60 x 0.35 x 0.079 (66 x 8.9 x 2.0 mm), Connection: Drop-In Board Replacement, Motor Rating: .75 Amp Continuous, .75 Amp Peak, Functions: (4) 100mA outputs (250mA Total), BEMF: Yes, Protocol: NMRA DCC Compliant, Additional Features: Forward and Reverse Trim

Condition: Factory New (C-9)
Operational Status: Functional
Original Box: Yes (P-9)

Manufacturer: NCE
Model Number: 0181
MSRP: $39.95

Scale/Era: N Scale
Model Type: DCC/Electrical


The Trainz SKU for this item is P12462664.


Track: 12462664 - No Location Assigned - 001 - TrainzAuctionGroup00UNK - TDIDUNK ProductId: 12462664
