Dwarvin DVFLBS201 N Fiber-Lit Black Dwarf Signal (Single)

This is a Dwarvin DVFLBS201 N Fiber-Lit 2-Color Black Dwarf Signal (Single)

This item is one component used with the following lighting systems
-Dwarvin Integrated Turnout Signal Systems
-Dwarvin Integrated Block Detection System

To view the other components of the systems and installation, click on the following links
How it works - -Dwarvin Integrated Turnout Signal Systems
How it works - -Dwarvin Integrated Block Detection System
-Types of lighting systems
-All about fiber cables

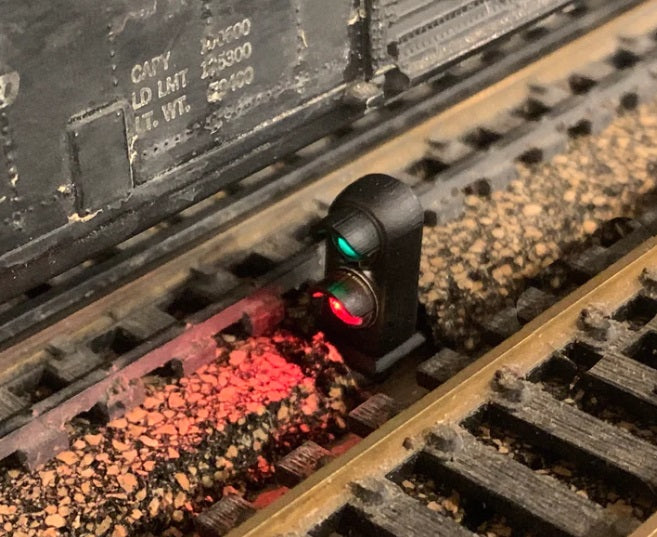

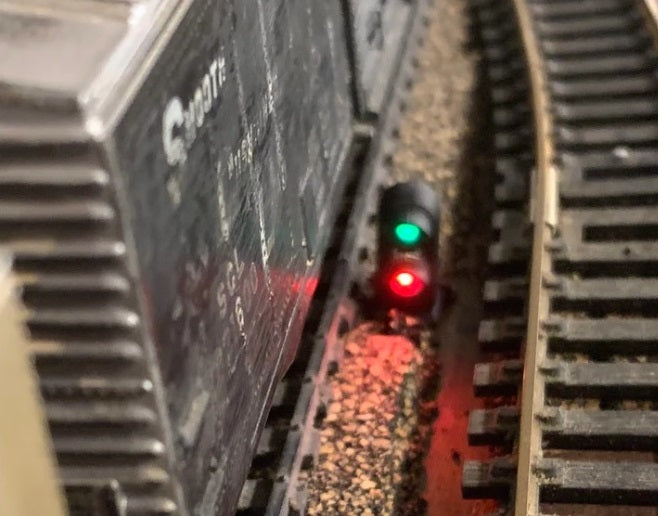

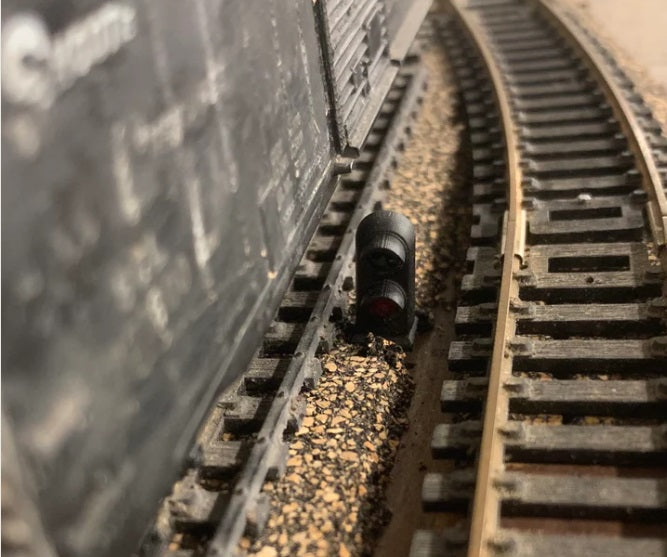

This N scale Dwarf Block Signal is part of a prototypical system that provides the ability to have a fully integrated Block Detection system when used in conjunction with detectors.

To mount the unit, just drill a 3/32" hole in the layout, insert the fibers, and then the tubing to the desired depth. The size of this hole will provide a snug fit for the Block Signal post, keeping it from swiveling around.

Dimensions:
Height: 0.45” (11.4mm)
Width of Signal: 3.9mm
Diameter of Fiber: 0.75mm
Stub: 2.4mm diameter, 6.7mm long
Length of Fiber: 5+ft

Condition: Factory New (C-9)
Operational Status: Functional

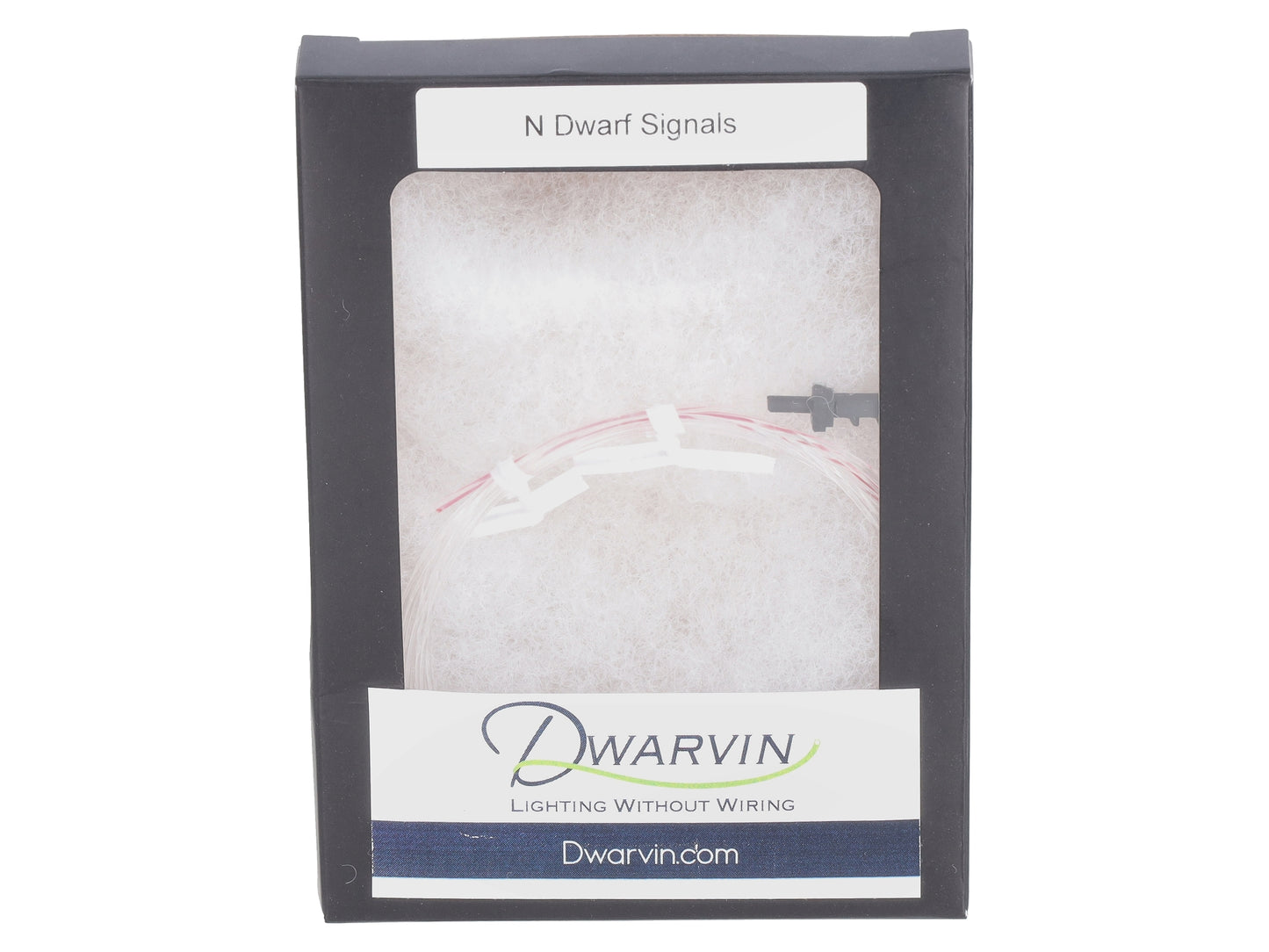

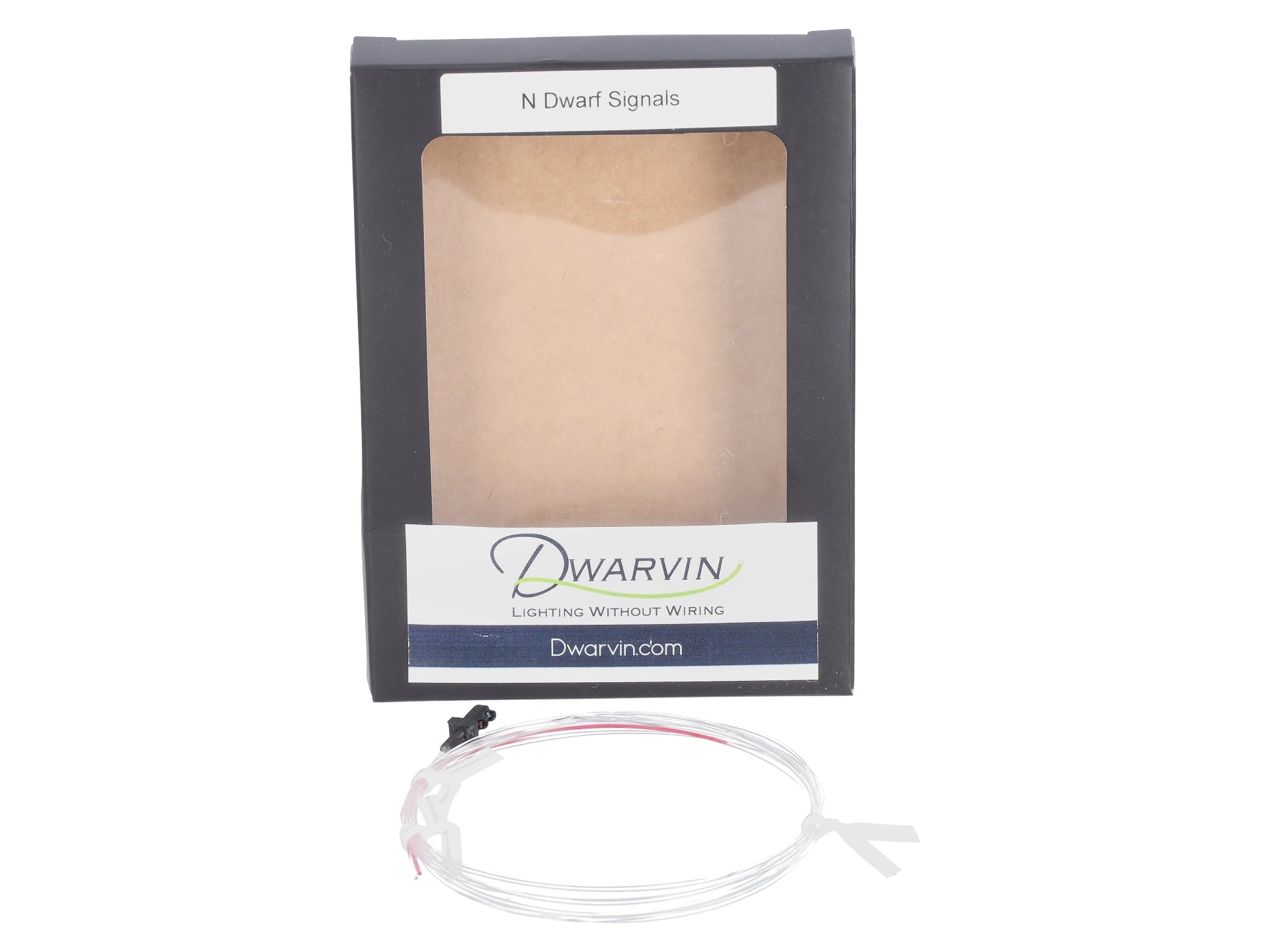

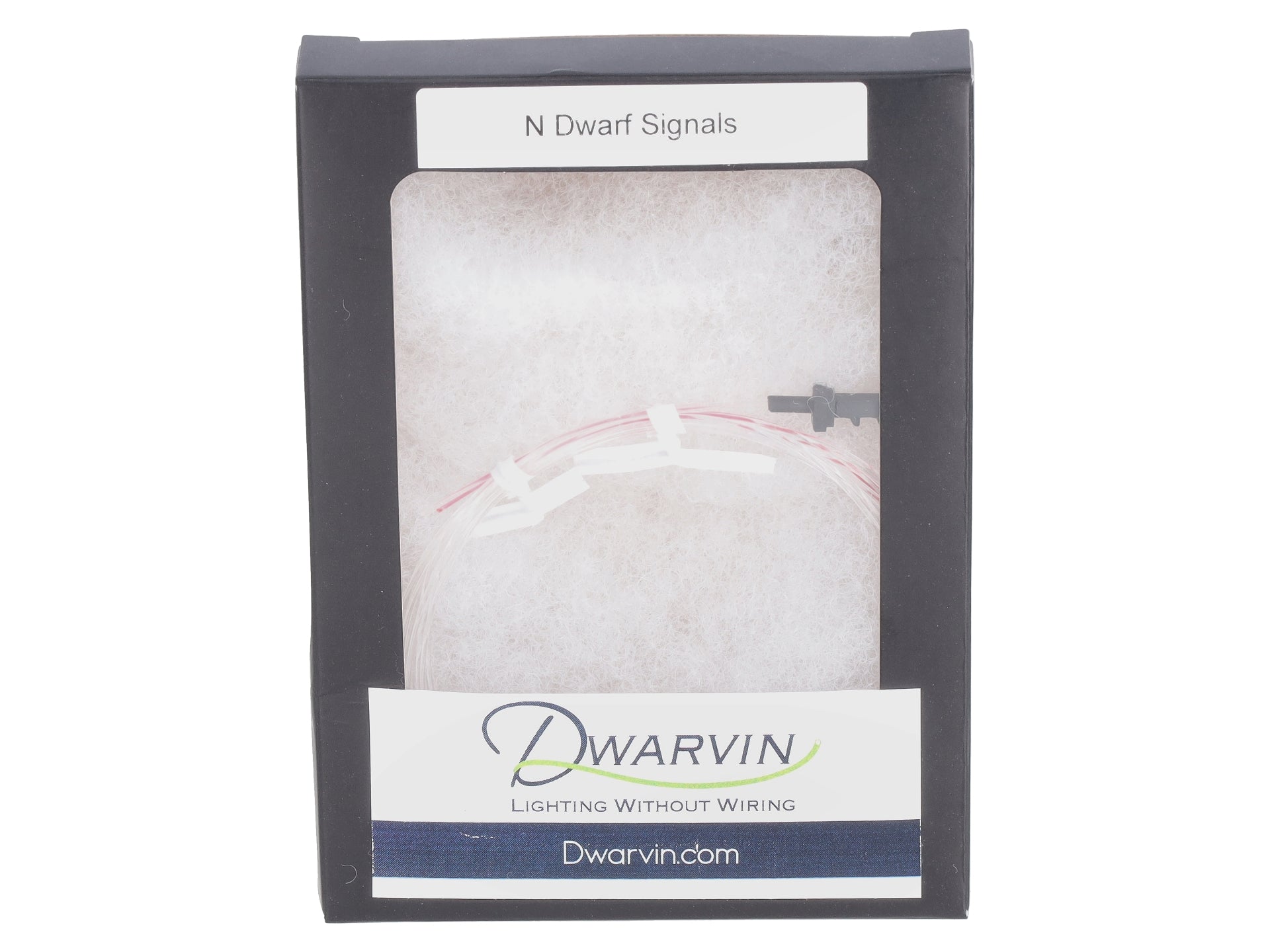

Original Box: Yes (P-9)

Manufacturer: Dwarvin
Model Number: DVFLBS201

Scale/Era: N Scale
Model Type: Accessories

This video is included only to show the general features of this model and was not filmed with the exact item advertised.




The Trainz SKU for this item is P12642290.

Trainz Product Id: 12642290
